Positive Crankcase Ventilation Valve: Locations

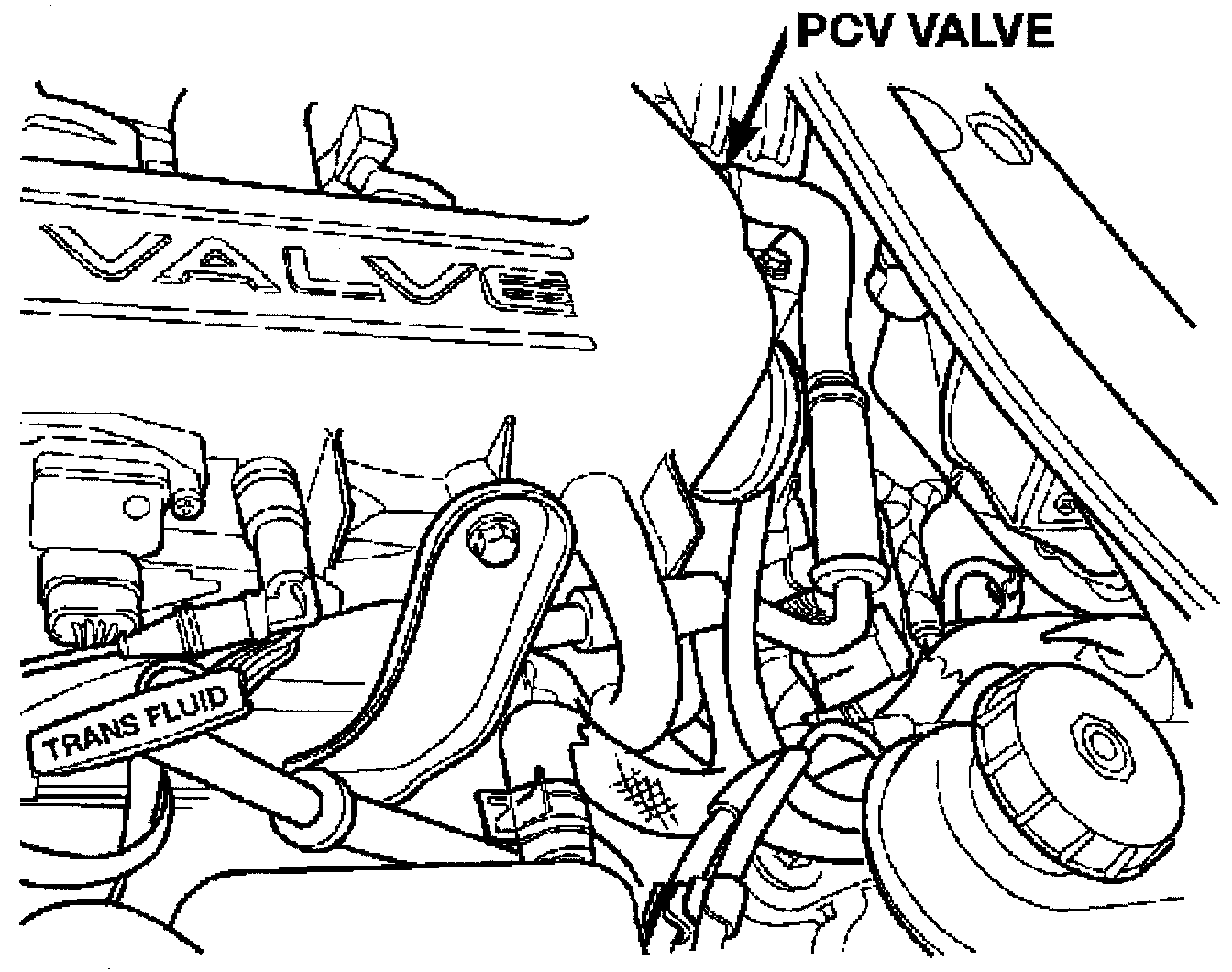

Fig.10 PCV Valve - 2.7L:

2.7L

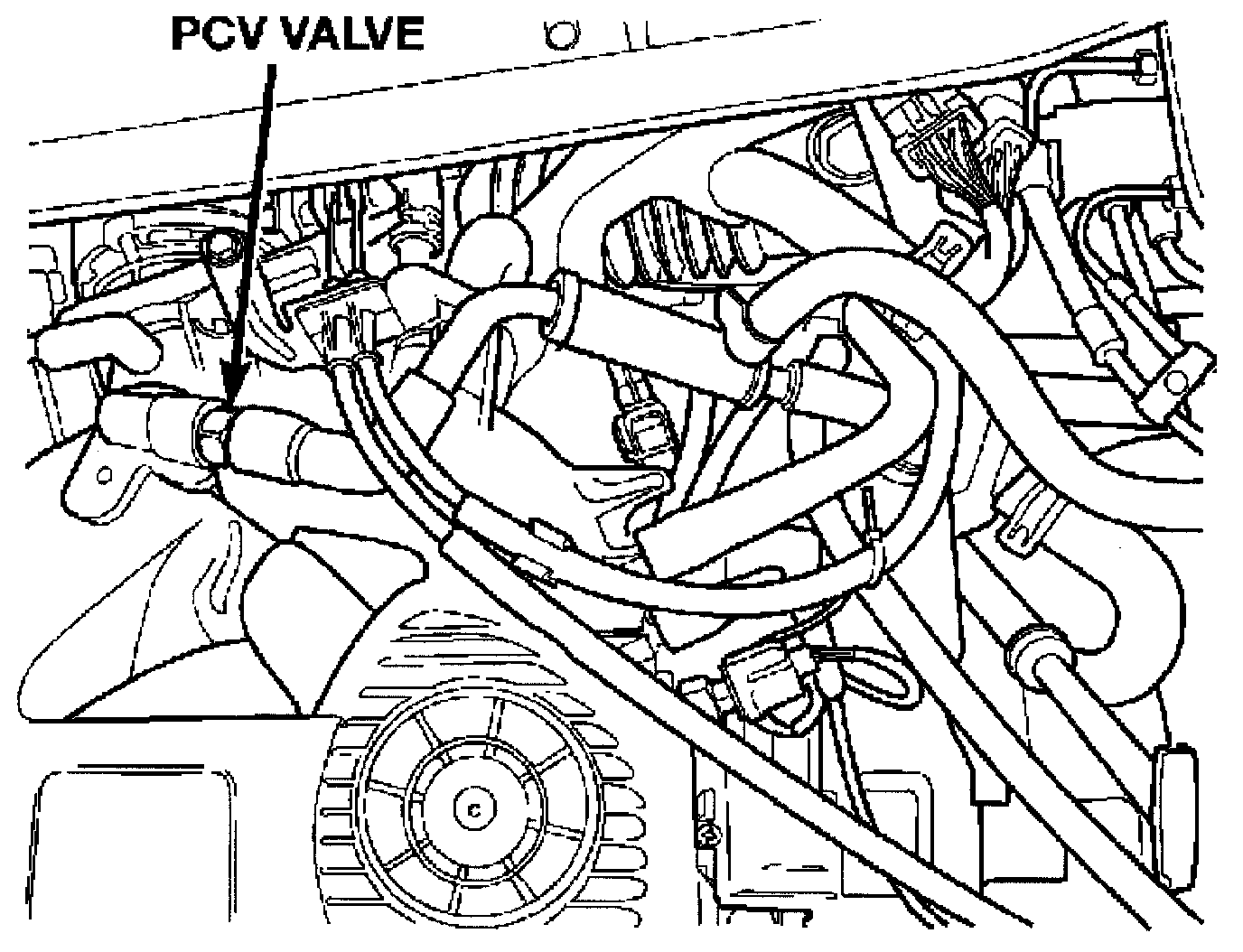

3.2/3.5L

The PCV valve contains a spring loaded plunger. The plunger meters the amount of crankcase vapors routed into the combustion chamber based on intake manifold vacuum.
