Leak Detection Pump: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

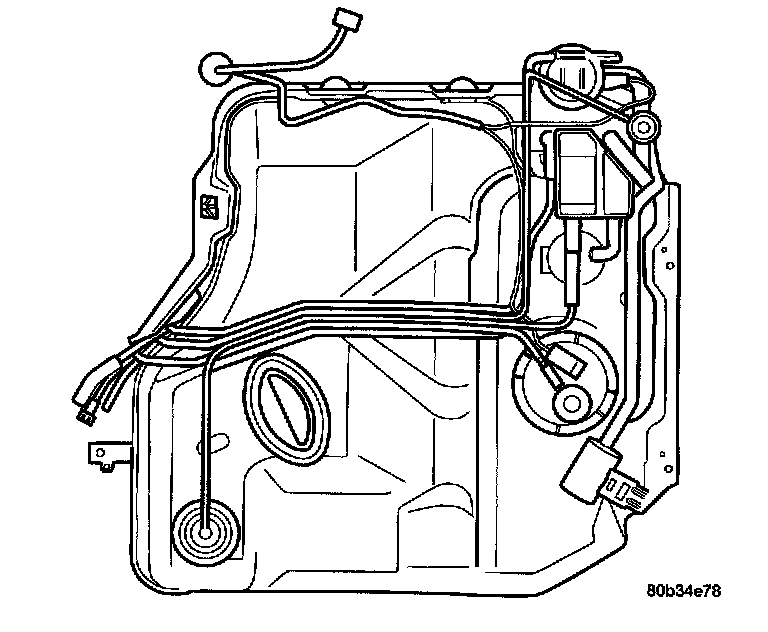

2. Remove fuel tank.

EVAP Canister And LDP:

3. Disconnect the hoses from the EVAP canister.

EVAP Bracket:

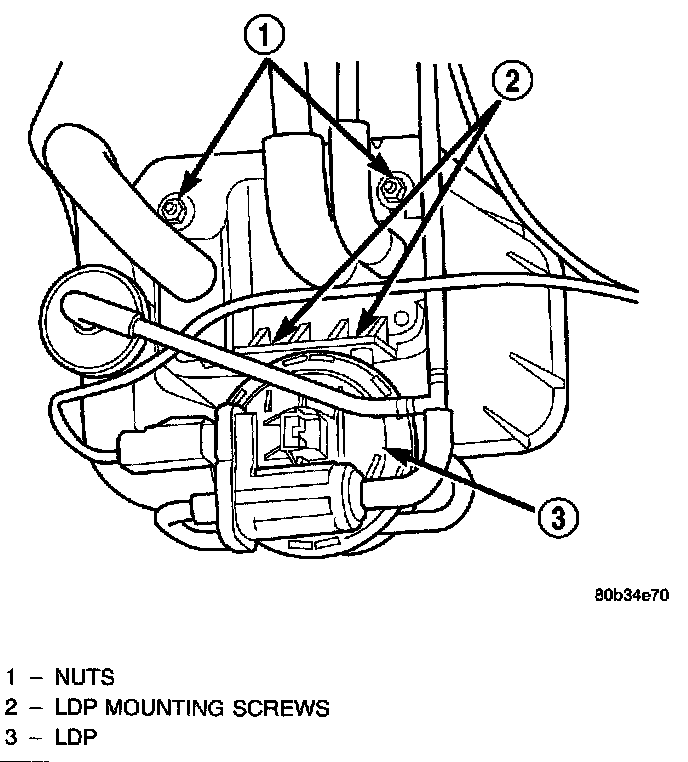

4. Remove 2 nuts from the upper bracket of the EVAP canister.

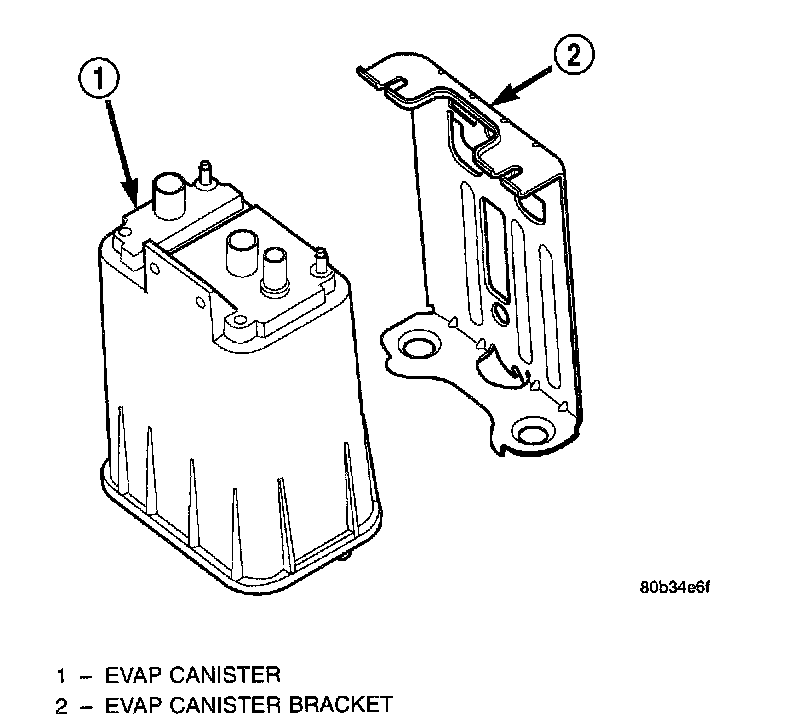

EVAP Canister Bracket:

5. Remove EVAP canister from bracket.

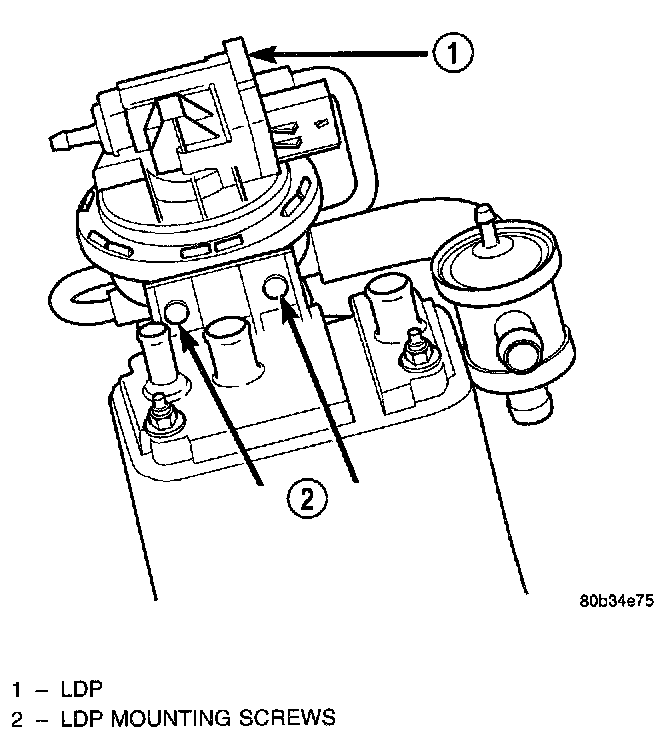

LDP Mounting Screws:

6. Remove LDP from EVAP canister upper bracket.

INSTALLATION
1. Install LDP to EVAP Canister.
2. Install EVAP canister to Bracket.
3. Install 2 nuts to EVAP canister bracket.
4. Connect hoses.
5. Install fuel tank.
6. Connect negative battery cable.
