No Crank Condition

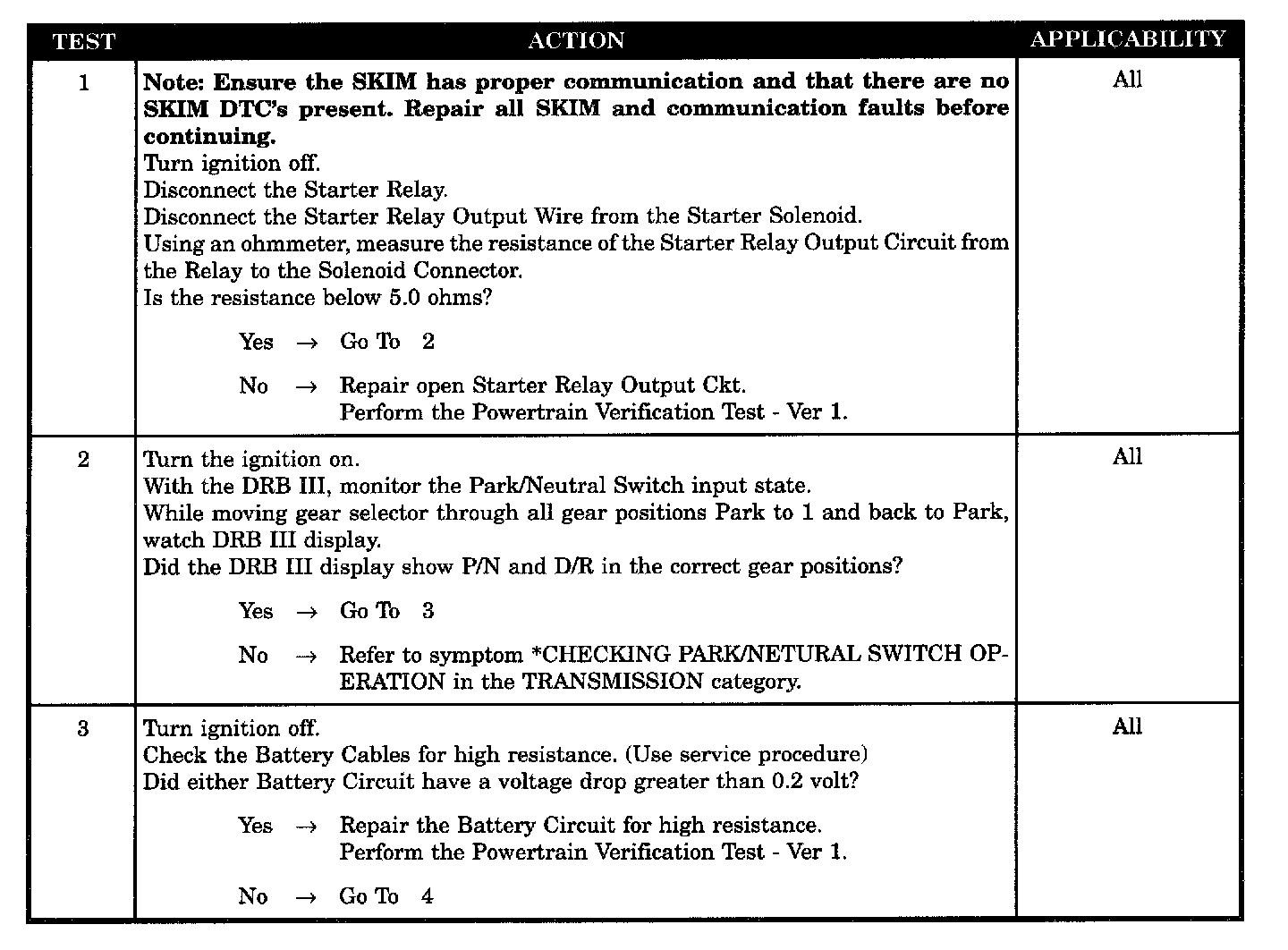

Tests 1 - 3:

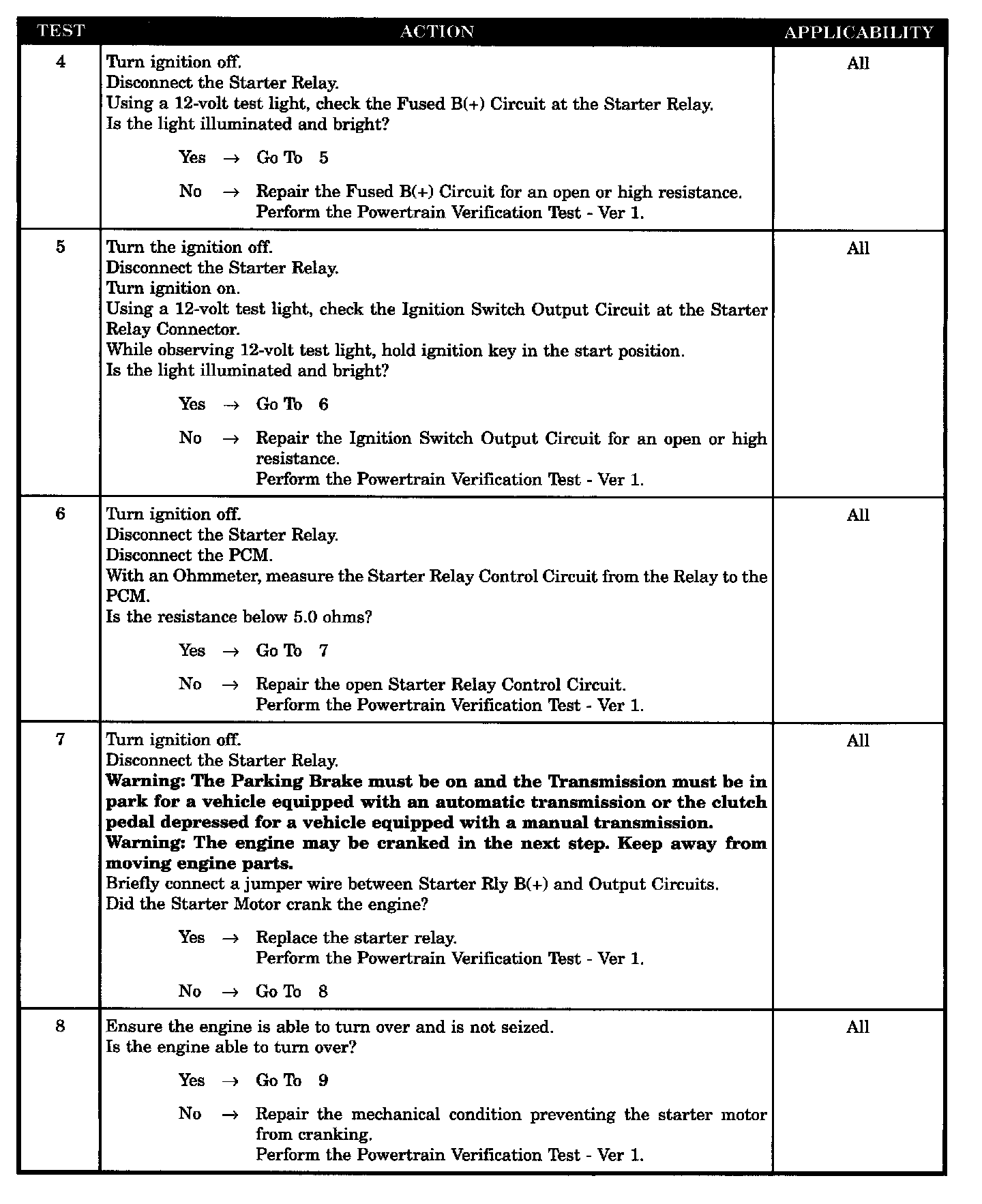

Tests 4 - 8:

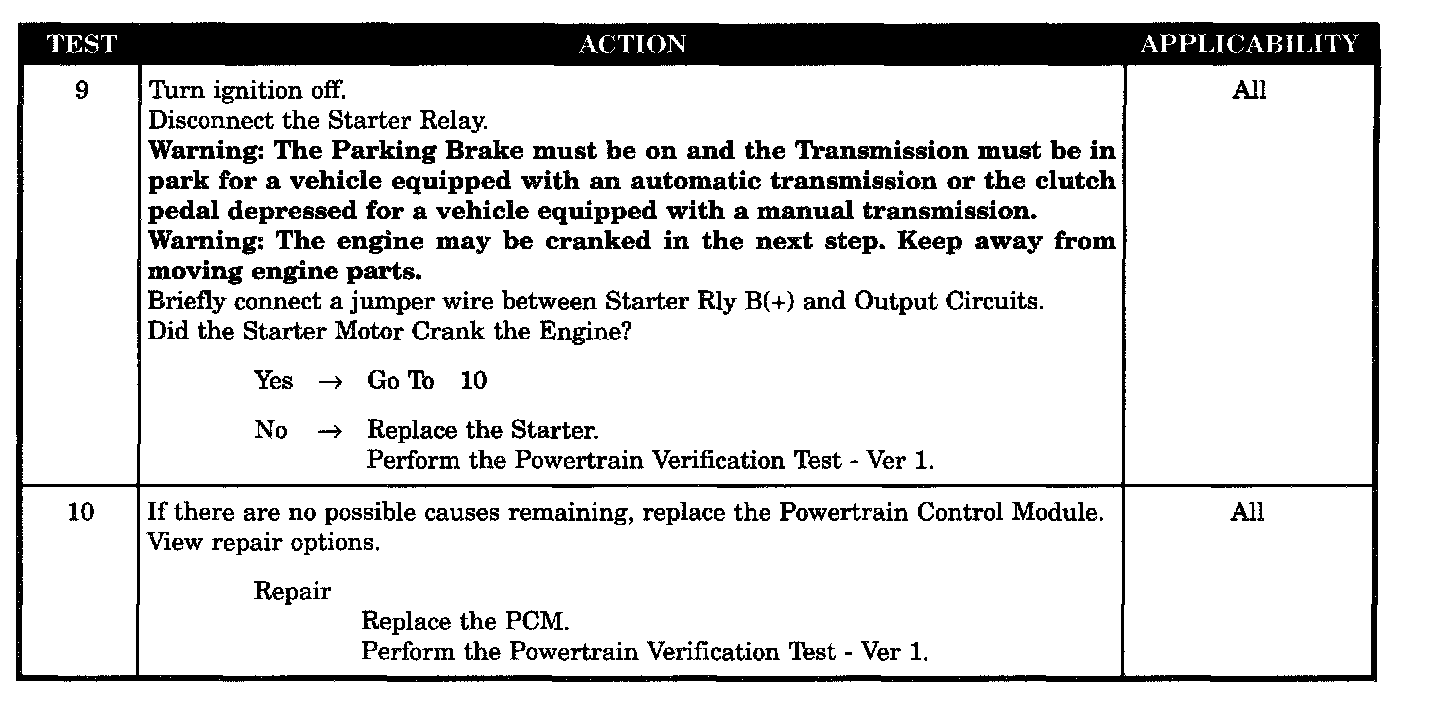

Tests 9 - 10:

SYMPTOM
NO CRANK CONDITION

POSSIBLE CAUSES
- Starter relay output circuit open
- Starter relay
- Battery circuit resistance too high
- Starter
- Repair mechanical condition
- Fused B(+) circuit open
- Ignition switch output circuit open
- Starter relay control circuit open
- PCM defective-starter relay control circuit
