Checking Intake Air Temperature Sensor
Checking Intake Air Temperature Sensor

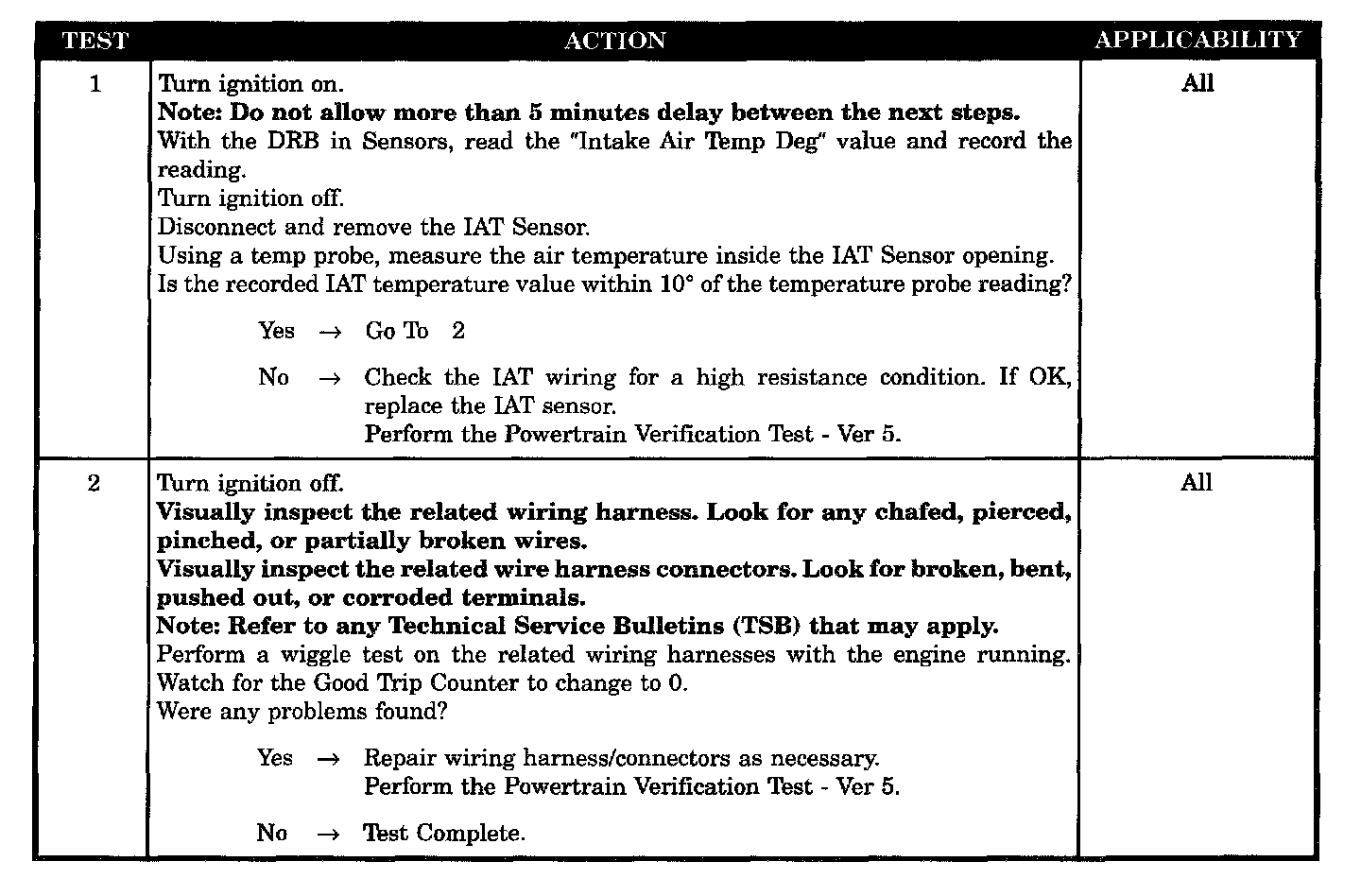

Tests 1 - 2:
SYMPTOM
CHECKING THE
INTAKE AIR TEMPERATURE SENSOR
POSSIBLE CAUSES
-
IAT sensor (out of calibration)
-
Wiring harness intermittent problem
