Checking Engine Vacuum

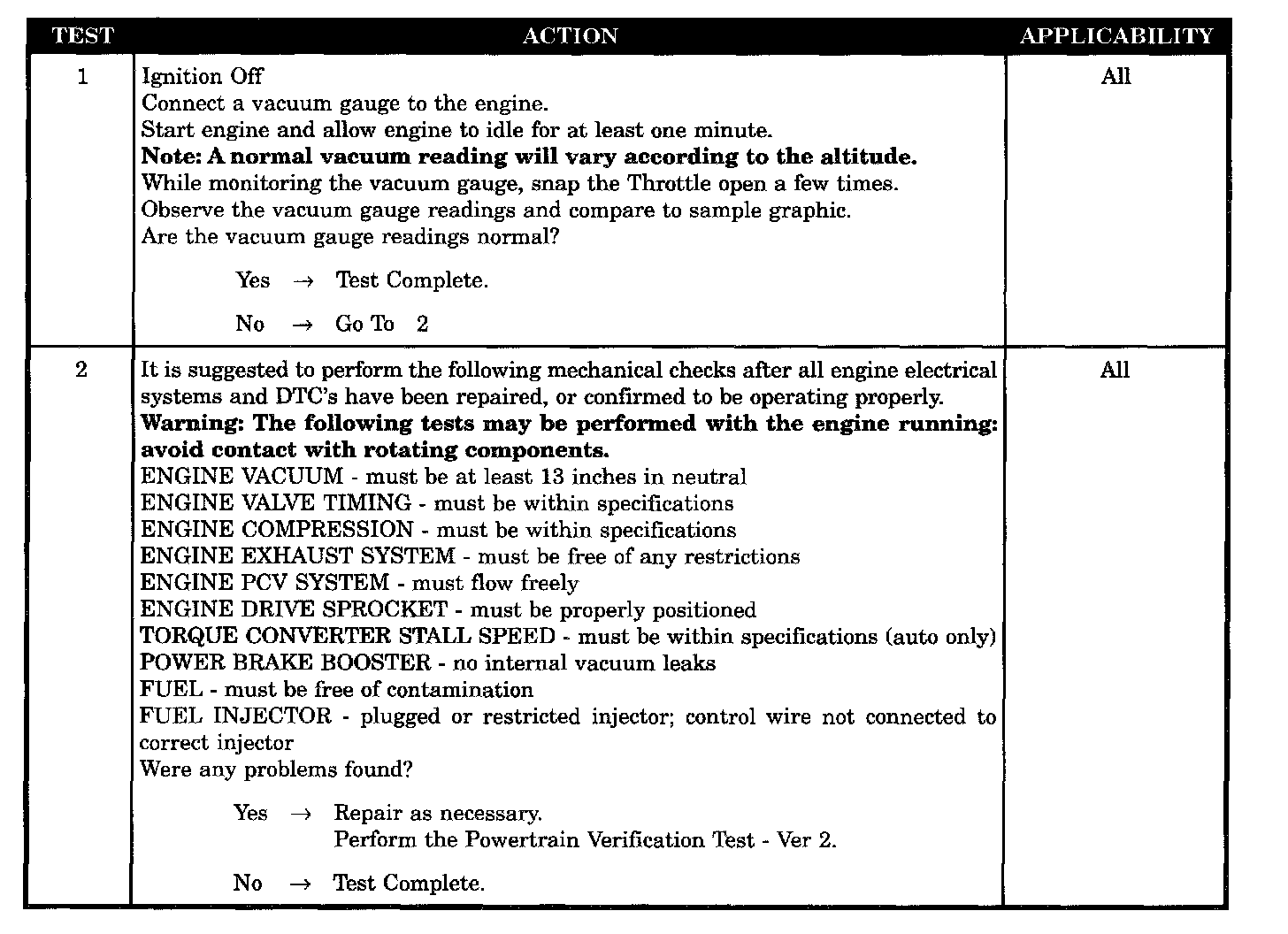

Tests 1 - 2:

SYMPTOM
CHECKING ENGINE VACUUM

POSSIBLE CAUSES
- Driveability problem engine mechanical
