Manifold Pressure/Vacuum Sensor: Service and Repair

MAP Sensor:

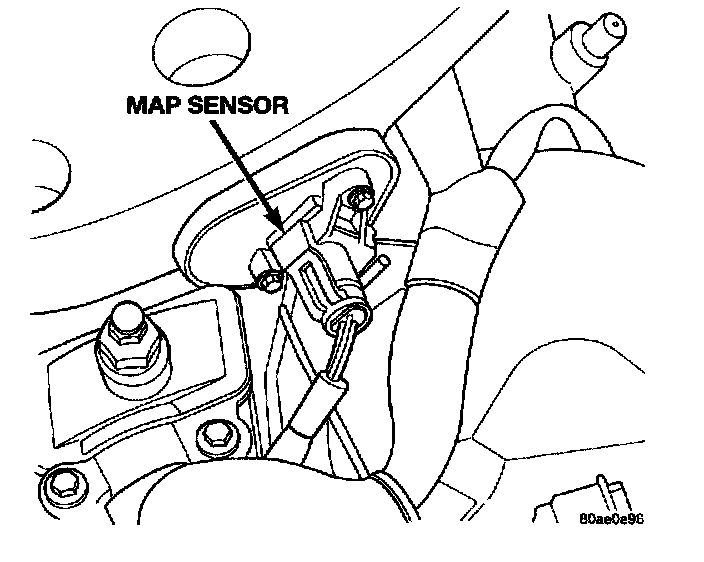

The MAP sensor mounts to the driver side of the intake manifold plenum.

REMOVAL
1. Remove the negative battery cable.
2. Disconnect the electrical connector from the MAP sensor.
3. Remove sensor.

INSTALLATION
1. The sensor mounts onto intake manifold plenum. Tighten screws to 4.5 Nm (40 in. lbs.) torque.
2. Attach electrical connector to sensor.
3. Install the negative battery cable.
