Turn Signal Bulb: Service and Repair

REMOVAL
1. Release hood latch and open hood.
2. Remove jackscrews attaching headlamp to crossmember.
3. Remove lamp housing to access the lamp socket.

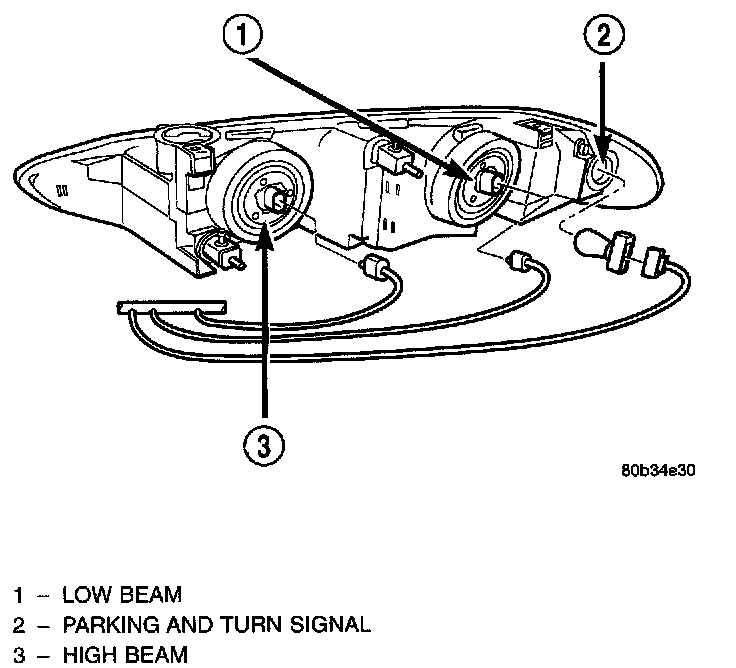

Parking, Side Marker, And Turn Signal Bulb:

4. Remove lamp socket from lamp housing.
5. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Install lamp socket in lamp housing.
3. Verify lamp operation.
4. Place headlamp in position on vehicle.
5. Install jackscrews to attach headlamp housing to crossmember.
