Tail Light Bulb: Service and Repair

Tail/Stop/Back-Up/Turn Signal Lamp Bulb Replacement

REMOVAL
1. Release decklid latch and open decklid.
2. Remove trunk lining from rear closure panel as necessary to gain access to tail lamp fasteners.
3. Remove nuts attaching tail lamp to rear closure panel.
4. Remove tail lamp from rear closure panel.

Tail, Stop, Back Up, And Turn Signal Lamp Bulb:

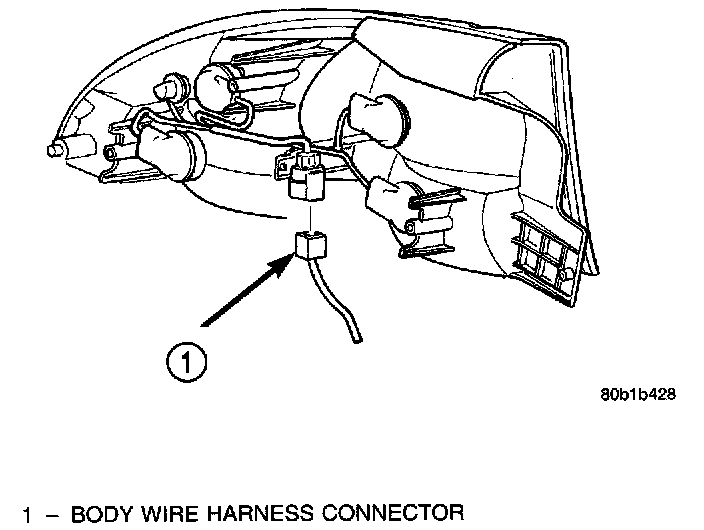

5. Remove socket(s) from tail lamp.
6. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Install socket(s) in tail lamp.
3. Place tail lamp in position on rear closure panel.
4. Install nuts attaching tail lamp to rear closure panel.
5. Install trunk lining.
6. Verify lamp operation.
