Horn System Test
Horn System Test:
SYSTEM TEST
CAUTION:
Continuous sounding of horns will cause
horn
to fail.

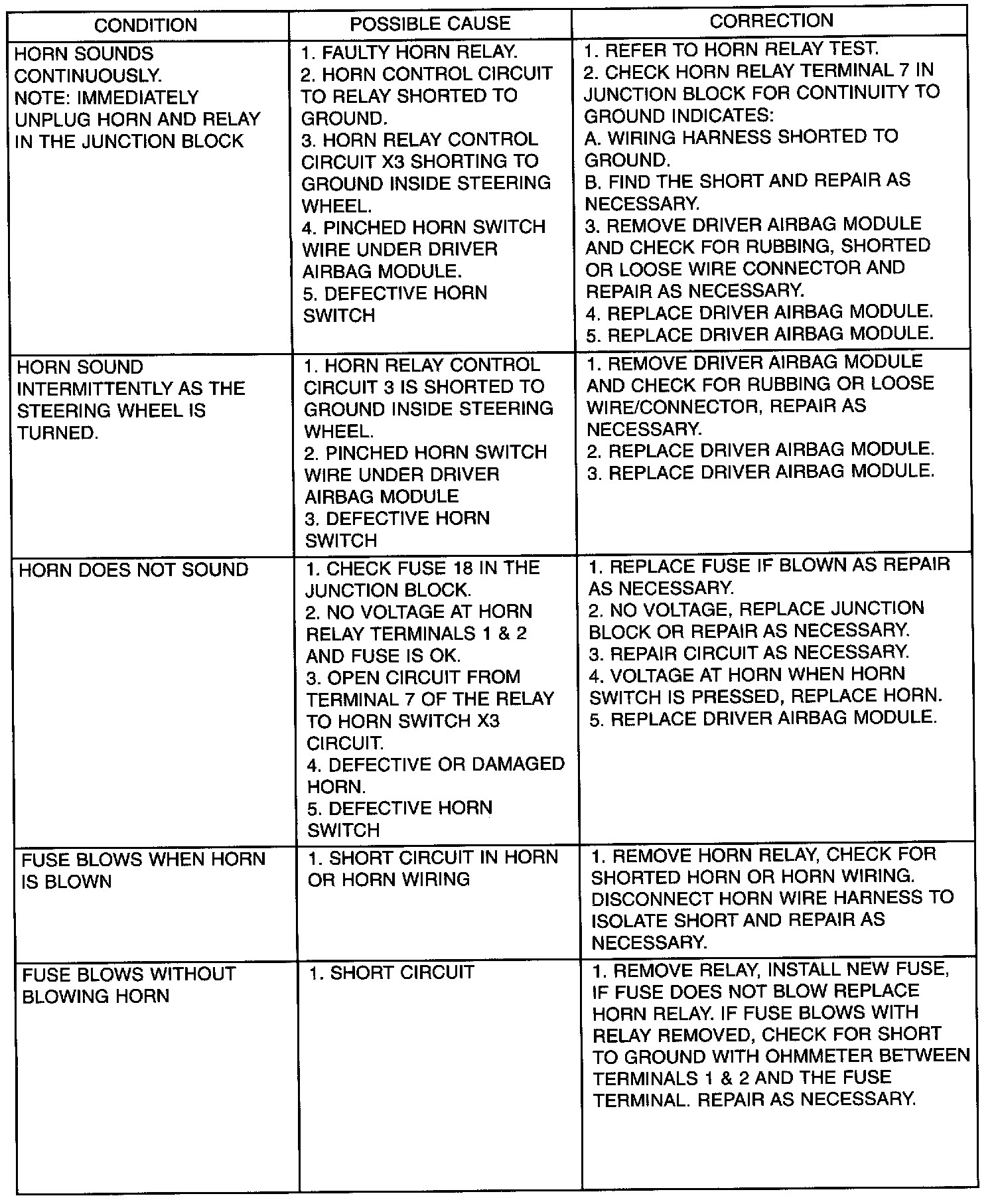

Check fuse 18 in the Junction Block and fuse L in the Power Distribution Center. Refer to
Horn
System Test table.
