Fog/Driving Lamp: Service and Repair

REMOVAL

Fog Lamp:

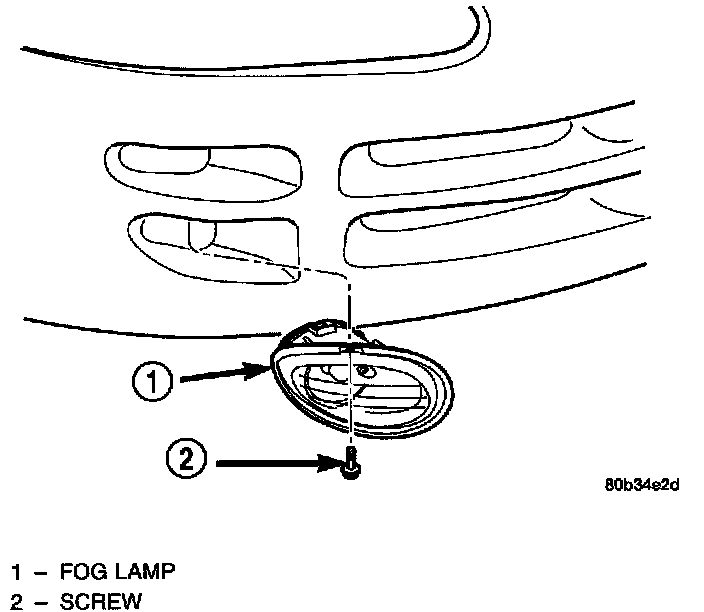

1. Remove screw(s) attaching fog lamp to fascia.
2. Pull fog lamp forward from opening in front bumper fascia.
3. Disconnect fog lamp wire connector from front lighting wire harness.
4. Remove fog lamp from vehicle.

INSTALLATION
1. Place fog lamp in position on vehicle.
2. Connect fog lamp wire connector to front lighting wire harness.
3. Insert fog lamp rearward into opening in front bumper fascia.
4. Install screw(s) attaching fog lamp to fascia.
5. Verify fog lamp operation and alignment. Refer to Fog Lamp Alignment procedures.
