Fog/Driving Lamp Bulb: Service and Repair

REMOVAL
1. Remove fog lamp housing screw in front fascia and pull lamp housing from the fascia.
2. Remove rear cover from fog lamp housing.
3. Disengage wire clip holding bulb in fog lamp.
4. Hinge wire clip out of bulb removal path.

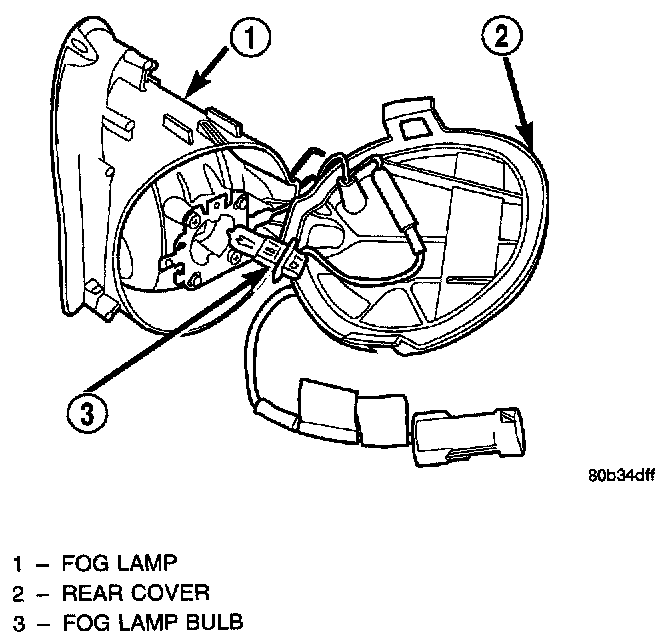

Fog Lamp Bulb:

5. Pull bulb from lamp housing.
6. Disengage wire connector from body wire harness.

INSTALLATION

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Connect wire connector to body wire harness.
2. Cover exposed terminal with teflon coated sleeve.
3. Insert bulb into lamp housing.
4. Hinge wire clip over bulb base.
5. Engage wire clip to hold bulb in fog lamp.
6. Install rear cover to fog lamp housing.
7. Verify fog lamp operation and alignment.
8. Install fog lamp housing screw to the front fascia.
