Front Lighting

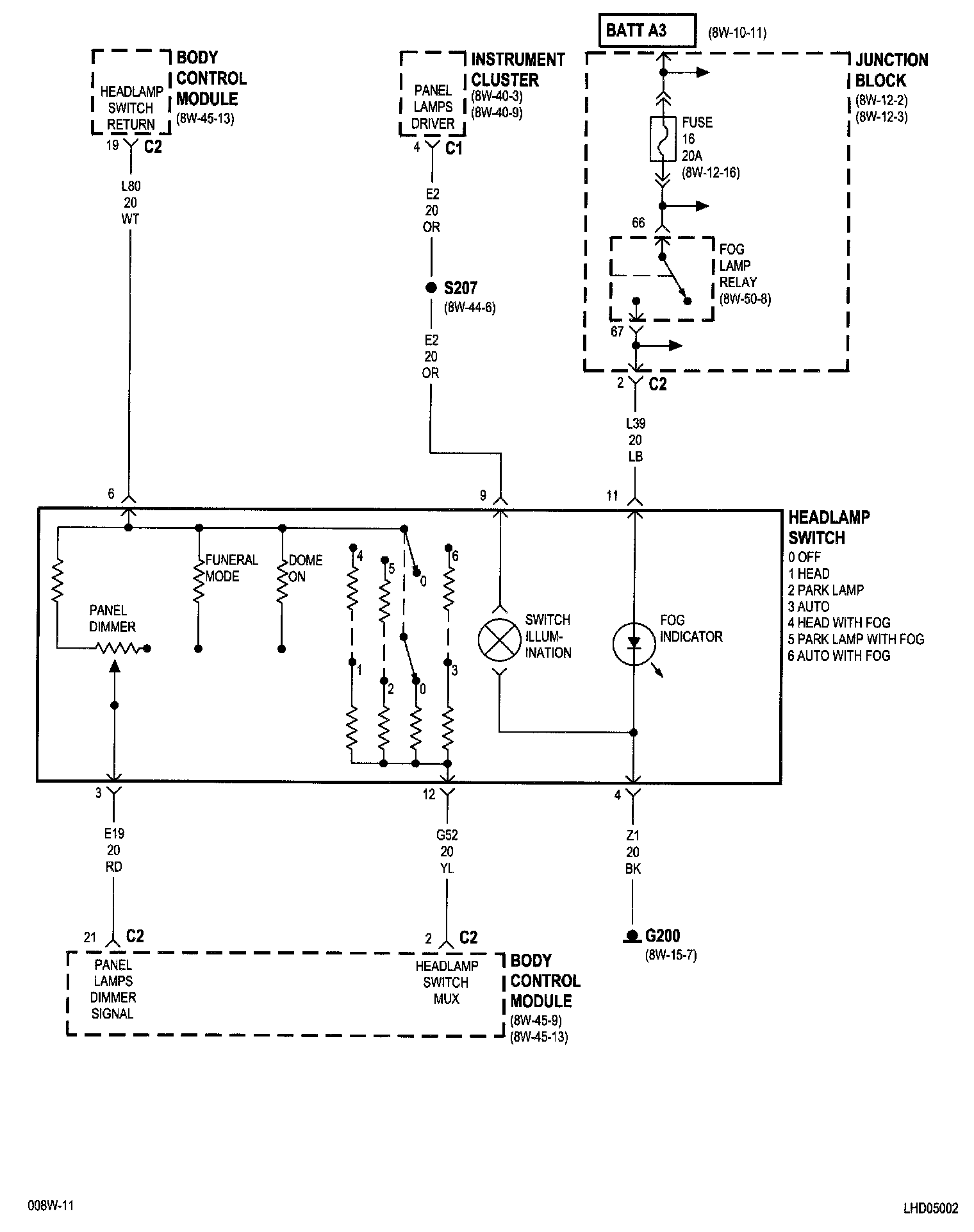

8W-50-2:

Body Control Module
Fog Lamp Relay
Fuse 16 (JB)
G200
Instrument Cluster
Junction Block

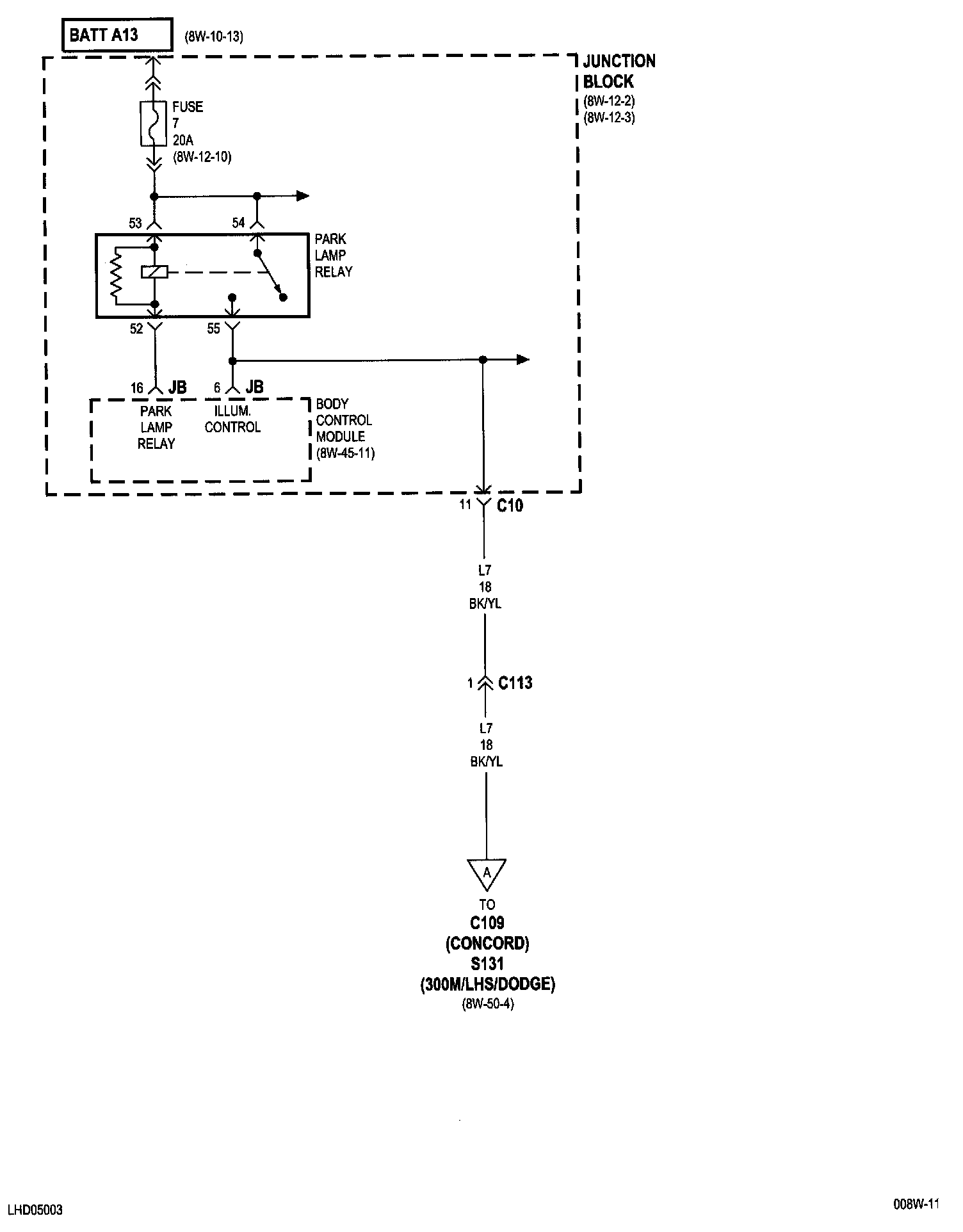

8W-50-3:

Body Control Module
Fuse 7 (JB)
Junction Block
Park Lamp Relay

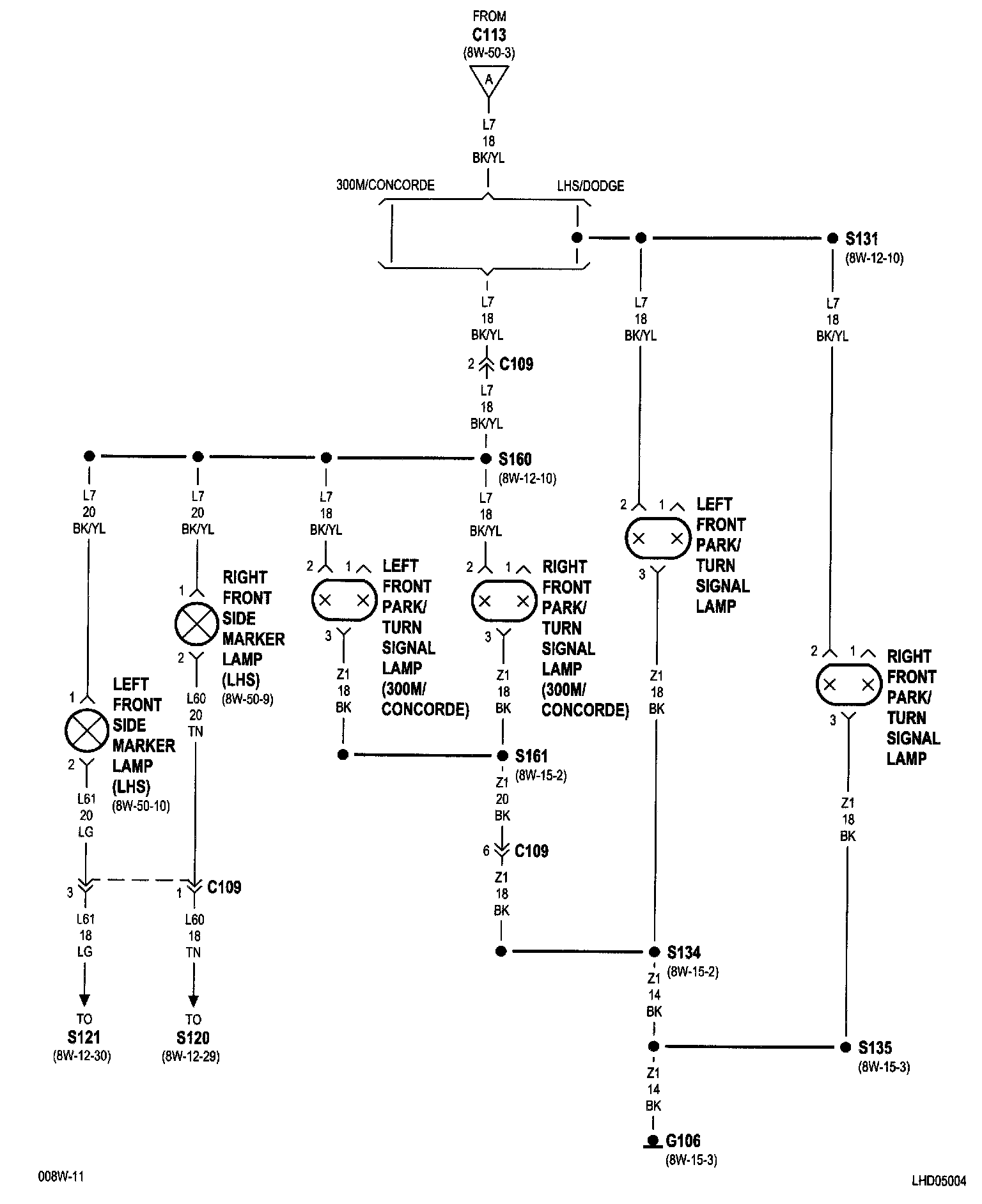

8W-50-4:

G106
Left Front Park/Turn Signal Lamp
Left Front Side Marker Lamp
Right Front Park/Turn Signal Lamp
Right Front Side Marker Lamp

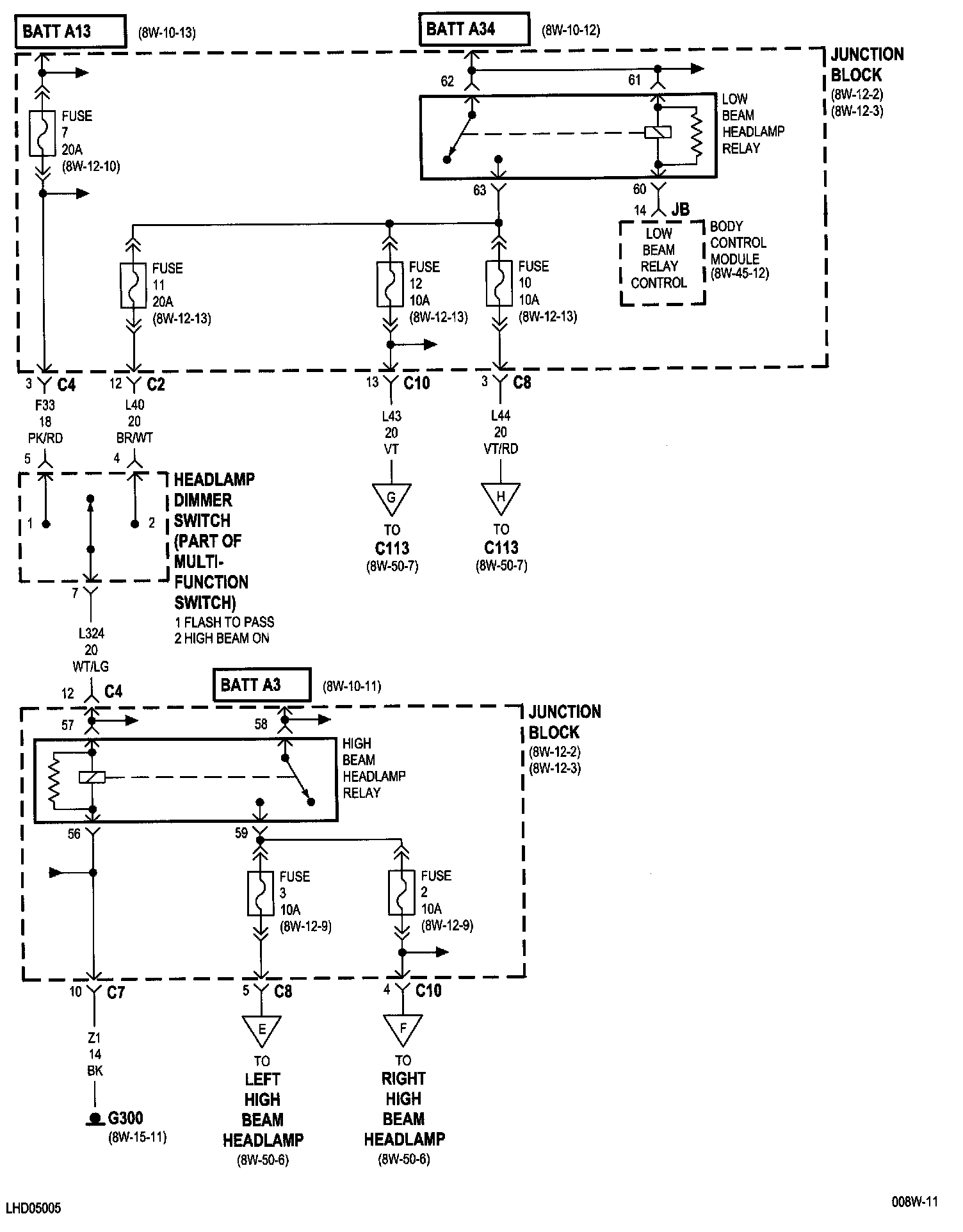

8W-50-5:

Body Control Module
Fuse 2 (JB)
Fuse 3 (JB)
Fuse 7 (JB)
Fuse 10 (JB)
Fuse 11 (JB)
Fuse 12 (JB)
G300
Headlamp Dimmer Switch
High Beam Headlamp Relay
Junction Block
Low Beam Headlamp Relay

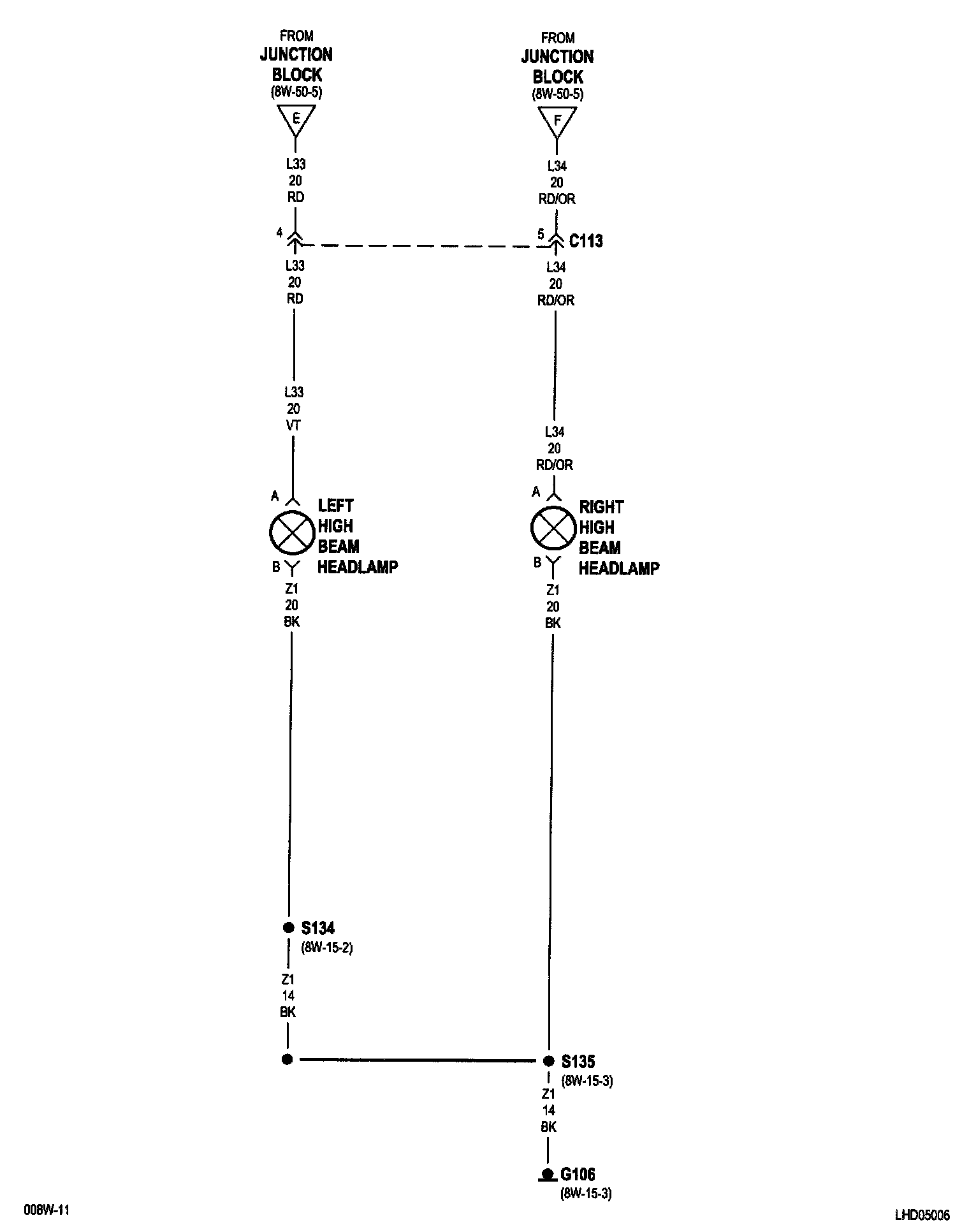

8W-50-6:

G106
Left High Beam Headlamp
Right High Beam Headlamp

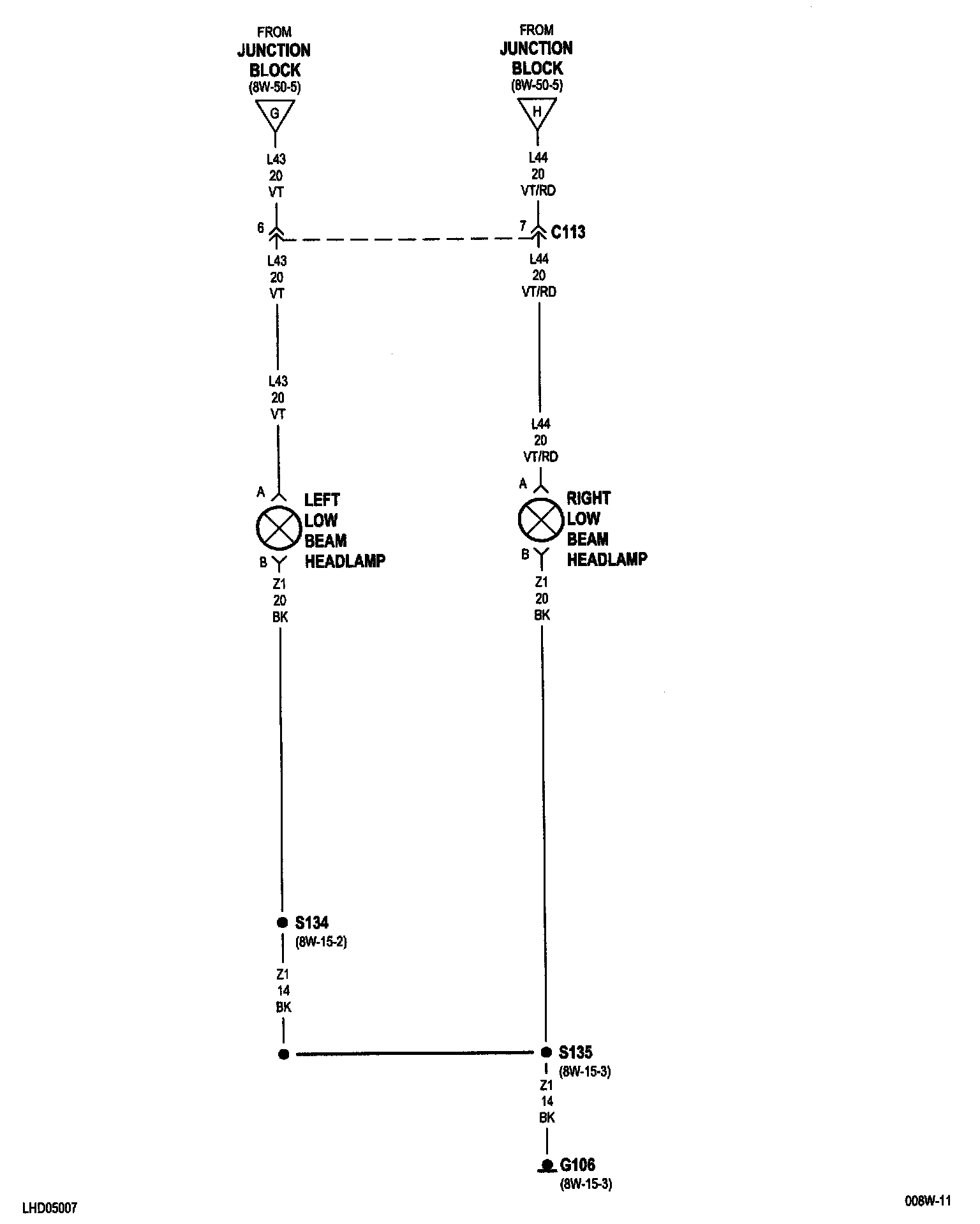

8W-50-7:

G106
Left Low Beam Headlamp
Right Low Beam Headlamp

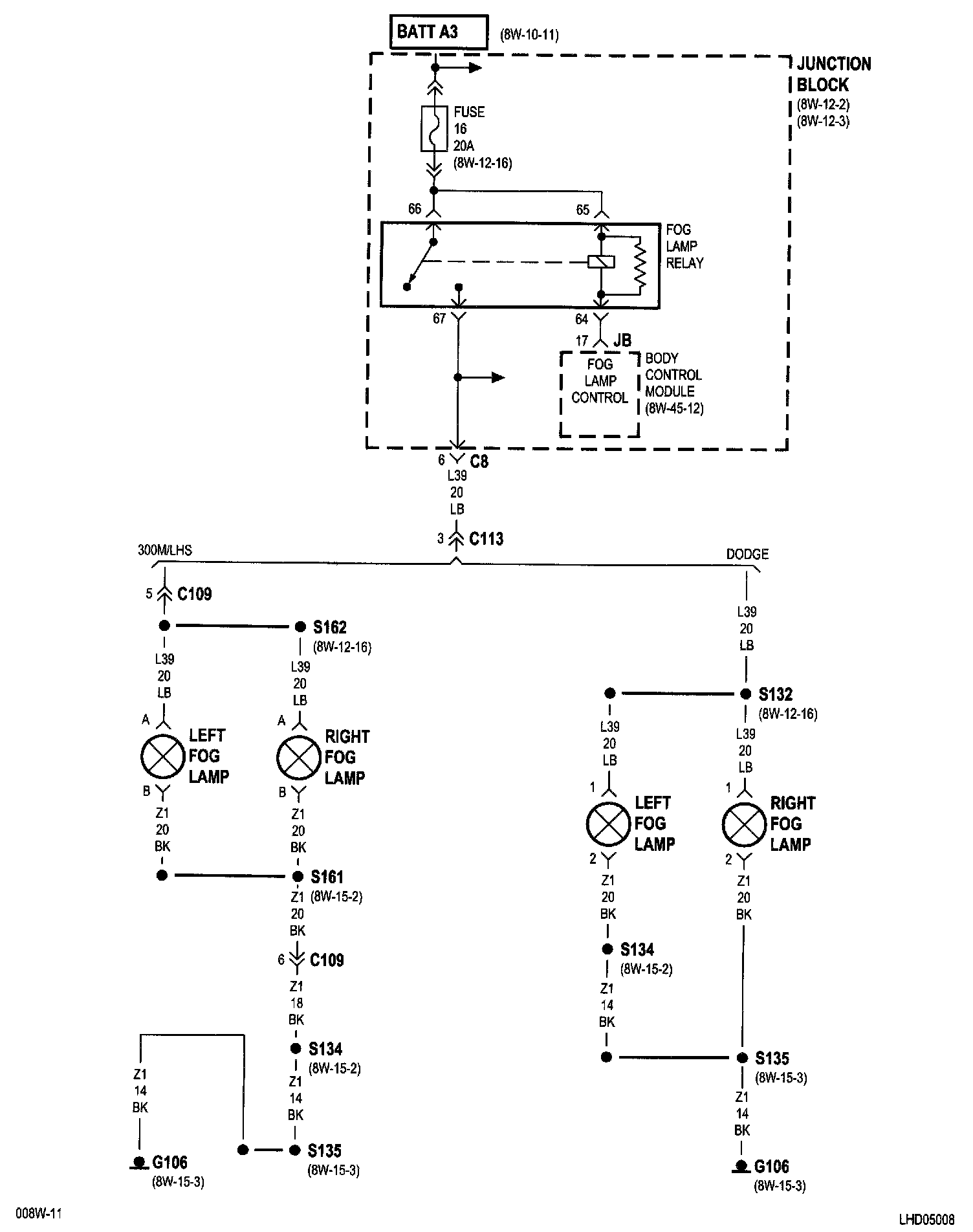

8W-50-4 (Fog Lamps):

Body Control Module
Fog Lamp Relay
Fuse 16 (JB)
G106
Junction Block
Left Fog Lamp
Right Fog Lamp

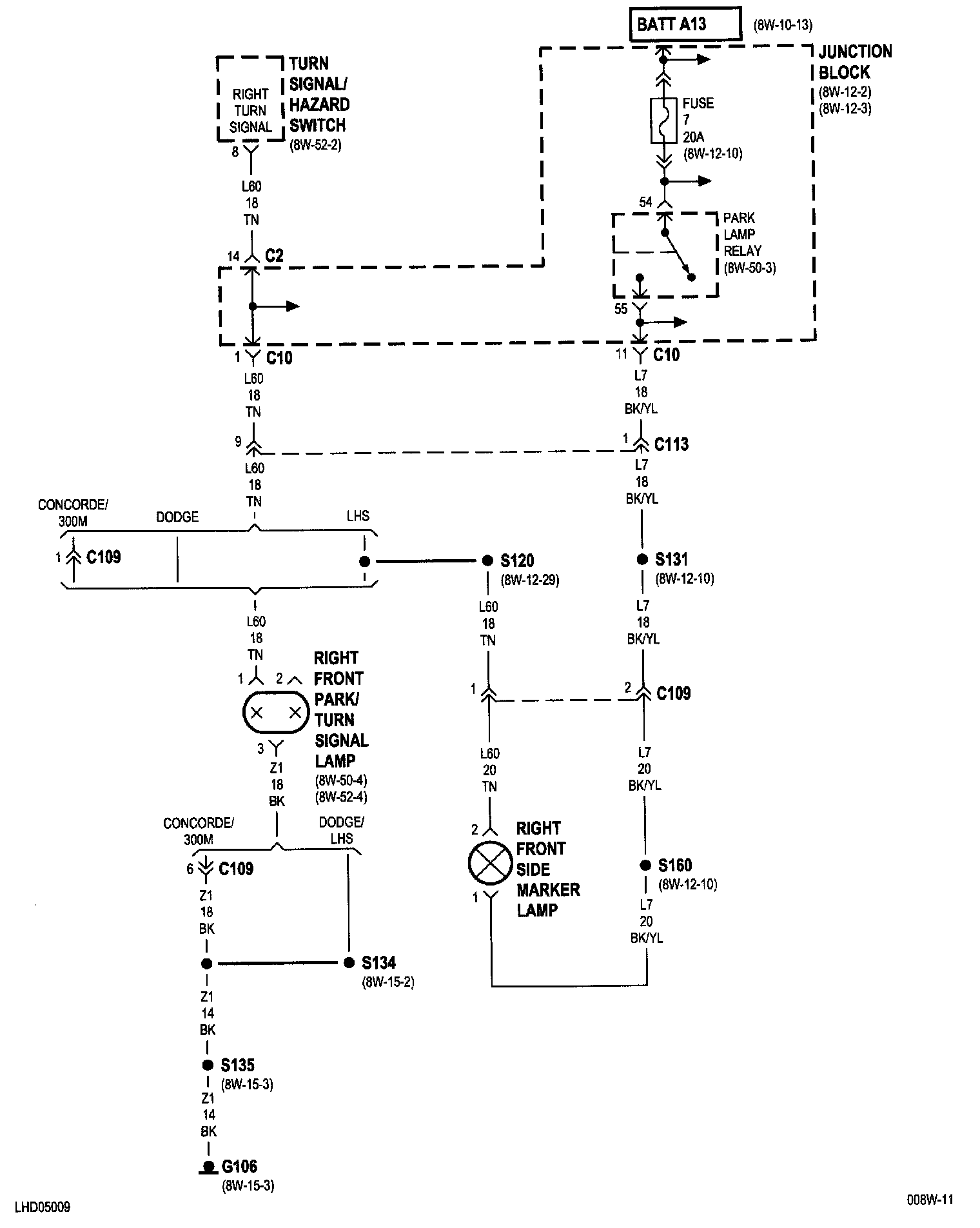

8W-50-9:

Fuse 7 (JB)
G106
Junction Block
Park Lamp Relay
Right Front Park/Turn Signal Lamp
Right Front Side Marker Lamp
Turn Signal/Hazard Switch

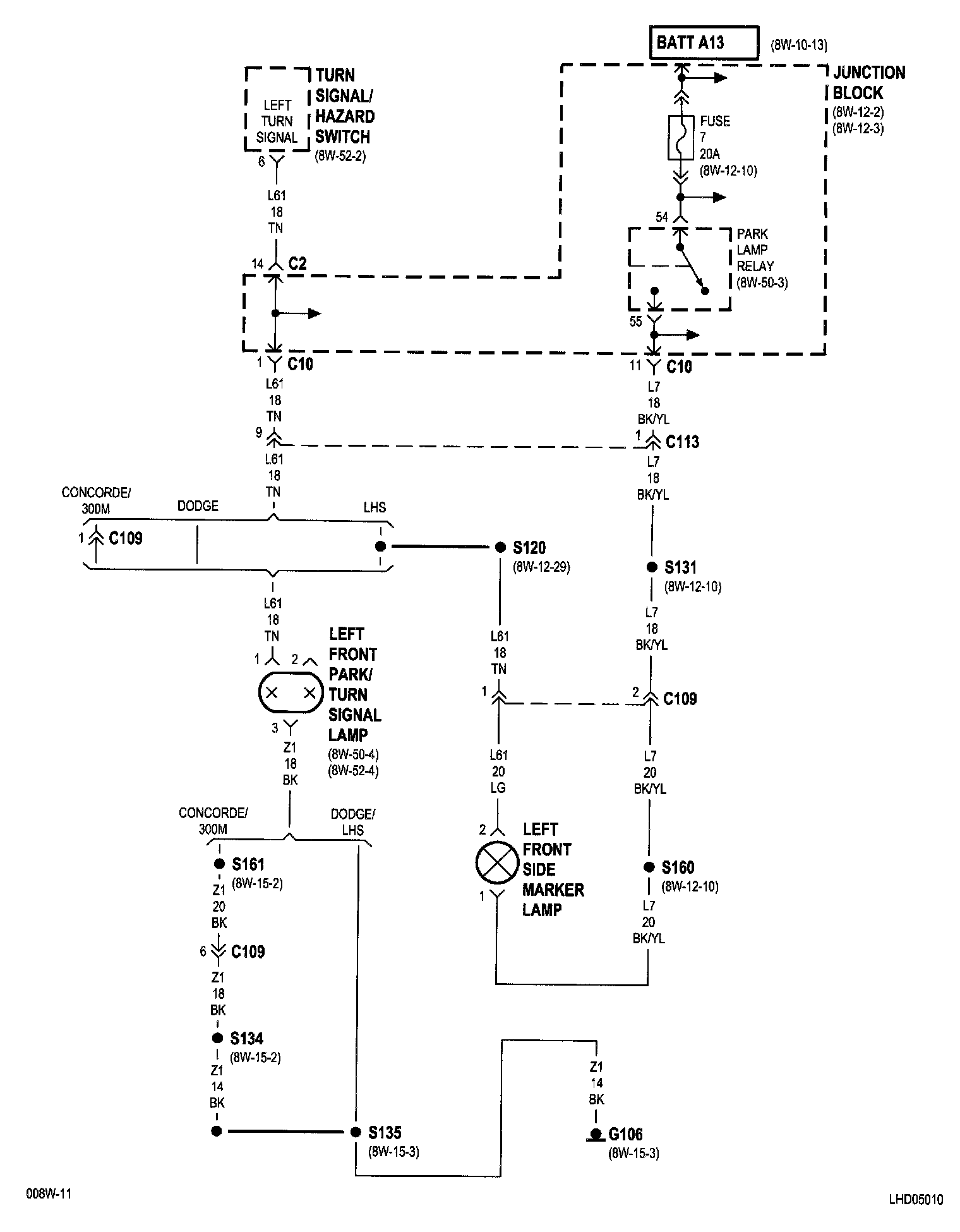

8W-50-10:

Fuse 7 (JB)
G106
Junction Block
Left Front Park/Turn Signal Lamp
Left Front Side Marker Lamp
Park Lamp Relay
Turn Signal/Hazard Switch

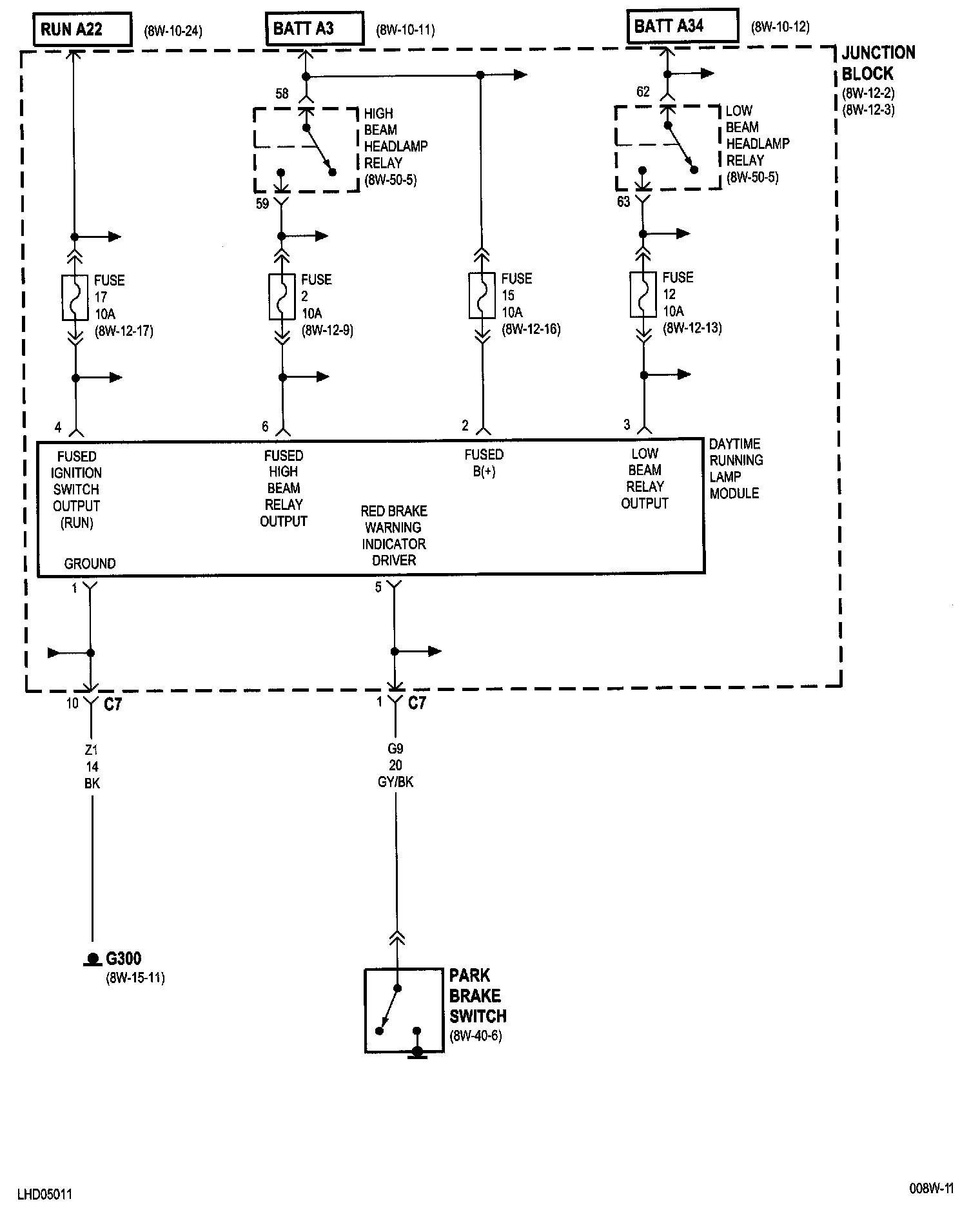

8W-50-11 (DRL):

Daytime Running Lamp Module
Fuse 2 (JB)
Fuse 12 (JB)
Fuse 15 (JB)
Fuse 17 (JB)
G300
High Beam Headlamp Relay
Junction Block
Low Beam Headlamp Relay
Park Brake Switch

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
