Courtesy Lamp: Diagrams

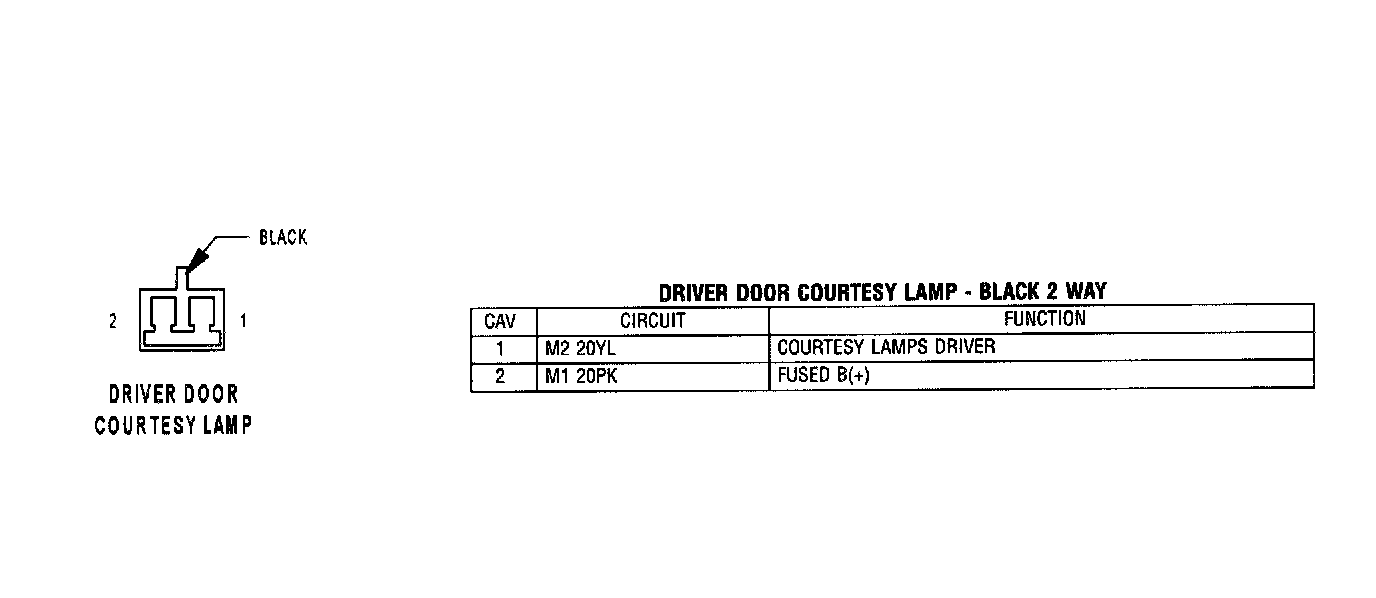

Driver Door Courtesy Lamp:

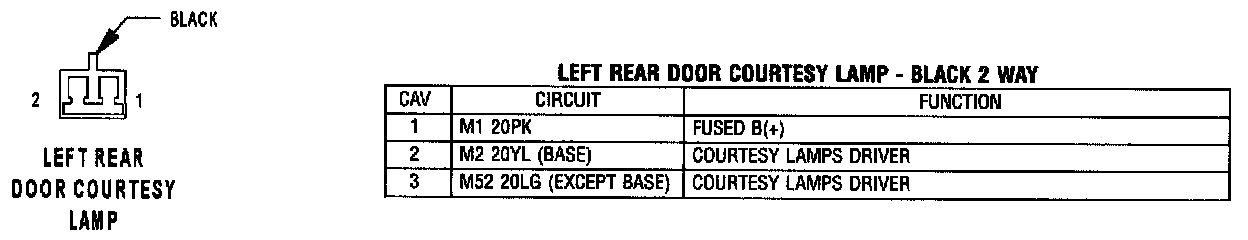

Left Rear Door Courtesy Lamp:

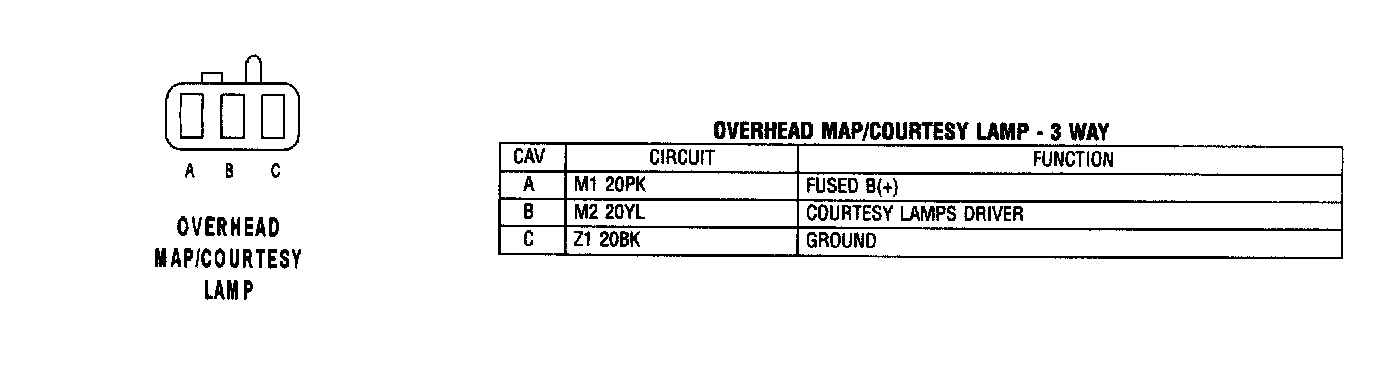

Overhead Map/Courtesy Lamp:

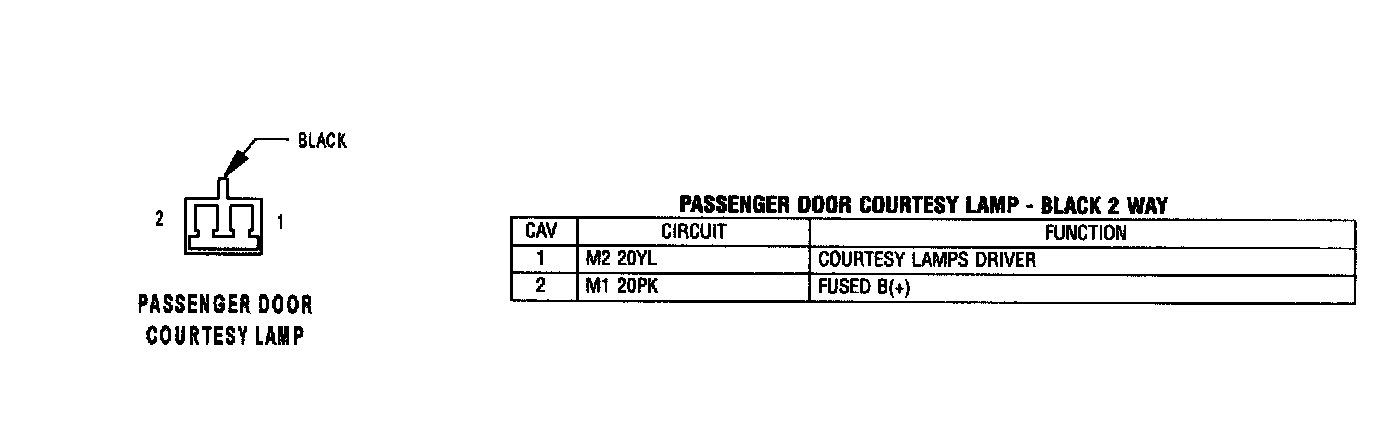

Passenger Door Courtesy Lamp:

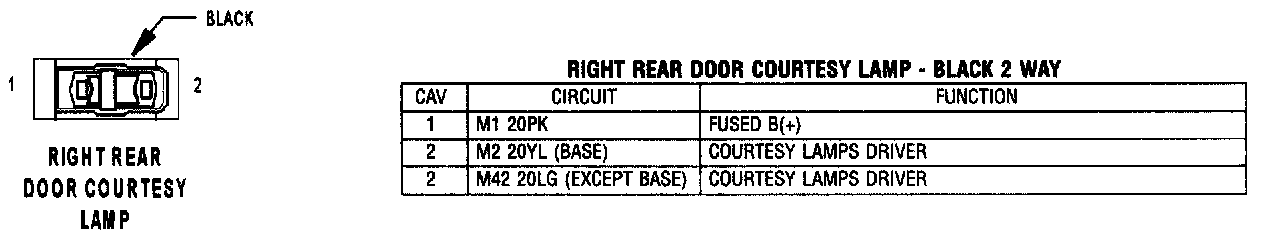

Right Rear Door Courtesy Lamp:
