Clock: Service and Repair

REMOVAL
1. Open hood.
2. Disconnect and isolate the negative battery remote cable.
3. Using a trim stick (special tool #C-4755), gently pry out instrument panel air distribution outlet bezel that retains the analog clock.
4. Disconnect the one wire connector to the clock.
5. Remove bezel from vehicle.

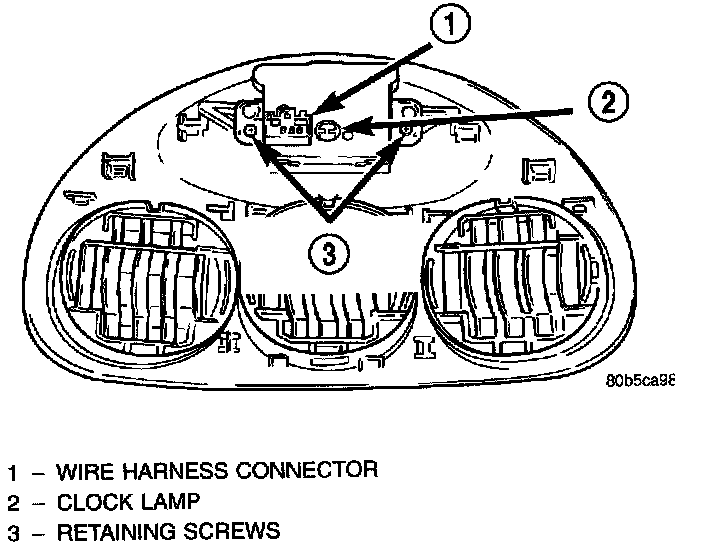

Analog Clock Removal:

6. On the bench, remove two retaining screws to analog clock and remove from bezel.

INSTALLATION
For installation, reverse the above procedures.
