Checking A/C System Operation With No DTC's

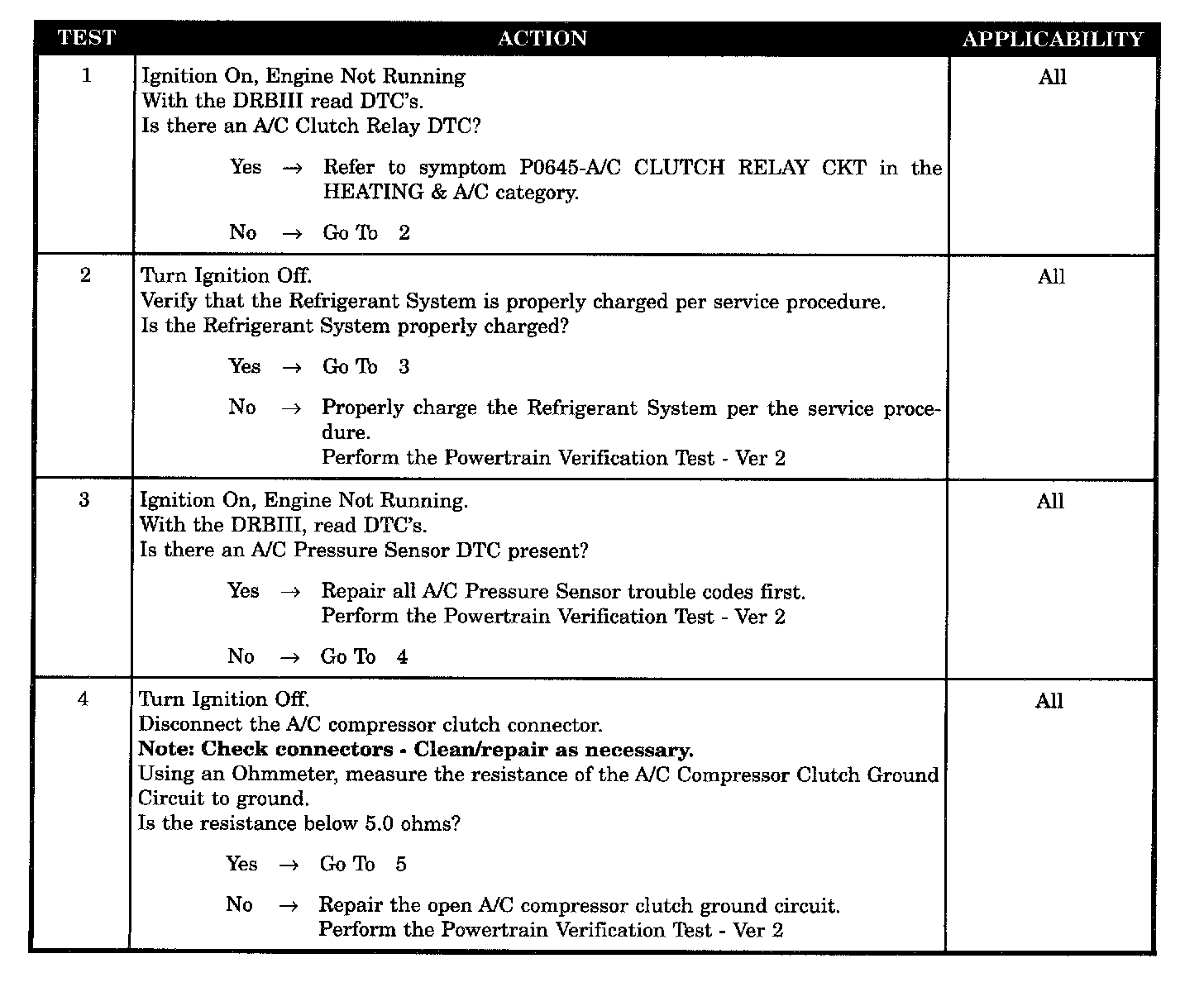

Tests 1 - 4:

Tests 5 - 8:

SYMPTOM
CHECKING A/C SYSTEM OPERATION WITH NO DTC'S

POSSIBLE CAUSES
- A/C pressure sensor DTC present
- Refrigeration system not properly charged
- A/C clutch relay output circuit open
- A/C compressor clutch ground circuit open
- Fused B(+) circuit open
- A/C clutch coil
- A/C clutch relay
