A/C Discharge Hose/Line Replacement

REMOVAL
1. Remove refrigerant from the A/C system using a refrigerant recovery machine.

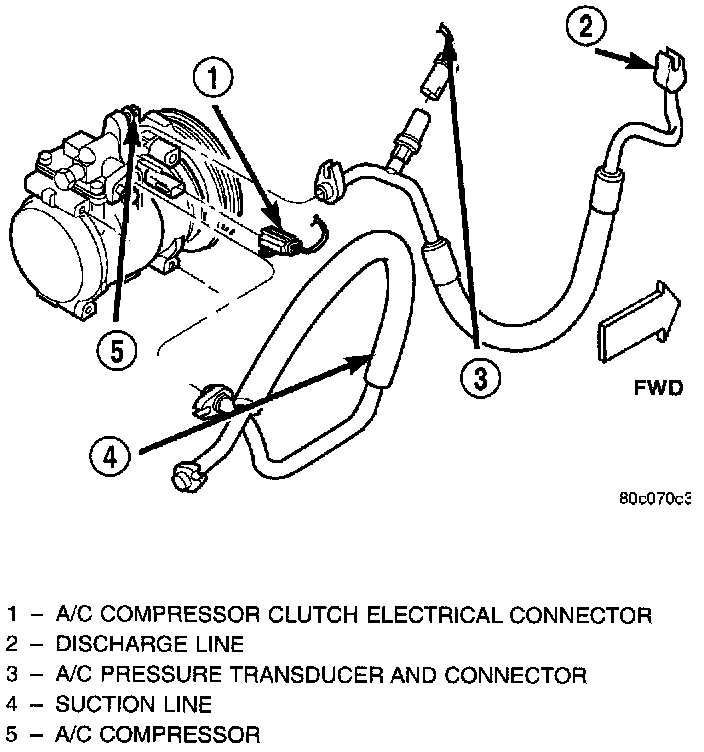

A/C Pressure Transducer And Discharge Line:

2. Disconnect A/C pressure transducer wire harness.
3. Disconnect discharge line at compressor using a M13 Hex wrench.

CAUTION: Cap all lines that are not being replaced and cap the expansion valve tubes.

4. Disconnect line at A/C condenser using a M13 Hex wrench.

INSTALLATION
For installation, reverse the above procedures. Then, tighten bolts to 23 N.m (17 ft. lbs.) at condenser and compressor.
