Hydraulic Lash Adjuster Noise Diagnosis

Proper noise diagnosis is essential in locating the source of a NVH complaint. Locating a lash adjuster (tappet) type noise can sometimes be difficult. As a result, an initial misdiagnosis may occur.
Refer to the following charts indicating possible lash adjuster (tappet) noise sources and possible sources that could lead to a misdiagnosis.
Refer to Lash Adjuster (Tappet) Noise Chart for Possible Causes and Correction of a lash adjuster (tappet) type noise.

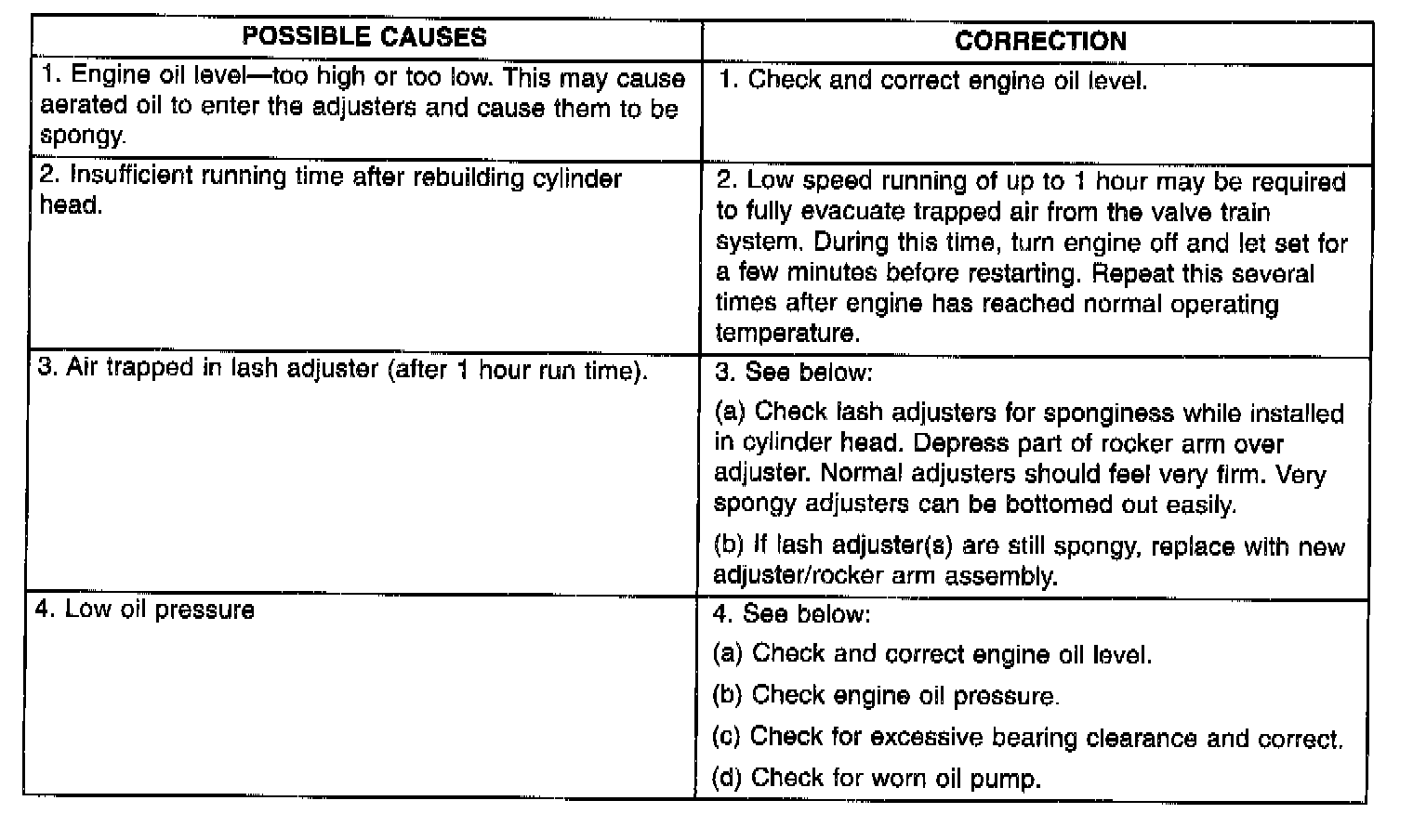

LASH ADJUSTER (TAPPET) NOISE CHARTS Part 1 of 2

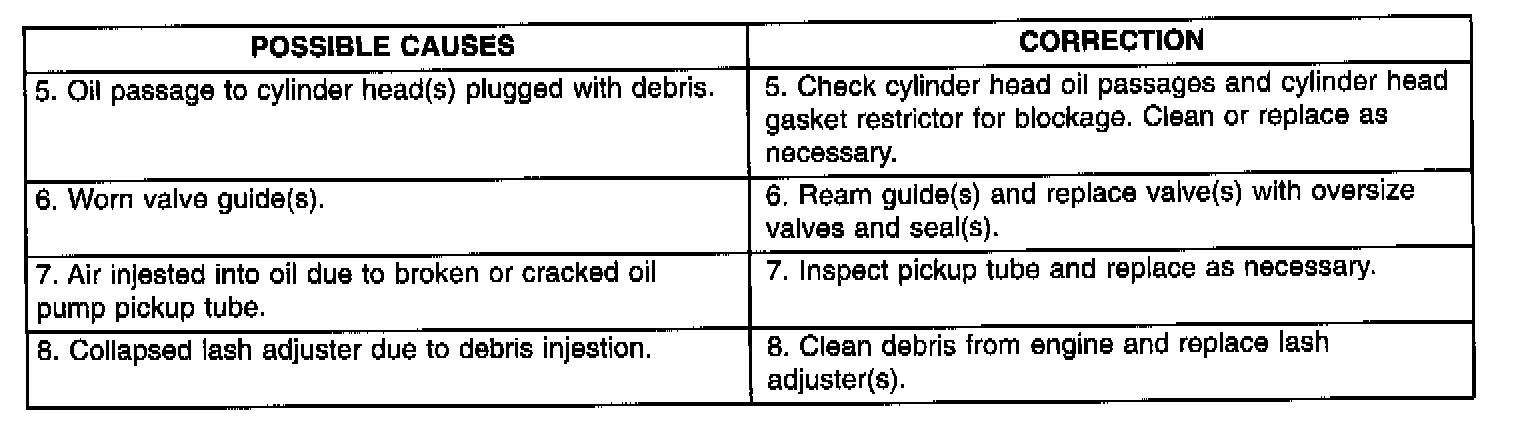

LASH ADJUSTER (TAPPET) NOISE CHARTS Part 2 of 2
