Description

DESCRIPTION

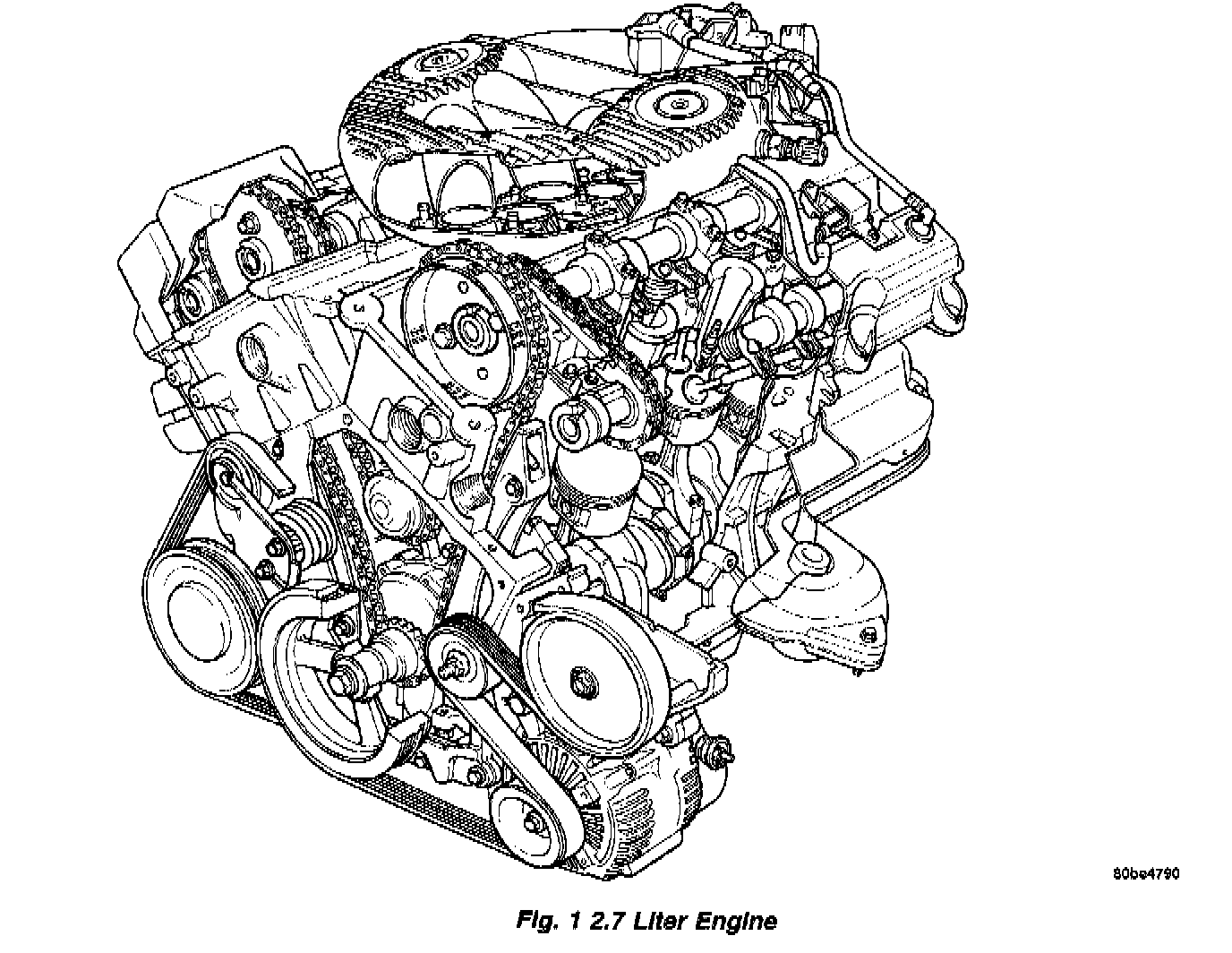

Fig. 1

The 2.7 Liter (167 Cubic Inches) 60° V-6 engine is a double overhead camshaft design with hydraulic lifters and four valves per cylinder (Fig. 1). The engine does not have provisions for a free wheeling valve train.





Fig. 2

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered (Fig. 2). The firing order is 1-2-3-4-5-6.

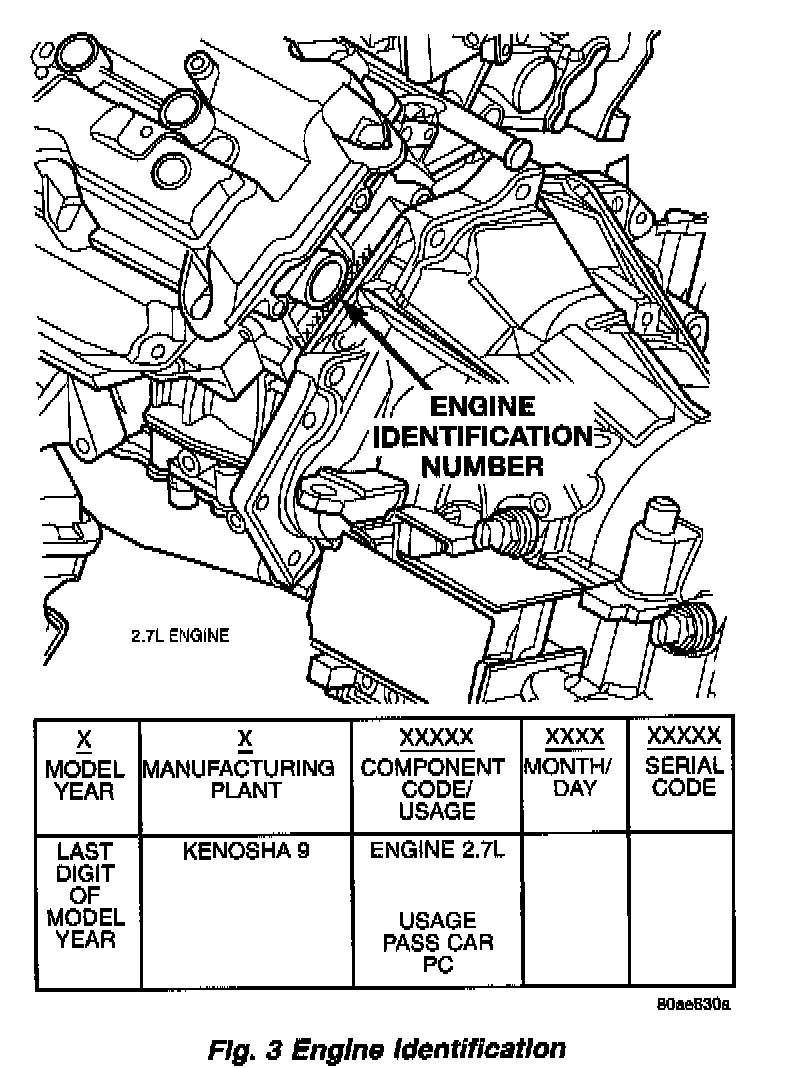

Fig. 3

The engine identification number is located on the rear of the cylinder block just below the left cylinder head (Fig. 3).
