Diagnosis By Symptom

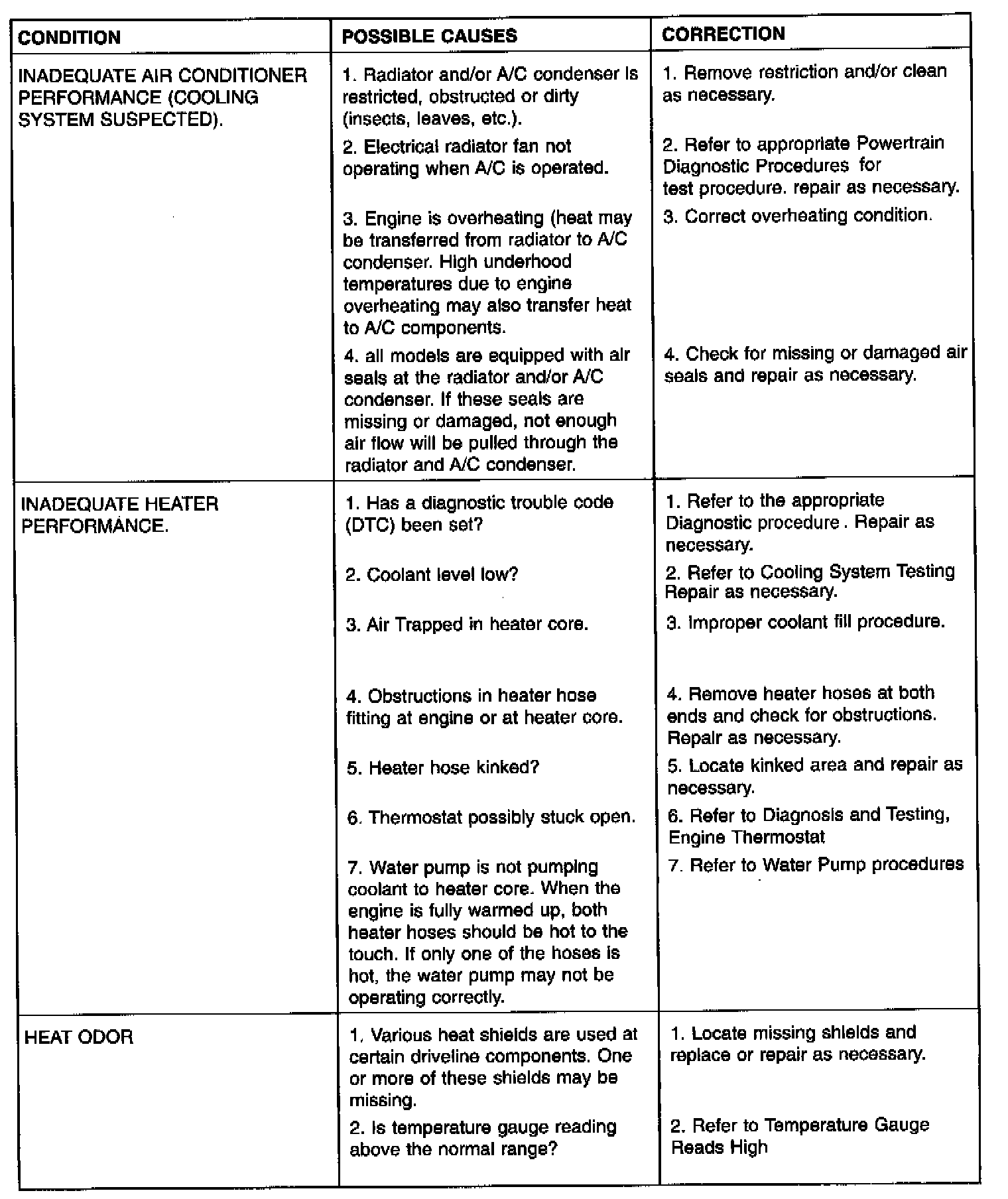

COOLING SYSTEM DIAGNOSIS Part 1 of 4

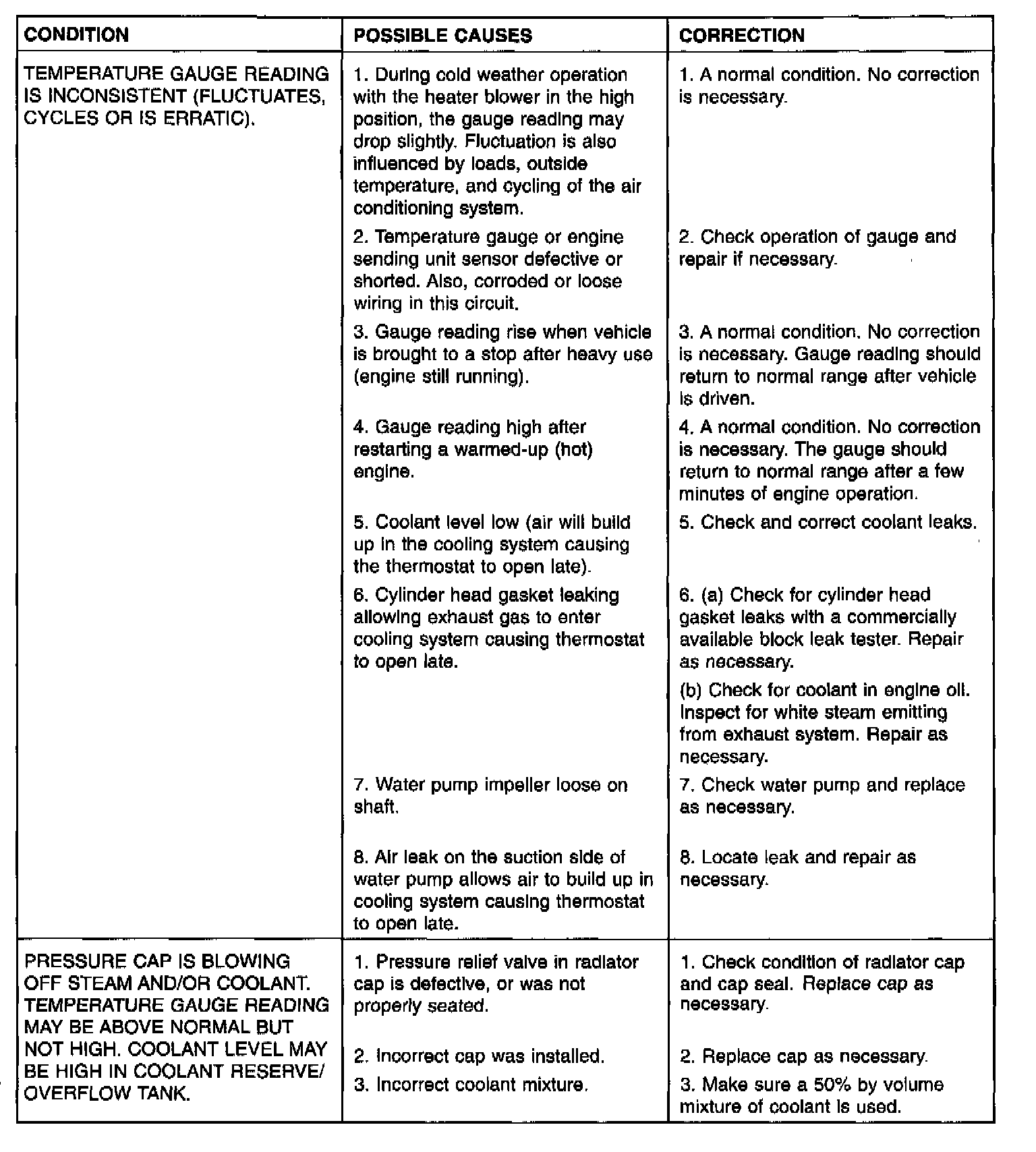

COOLING SYSTEM DIAGNOSIS Part 2 of 4

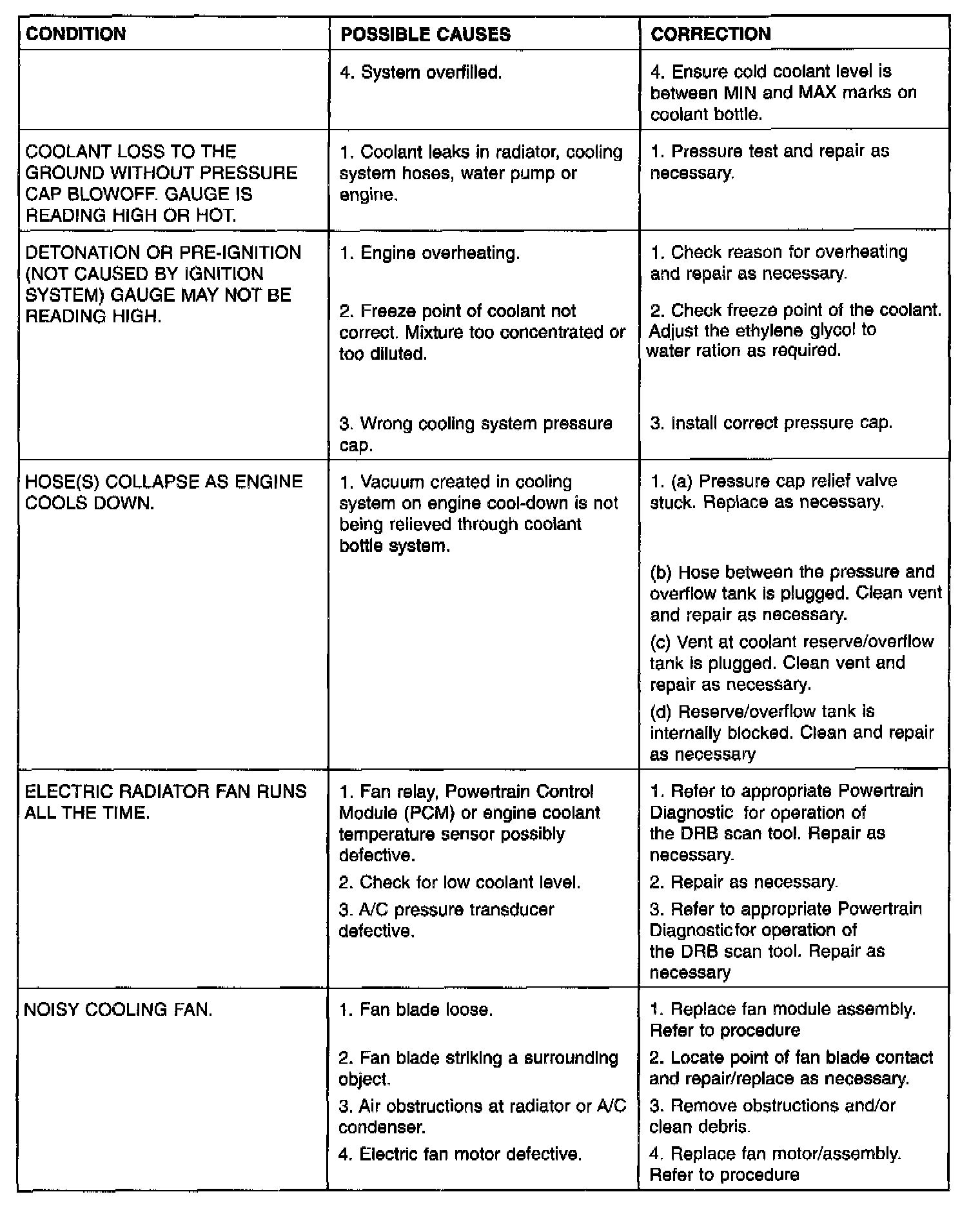

COOLING SYSTEM DIAGNOSIS Part 3 of 4





COOLING SYSTEM DIAGNOSIS Part 4 of 4
