Radiator Cooling Fan Motor: Service and Repair

REMOVAL

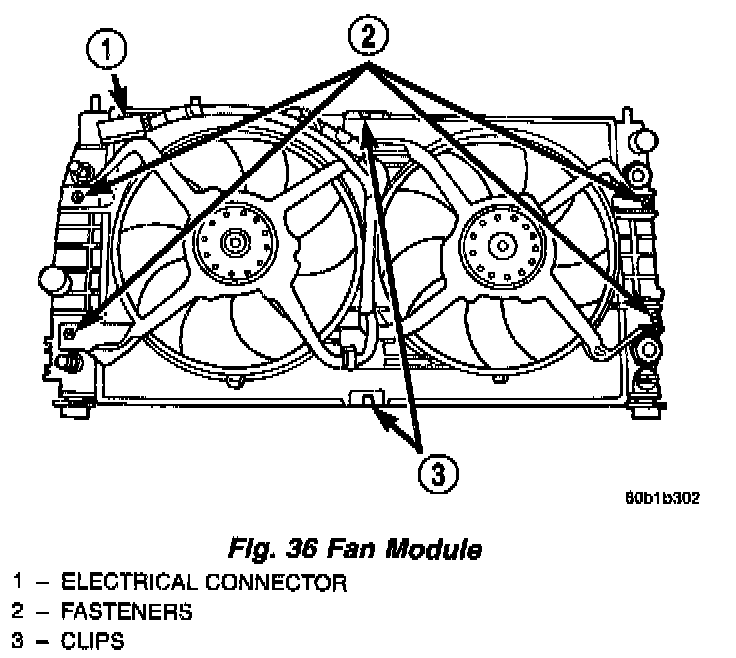

1. Remove upper radiator crossmember.
2. Disconnect fan electrical connector.






3. Remove fan module attaching fasteners and clips.
4. Remove fan module by lifting upward to clear radiator.

INSTALLATION
1. Install fan module.
2. Install mounting clips and fasteners.
3. Connect fan module electrical connector.
4. Install upper radiator crossmember.
