Transmission Oil Cooler

DESCRIPTION

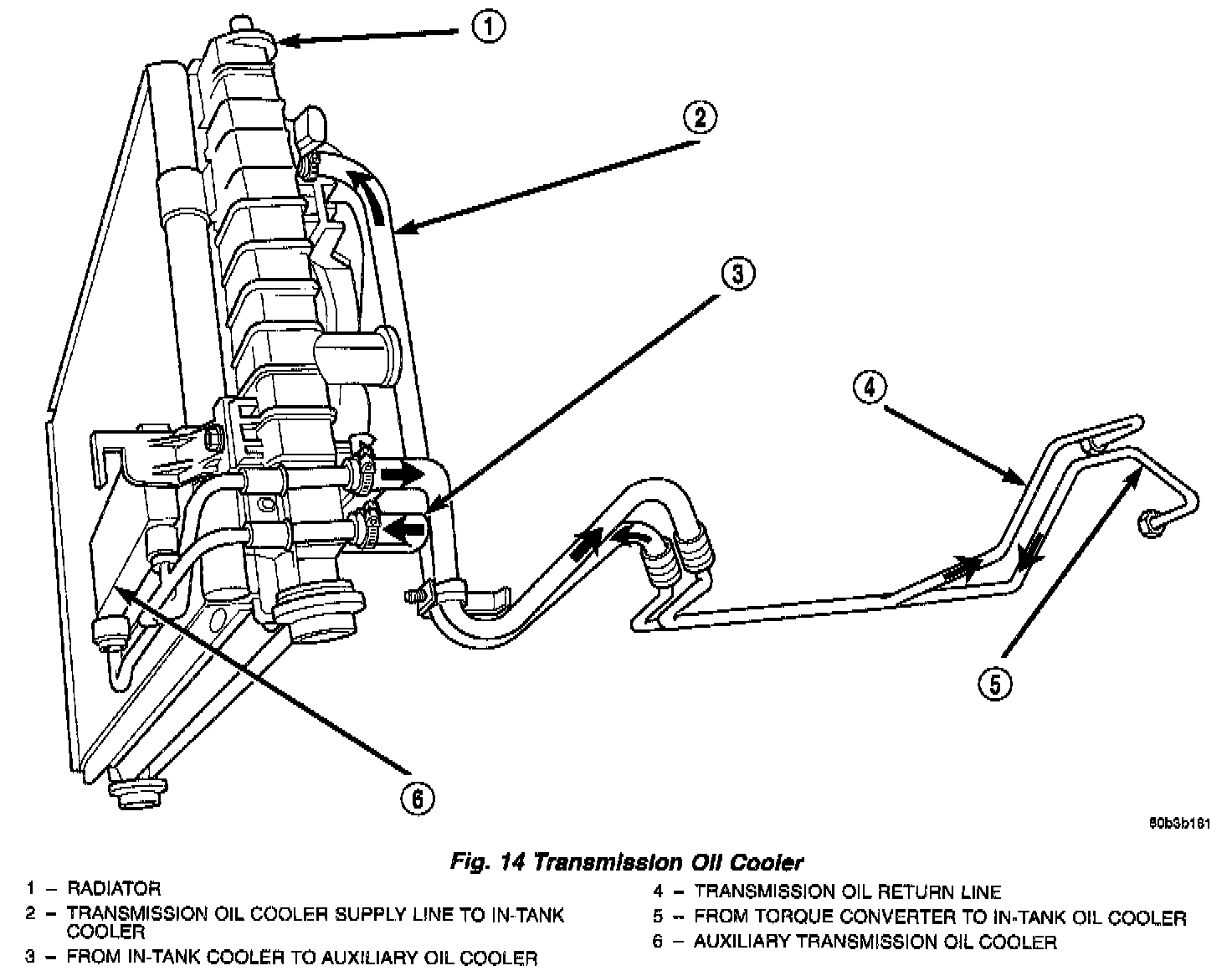

The transmission oil cooler circuit consists of a series connected internal cooler mounted inside the left radiator tank and an auxiliary external oil cooler mounted to the front of the air conditioning condenser.

OPERATION
Steel tubes and rubber lines supply the oil from the transmission to the internal oil cooler and return the oil to the transmission from the auxiliary external oil cooler.
