Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Splices >> Splice Index >> Part 1 of 3

Part 1 of 3

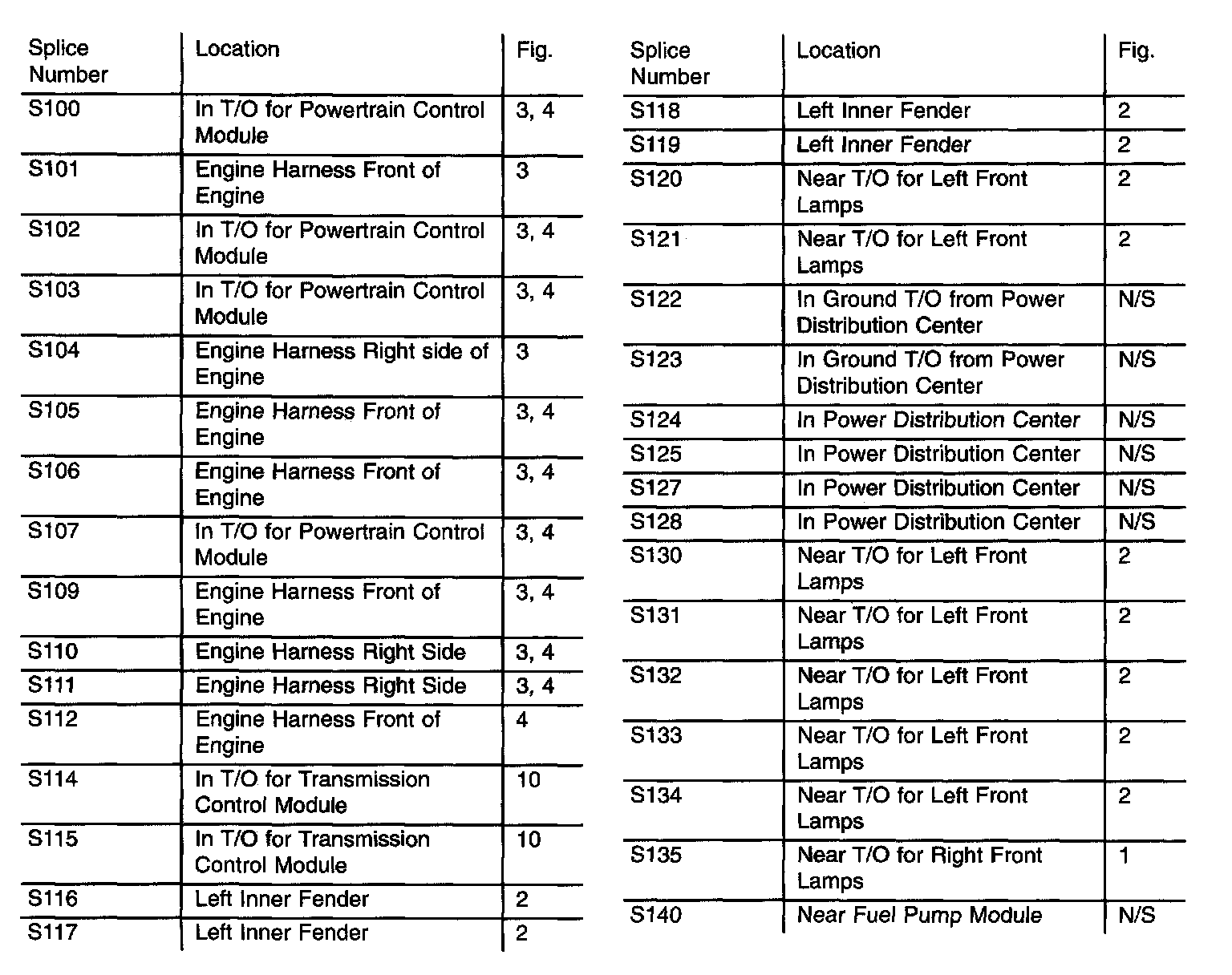

Splice Locations Component Index (Part 1 Of 3):
