Steering

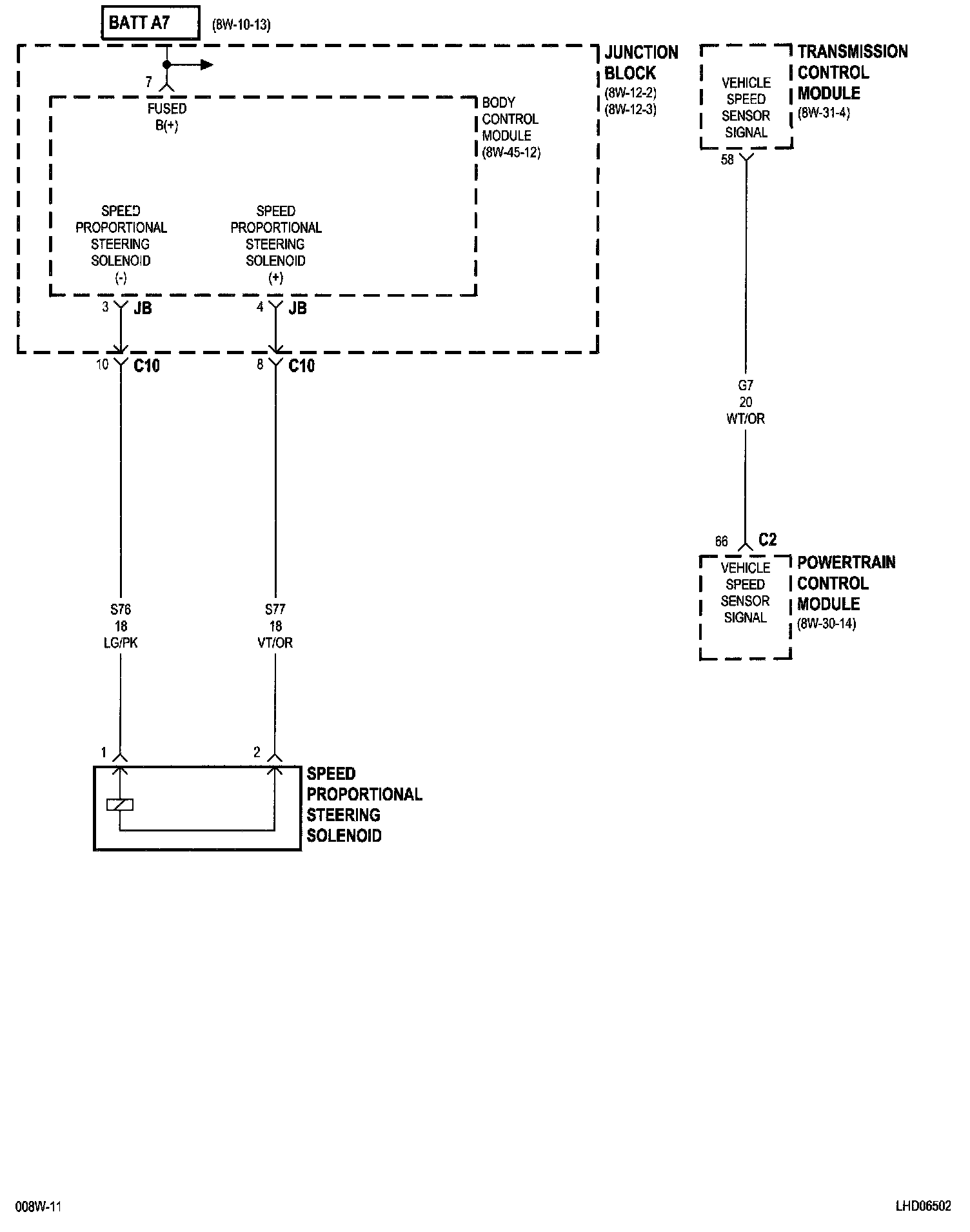

8W-65-2:

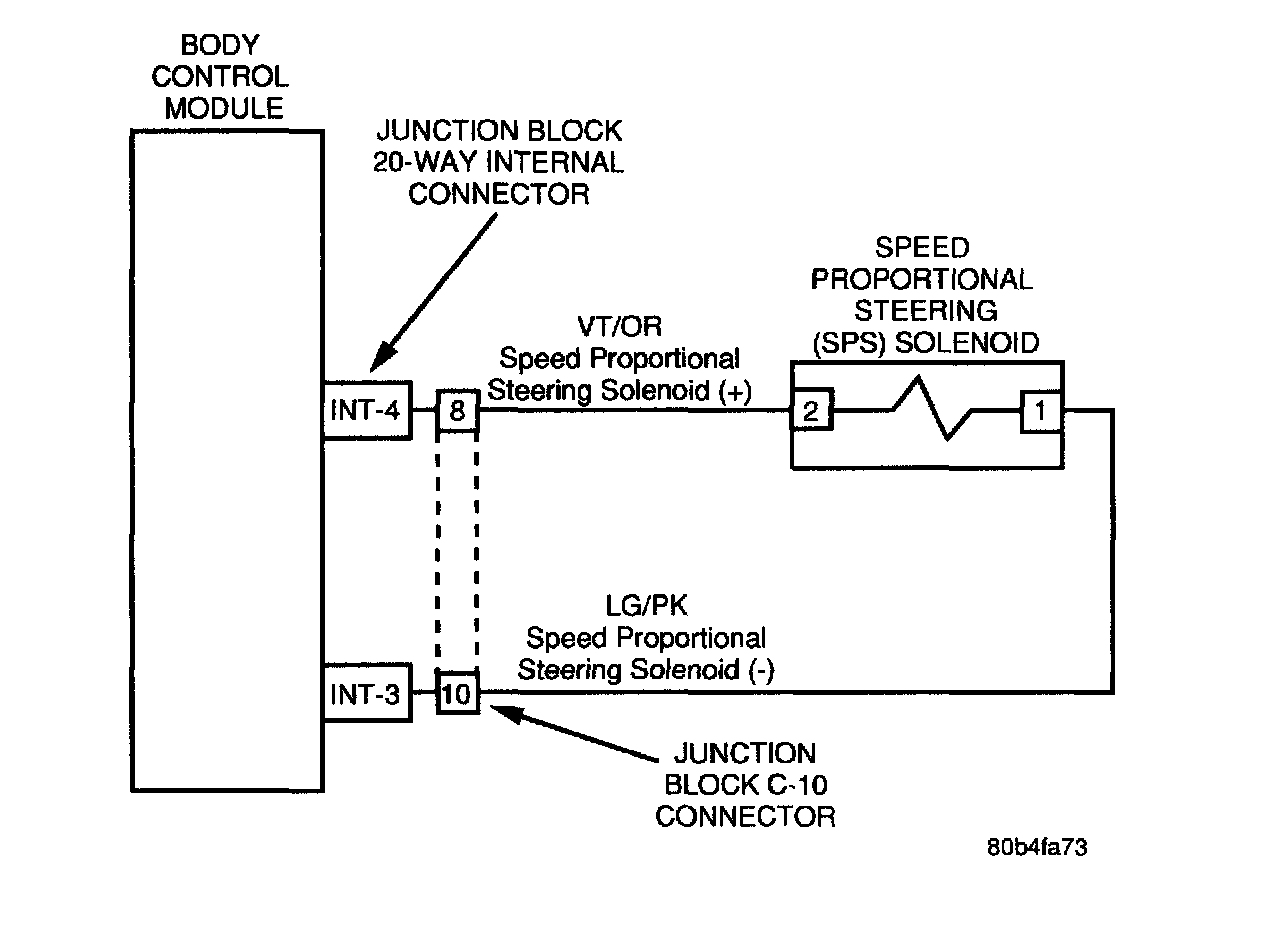

Speed Proportional Steering:





NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
