Radio/Stereo

8W-47-2:

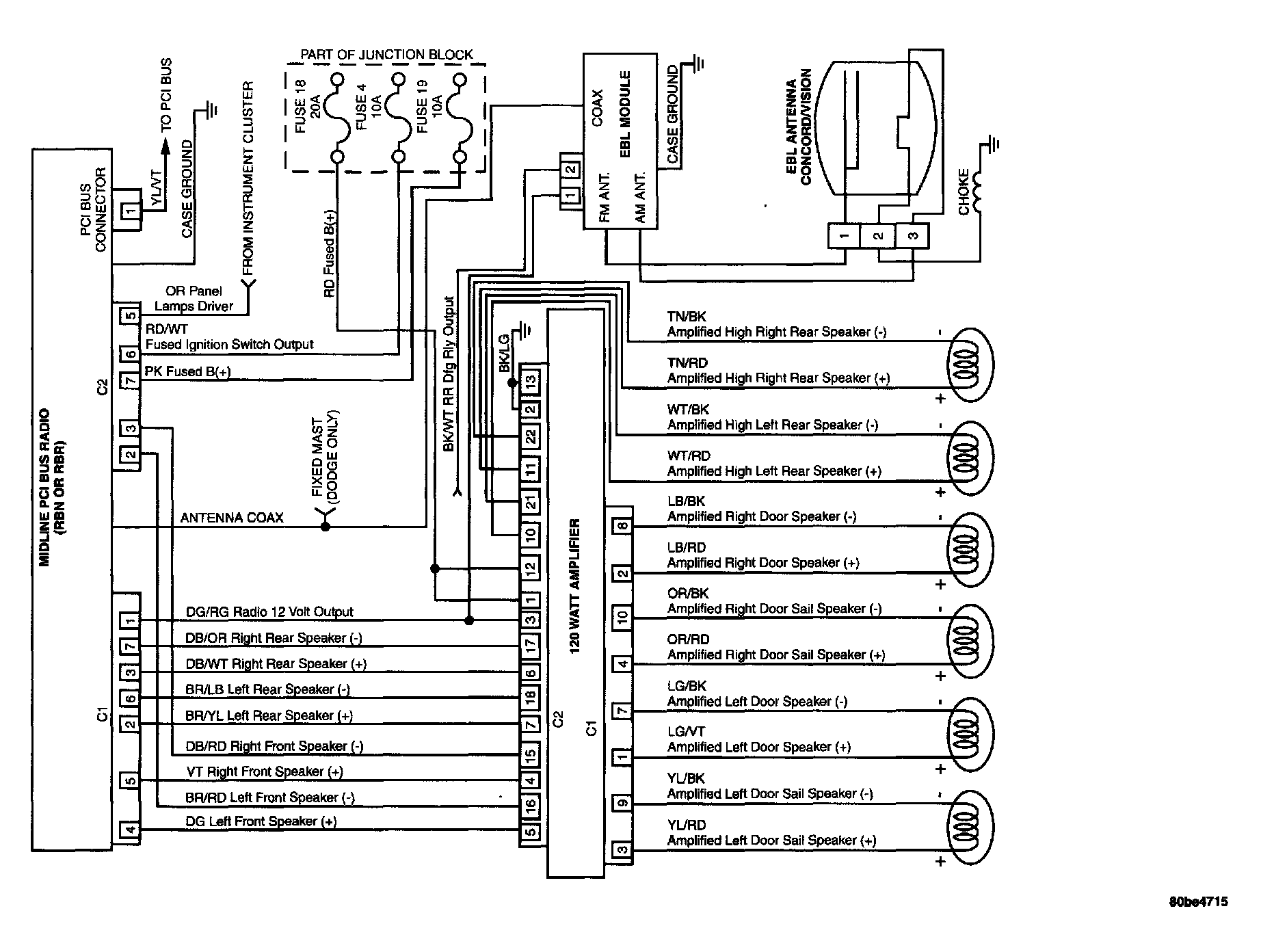

Audio System - Midline:

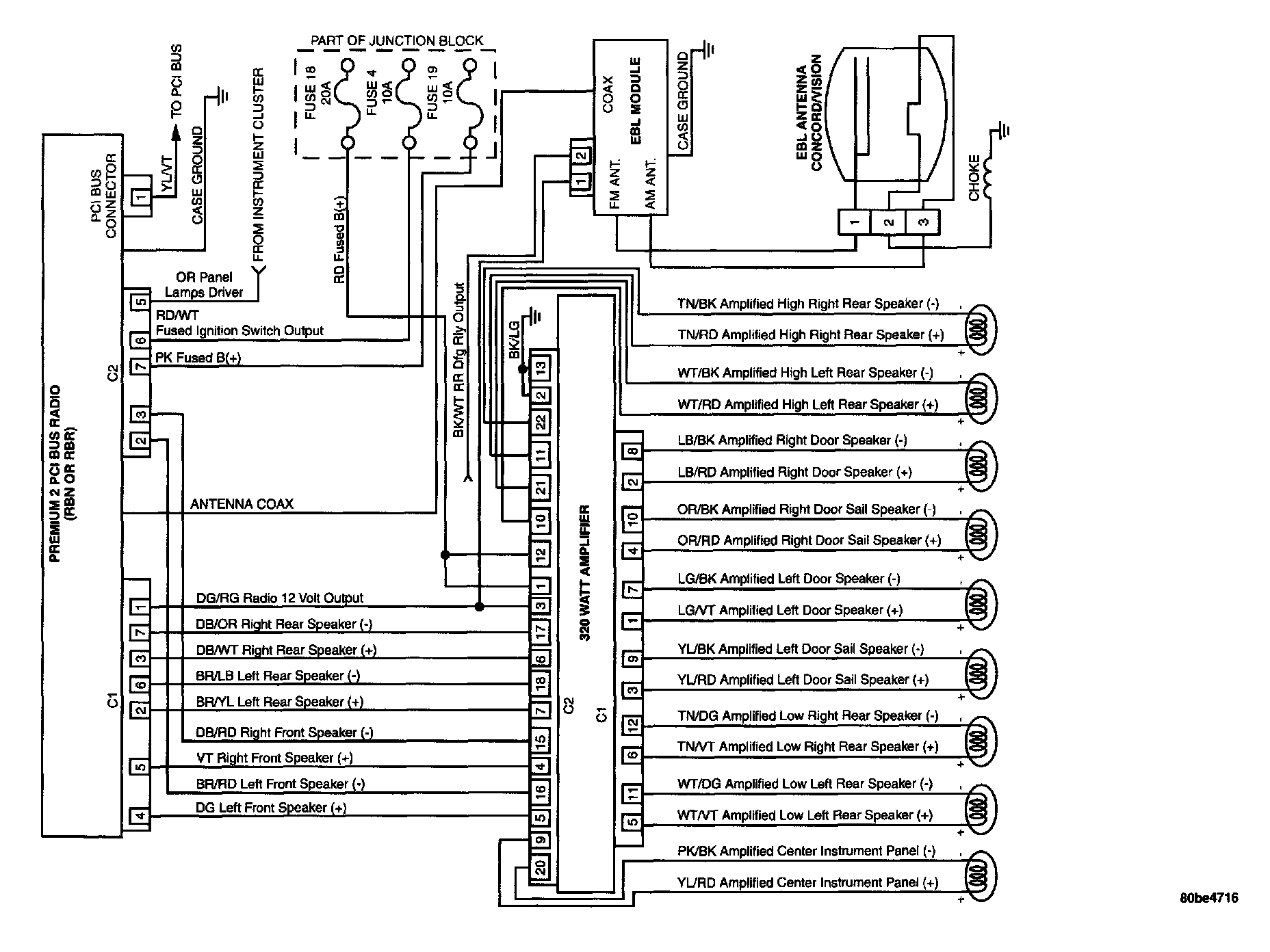

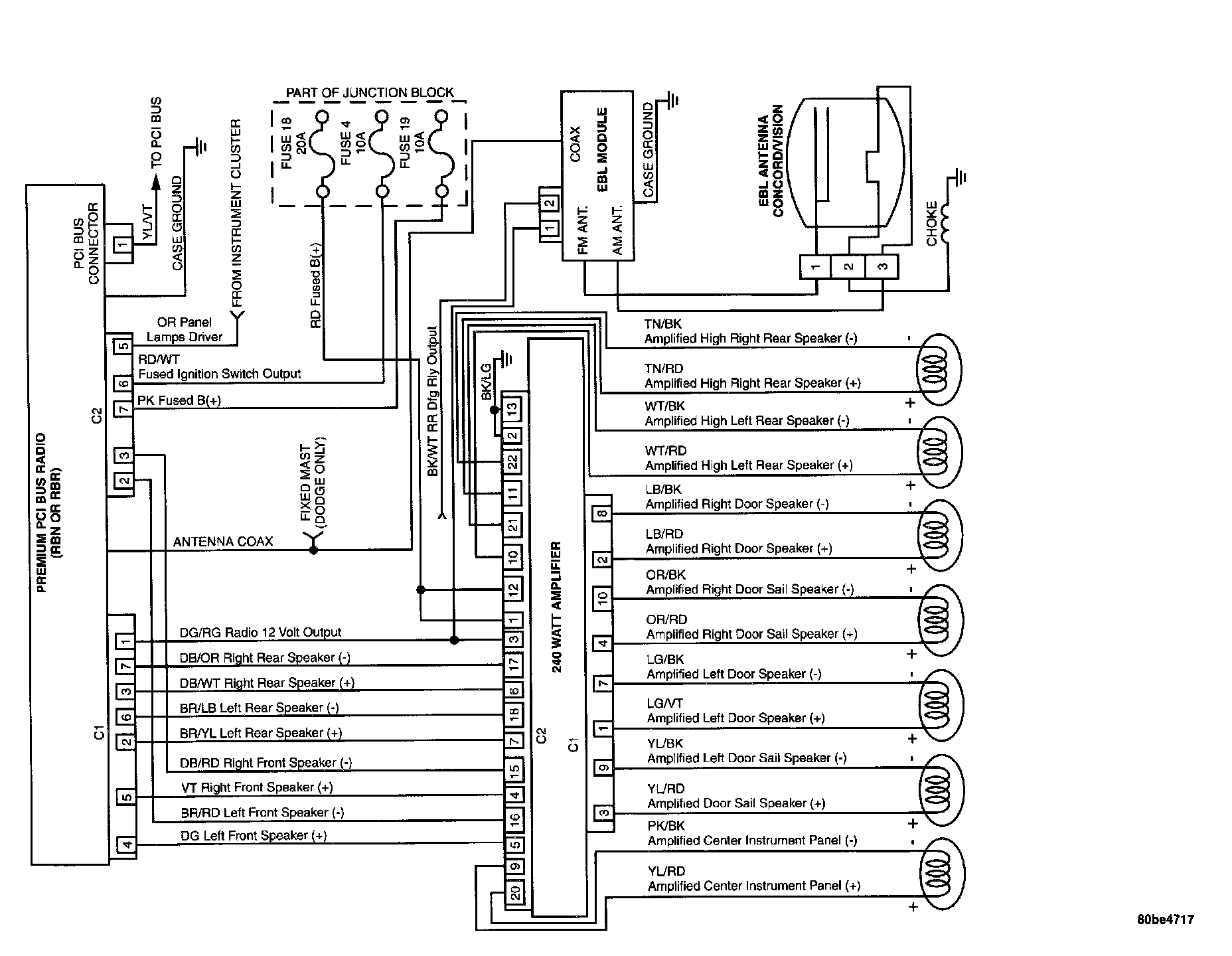

Audio System - Premium:

Audio System - Premium 2:

Body Control Module
Fuse 4 (JB)
Fuse 18 (JB)
G201
Instrument Cluster
Junction Block
Power Amplifier
Radio
Rear Window Defogger/Antenna Module
Standard Antenna

8W-47-3 (BASE):

Left Front Door Speaker
Left Rear Shelf Speaker
Radio
Right Front Door Speaker
Right Rear Shelf Speaker

8W-47-4 (Midline And Premium I/II):

Body Control Module
Left Front Door Sail Speaker
Left Front Door Speaker
Power Amplifier
Radio
Right Front Door Sail Speaker
Right Front Door Speaker

8W-47-5 (Midline And Premium I/II):

Center Instrument Panel Speaker
G301
Left Front Door Sail Speaker
Left Rear Shelf Speaker
Power Amplifier
Right Front Door Sail Speaker
Right Rear Shelf Speaker

8W-47-6 (Midline And Premium I/II):

G301
Power Amplifier
Radio
Rear Window Defogger Antenna
Rear Window Defogger Relay
Rear Window Defogger/Antenna Module

8W-47-7 (Premium II):

Left Rear Door Speaker
Power Amplifier
Right Rear Door Speaker


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
