Fuse Block

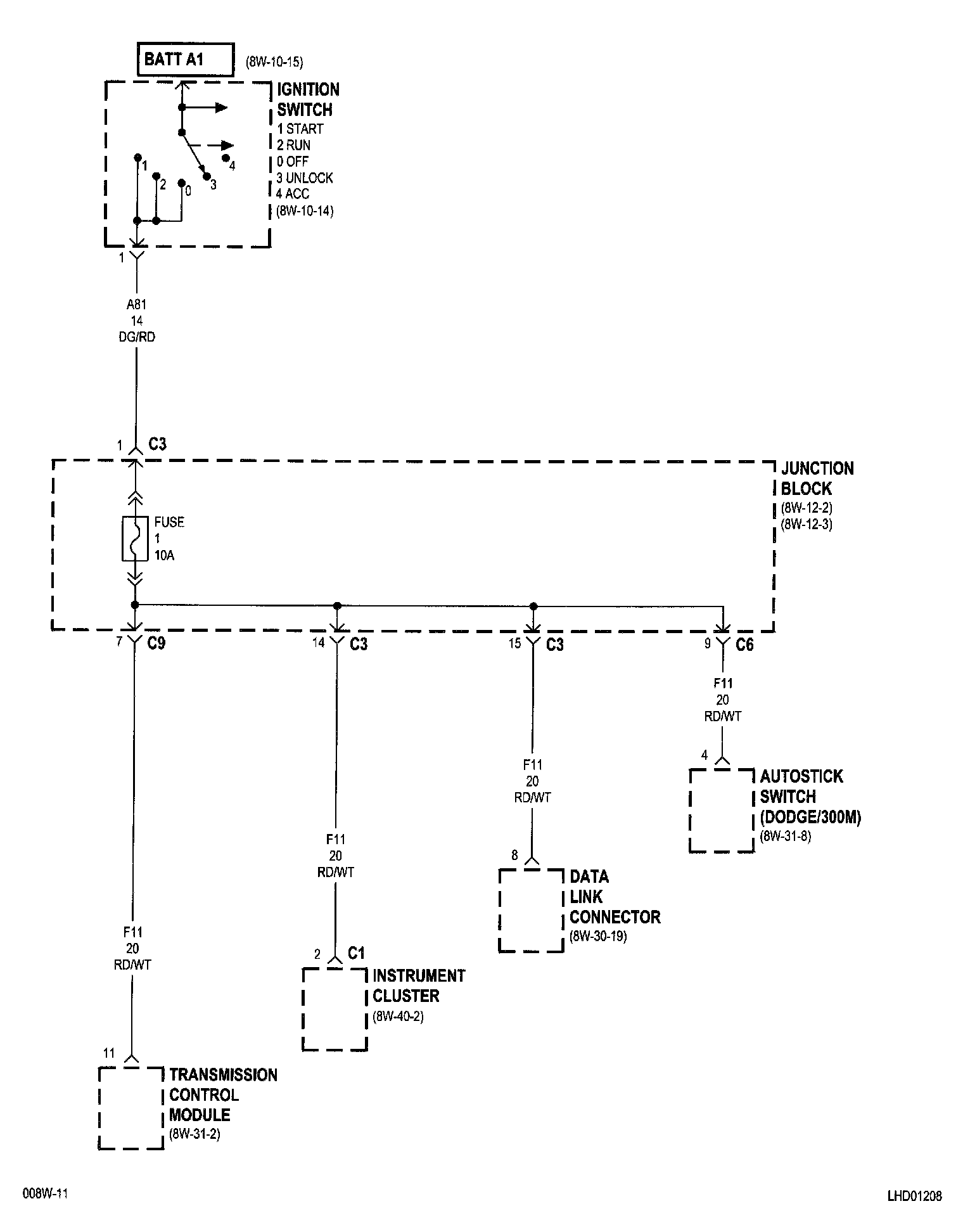

8W-12-8:
Autostick Switch
Data Link Connector
Fuse 1 (JB)
Ignition Switch
Instrument Cluster
Junction Block
Transmission Control Module

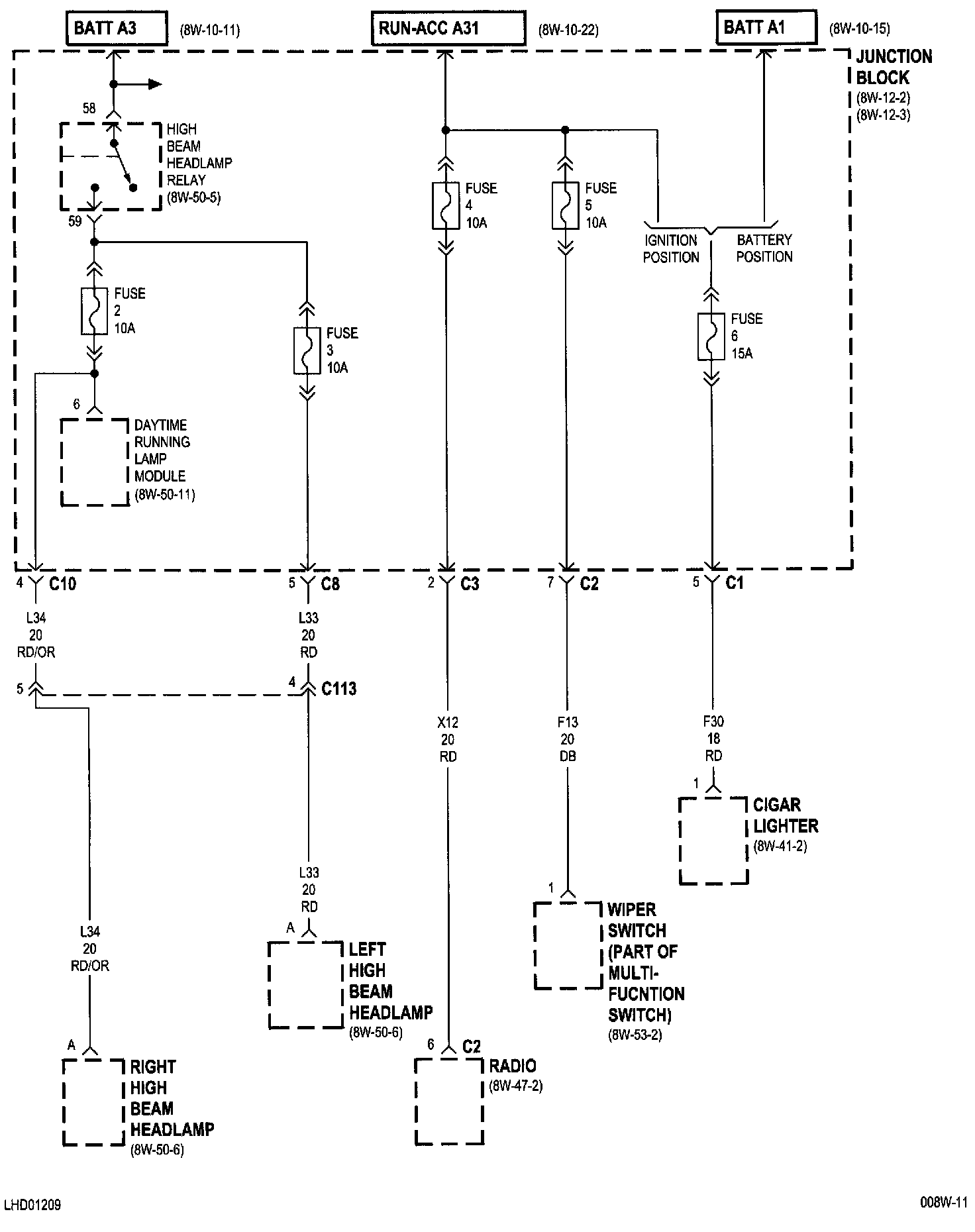

8W-12-9:
Cigar Lighter
Daytime Running Lamp Module
Fuse 2 (JB)
Fuse 3 (JB)
Fuse 4 (JB)
Fuse 8 (JB)
Fuse 8 (JB)
High Beam Headlamp Relay
Junction Block
Left High Beam Headlamp
Radio
Right High Beam Headlamp
Wiper Switch

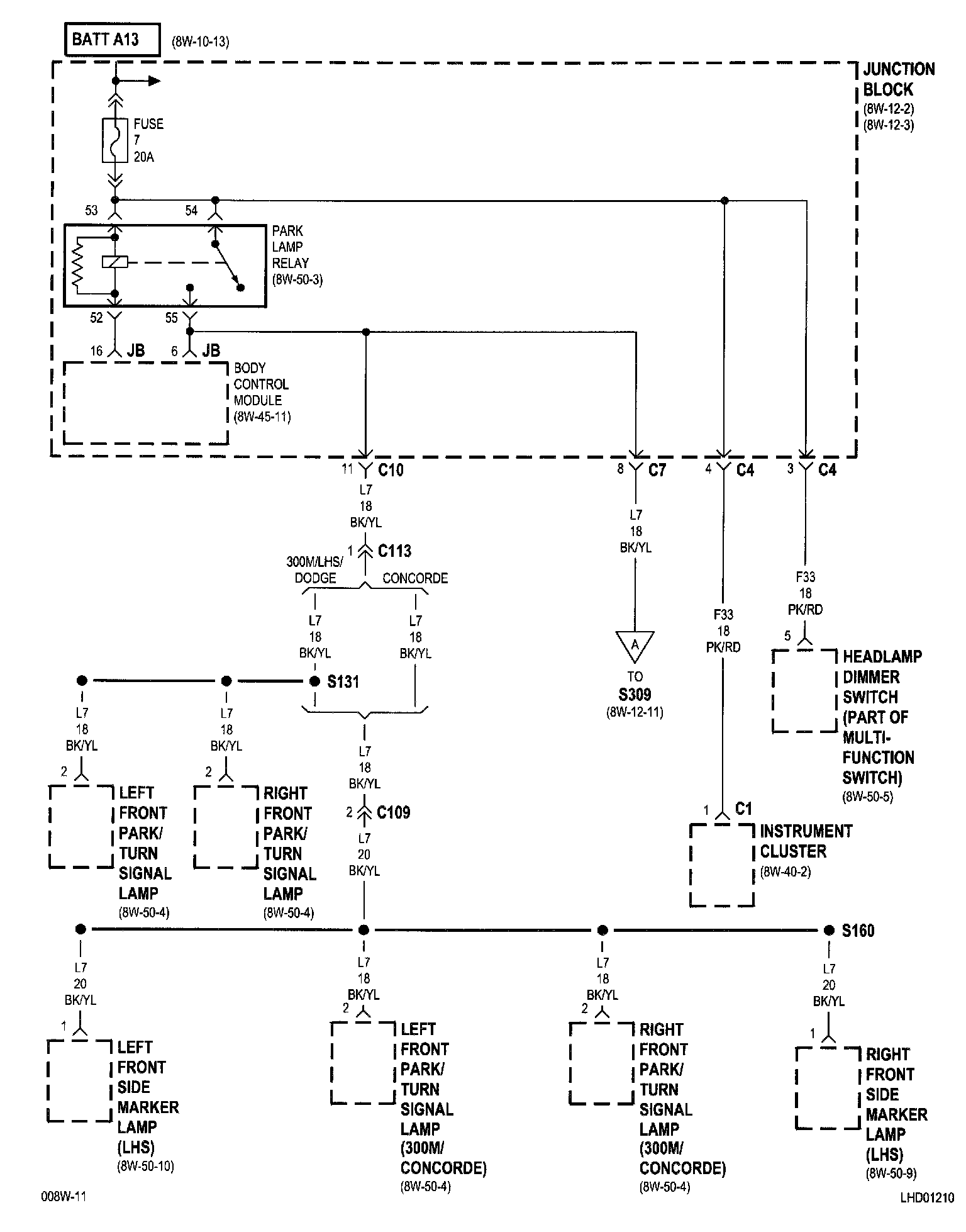

8W-12-10:
Body Control Module
Fuse 7 (JB)
Headlamp Dimmer Switch
Instrument Cluster
Junction Block
Left Front Park/Turn Signal Lamp
Left Front Side Marker Lamp
Right Front Park/Turn Signal Lamp
Right Front Side Marker Lamp

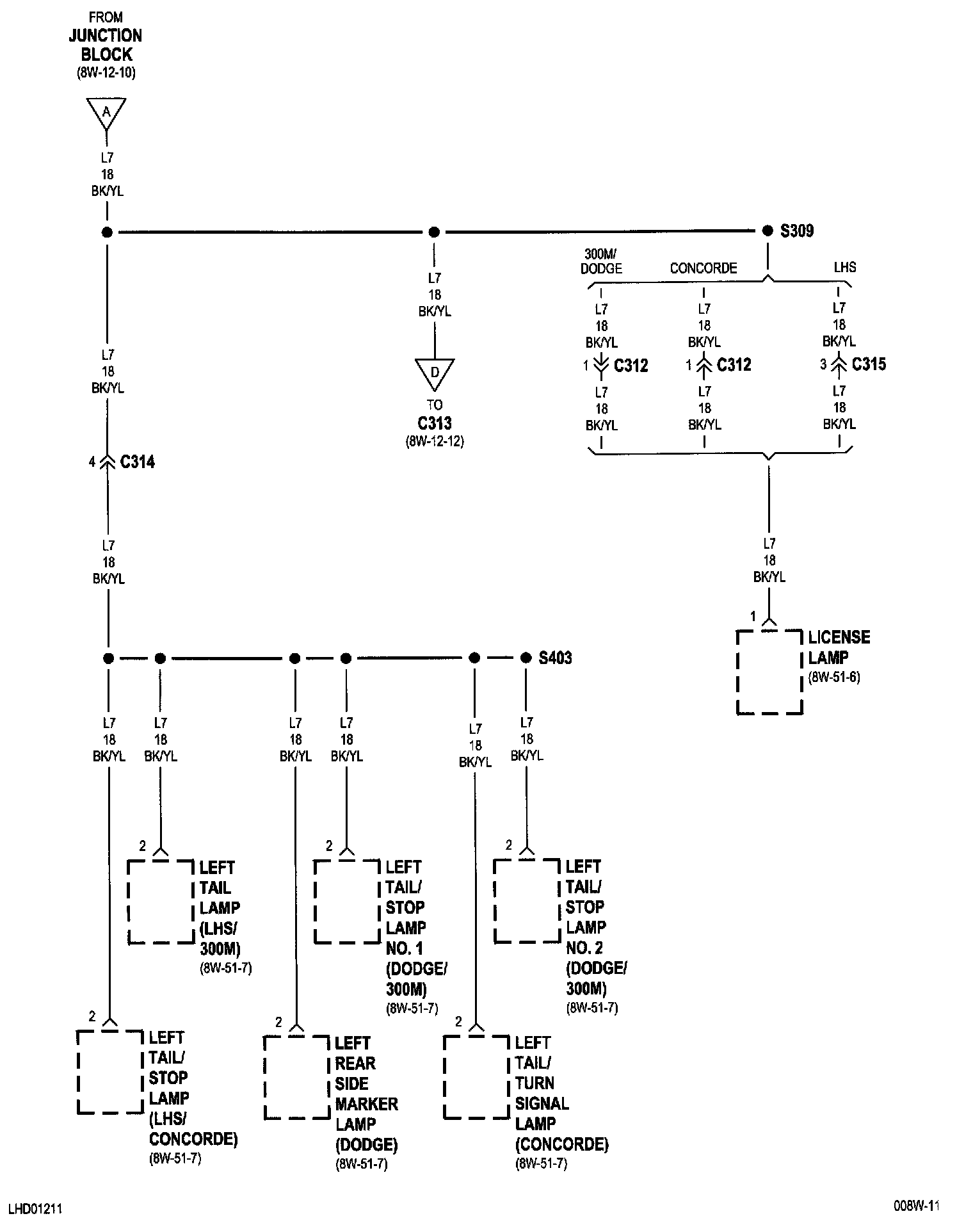

8W-12-11:
Junction Block
Left Rear Side Marker Lamp
Left Tail Lamp
Left Tail/Stop Lamp
Left Tail/Stop Lamp No.1
Left Tail/Turn Signal Lamp
License Lamp

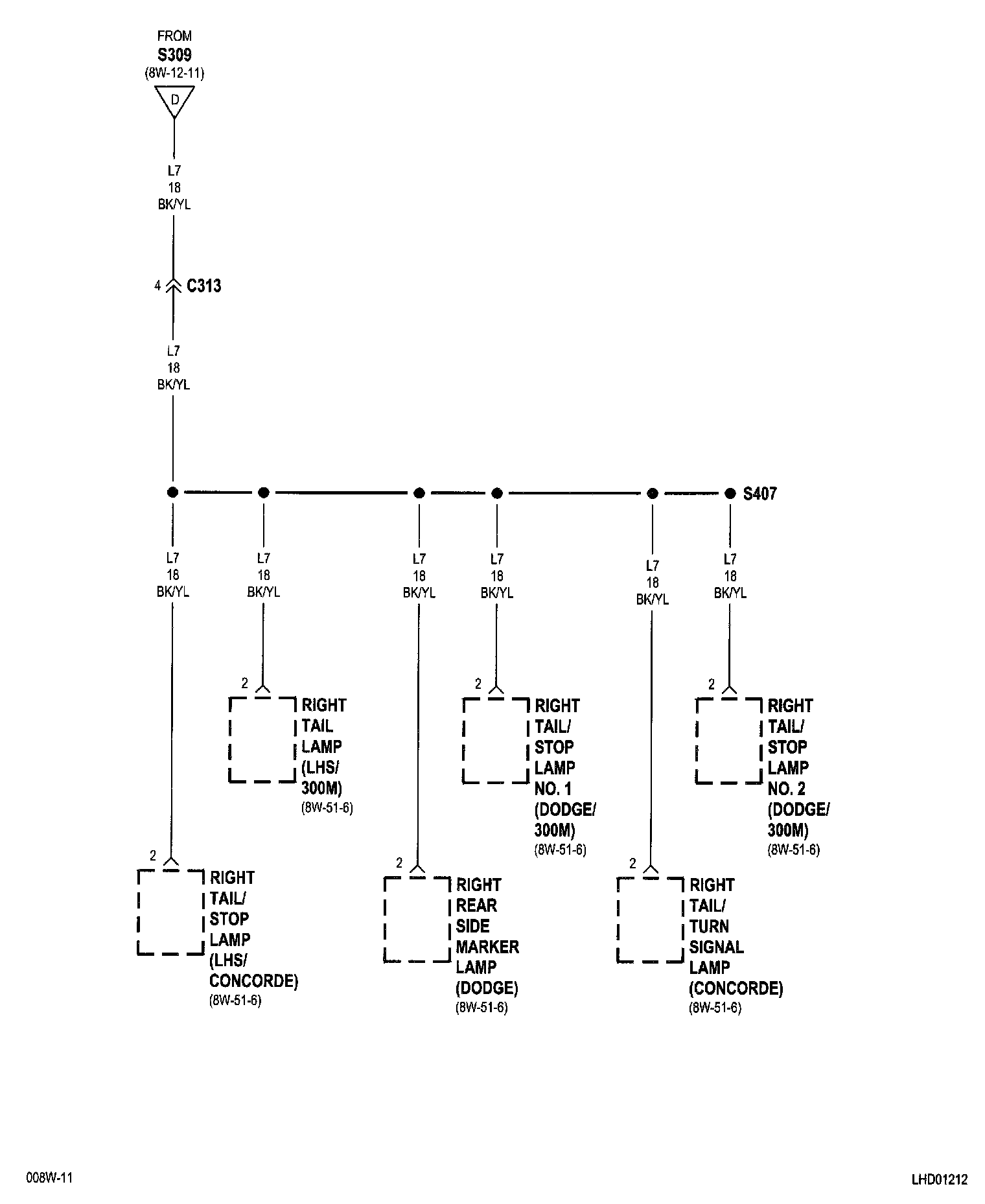

8W-12-12:
Left Tail/Stop Lamp No.2
Power Amplifier
Right Rear Side Marker Lamp
Right Tail Lamp
Right Tail/Stop Lamp
Right Tail/Stop Lamp No.1
Right Tail/Stop Lamp No.2
Right Tail/Turn Signal Lamp

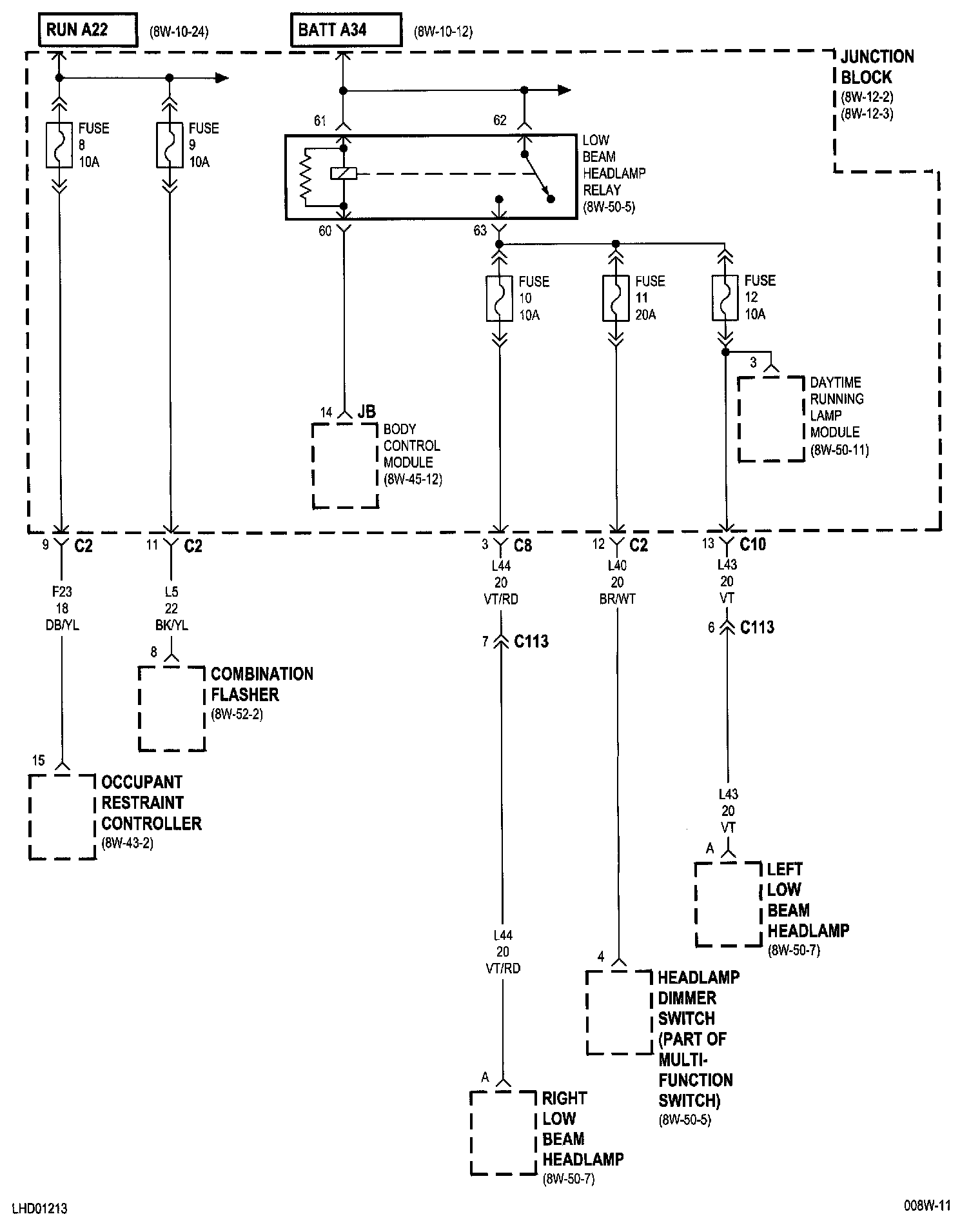

8W-12-13:
Body Control Module
Combination Flasher
Daytime Running Lamp Module
Driver Power Door Lock Switch
Fuse 8 (JB)
Fuse 9 (JB)
Fuse 11 (JB)
Fuse 12 (JB)
Headlamp Dimmer Switch
Junction Block
Left Low Beam Headlamp
Low Beam Headlamp Relay
Occupant Restraint Controller
Right Low Beam Headlamp

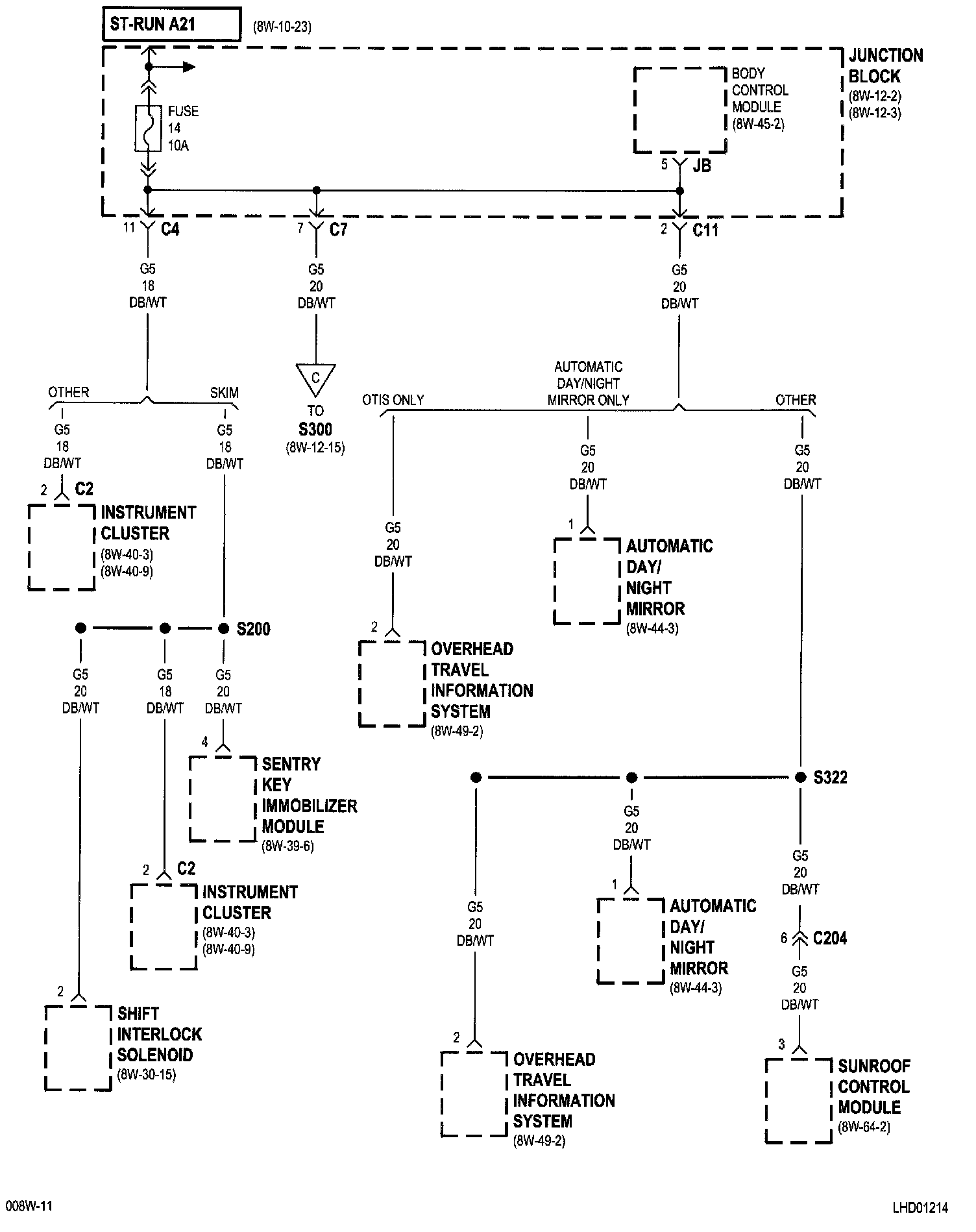

8W-12-14:
Automatic Day/Night Mirror
Body Control Module
Fuse 14 (JB)
Instrument Cluster
Junction Block
Overhead Travel Information System
Sentry Key Immobilizer Module
Shift Interlock Solenoid
Sunroof Control Module

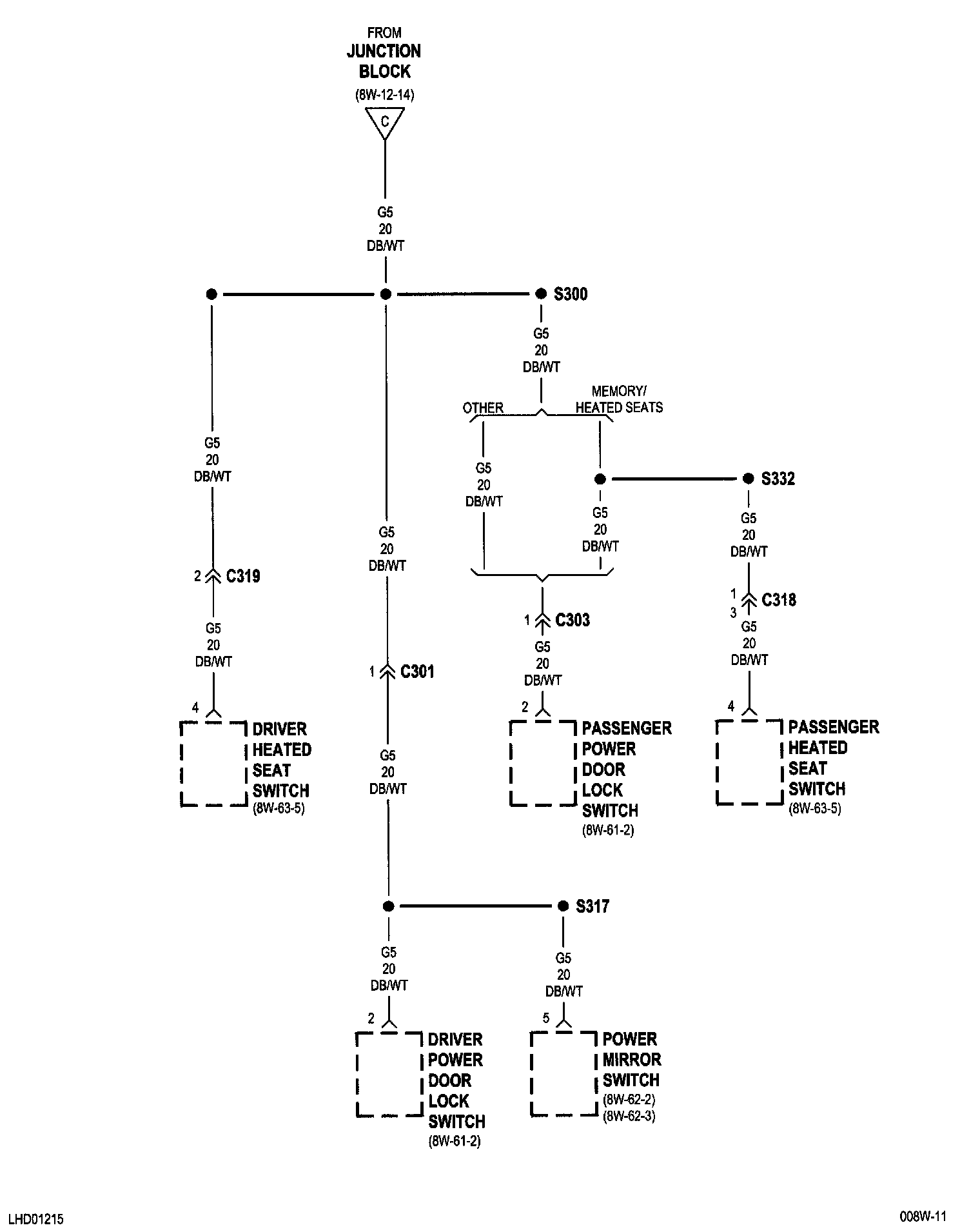

8W-12-15:
Passenger Heated Seat Switch
Passenger Power Door Lock Switch
Power Mirror Switch

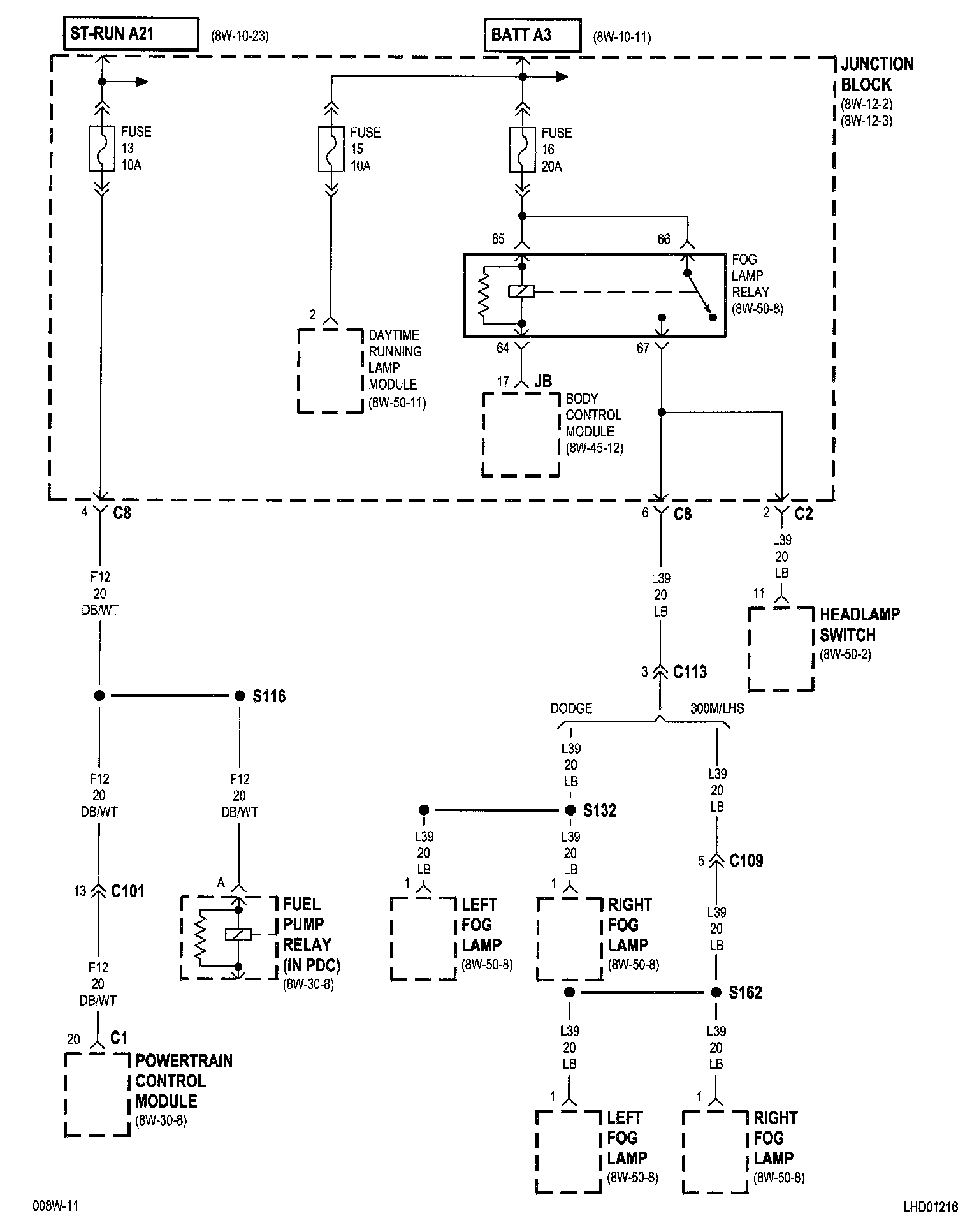

8W-12-16:
Body Control Module
Daytime Running Lamp Module
Fog Lamp Relay
Fuel Pump Relay
Fuse 13 (JB)
Fuse 15 (JB)
Fuse 18 (JB)
Headlamp Switch
Junction Block
Left Fog Lamp
Right Fog Lamp

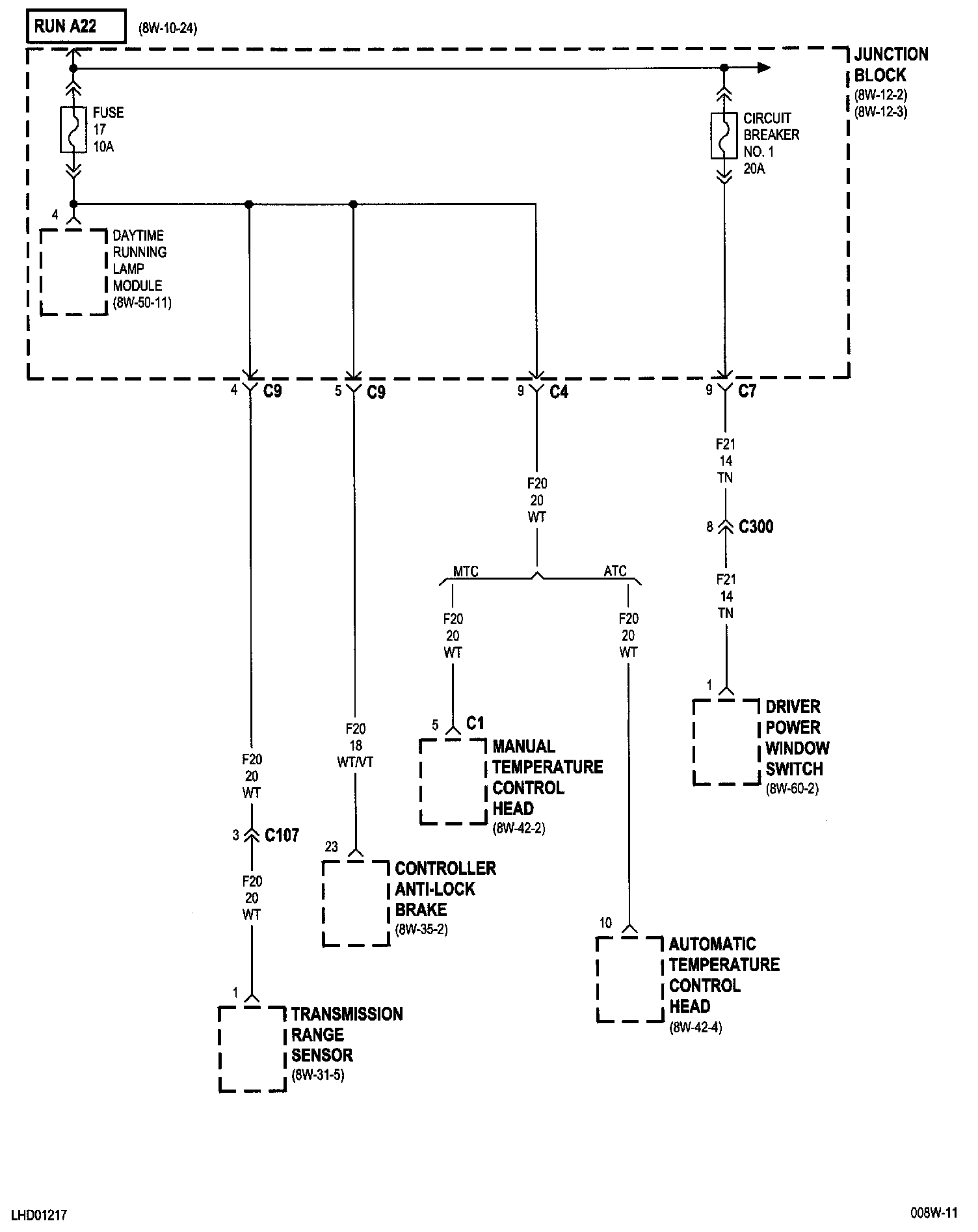

8W-12-17:
Automatic Temperature Control Head
Circuit Breaker No.1 (JB)
Daytime Running Lamp Module
Driver Power Window Switch
Fuse 17 (JB)
Junction Block
Manual Temperature Control Head
Transmission Range Sensor

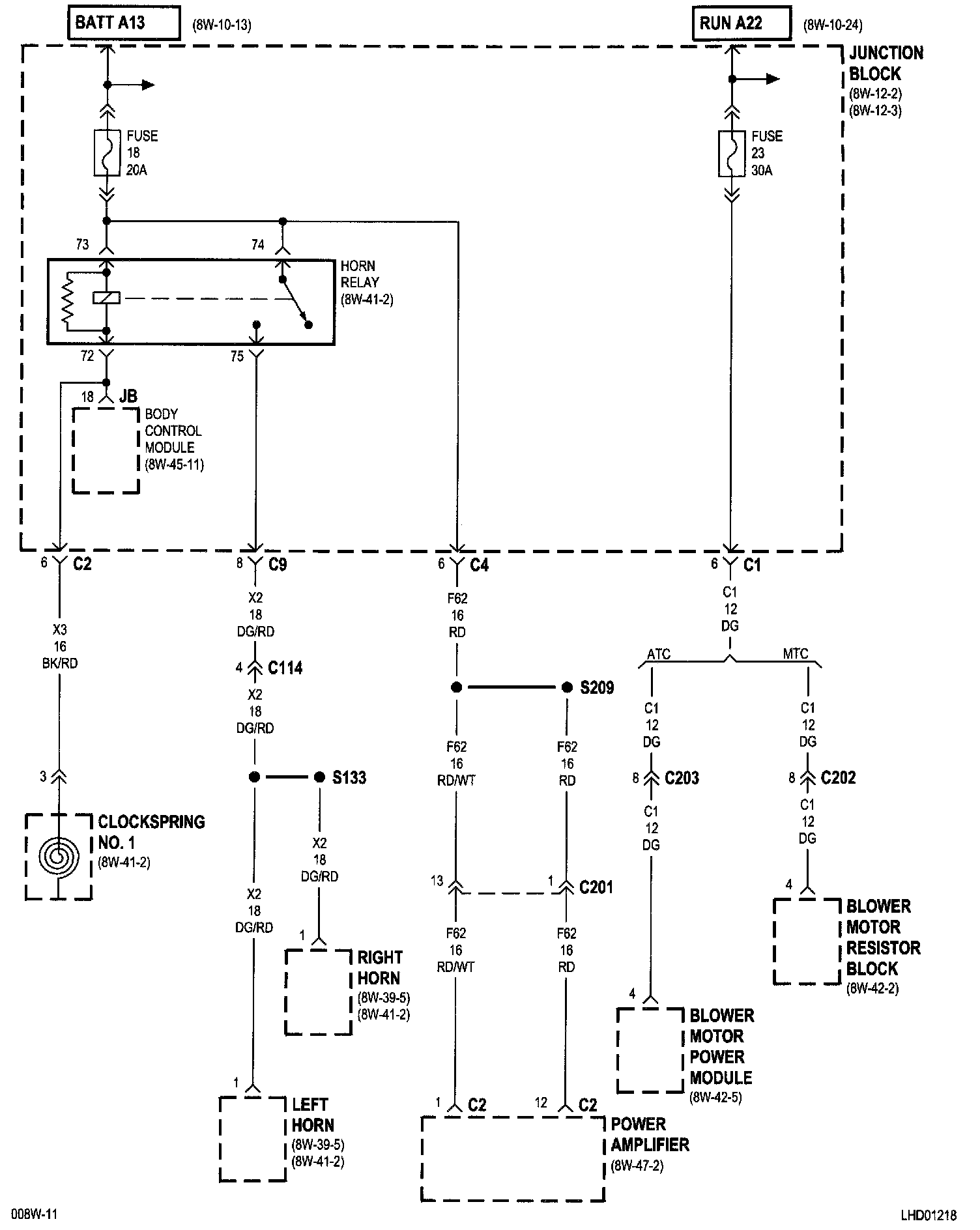

8W-12-18:
Blower Motor Power Module
Blower Motor Resistor Block
Body Control Module
Clockspring No.1
Driver Heated Seat Switch
Fuse 18 (JB)
Horn Relay
Left Horn
Right Horn

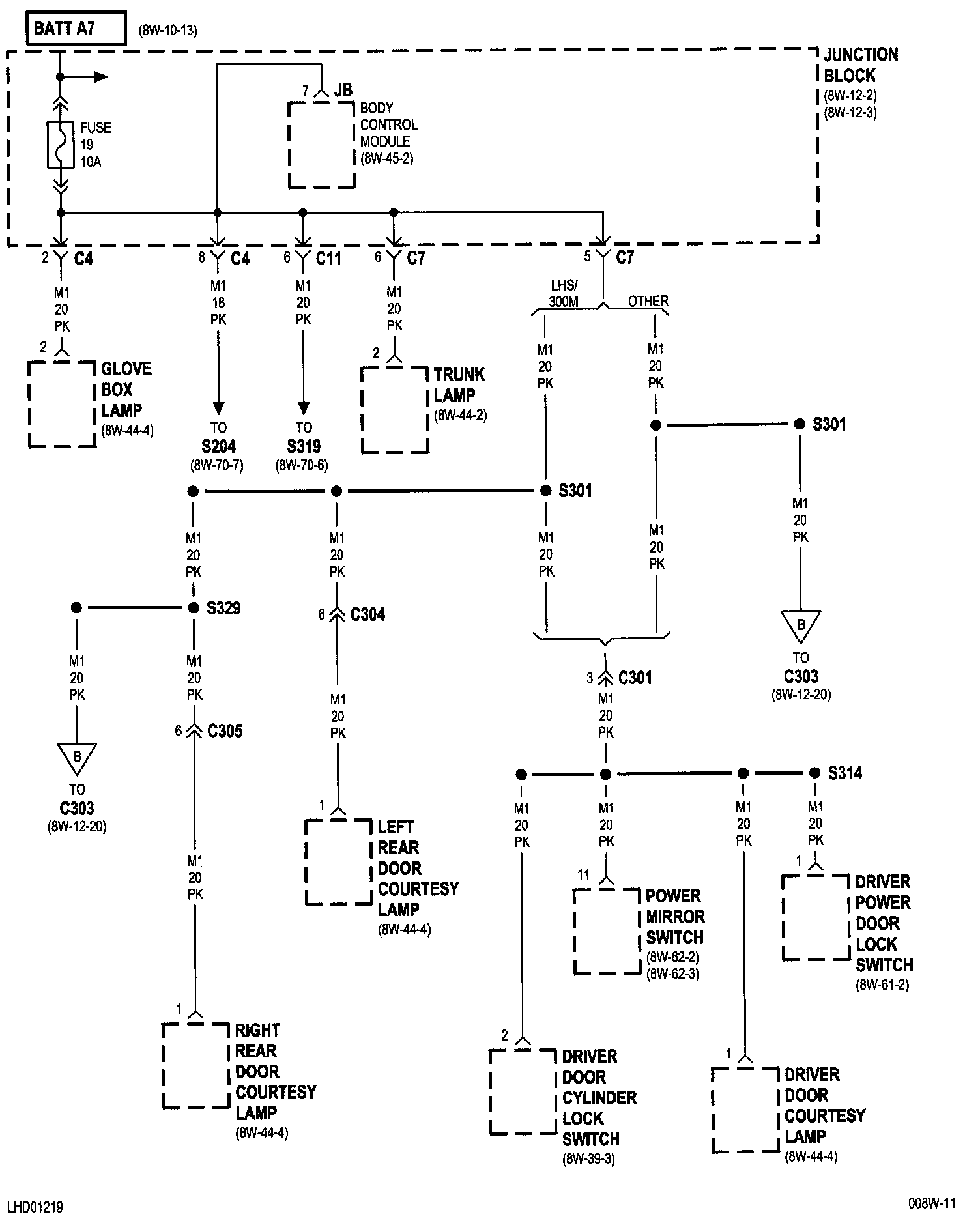

8W-12-19:
Body Control Module
Driver Door Courtesy Lamp
Driver Door Cylinder Lock Switch
Driver Power Door Lock Switch
Fuse 19 (JB)
Glove Box Lamp
Junction Block
Left Rear Door Courtesy Lamp
Power Mirror Switch
Right Rear Door Courtesy Lamp
Trunk Lamp

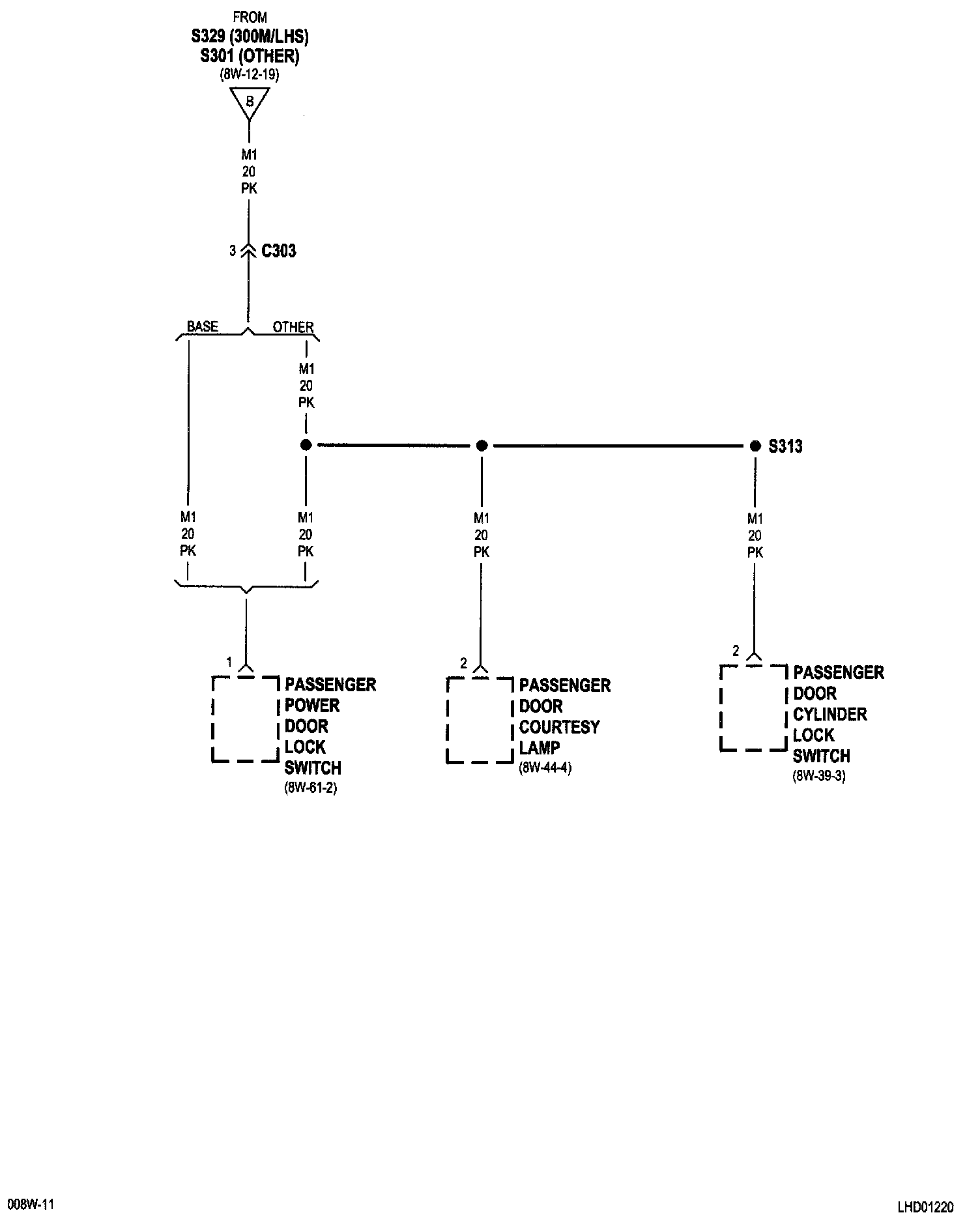

8W-12-20:
Passenger Door Courtesy Lamp
Passenger Door Cylinder Lock Switch
Passenger Power Door Lock Switch

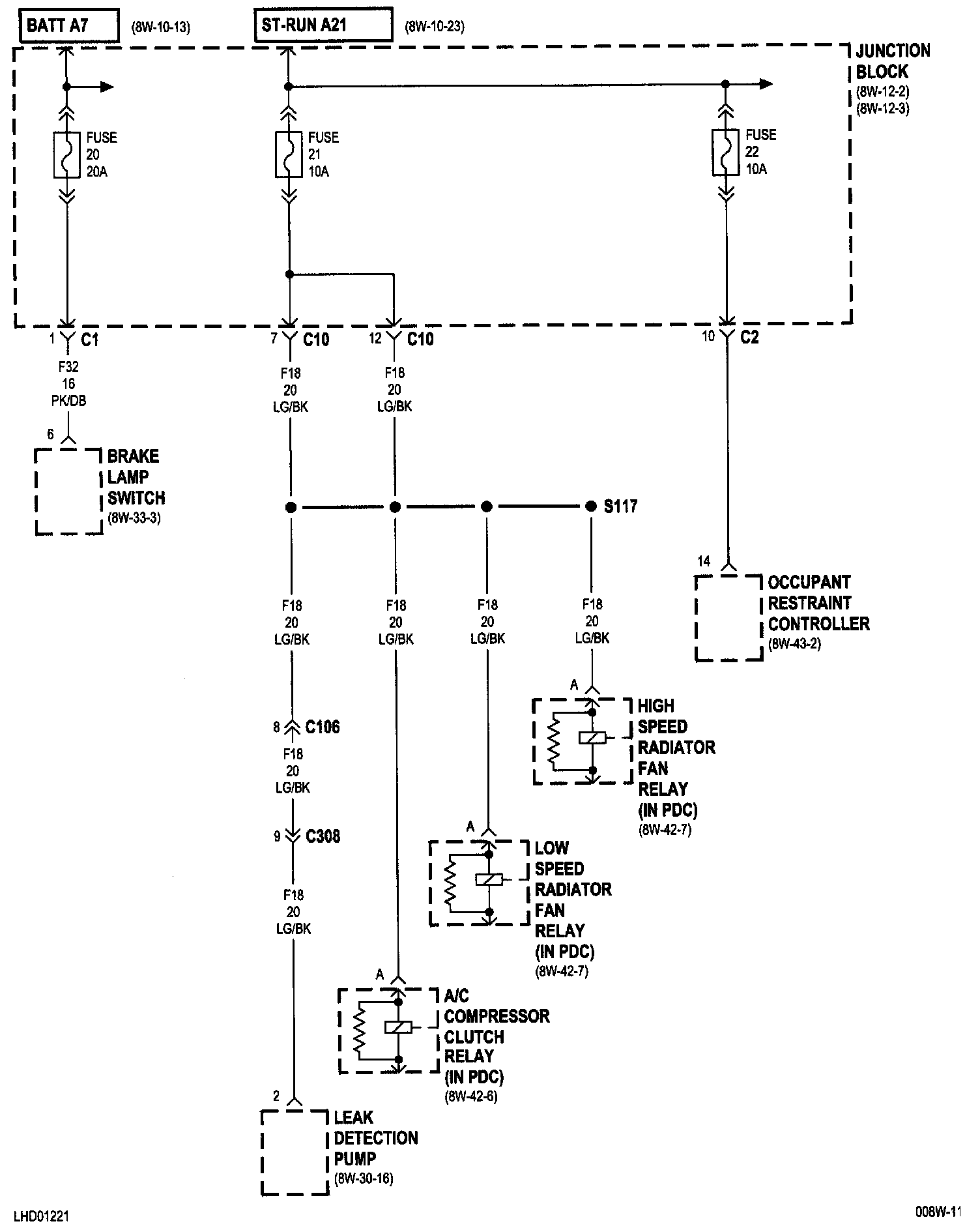

8W-12-21:
A/C Compressor Clutch Relay
Brake Lamp Switch
Fuse 20 (JB)
Fuse 21 (JB)
Fuse 22 (JB)
Fuse 22 (JB)
High Speed Radiator Fan Relay
Junction Block
Junction Block
Leak Detection Pump
Low Speed Radiator Fan Relay
Occupant Restraint Controller

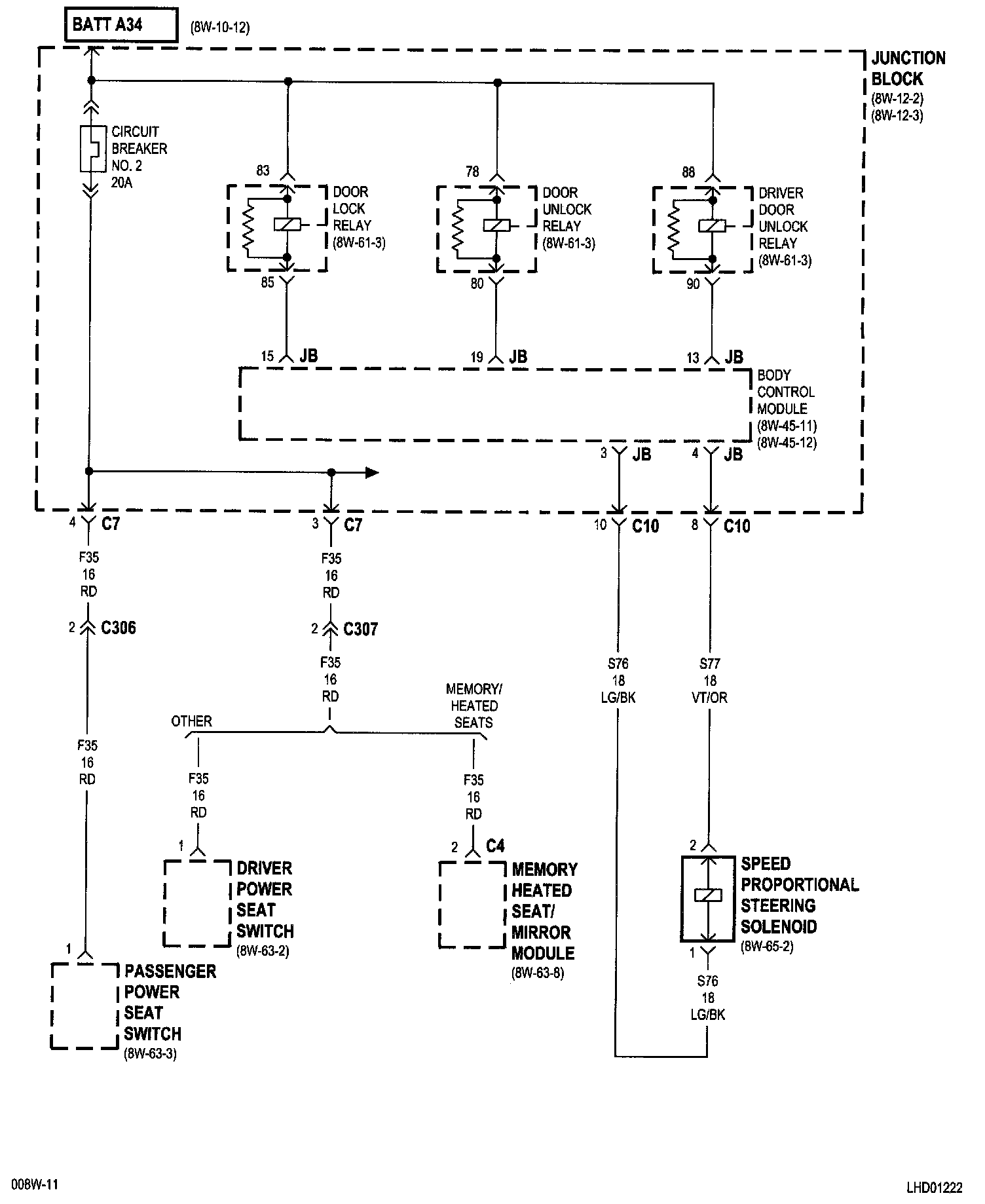

8W-12-22:
Body Control Module
Circuit Breaker No.2 (JB)
Door Lock Relay
Door Unlock Relay
Driver Door Unlock Relay
Driver Power Seat Switch
Junction Block
Passenger Power Seat Switch
Speed Proportional Steering Solenoid

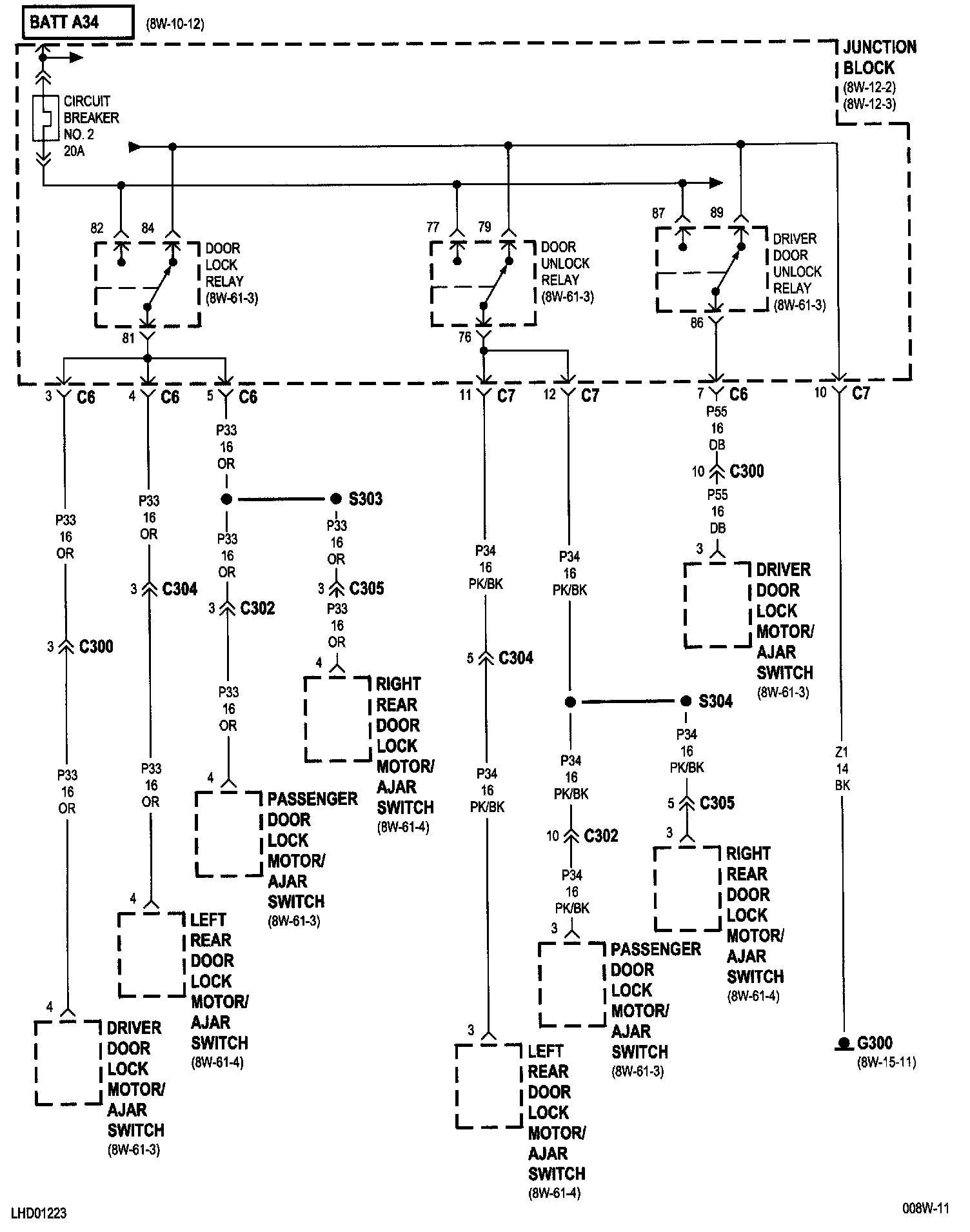

8W-12-23:
Circuit Breaker No.2 (JB)
Door Lock Relay
Door Unlock Relay
Driver Door Lock Motor/Ajar Switch
Driver Door Unlock Relay
G300
Junction Block
Left Rear Door Lock Motor/Ajar Switch
Passenger Door Lock Motor/Ajar Switch
Right Rear Door Lock Motor/Ajar Switch

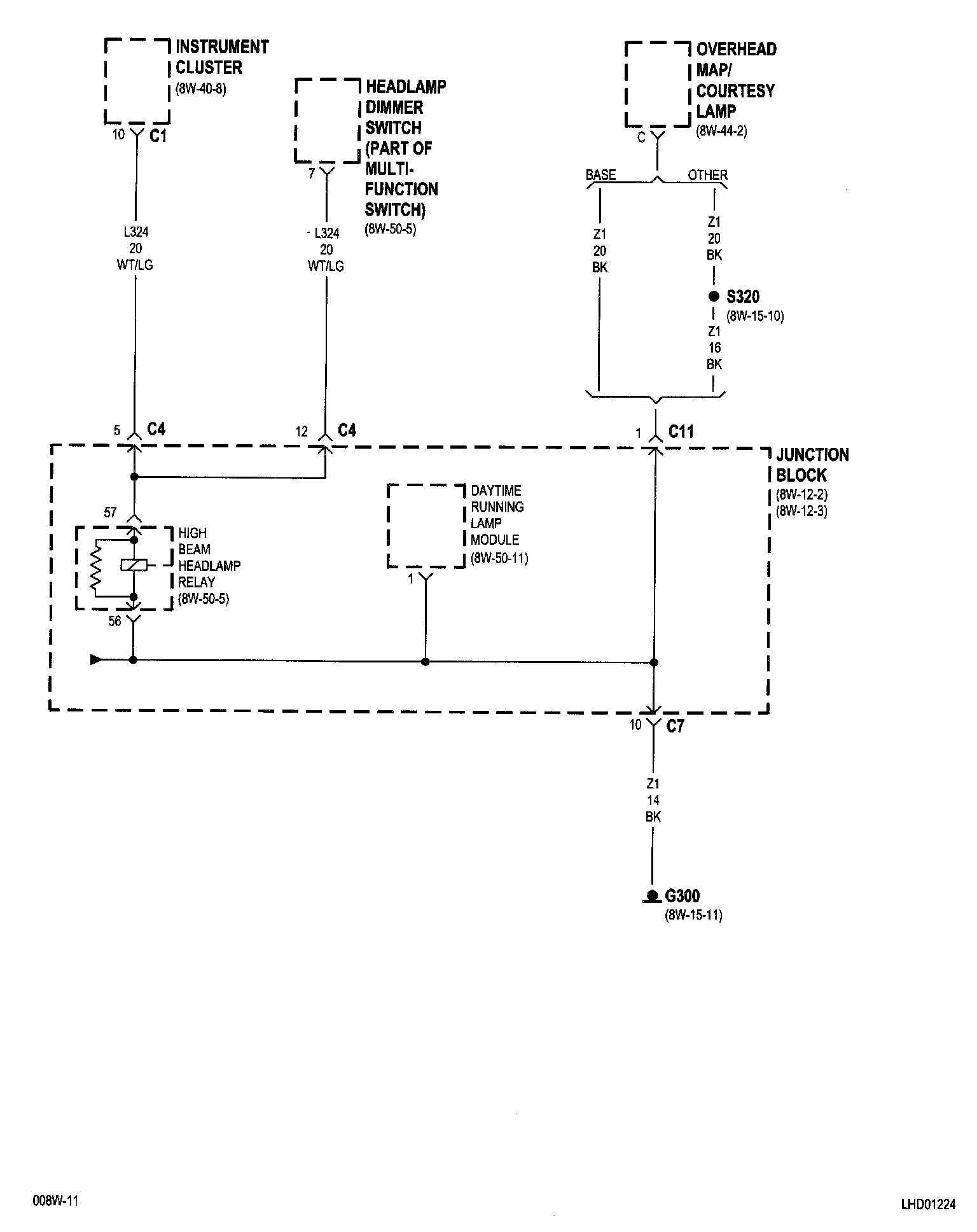

8W-12-24:
Daytime Running Lamp Module
G300
Headlamp Dimmer Switch
High Beam Headlamp Relay
Instrument Cluster
Junction Block
Overhead Map/Courtesy Lamp

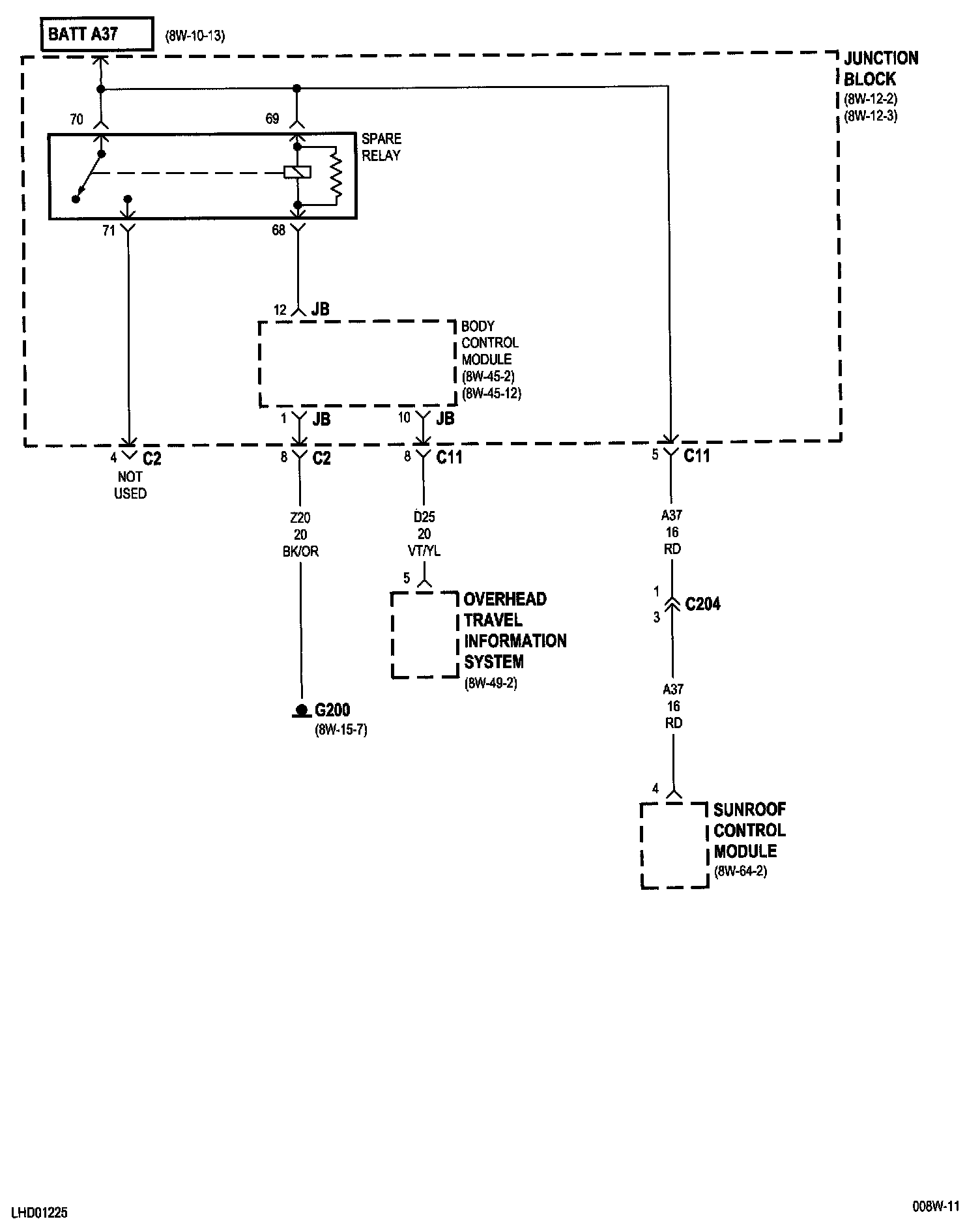

8W-12-25:
Body Control Module
G200
Junction Block
Overhead Travel Information System
Spare Relay
Sunroof Control Module

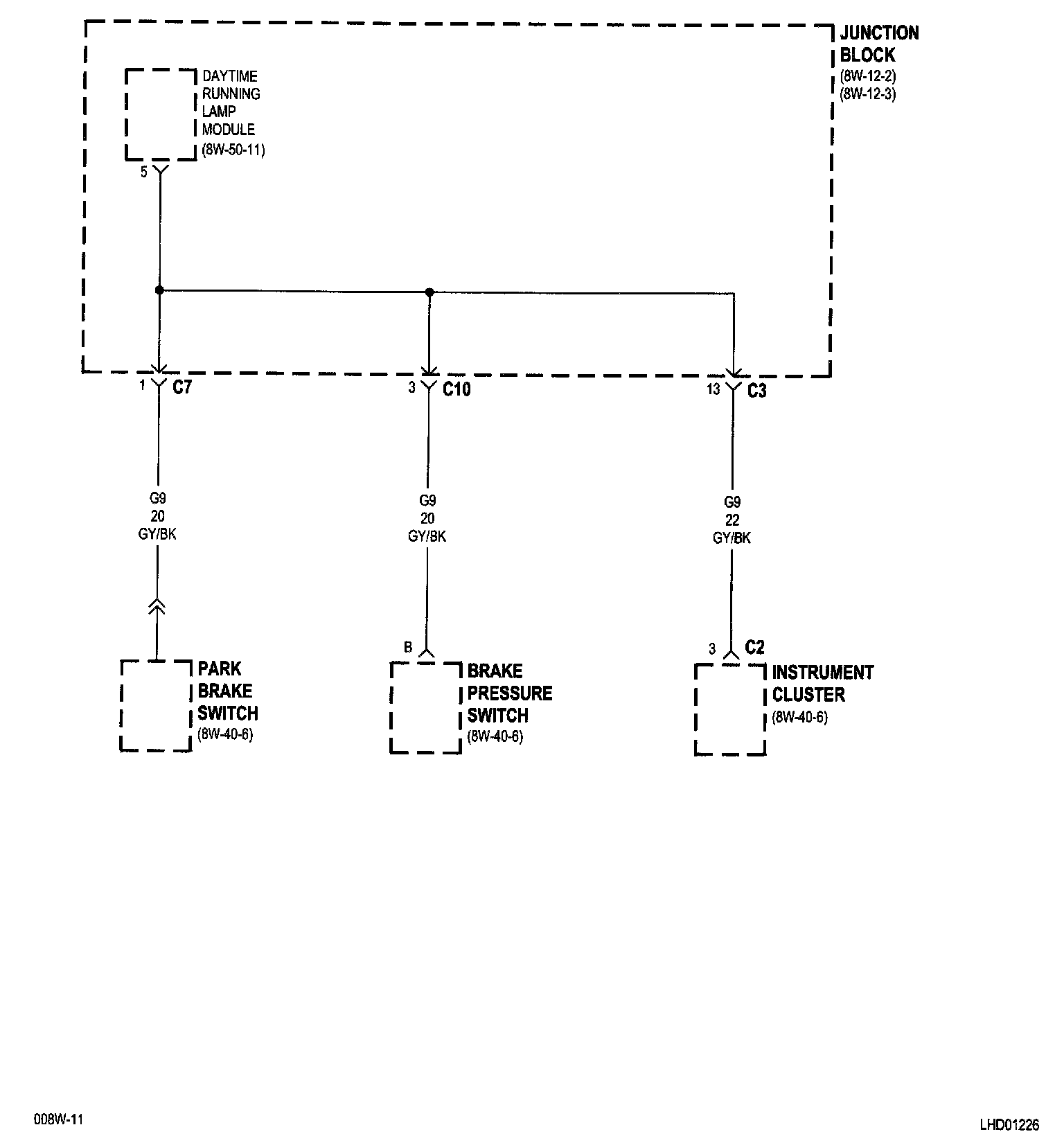

8W-12-26:
Brake Pressure Switch
Daytime Running Lamp Module
Instrument Cluster
Junction Block
Park Drake Switch

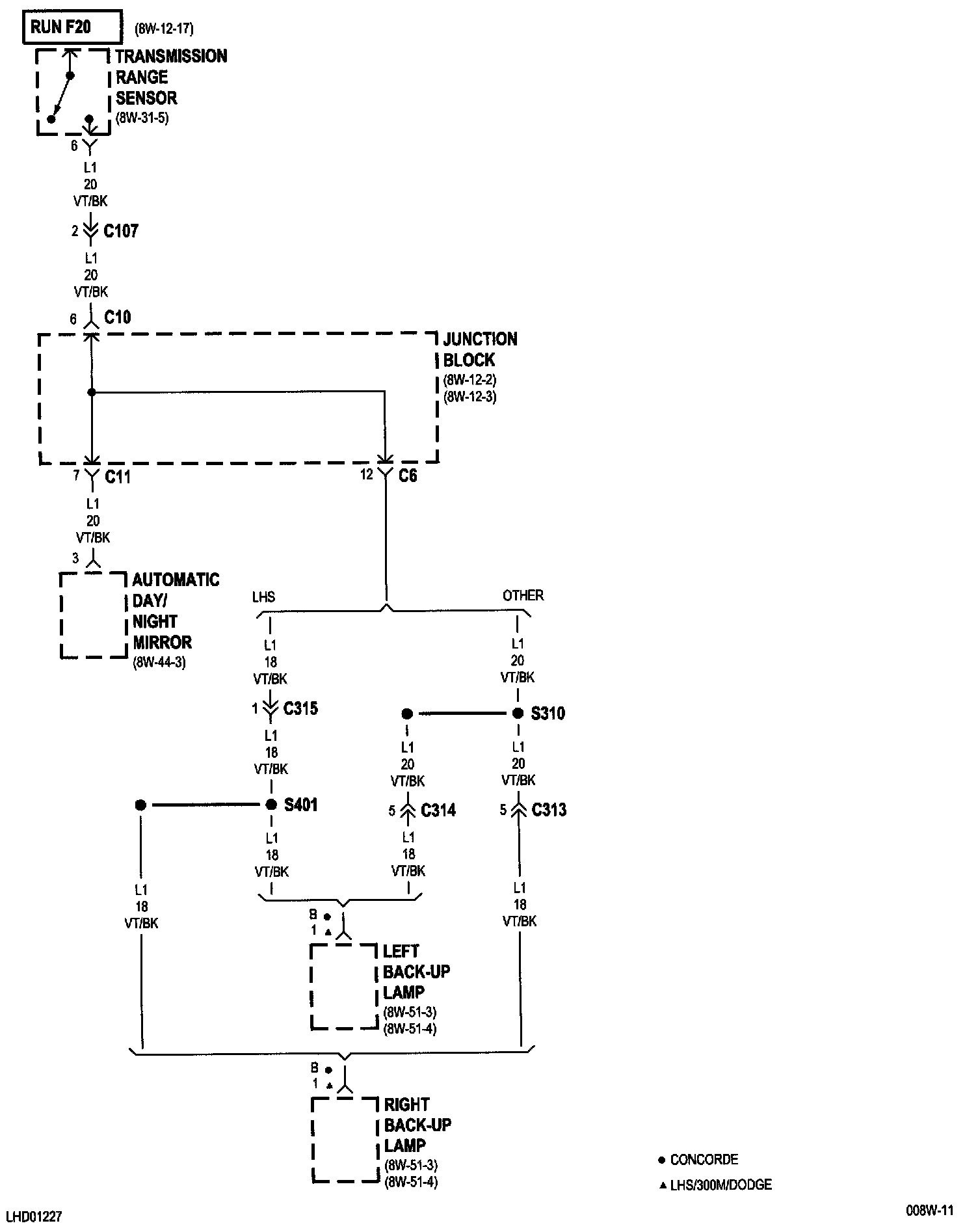

8W-12-27:
Automatic Day/Night Mirror
Junction Block
Left Back-Up Lamp
Right Back-Up Lamp
Transmission Range Sensor

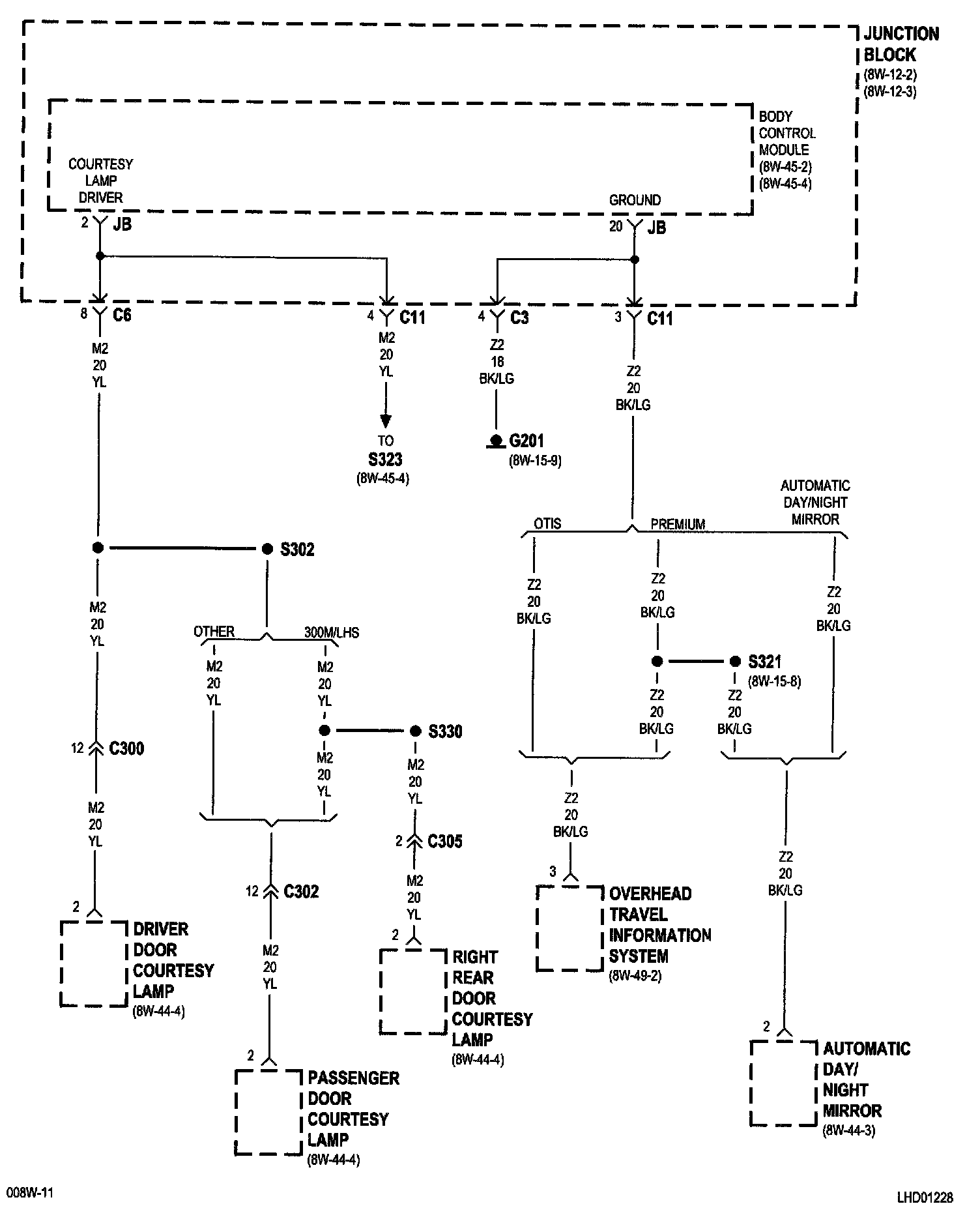

8W-12-28:
Automatic Day/Night Mirror
Body Control Module
Driver Door Courtesy Lamp
G201
Overhead Travel Information System
Passenger Door Courtesy Lamp
Right Rear Door Courtesy Lamp

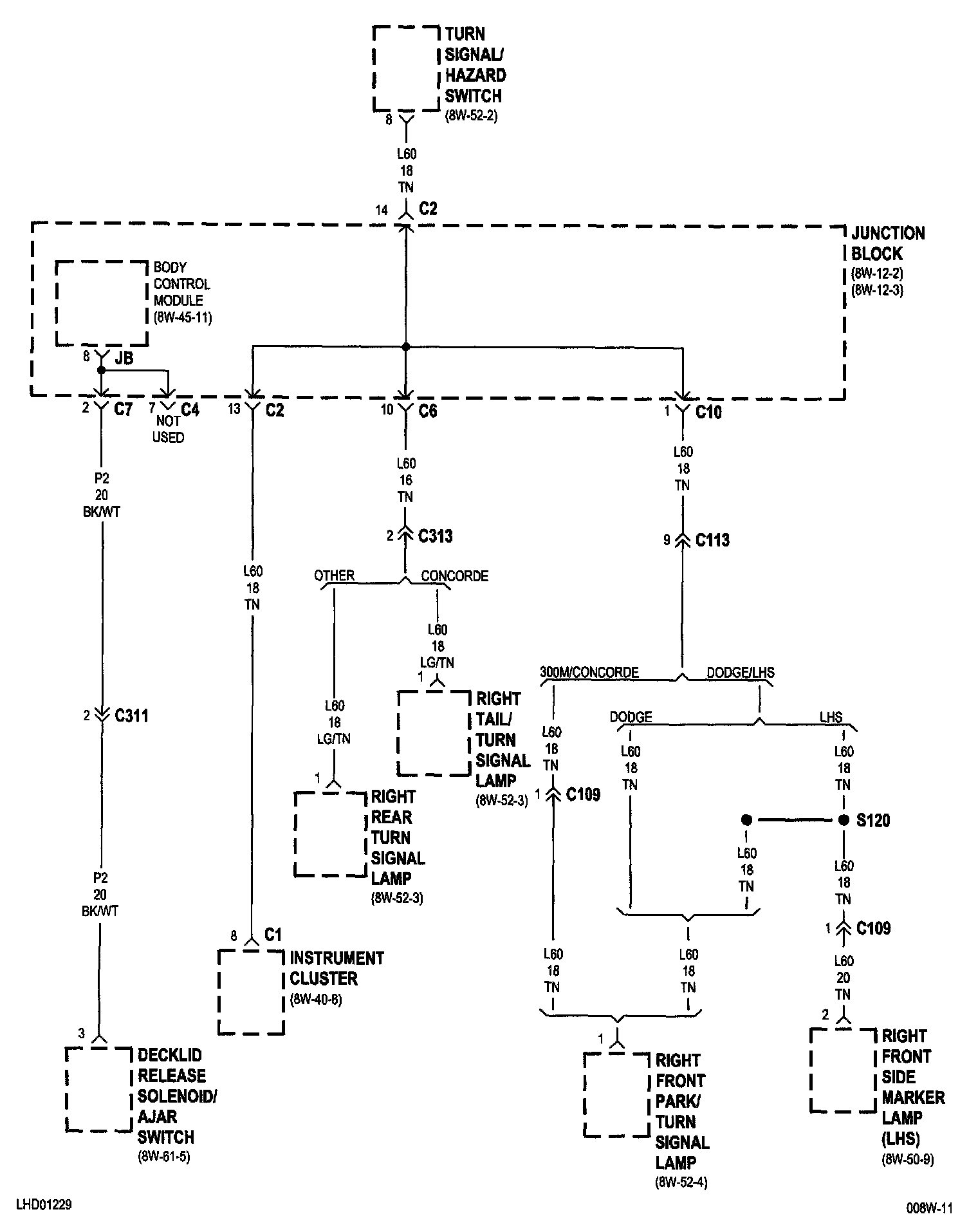

8W-12-29:
Body Control Module
Decklid Release Solenoid/Ajar Switch
Instrument Cluster
Junction Block
Right Front Park/Turn Signal Lamp
Right Front Side Marker Lamp
Right Rear Turn Signal Lamp
Right Tail/Turn Signal Lamp
Turn Signal/Hazard Switch

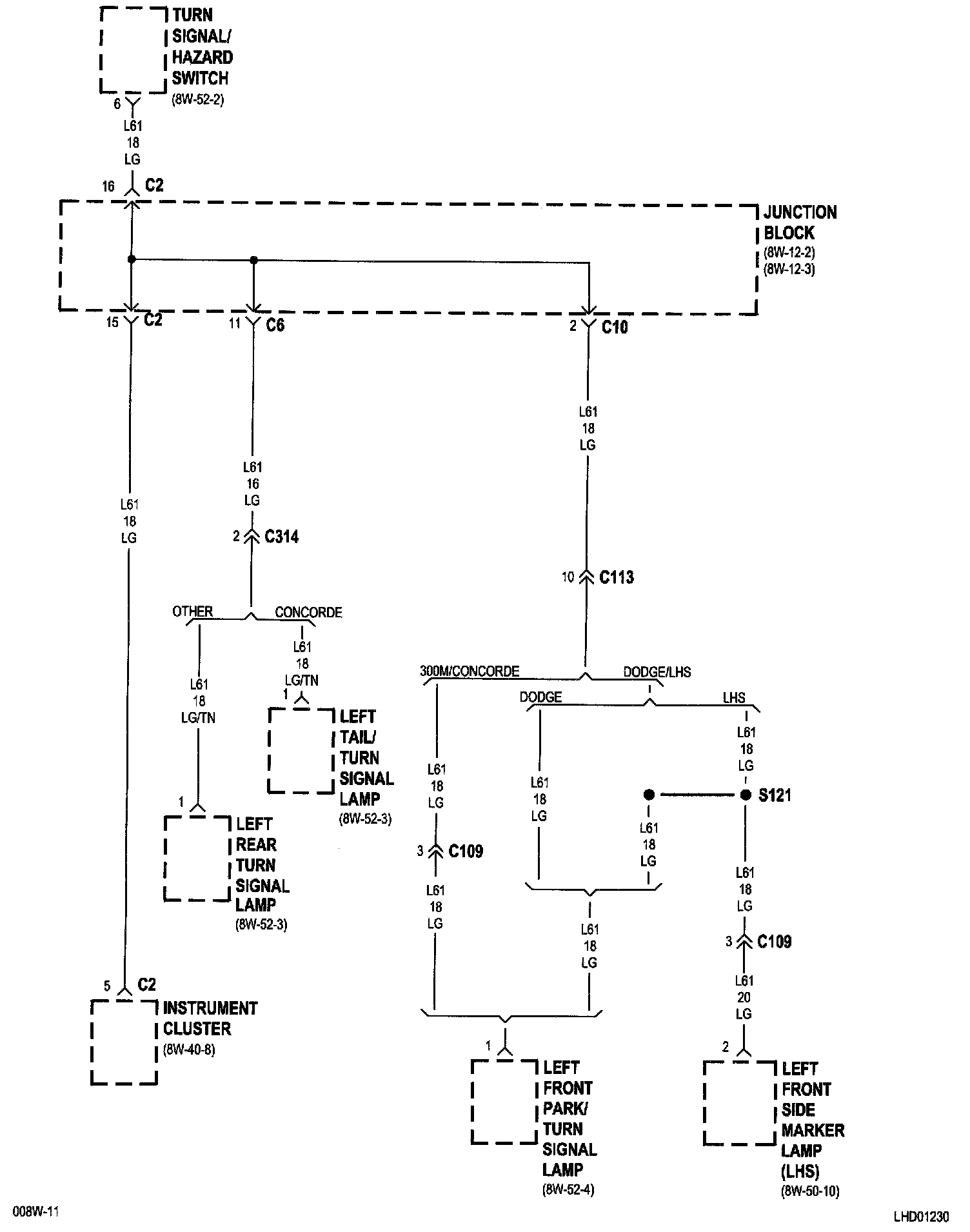

8W-12-30:
Instrument Cluster
Junction Block
Left Front Park/Turn Signal Lamp
Left Front Side Marker Lamp
Left Rear Turn Signal Lamp
Left Tail/Turn Signal Lamp
Turn Signal/Hazard Switch
NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
