Auxiliary Power Outlet

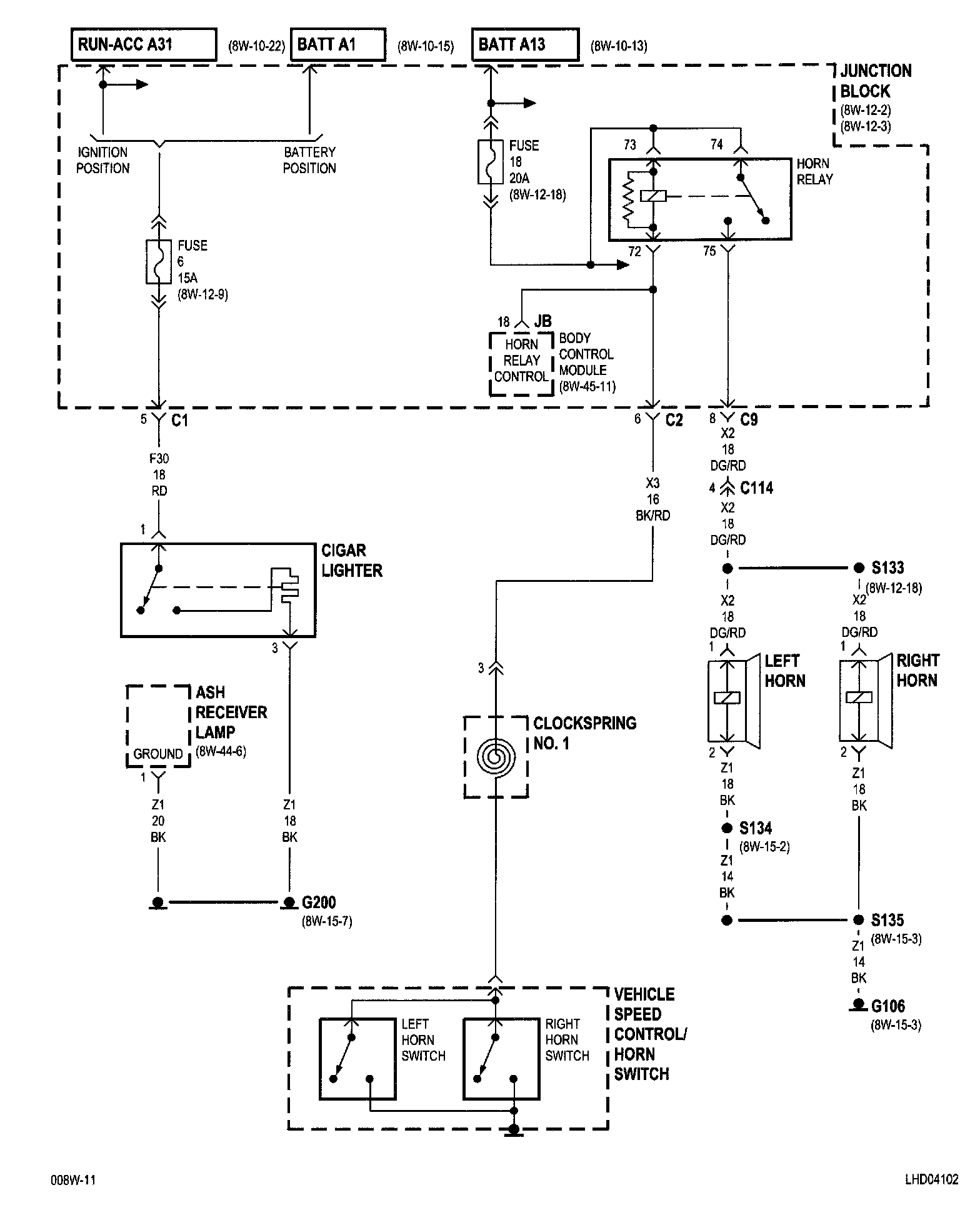

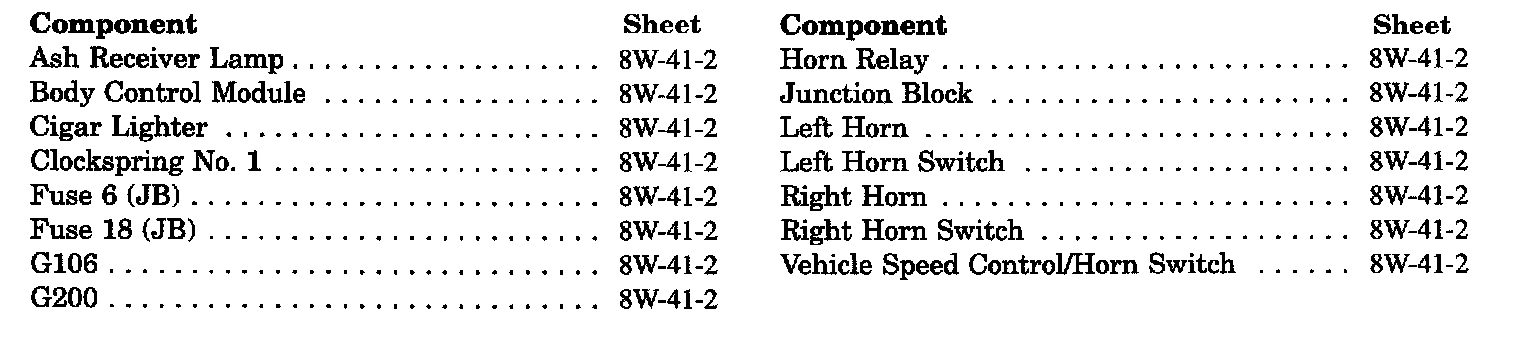

Horn/Cigar Lighter/Power Outlet Component Index:

8W-42-2:

Ash Receiver Lamp
Cigar Lighter
Clockspring No.1
Fuse 6 (JB)
Fuse 18 (JB)
G106
G200
Horn Relay
Left Horn
Left Horn Switch
Right Horn Switch
Vehicle Speed Control/Horn Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
