Interior Lighting

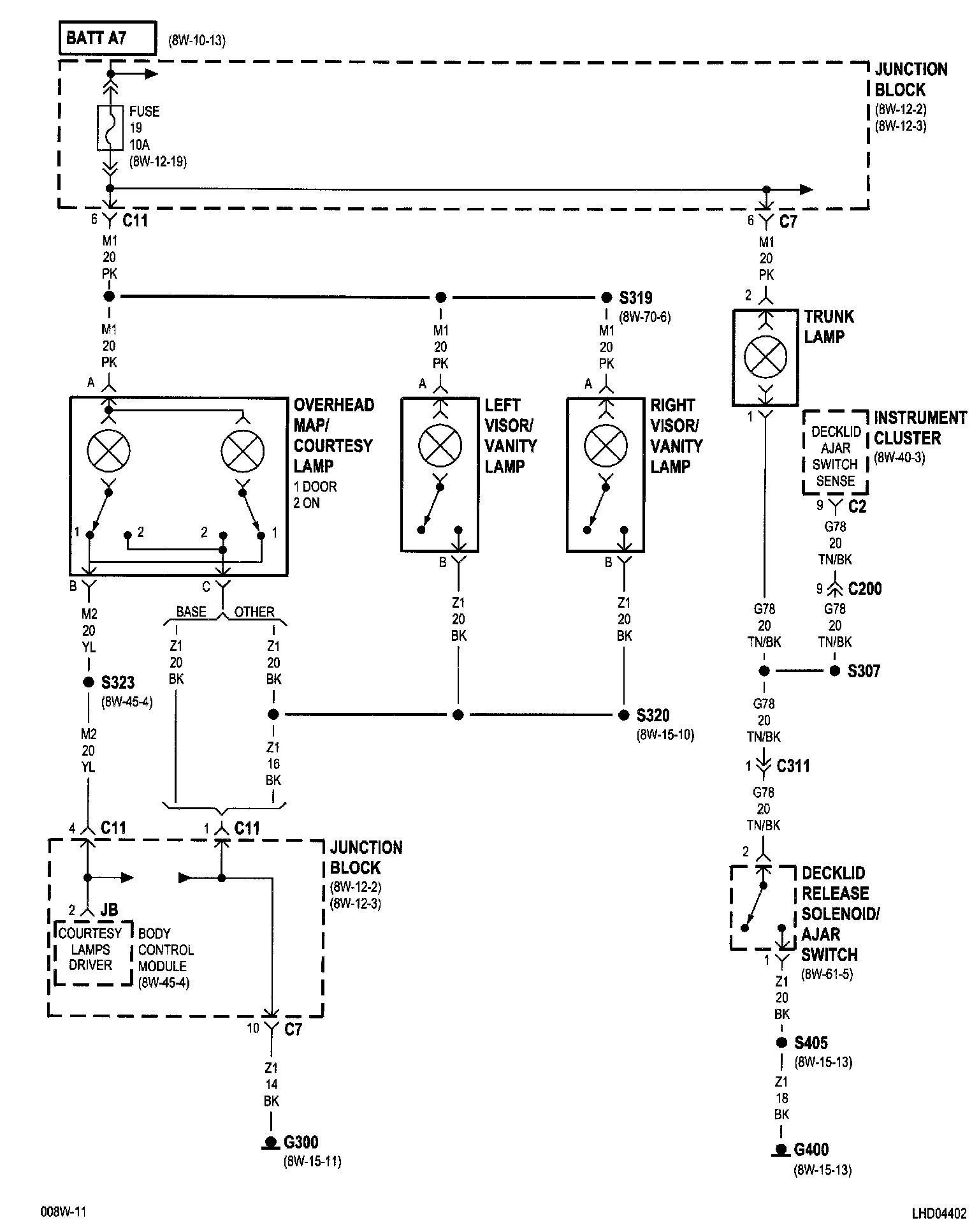

8W-44-2:

Body Control Module
Decklid Release Solenoid/Ajar Switch
Fuse 19 (JB)
G300
G400
Instrument Cluster
Junction Block
Left Visor/Vanity Lamp
Overhead Map/Courtesy Lamp
Right Visor/Vanity Lamp
Trunk Lamp

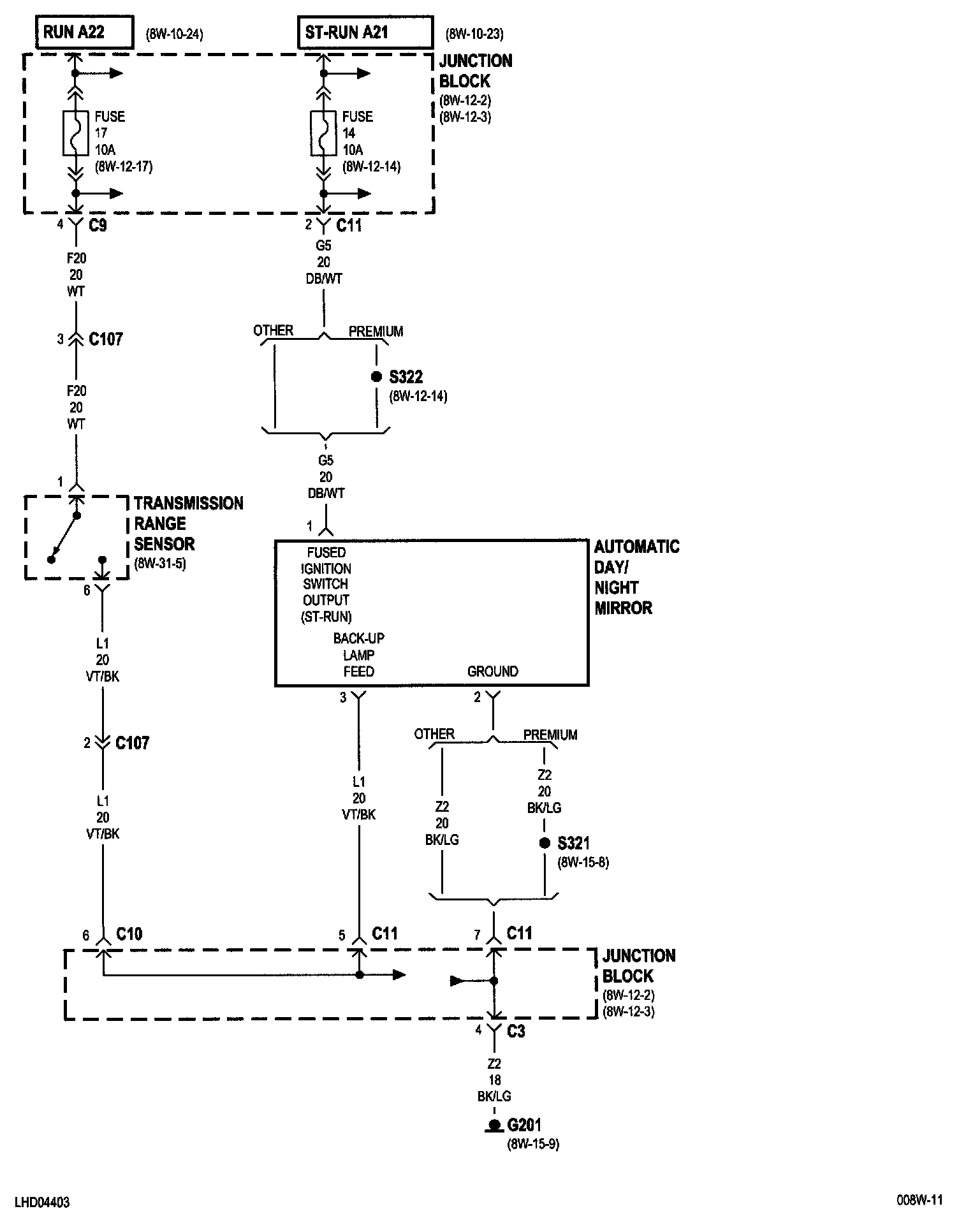

8W-44-3:

Automatic Day/Night Mirror
Fuse 14 (JB)
Fuse 17 (JB)
G201
Junction Block
Transmission Range Sensor

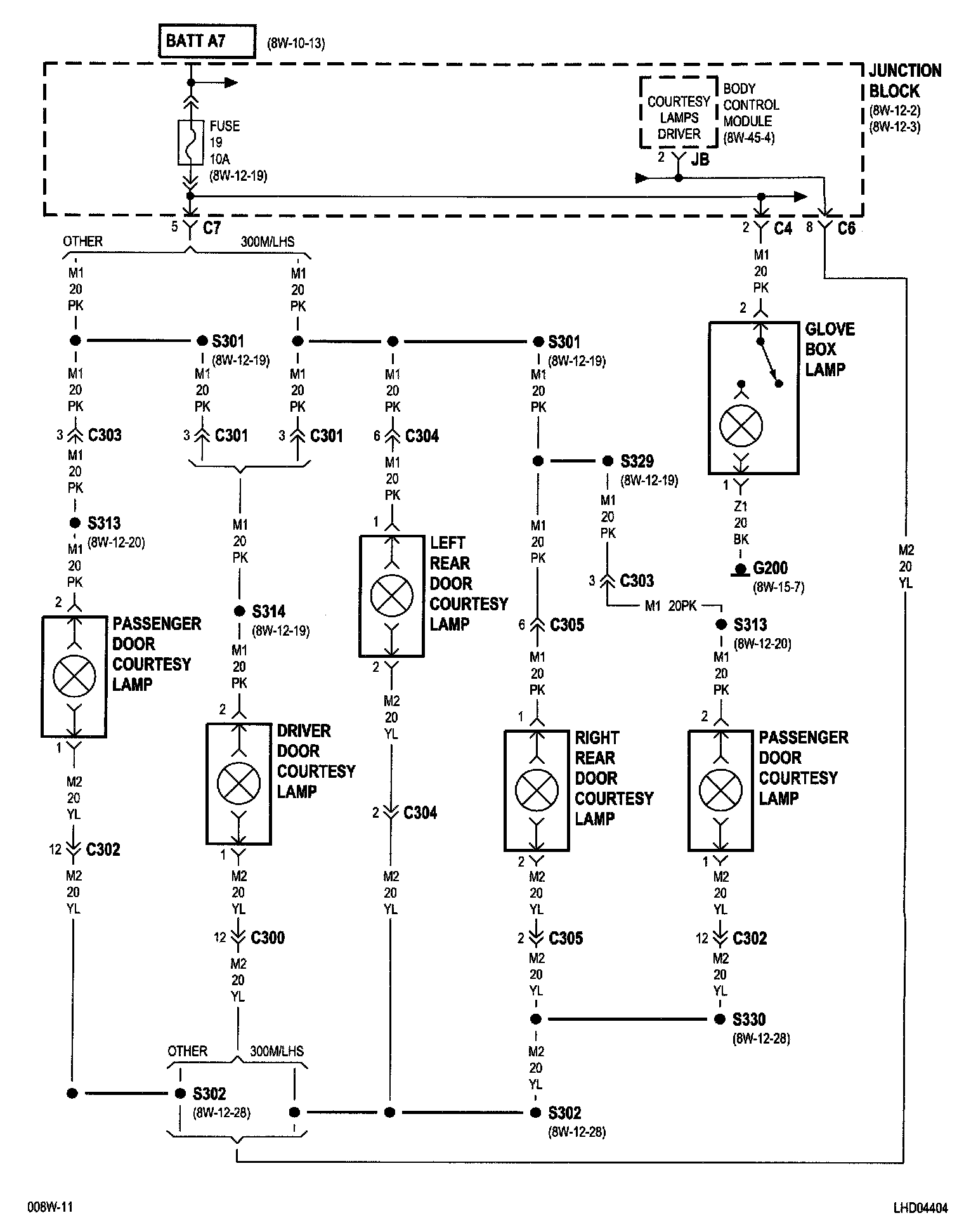

8W-44-4:

Body Control Module
Driver Door Courtesy Lamp
Fuse 19 (JB)
G200
Glove Box Lamp
Junction Block
Left Rear Door Courtesy Lamp
Passenger Door Courtesy Lamp
Right Rear Door Courtesy Lamp

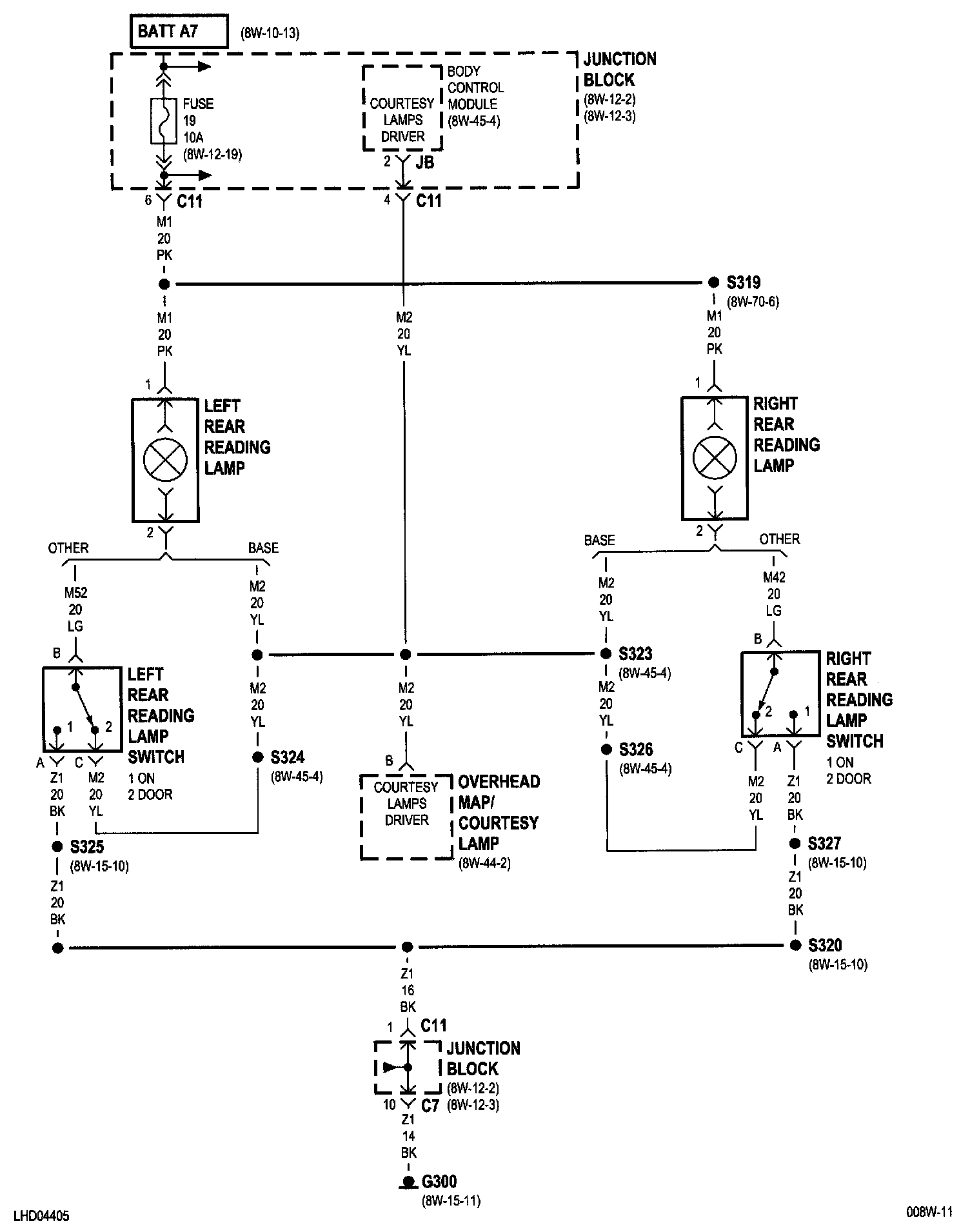

8W-44-5:

Body Control Module
Fuse 19 (JB)
G300
Junction Block
Left Rear Reading Lamp
Left Rear Reading Lamp Switch
Overhead Map/Courtesy Lamp
Right Rear Reading Lamp
Right Rear Reading Lamp Switch

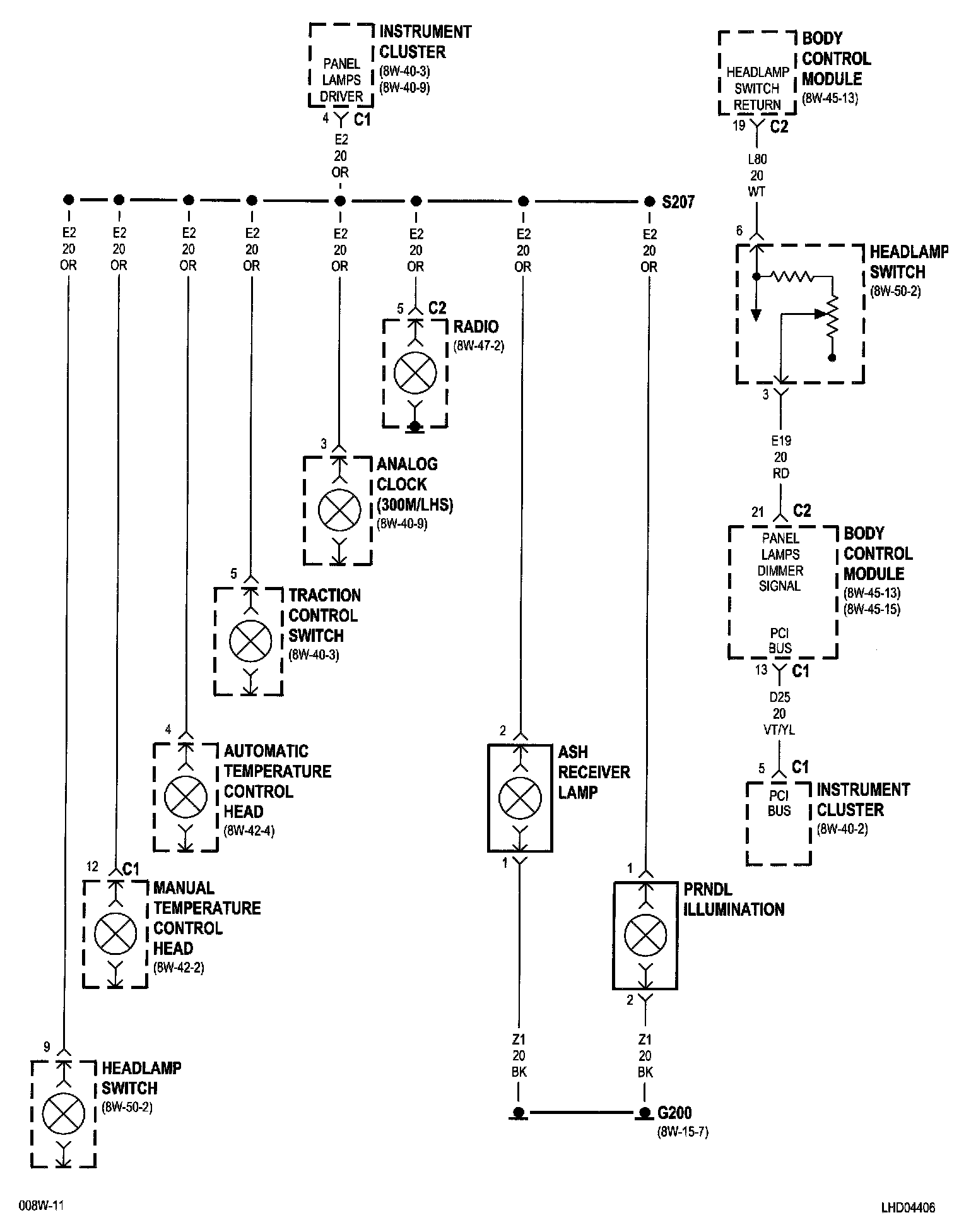

8W-44-6:

Analog Clock
Ash Receiver Lamp
Automatic Temperature Control Head
Body Control Module
G200
Headlamp Switch
Instrument Cluster
Manual Temperature Control Head
PRNDL Illumination
Radio
Traction Control Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
