Instrument Cluster / Carrier

8W-40-2:

Instrument Cluster:

Body Control Module
Fuse 1 (JB)
Fuse 7 (JB)
G200
Instrument Cluster
Junction Block
Powertrain Control Module
Transmission Control Module

8W-40-3:

ABS Warning Indicator
Decklid Release Solenoid/Ajar Switch
Door Ajar Indicator
Fuse 14 (JB)
Fuse 19 (JB)
G400
Instrument Cluster
Junction Block
Low Washer Fluid Indicator
Traction Control Active Indicator
Traction Control Switch
Traction Control Warning Indicator
Trunk Ajar Indicator
Washer Fluid Level Switch

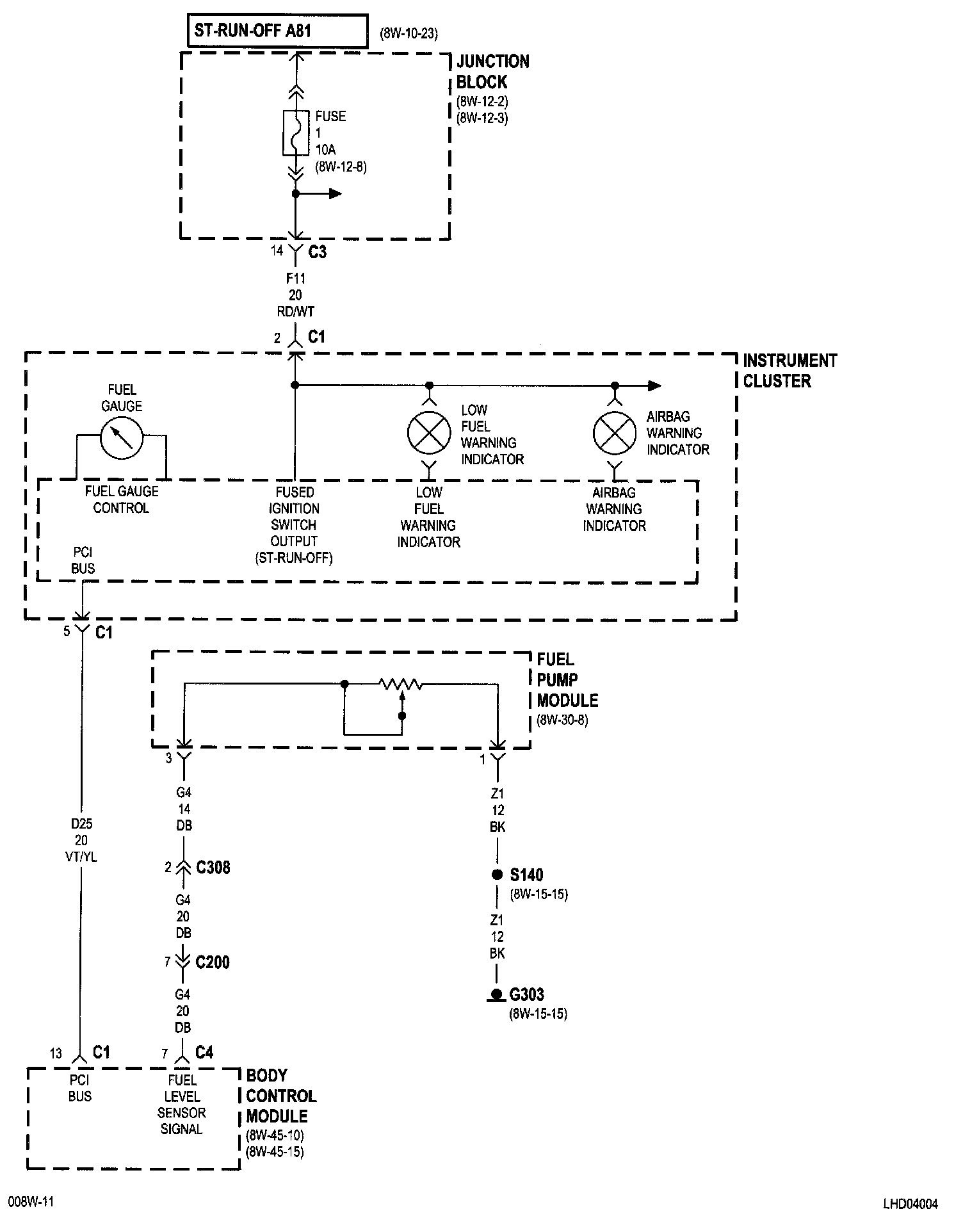

8W-40-4:

Body Control Module
Fuel Pump Module
Fuse 1 (JB)
G303
Instrument Cluster
Junction Block

8W-40-5:

Body Control Module
Fuse 1 (JB)
Instrument Cluster
Junction Block
Powertrain Control Module

8W-40-6:

Brake Pressure Switch
Daytime Running Lamp Module
Engine Oil Pressure Switch
Fuse 1 (JB)
G101
G103
G104
G200
Instrument Cluster
Junction Block
Park Brake Switch

8W-40-7:

Body Control Module
Fuse 1 (JB)
Instrument Cluster
Junction Block
Powertrain Control Module
Transmission Control Module

8W-40-8:

Headlamp Dimmer Switch
High Beam Headlamp Relay
Instrument Cluster
Junction Block
Turn Signal/Hazard Switch

8W-40-9:

Analog Clock
Body Control Module
Fuse 1 (JB)
Fuse 14 (JB)
Fuse 19 (JB)
Instrument Cluster
Junction Block
Seat Belt Switch

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
