Wiring Diagrams

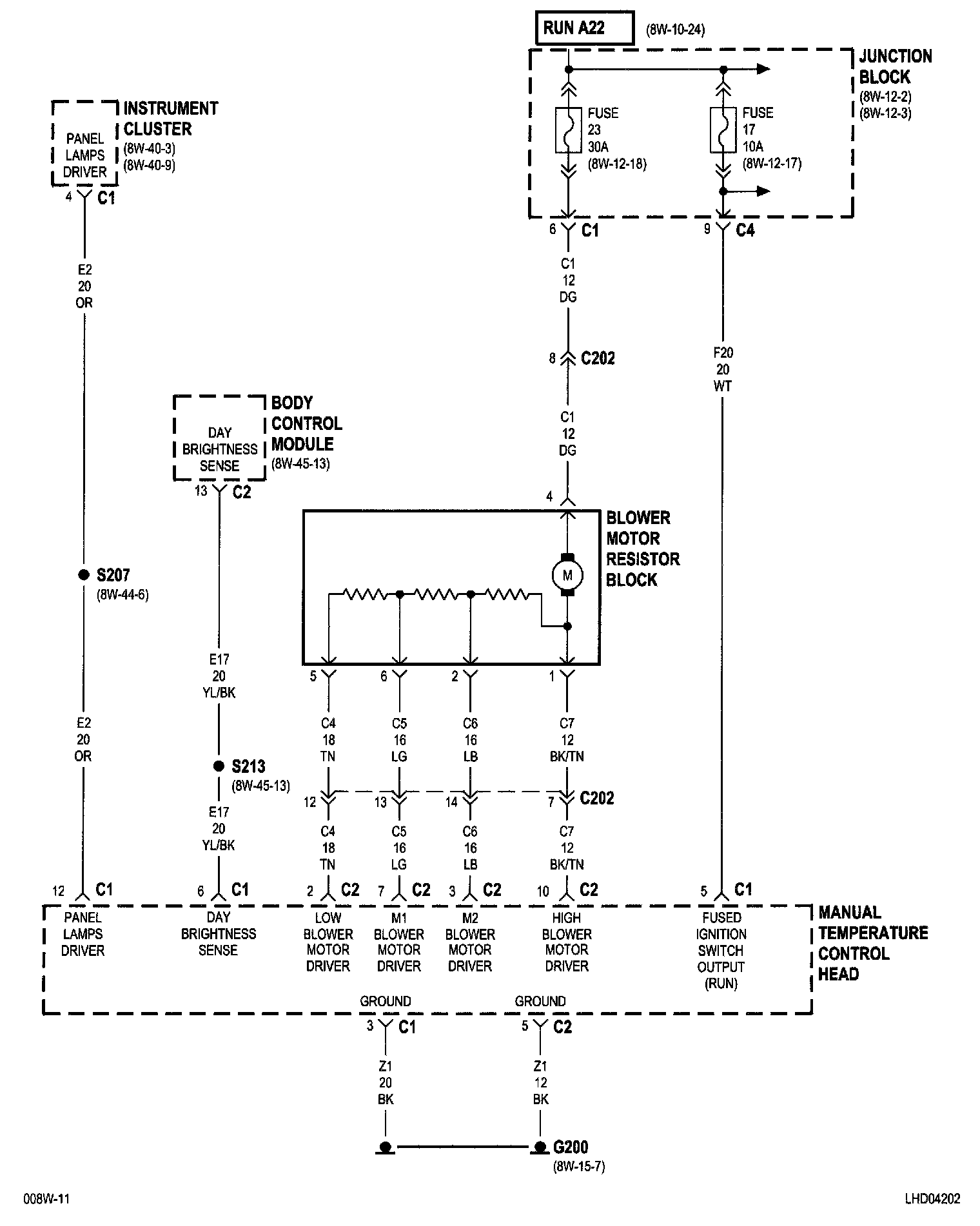

8w-42-2 (MTC):

Blower Motor Resistor Block
Body Control Module
Fuse 17 (JB)
Fuse 23 (JB)
G200
Instrument Cluster
Junction Block
Manual Temperature Control Head

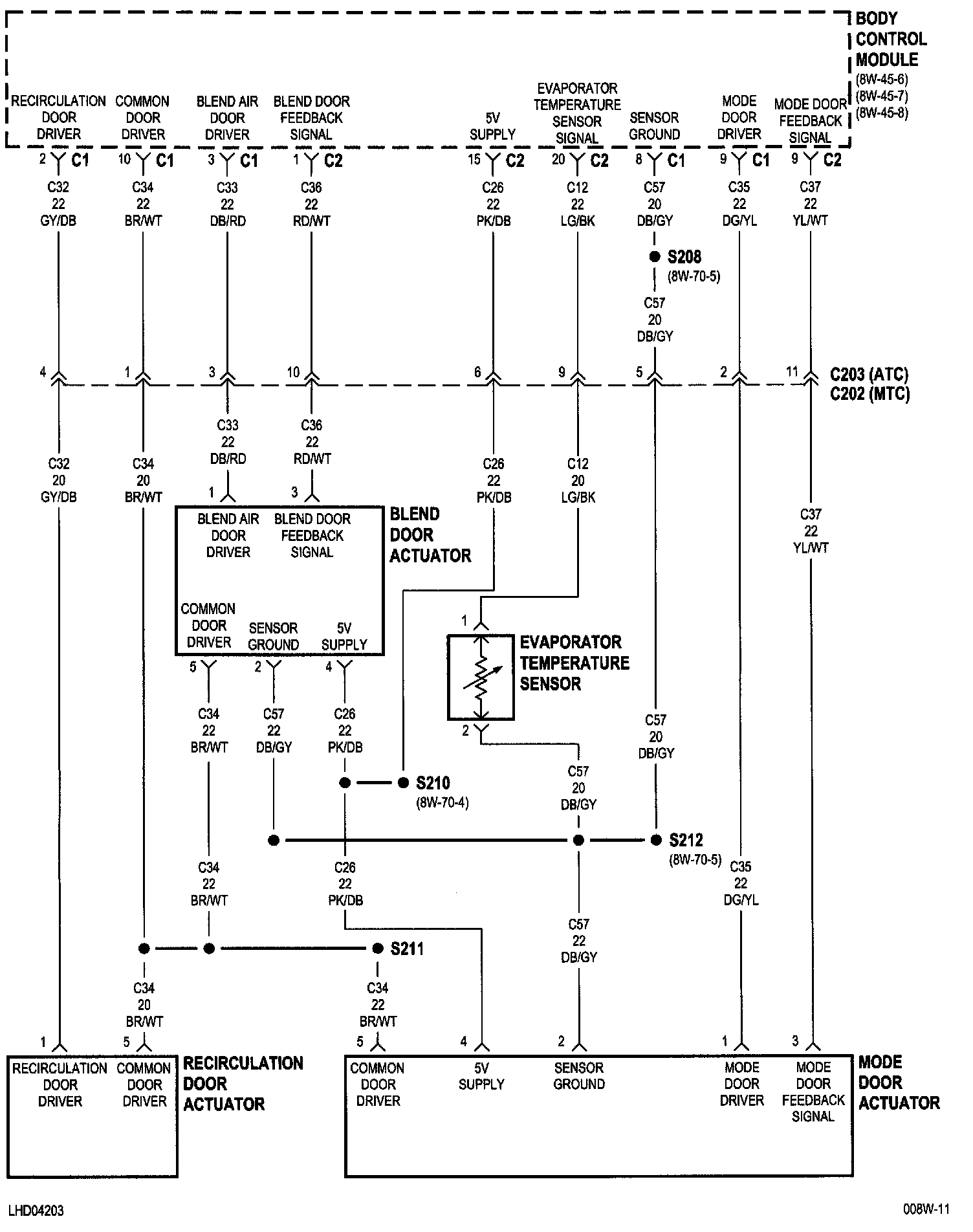

8W-42-3:

Blend Door Actuator
Body Control Module
Evaporator Temperature Sensor
Mode Door Actuator
Recirculation Door Actuator

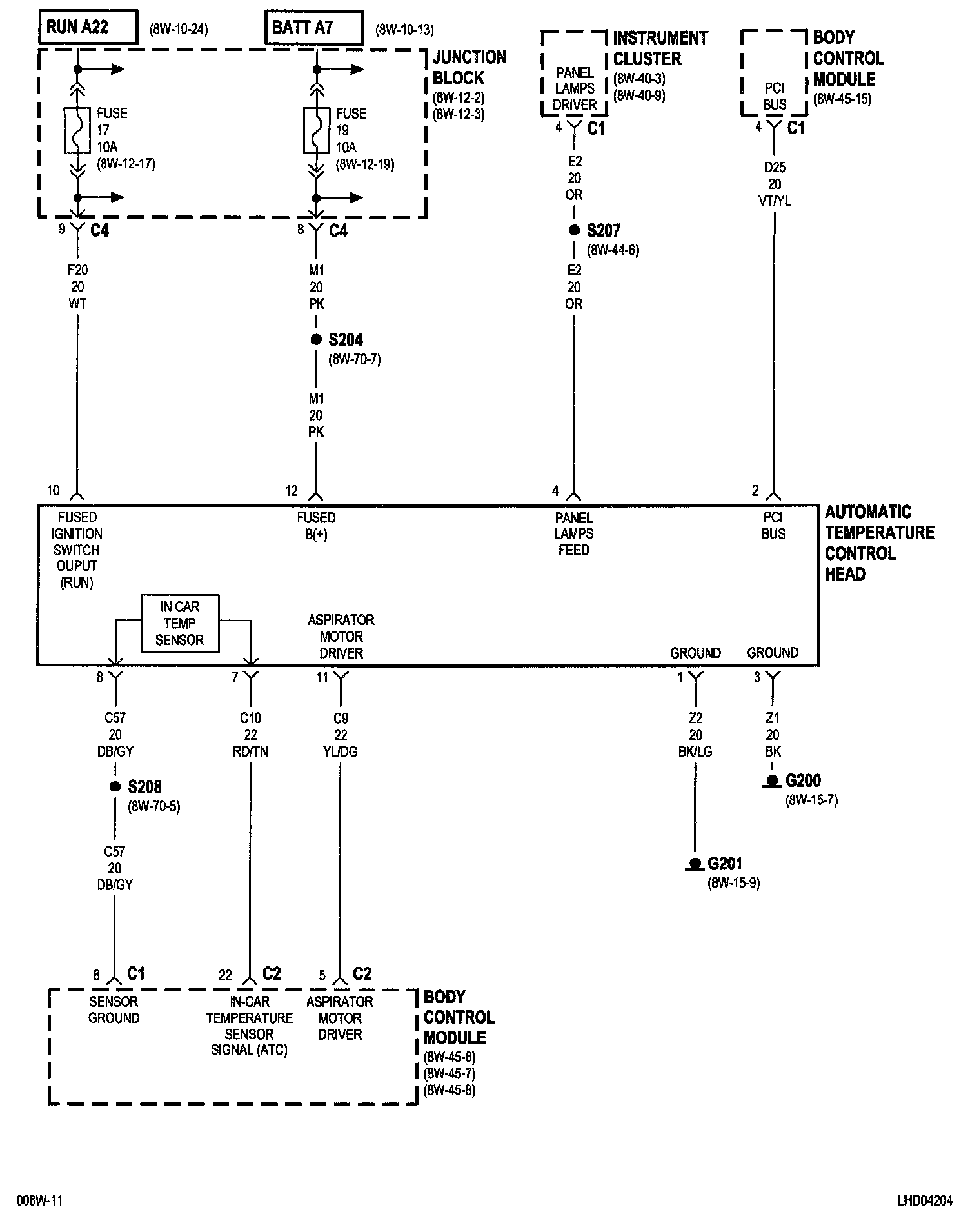

8W-42-4 (ATC):

Automatic Temperature Control Head
Body Control Module
Fuse 17 (JB)
Fuse 19 (JB)
G200
G201
Instrument Cluster
Junction Block

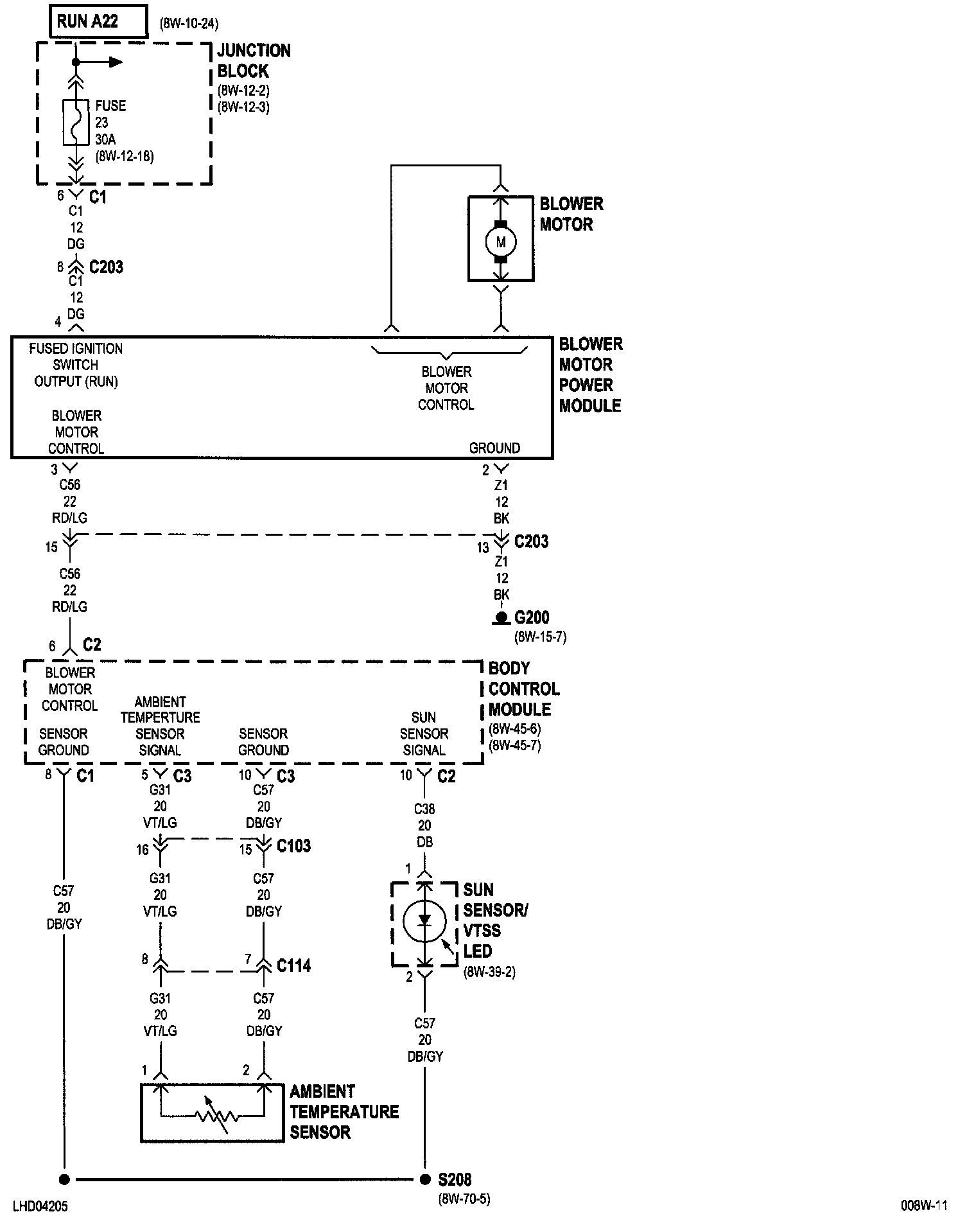

8W-42-5 (ATC):

Ambient Temperature Sensor
Blower Motor
Blower Motor Power Module
Body Control Module
Fuse 23 (JB)
G200
Junction Block
Sun Sensor/VTSS LED

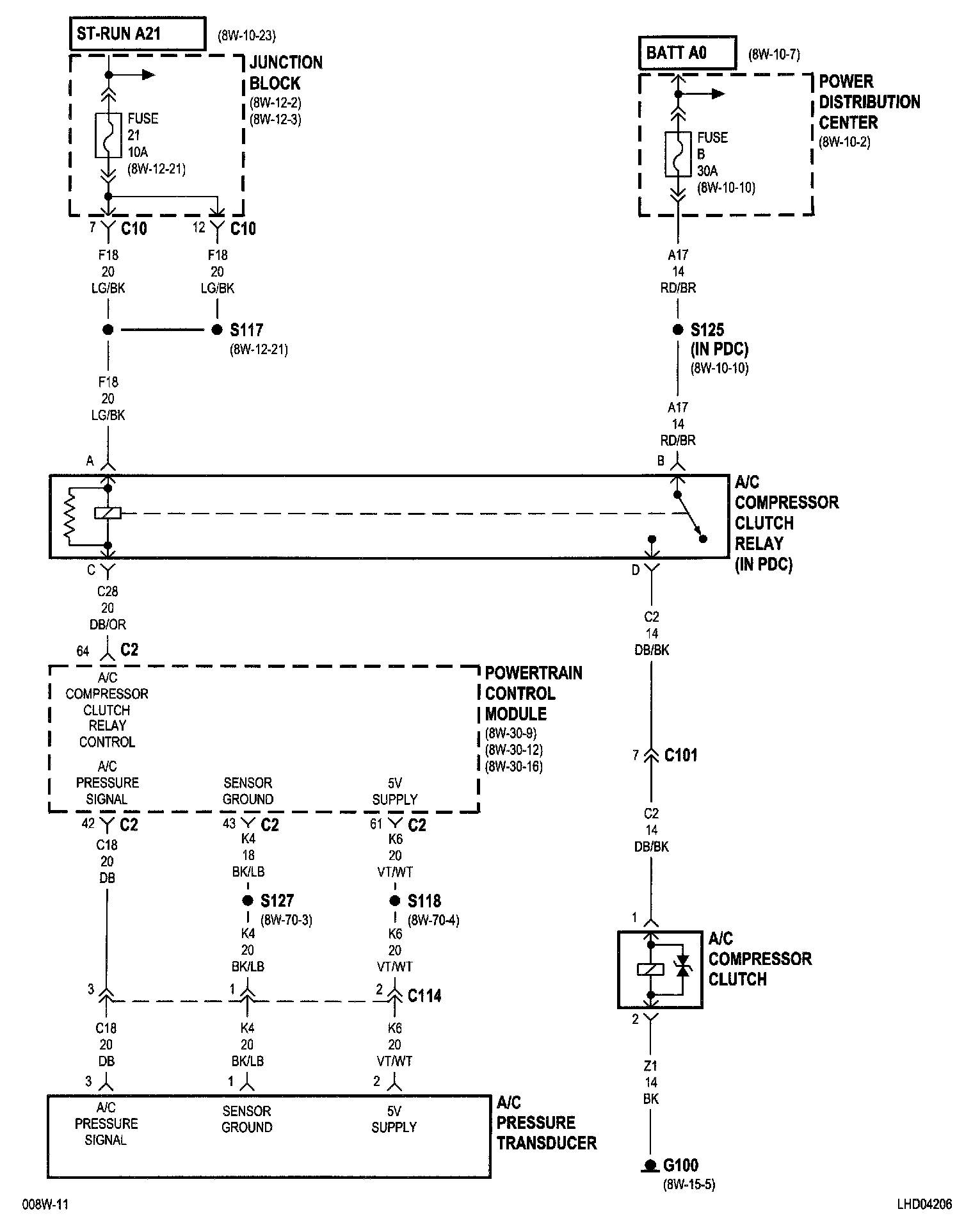

8W-42-6:

A/C Compressor Clutch
A/C Compressor Clutch Relay
A/C Pressure Transducer
Fuse 21 (JB)
Fuse B (PDC)
G100
Junction Block
Power Distribution Center
Powertrain Control Module

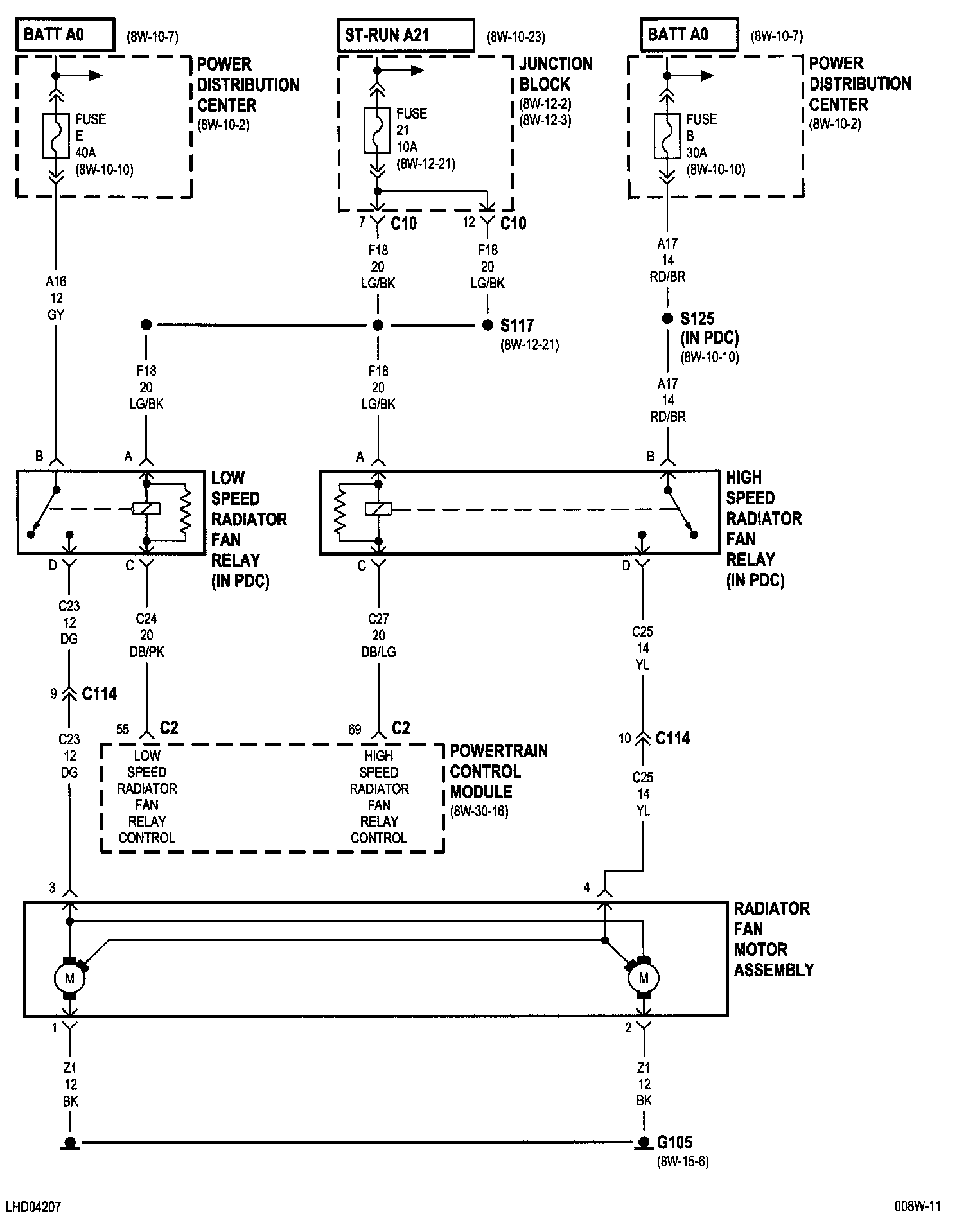

8W-42-7:

Fuse 21 (JB)
Fuse B (PDC)
Fuse E (PDC)
G105
High Speed Radiator Fan Relay
Junction Block
Low Speed Radiator Fan Relay
Power Distribution Center
Powertrain Control Module
Radiator Fan Motor Assembly

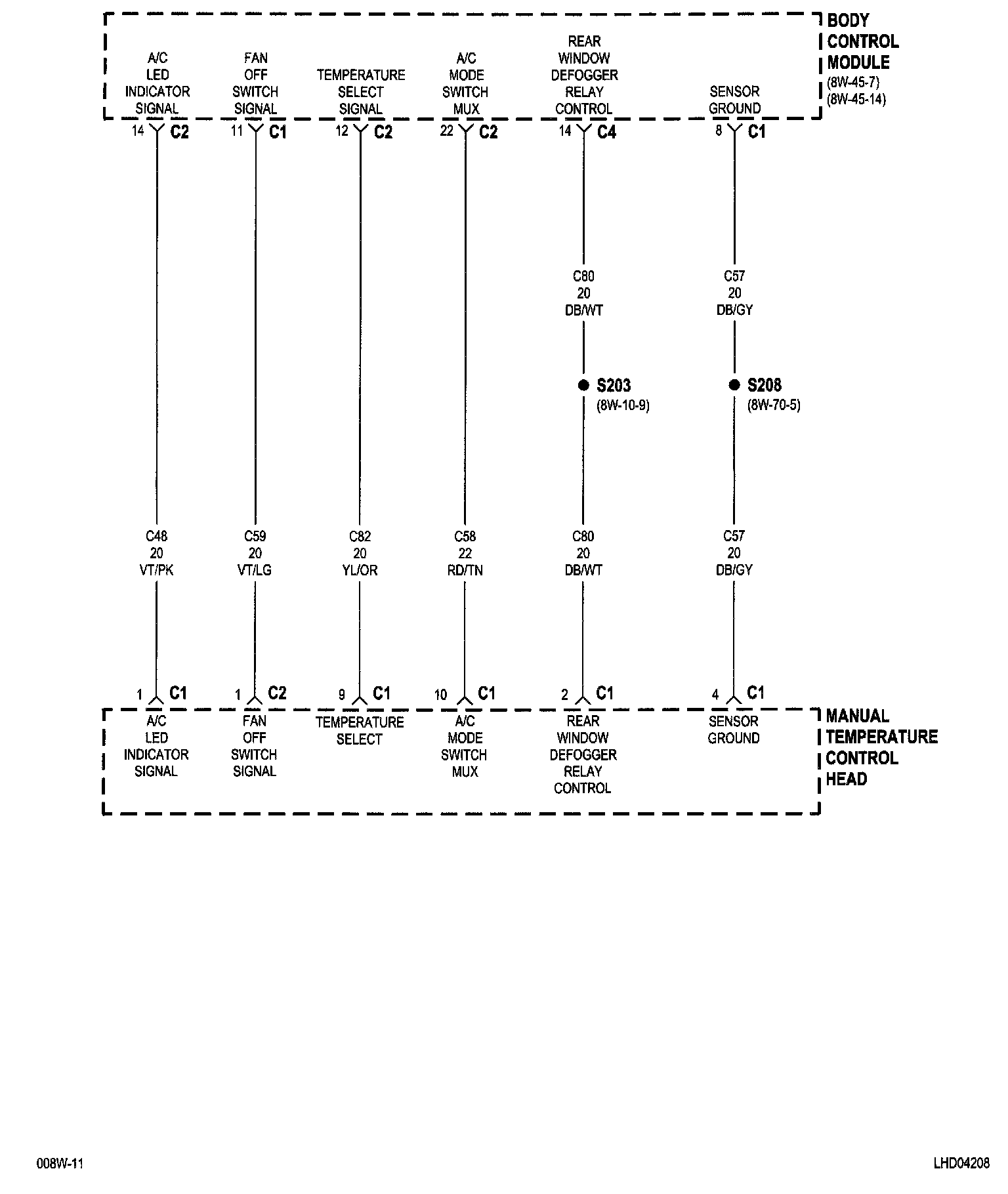

8W-42-8 (MTC):

Body Control Module
Manual Temperature Control Head


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
