Antitheft and Alarm Systems

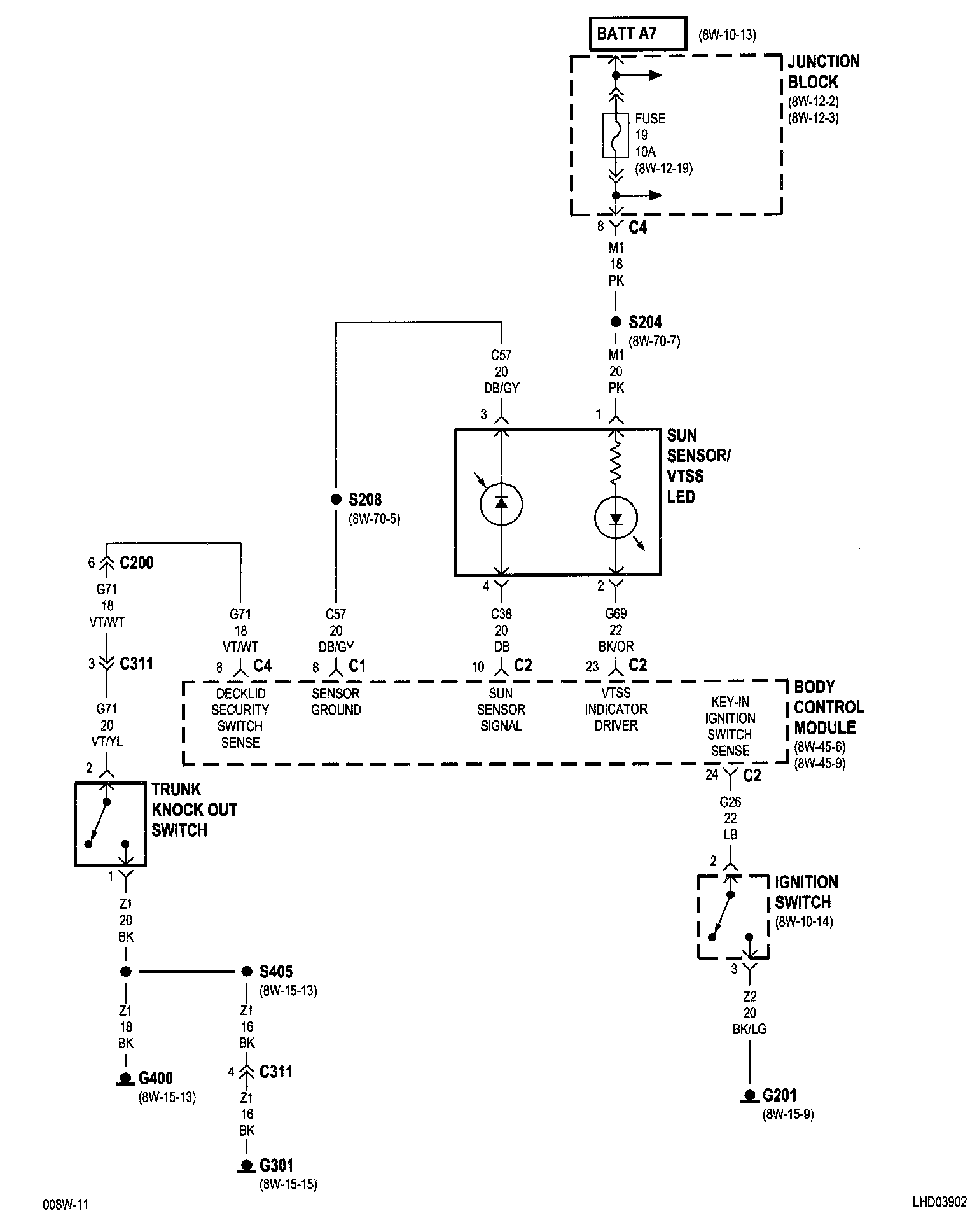

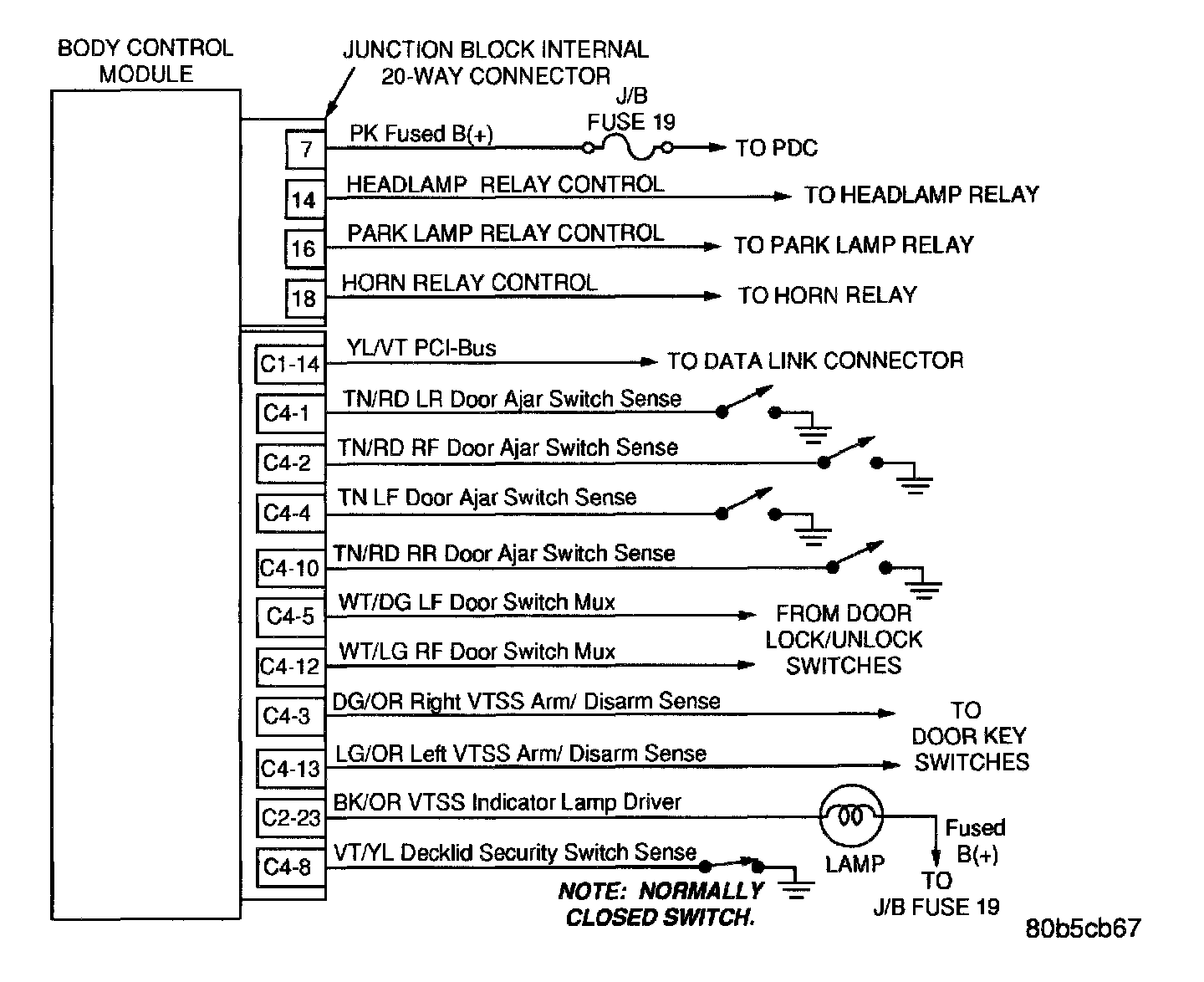

8W-39-2:

Sentry Key Immobilizer:

Vehicle Theft Security System:

Body Control Module
Fuse 19 (JB)
G201
G301
G400
Ignition Switch
Junction Block
Sun Sensor/VTSS LED
Trunk Knock Out Switch

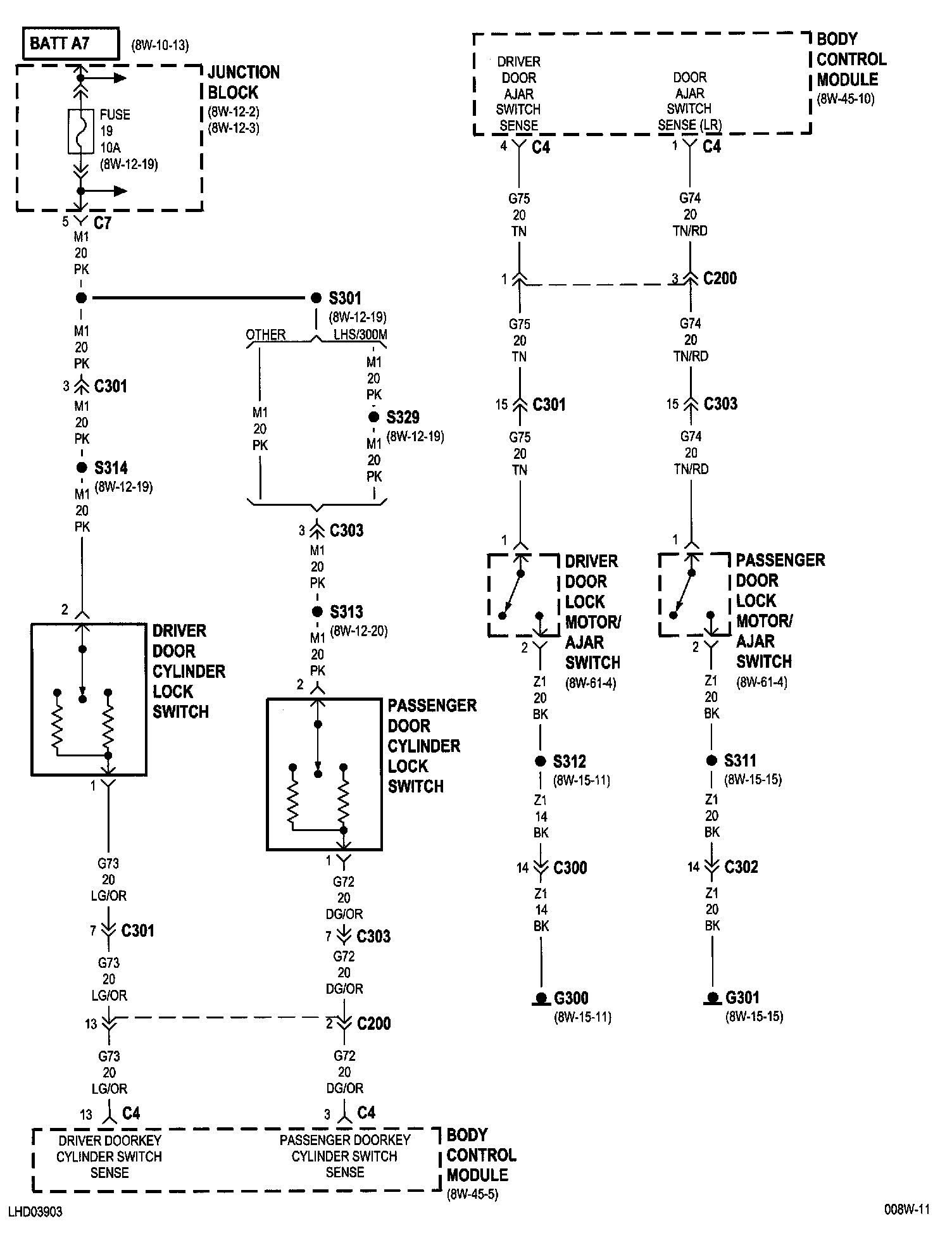

8W-39-3:

Body Control Module
Driver Door Cylinder Lock Switch
Driver Door Lock Motor/Ajar Switch
Fuse 19 (JB)
G300
G301
Junction Block
Passenger Door Cylinder Lock Switch
Passenger Door Lock Motor/Ajar Switch

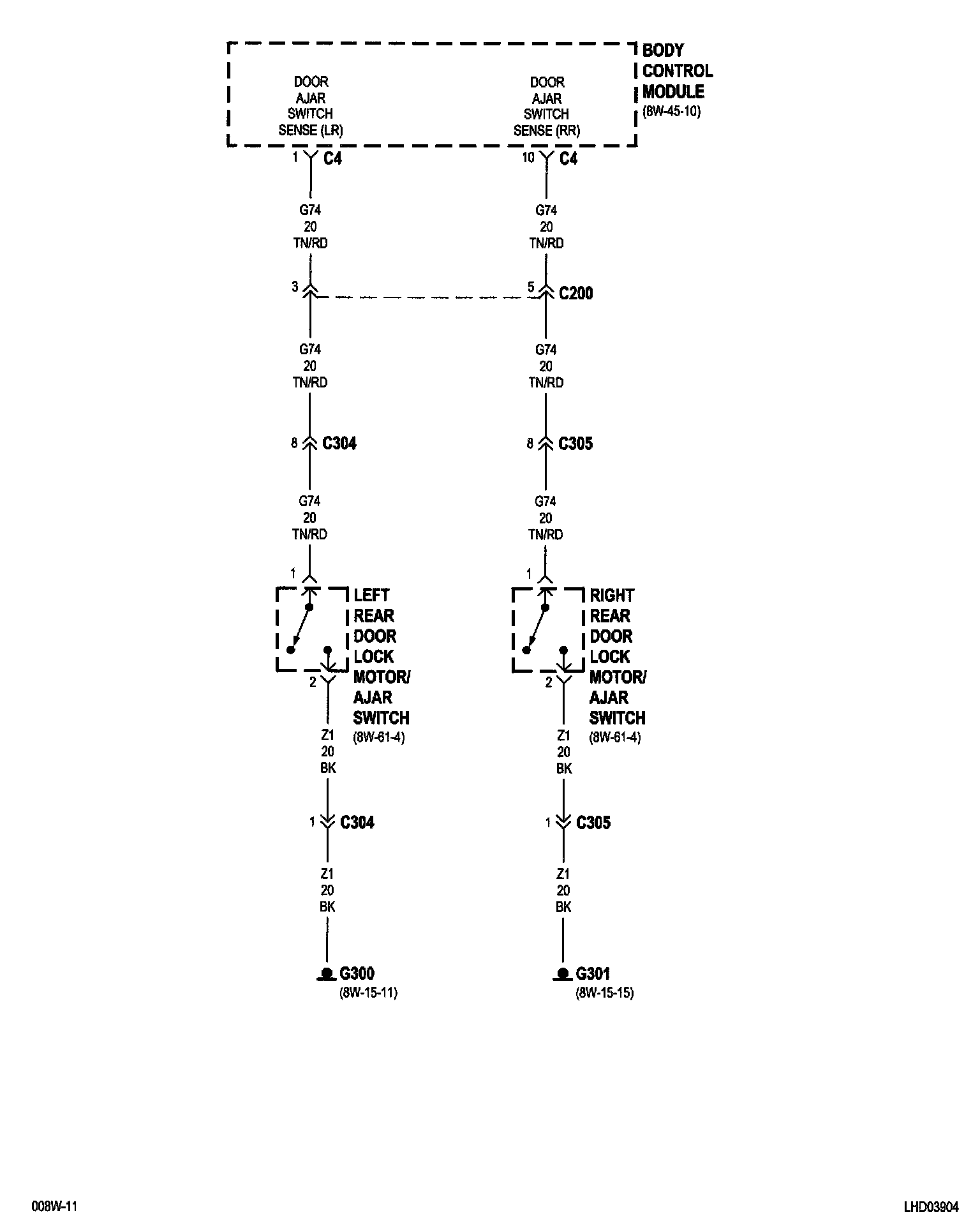

8W-39-4:

Body Control Module
G300
G301
Left Rear Door Lock Motor/Ajar Switch
Right Rear Door Lock Motor/Ajar Switch

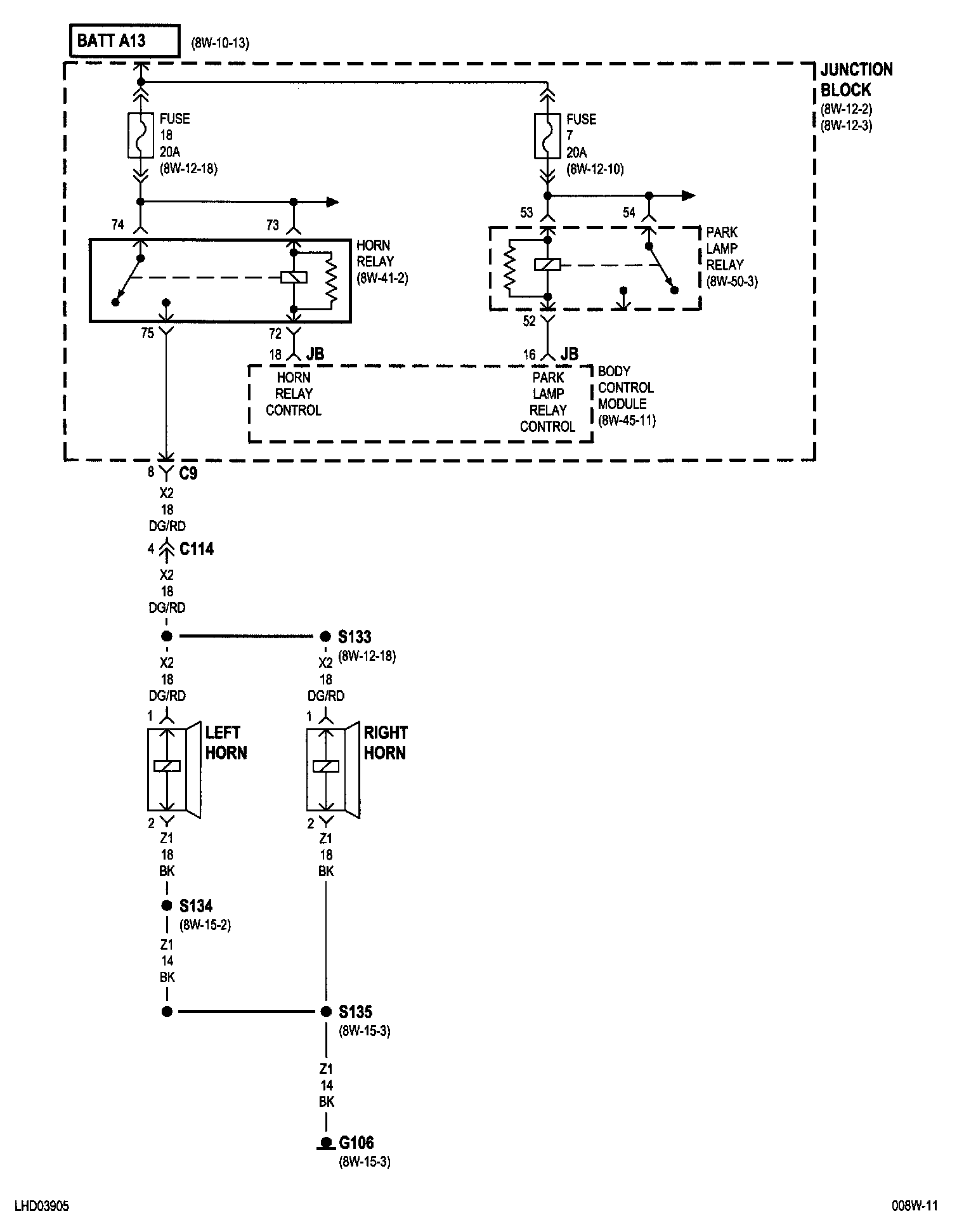

8W-39-5:

Body Control Module
Fuse 7 (JB)
Fuse 18 (JB)
G106
Horn Relay
Junction Block
Left Horn
Park Lamp Relay
Right Horn

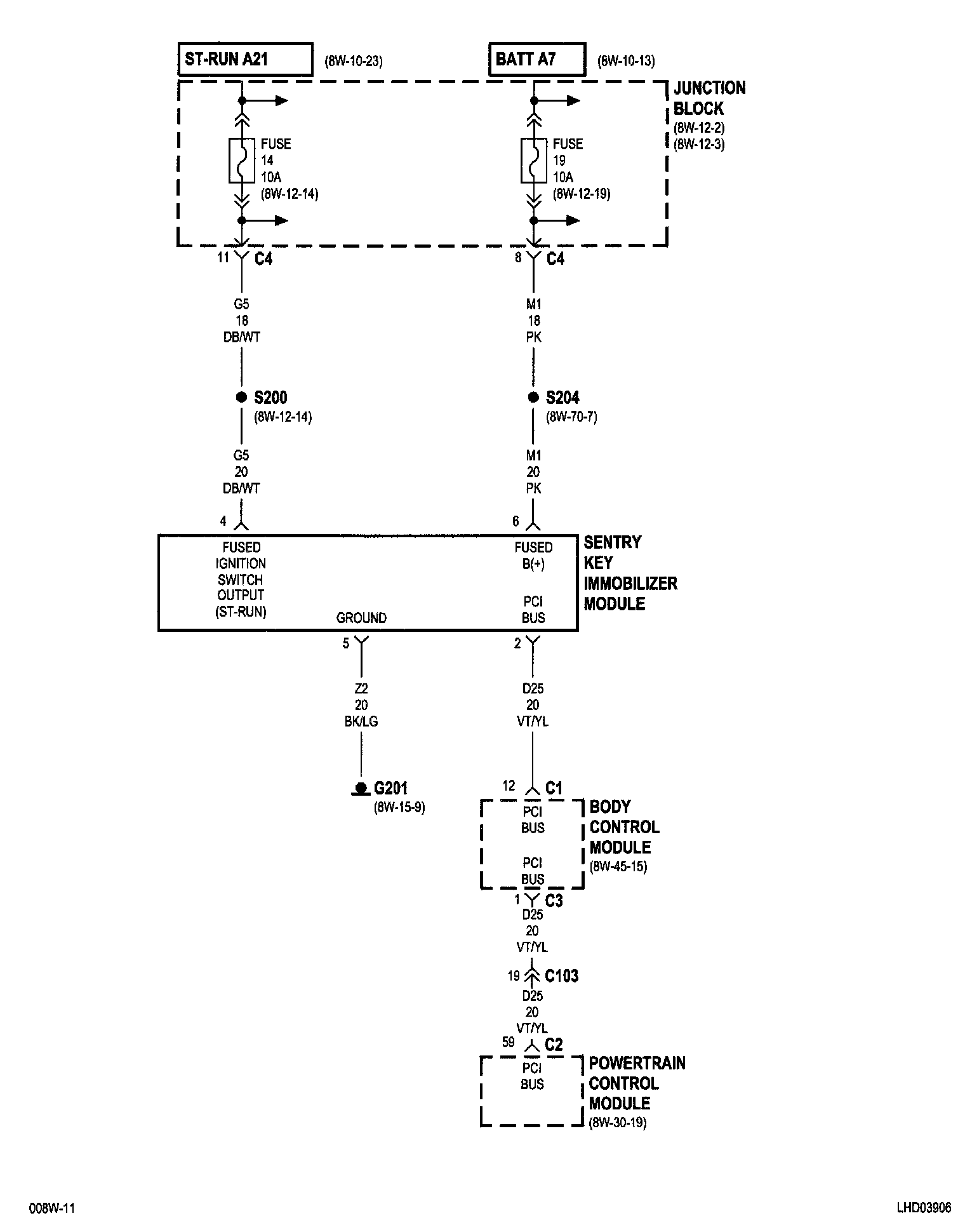

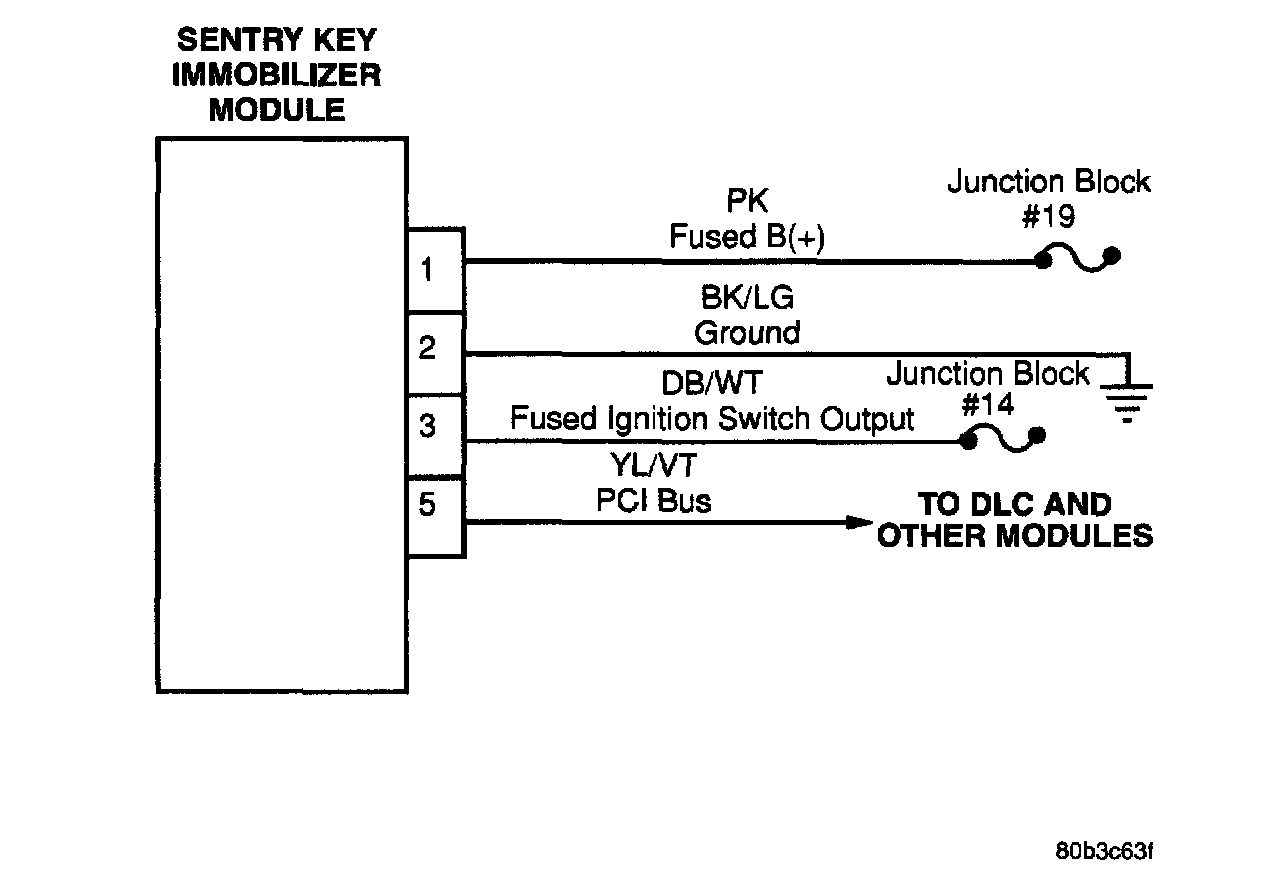

8W-39-6:

Body Control Module
Fuse 14 (JB)
Fuse 19 (JB)
G201
Junction Block
Powertrain Control Module
Sentry Key Immobilizer Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
