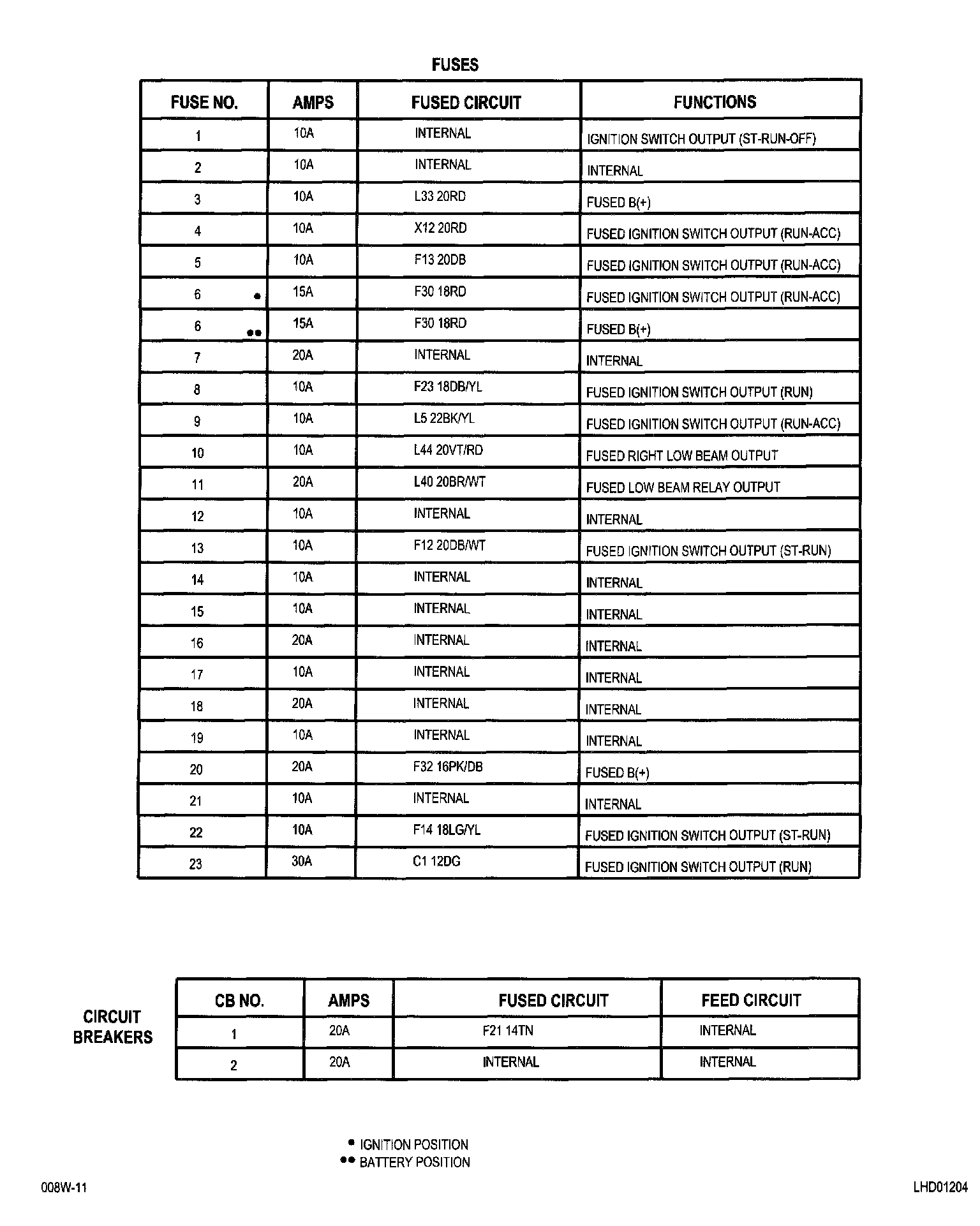

Fuse Block

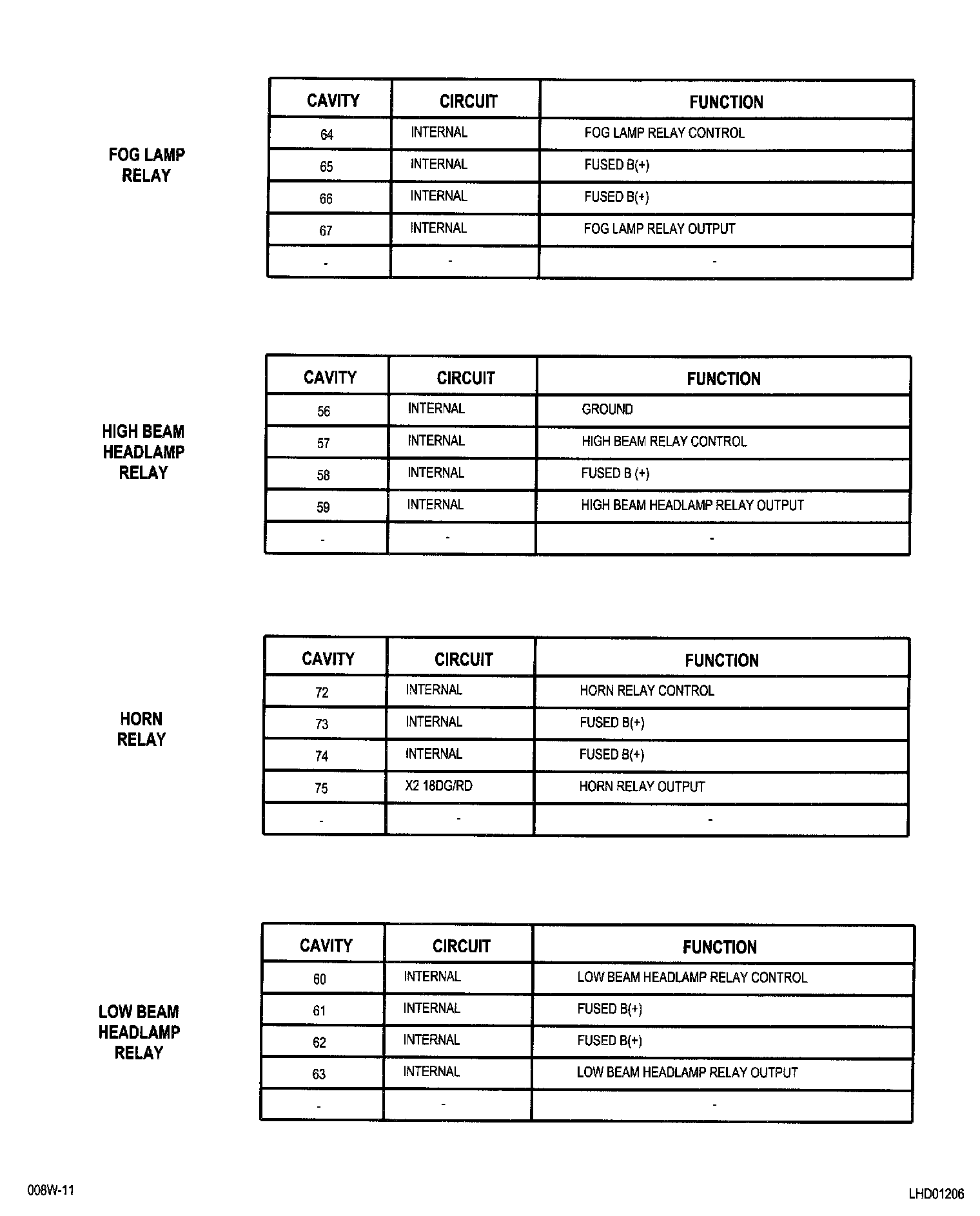

8W-12-2:

8W-12-3:

8W-12-4:

8W-12-5:

8W-12-6:

8W-12-7:

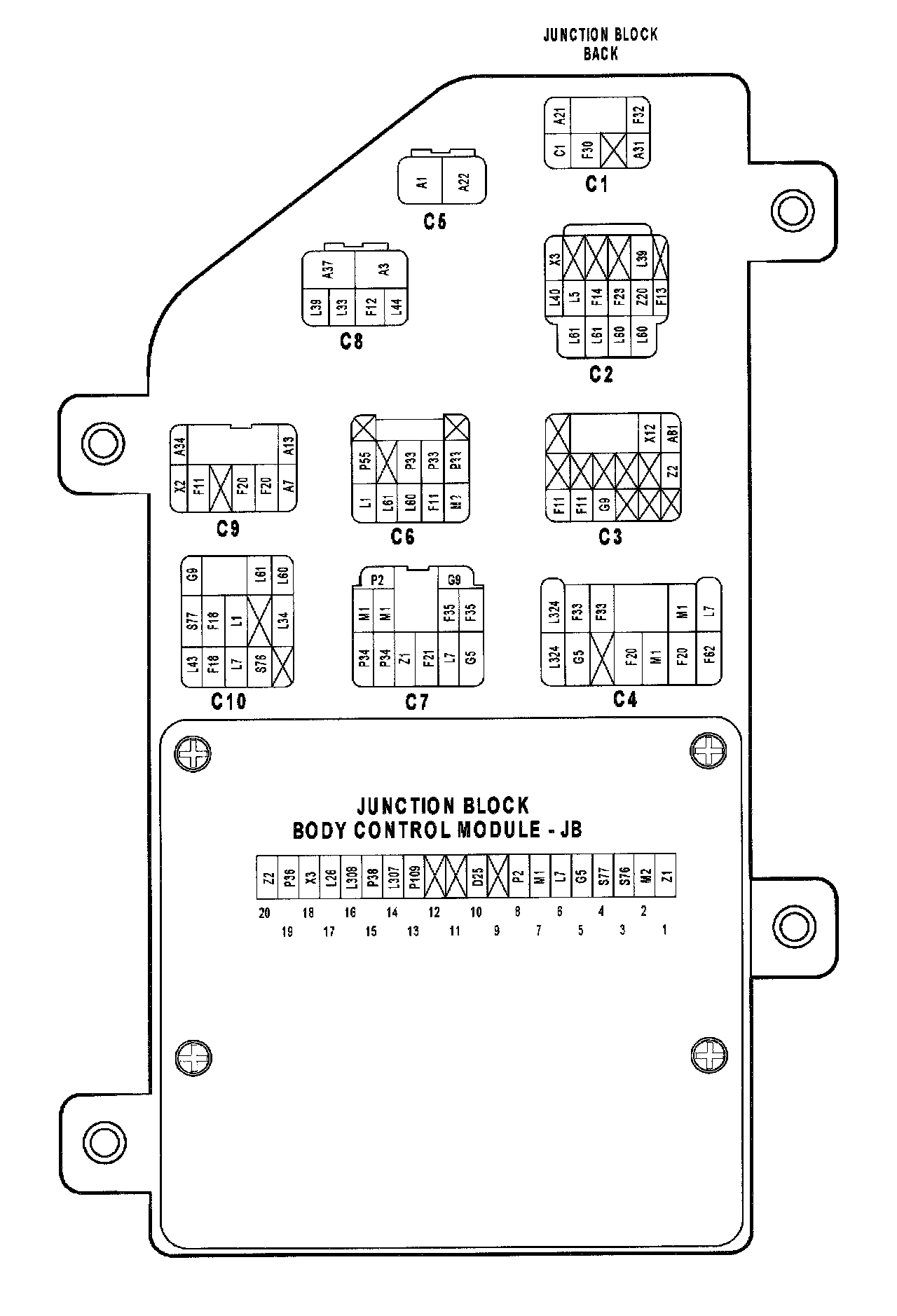

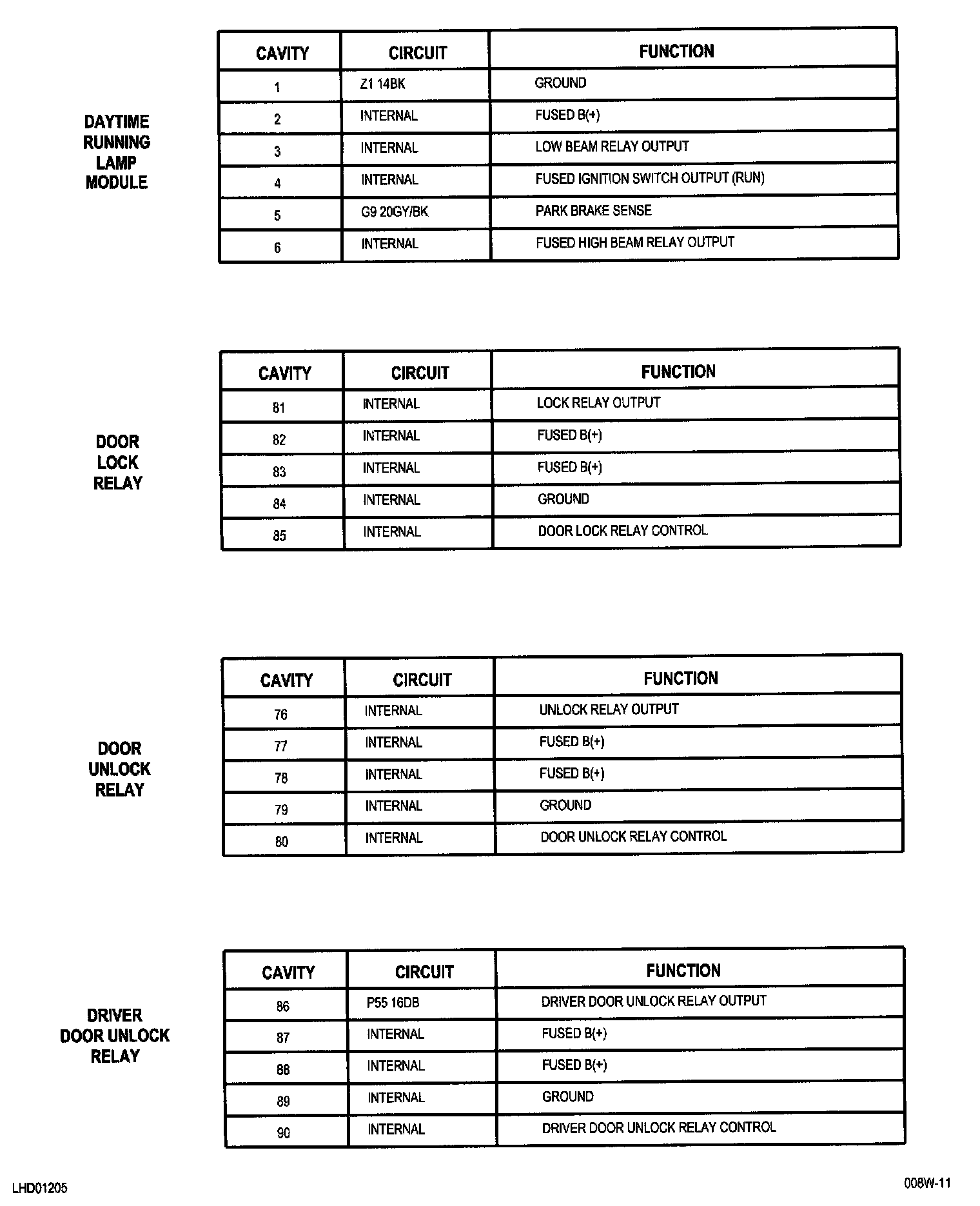

Junction Block Back:

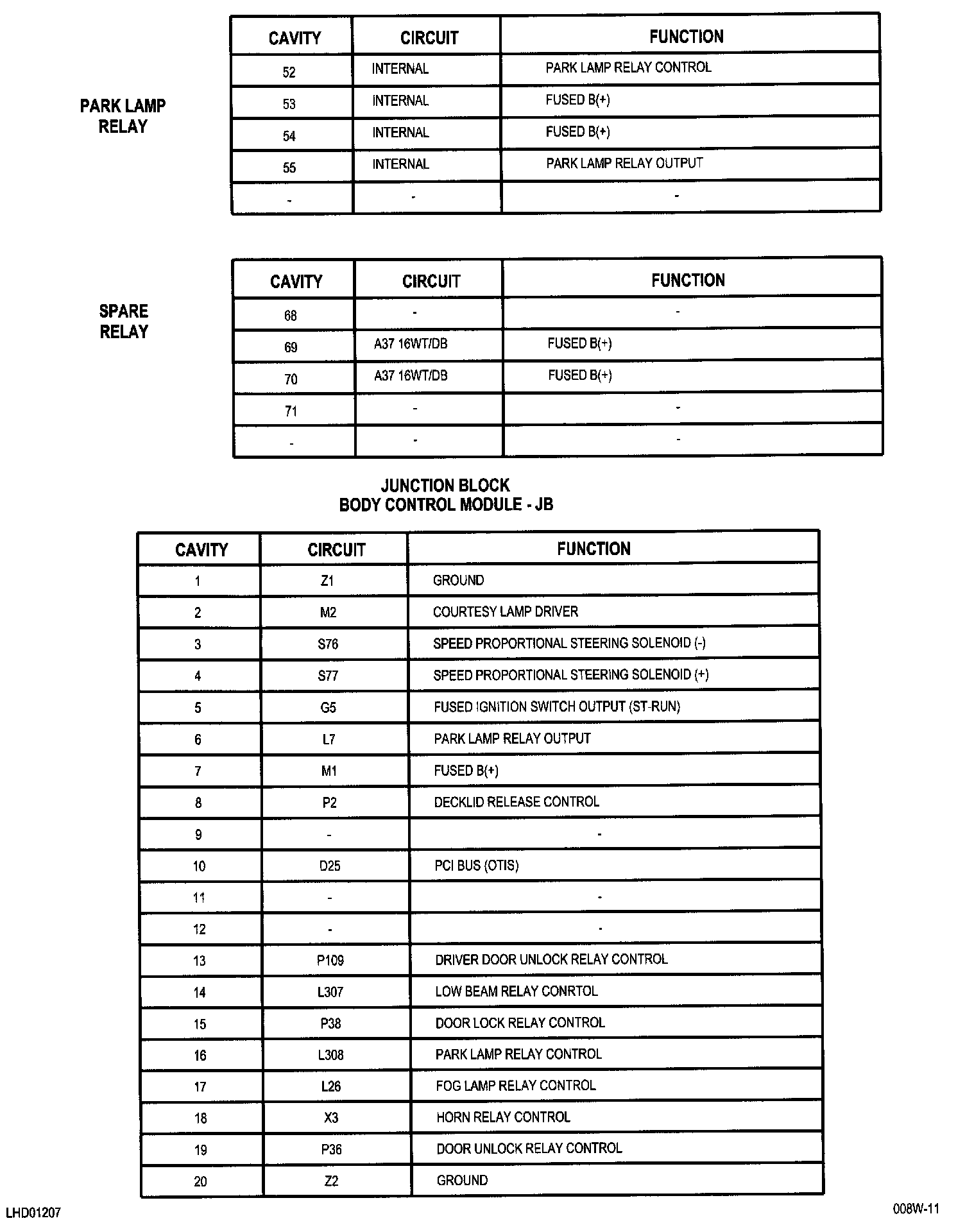

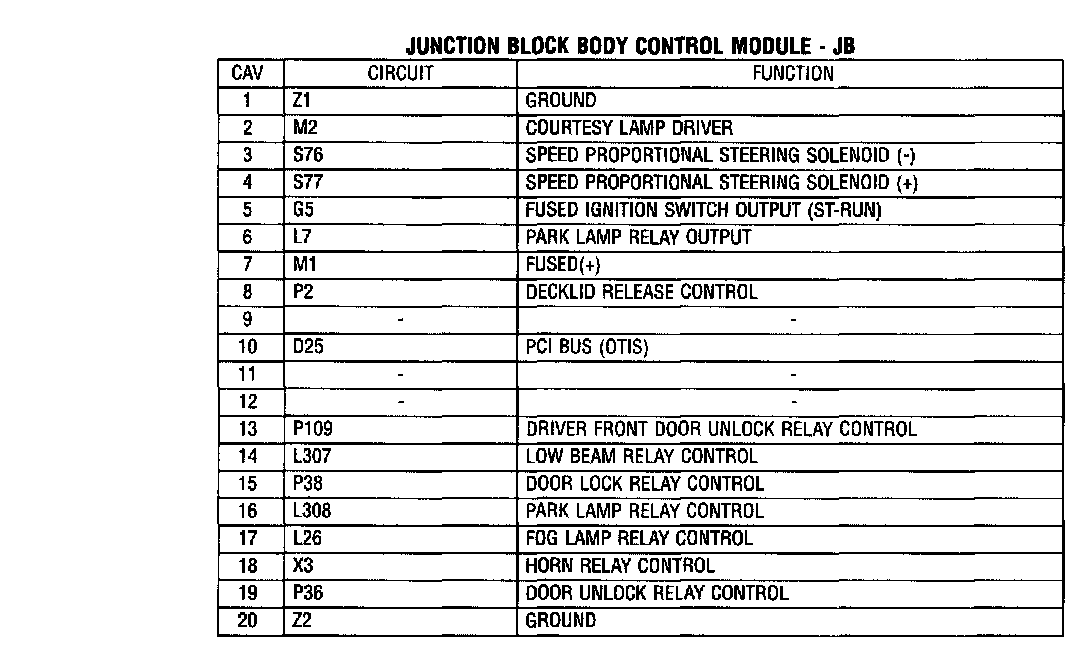

Junction Block Body Control Module - JB:

Junction Block - C1:

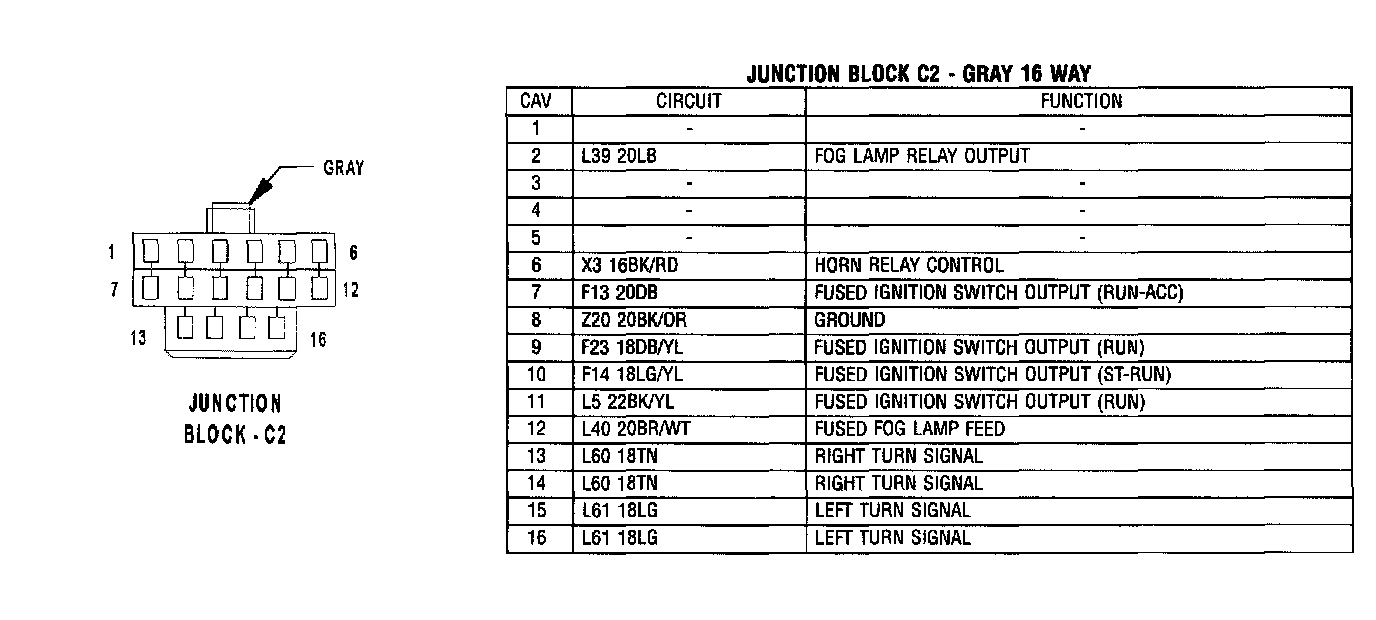

Junction Block - C2:

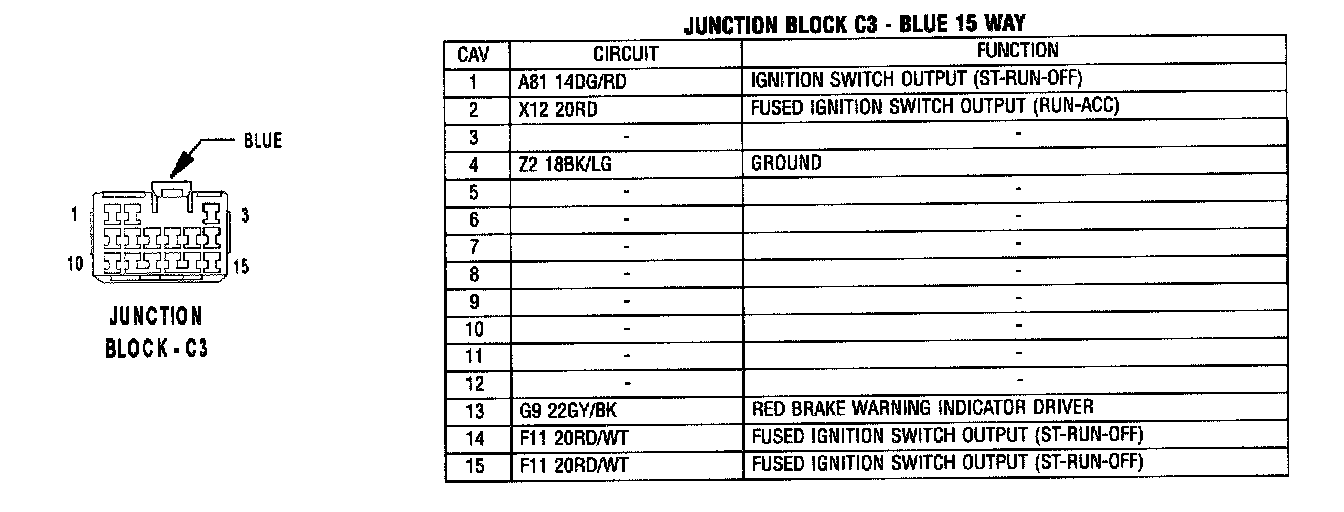

Junction Block - C3:

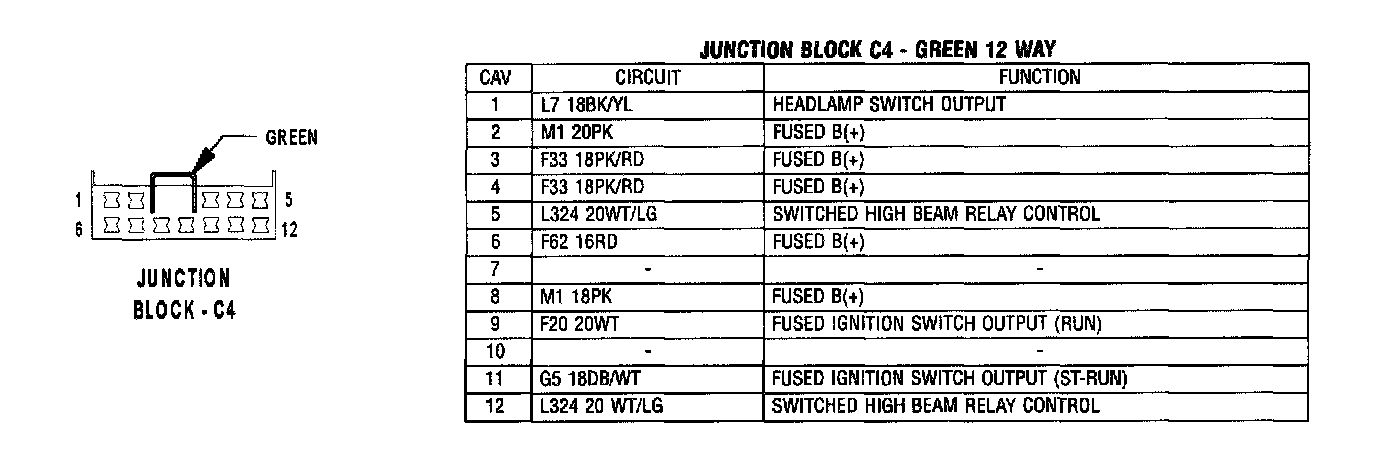

Junction Block - C4:

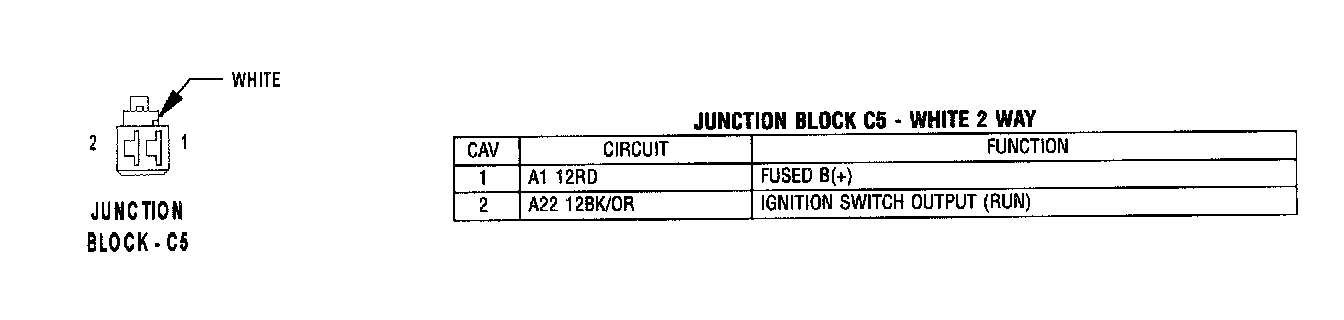

Junction Block - C5:

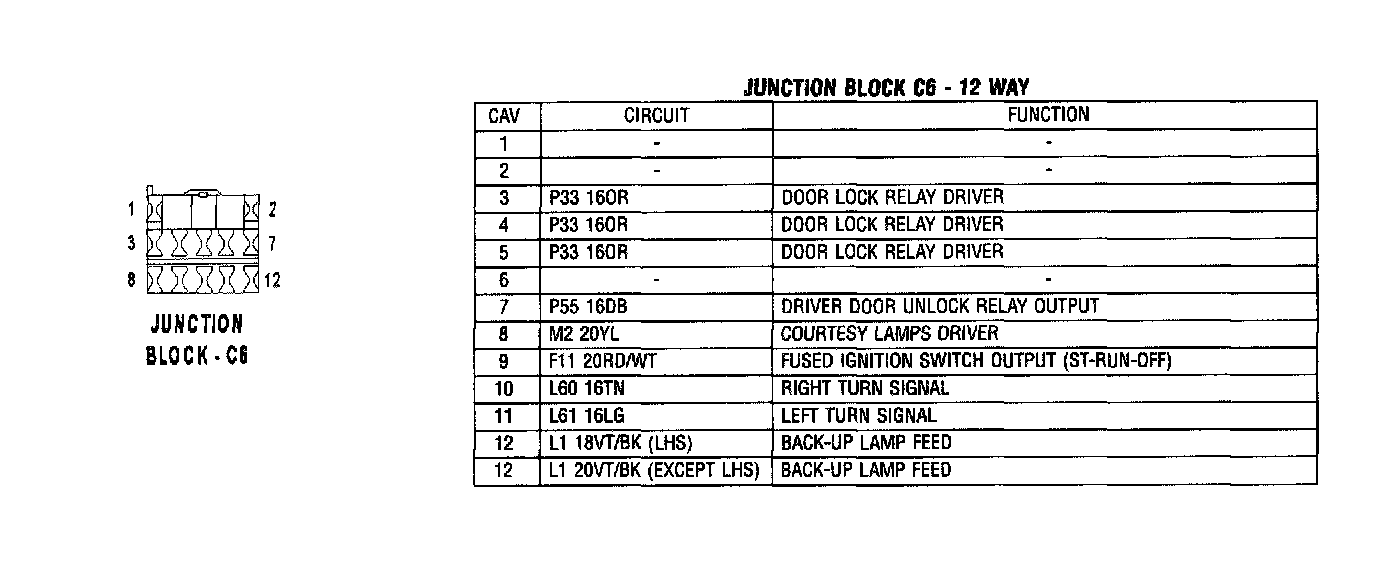

Junction Block - C6:

Junction Block - C7:

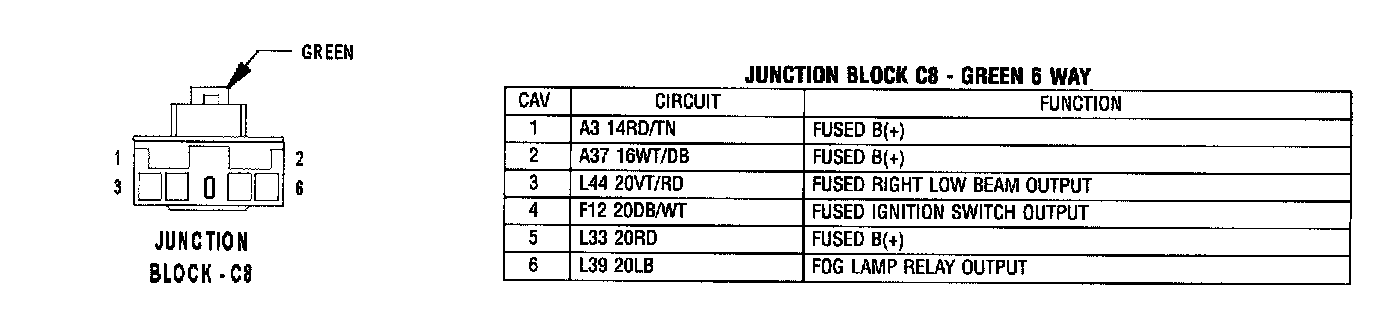

Junction Block - C8:

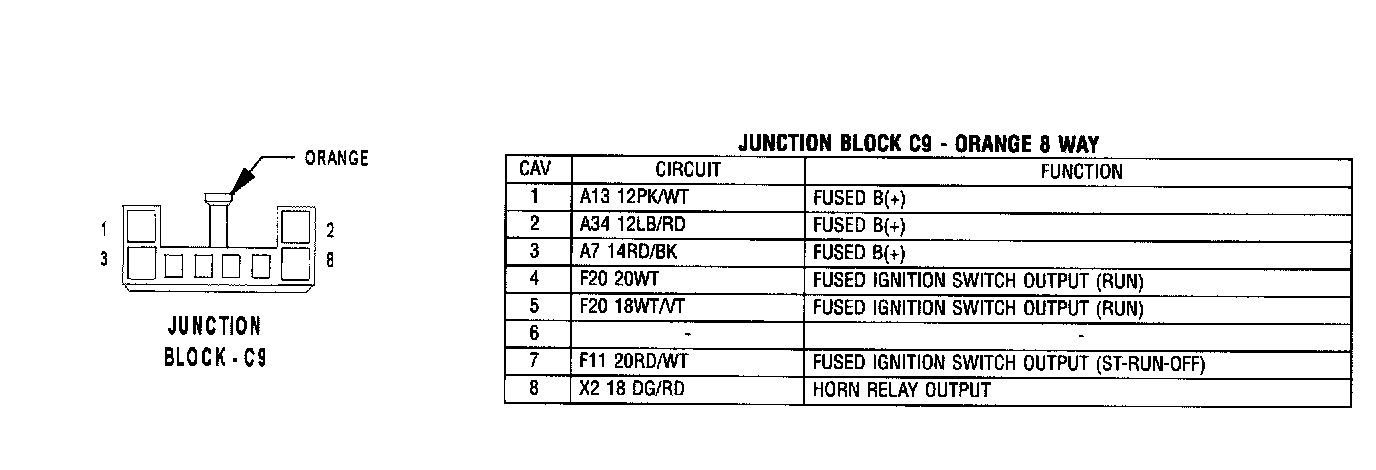

Junction Block - C9:
