Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)
Power Distribution Center:

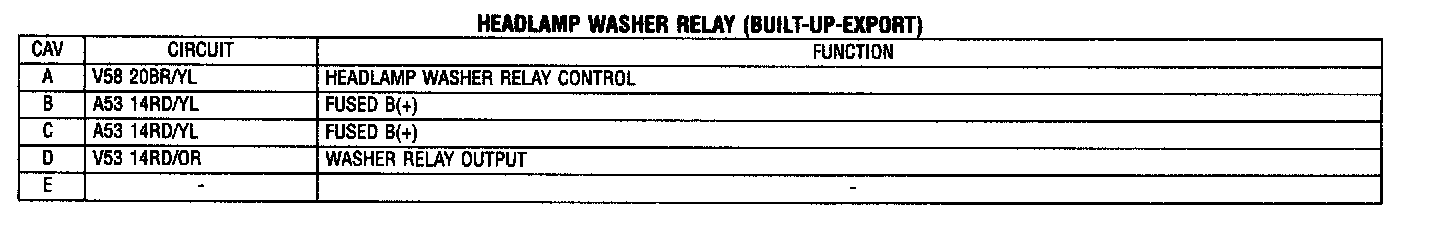

Headlamp Washer Relay (Built-Up-Export):
