Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Cluster / Carrier >> System Diagram

System Diagram

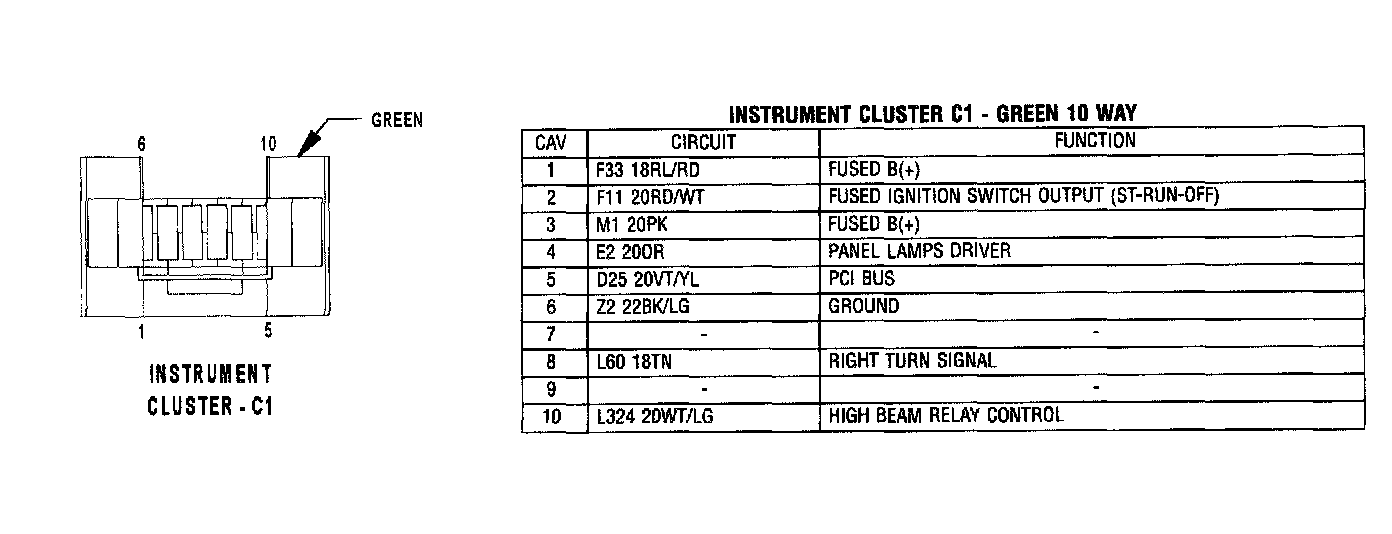

Instrument Cluster - C1:

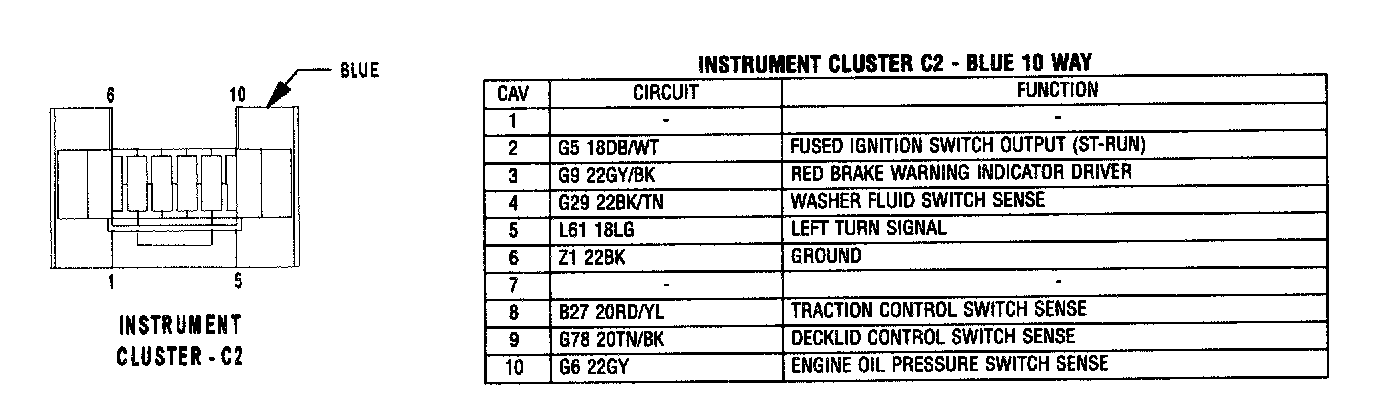

Instrument Cluster C2 Blue 10 Way:
