System Diagram

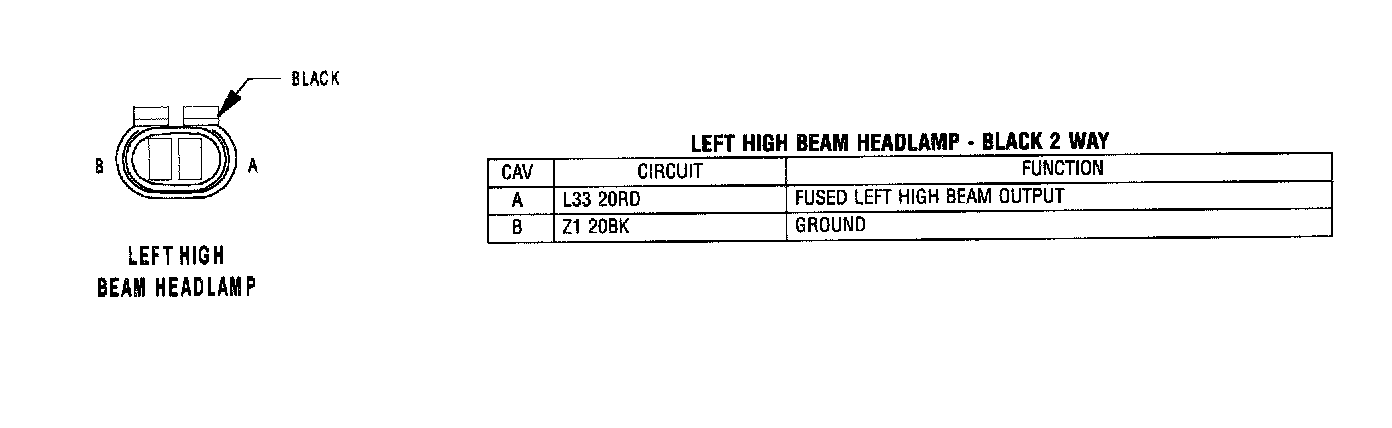

Left High Beam Headlamp:

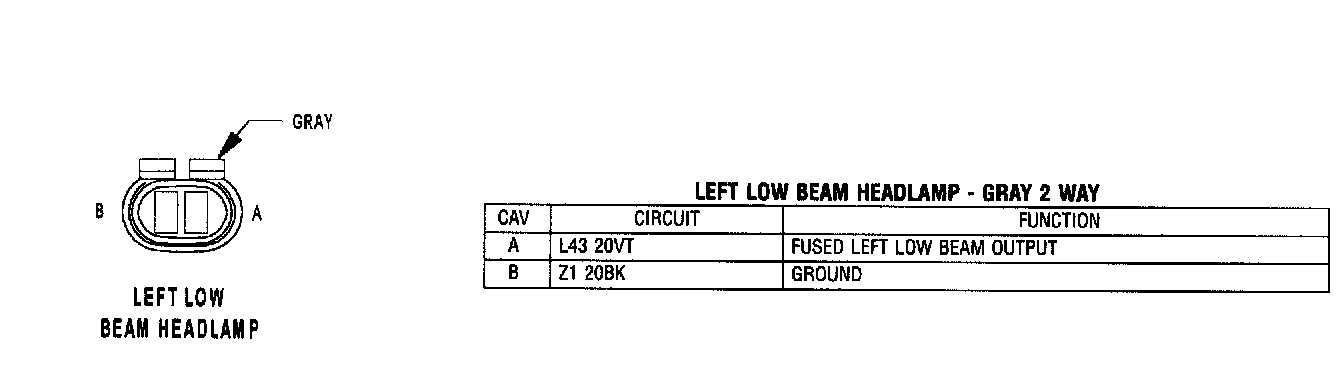

Left Low Beam Headlamp:

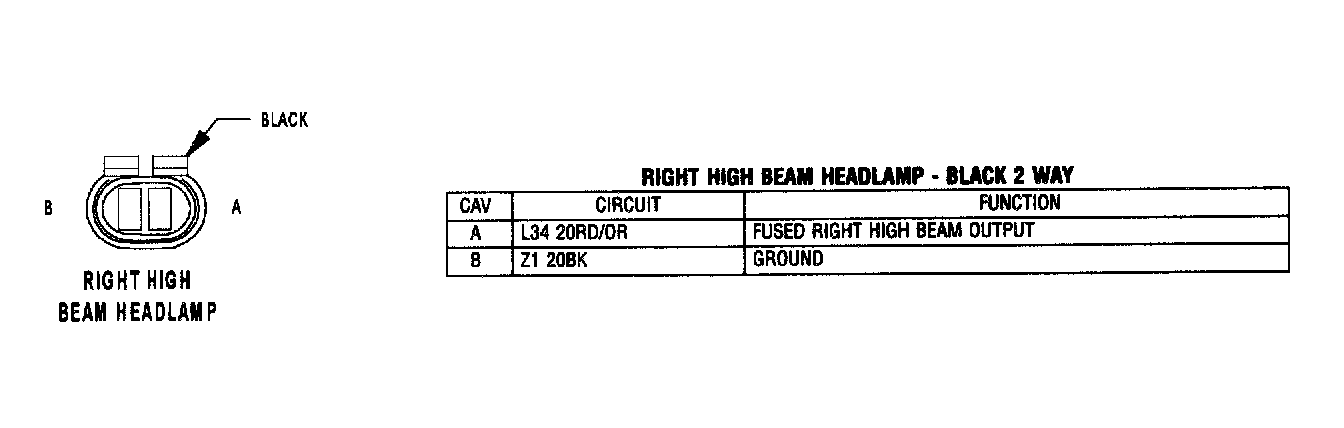

Right High Beam Headlamp:

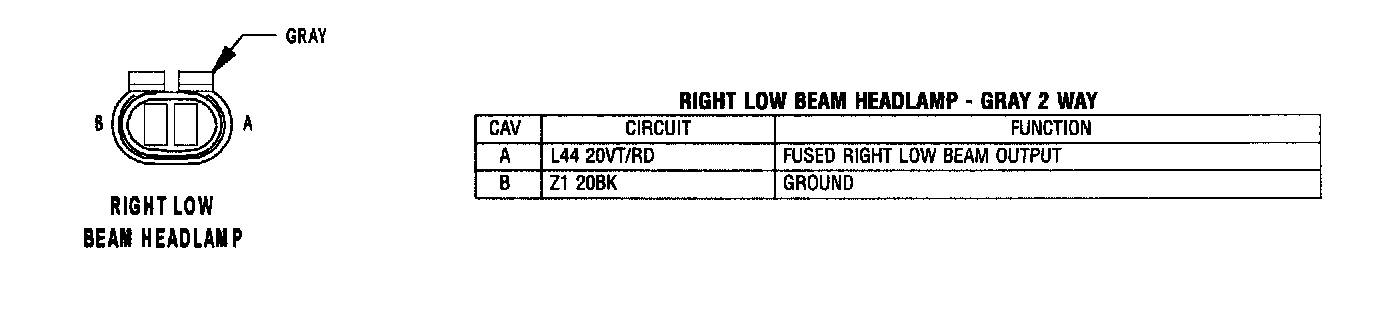

Right Low Beam Headlamp:
