Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

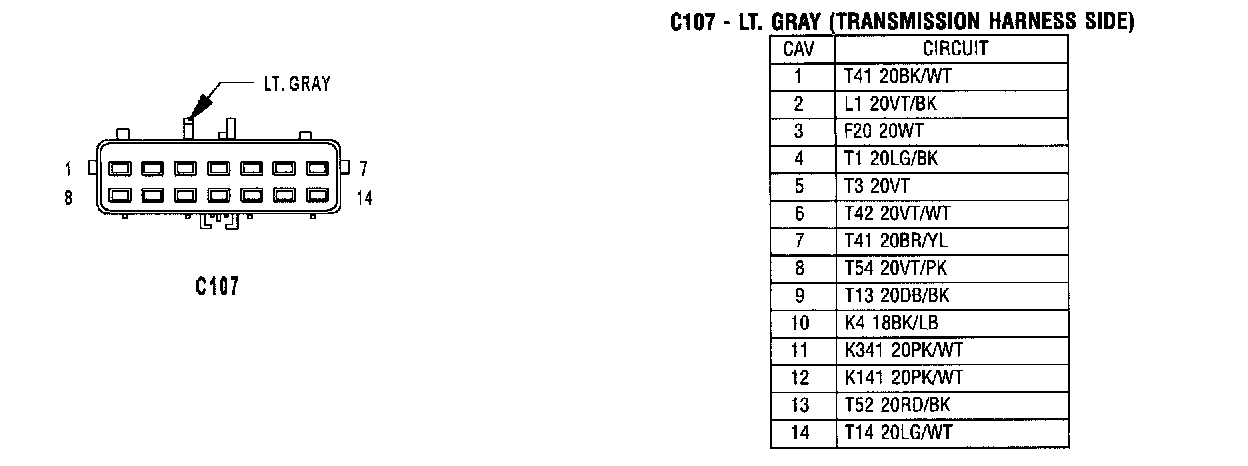

Connector Pinouts:
C107 Transmission Harness Side

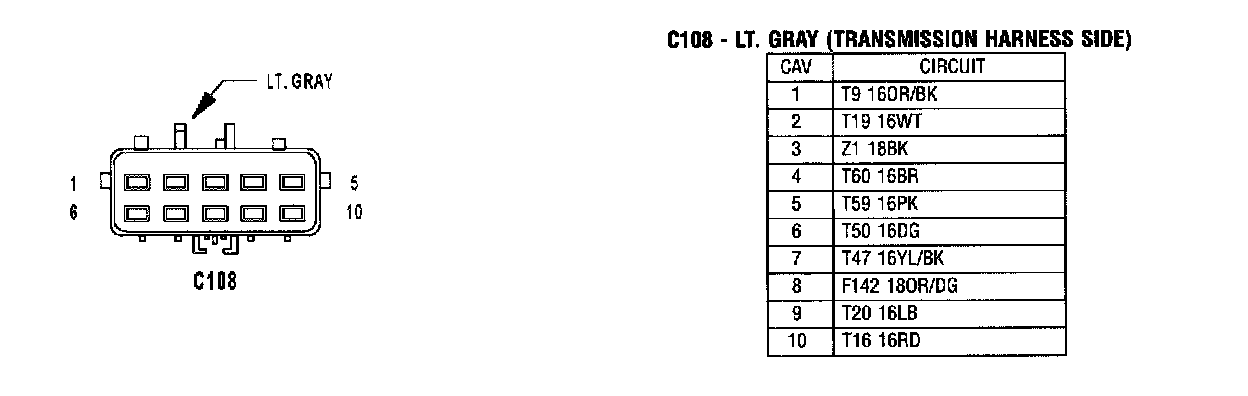

Connector Pinouts:
C108 Transmission Harness Side
