Rear Door Mounted Weatherstrip

REAR DOOR MOUNTED WEATHERSTRIP

REMOVAL

1. Using a fork type prying tool, disengage push in fasteners attaching weatherstrip to lower door.

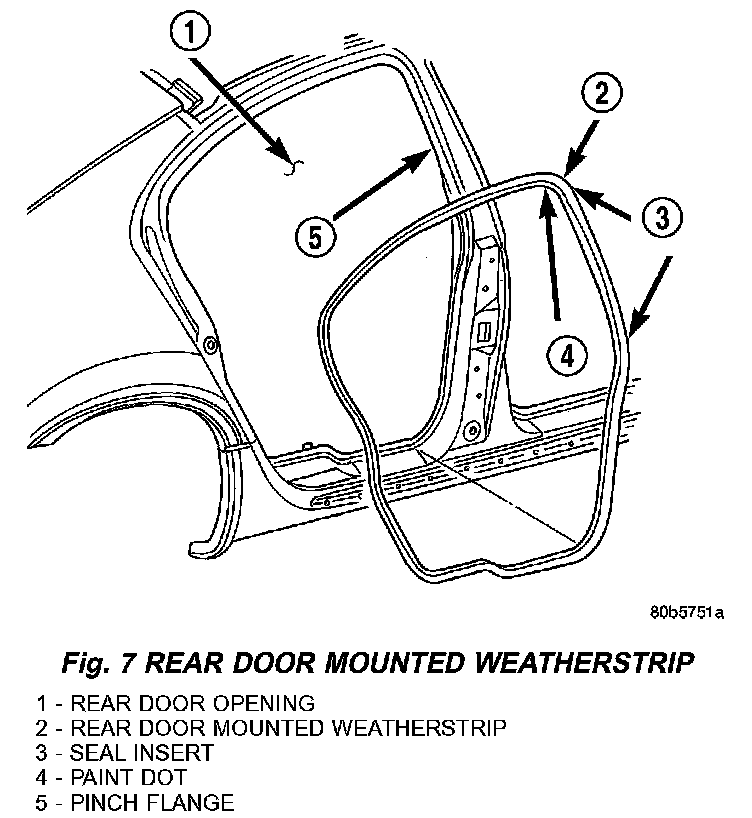

Fig. 7:

2. Remove body mounted weatherstrip from pinch weld around door opening (Fig. 7).

INSTALLATION

1. Place door mount weatherstrip in position on door with the paint dot in the upper corner of the B-pillar.
2. Install push pin fasteners to attach door mounted weatherstrip to lower door.
3. Verify door alignment and seal.
