Rear Door Body Mounted Weatherstrip

REAR DOOR BODY MOUNTED WEATHERSTRIP

REMOVAL

1. Remove door opening sill plate. Refer to Trim Panel.

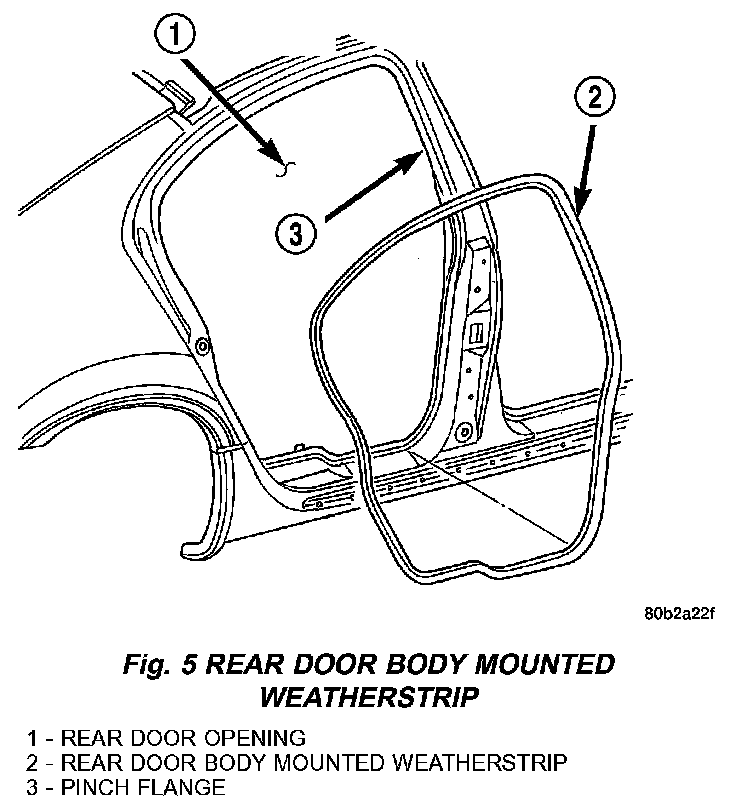

Fig. 5:

2. Pull body mounted weatherstrip from fence around door opening (Fig. 5).

INSTALLATION

1. Position color dot on weatherstrip at the B-pillar upper corner.
2. Engage weatherstrip on the fence at upper B-pillar and work down the B-pillar.
3. Engage weatherstrip along the header and down the C-pillar.
4. Engage weatherstrip along the sill. There may be slack material, work the slack material to the front of the opening.
5. Install the door opening sill plate. Refer to Trim Panel.
6. Verify weatherstrip sealing.
