Drip Rail Weatherstrip

DRIP RAIL WEATHERSTRIP

REMOVAL

1. Open front and rear doors.

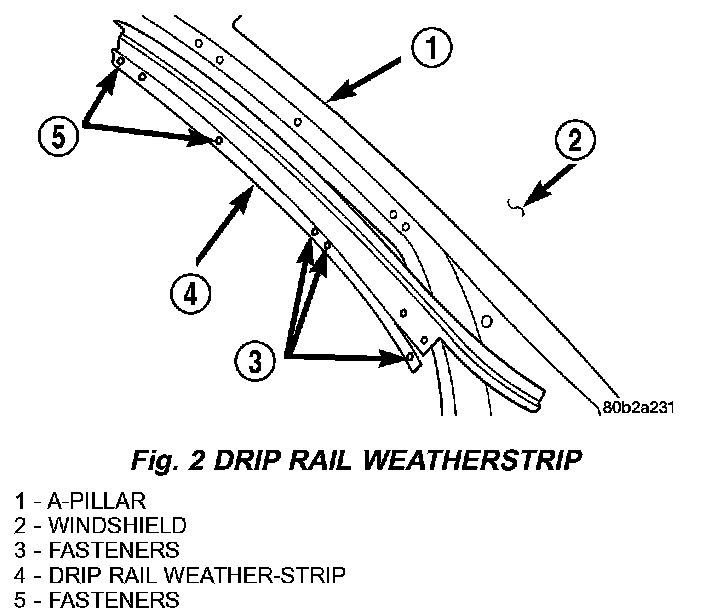

Fig. 2:

2. Remove fasteners attaching drip rail weatherstrip to body and fender tip. (Fig. 2).
3. Remove drip rail weatherstrip from vehicle.

INSTALLATION

1. Place drip rail weatherstrip in position on vehicle.
2. Start position clip at the fender tip.
3. Press down till holes are align with fastener holes in the body.
4. Install fasteners to attach drip rail weatherstrip to roof rail.
5. Close doors and verify fit.
