Rear Tow Eye

REAR TOW EYE

REMOVAL

1. Hoist and support vehicle. Refer to Vehicle Lifting.

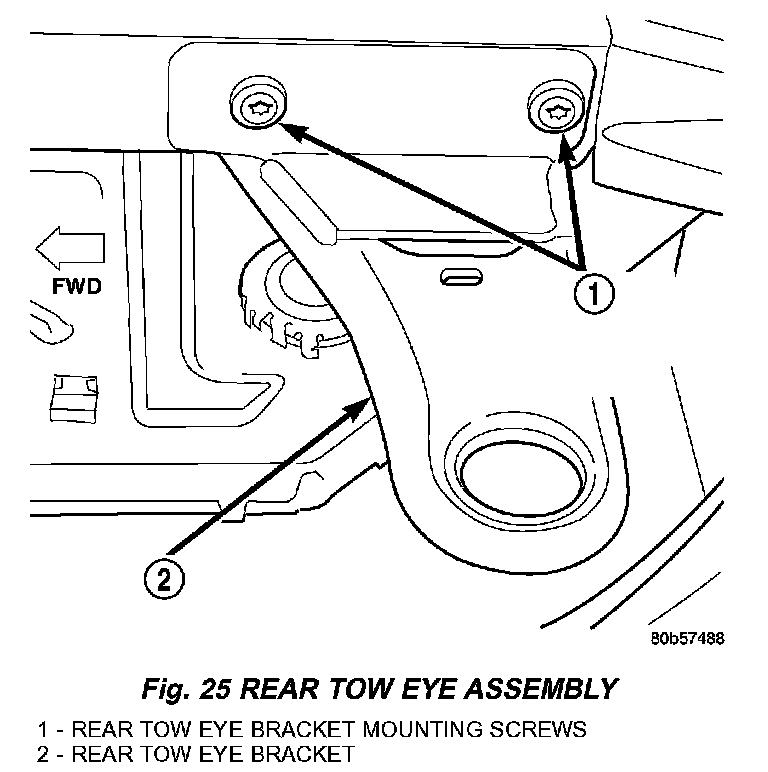

Fig. 25:

2. Remove bolts holding rear tow eye bracket to rear frame rail (Fig. 25).
3. Remove rear tow eye bracket from vehicle.

INSTALLATION

1. Position rear tow eye bracket on vehicle.
2. Install bolts to hold rear tow eye bracket to rear frame rail. Torque bolts to 48 N.m.
3. Lower vehicle.
