Trunk / Liftgate Switch: Service and Repair

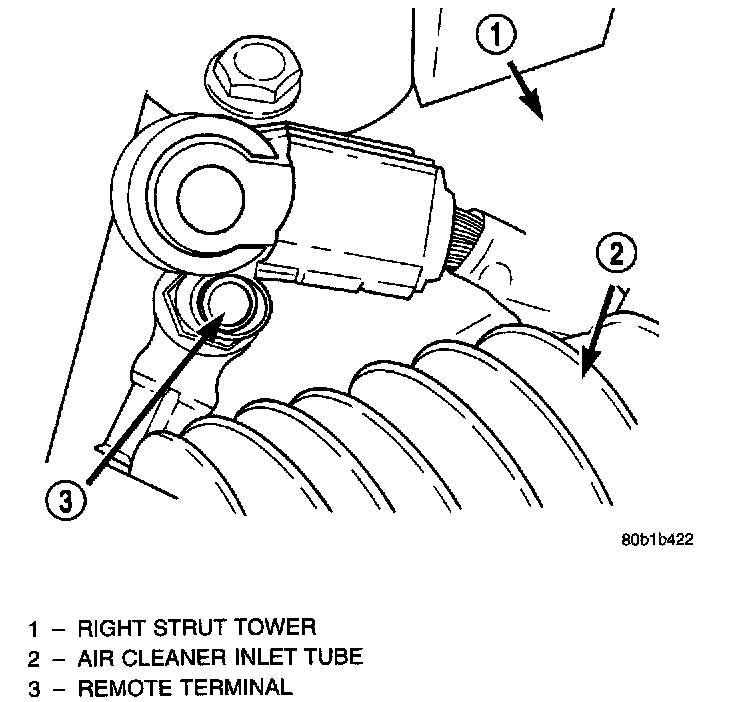

Negative Battery Cable Remote Terminal:

REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove left instrument panel endcap. Refer to Removal and Installation procedures.
3. Remove left lower instrument panel cover. Refer to Instrument Panel and Pad Assembly Removal and Installation procedures.
4. Pinch four tabs around side of decklid release switch on the rear side of the left lower instrument panel cover, and push switch through opening.

INSTALLATION
For installation, reverse the above procedures.
