Power Seat Motor Position Sensor: Diagrams

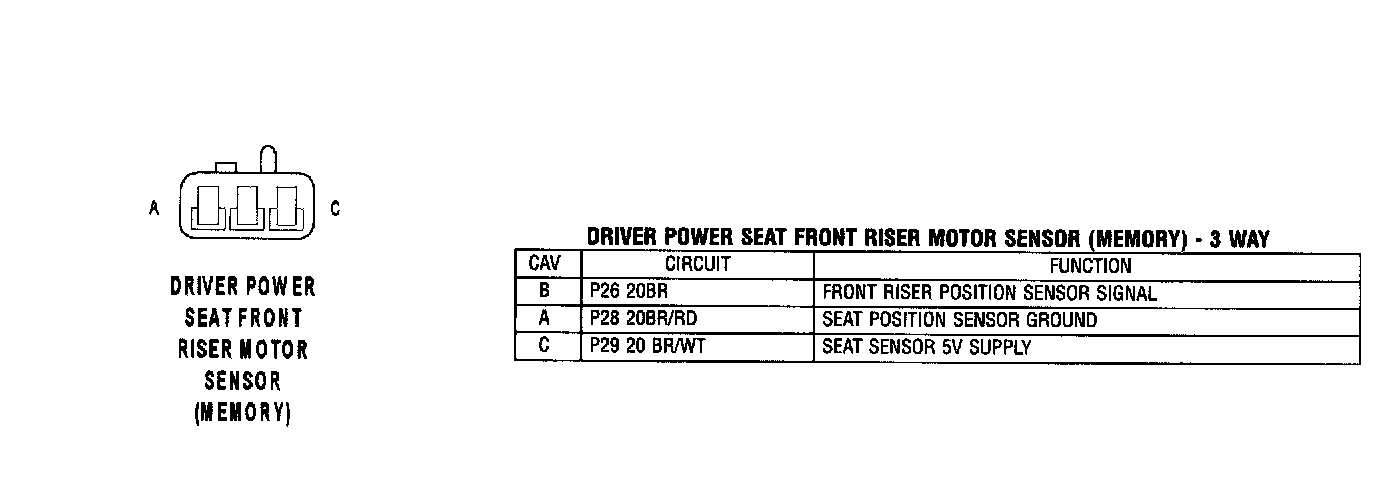

Driver Power Seat Front Riser Motor Sensor (Memory):

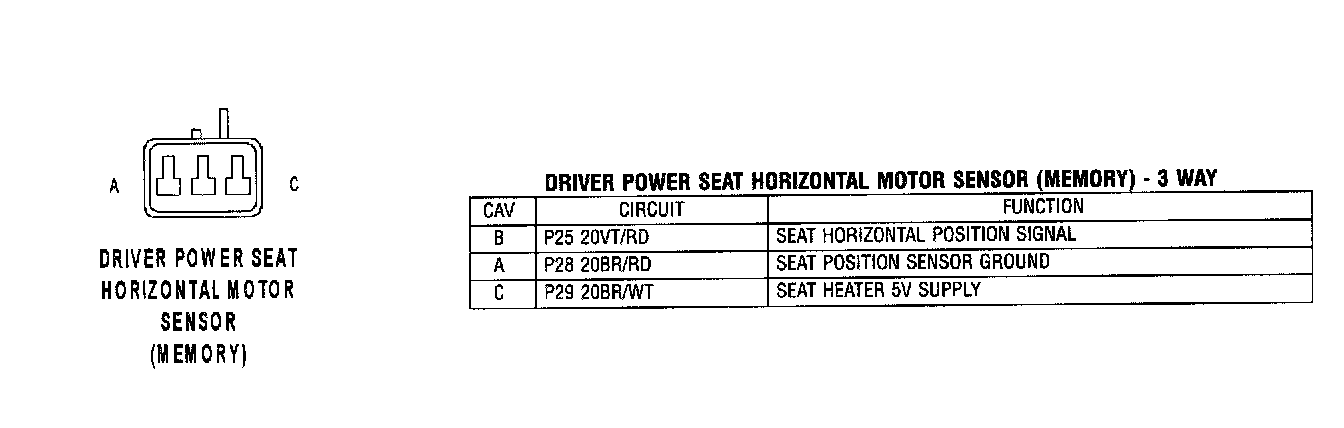

Driver Power Seat Horizontal Motor Sensor (Memory):

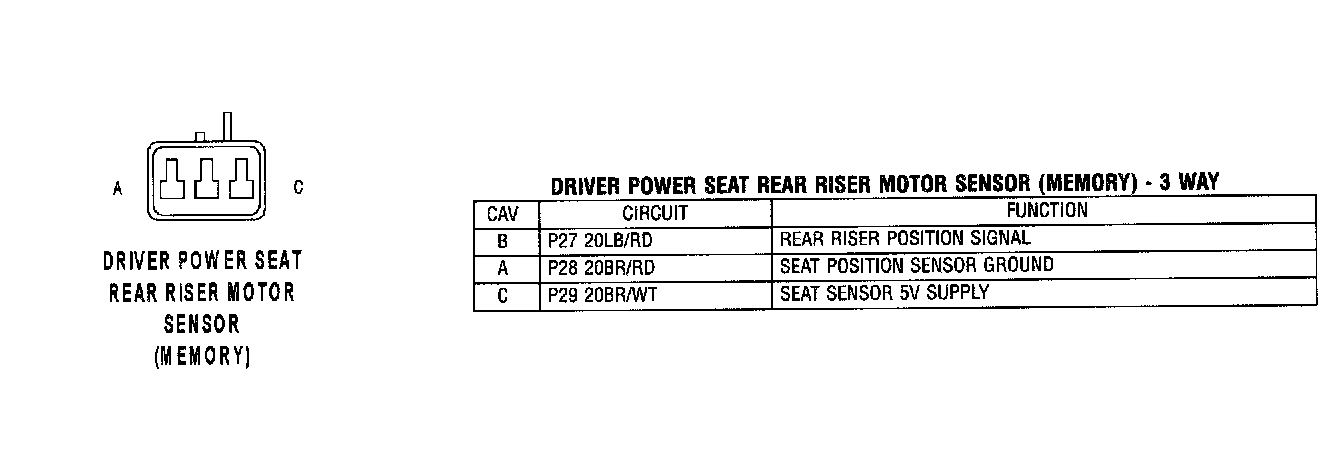

Driver Power Seat Rear Riser Motor Sensor (Memory):

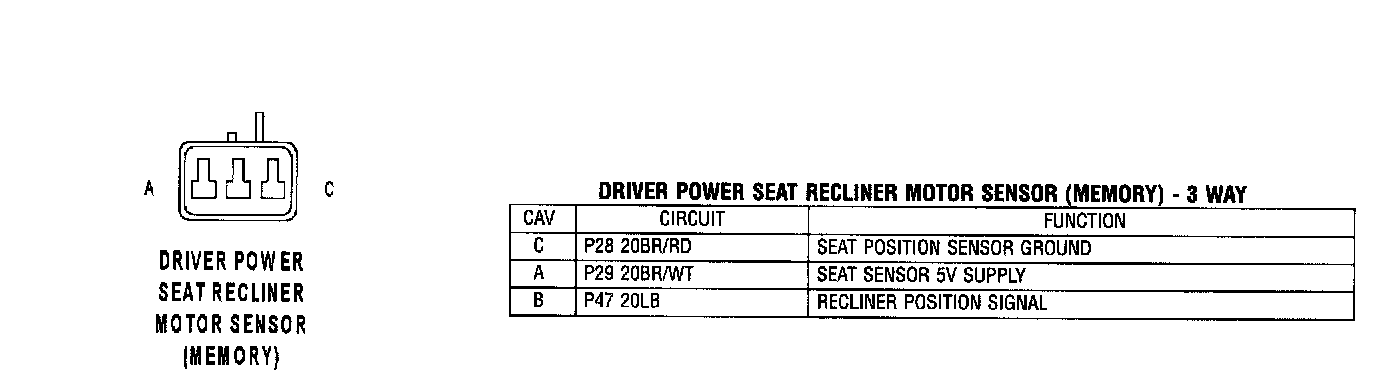

Driver Power Seat Recliner Motor Sensor (Memory):
