Front Seat Cushion

FRONT SEAT CUSHION

REMOVAL

WARNING:
- DISCONNECT AND ISOLATE THE NEGATIVE BATTERY CABLE REMOTE TERMINAL BEFORE BEGINNING ANY FRONT SEAT REMOVAL OR INSTALLATION PROCEDURE. THIS WILL DISABLE THE AIRBAG SYSTEM. FAILURE TO DISCONNECT THE BATTERY COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
- ONCE THE NEGATIVE CABLE IS DISCONNECTED WAIT FOR 2 MINUTES BEFORE REMOVING ANY AIRBAG SYSTEM COMPONENTS.

1. Remove track and recliner assembly.
2. Remove front seat back.
3. Disconnect seat cushion heater element connector, if equipped.

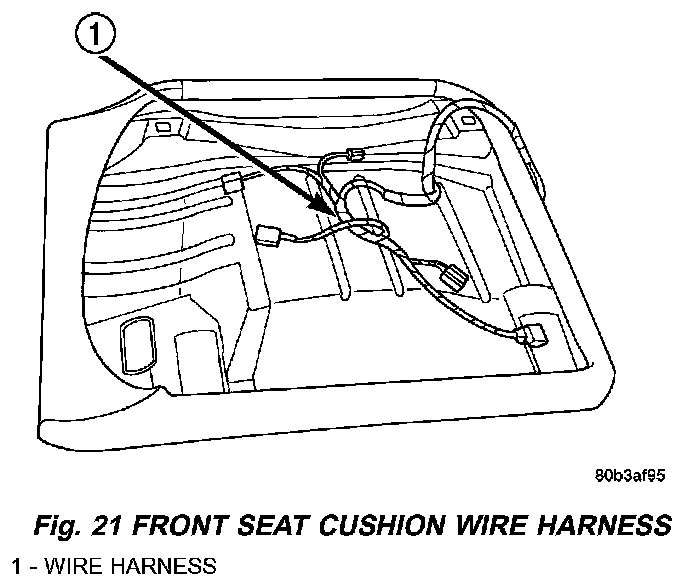

Fig. 21:

4. Disconnect wire harness fasteners from cushion frame (Fig. 21).

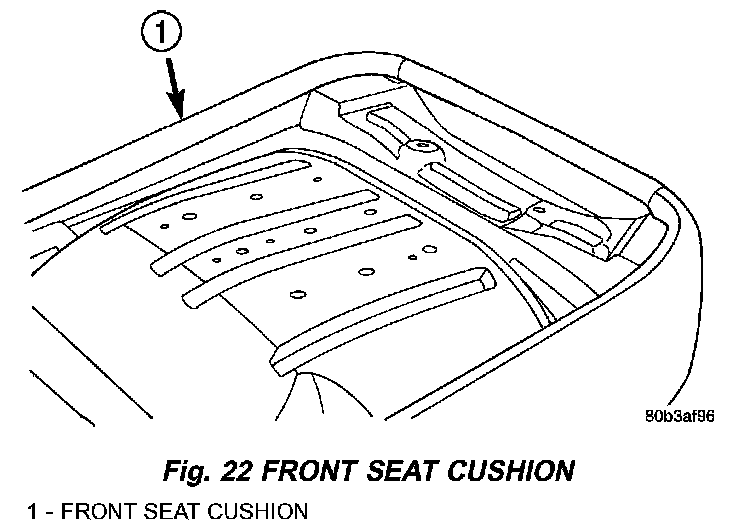

Fig. 22:

5. Remove seat cushion (Fig. 22).

INSTALLATION

1. Install wire harness fasteners to cushion frame (Fig. 21).
2. Connect seat cushion heater element connector, if equipped.
3. Install track and recliner assembly.
4. Install front seat back.
