Memory/Heated

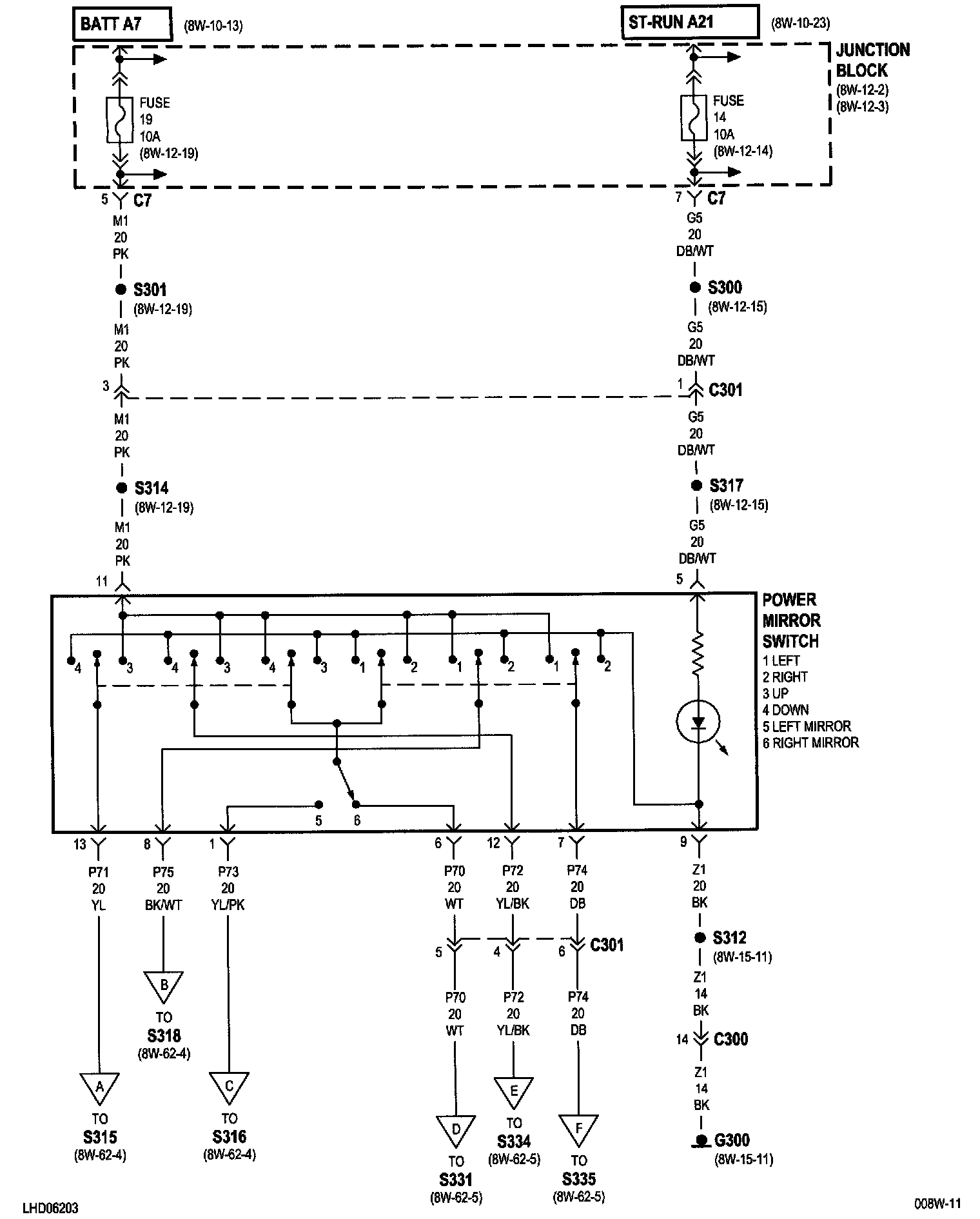

8W-62-3 (Memory/Heated):

Fuse 14 (JB)
Fuse 19 (JB)
G300
Junction Block
Power Mirror Switch

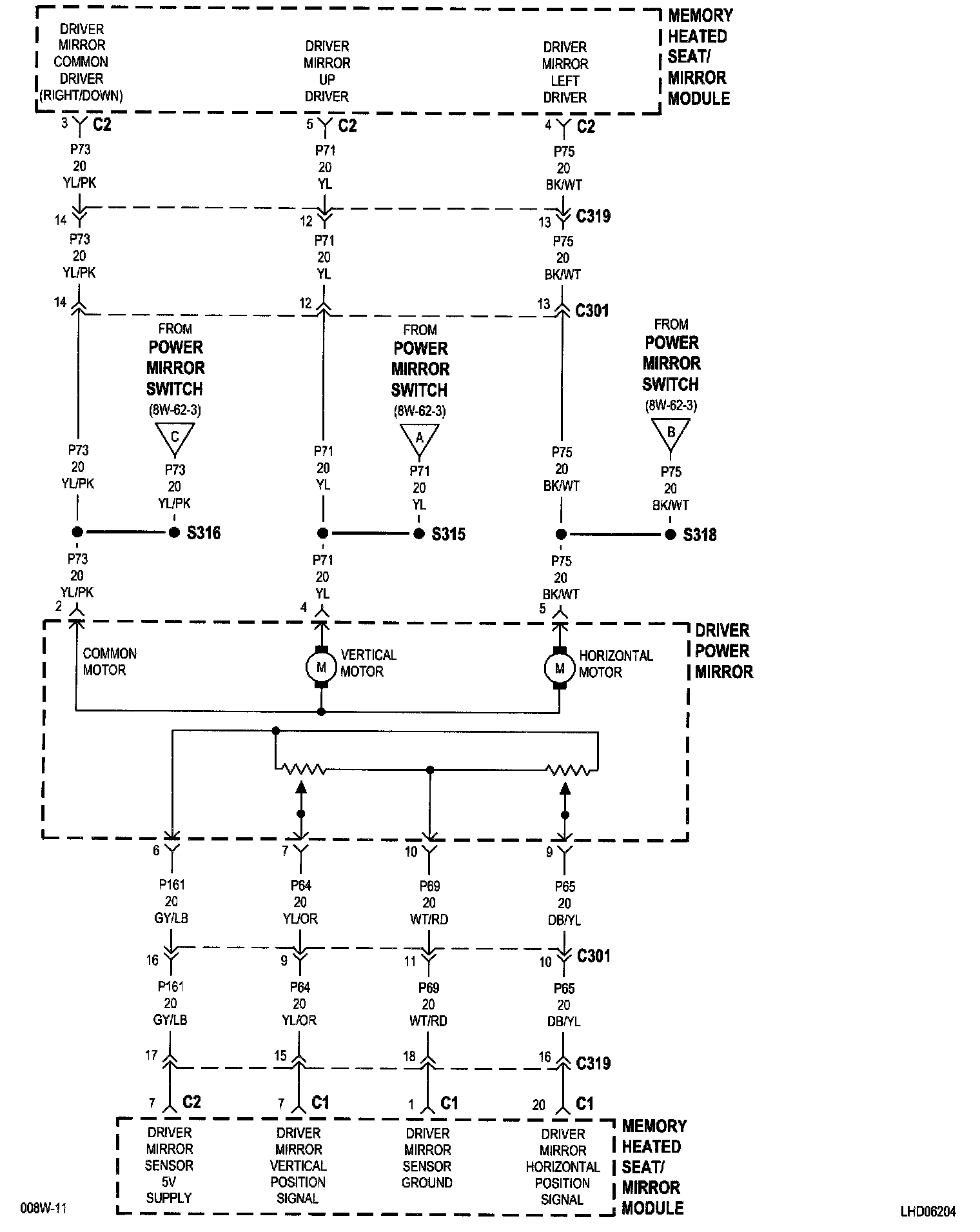

8W-62-4 (Memory/Heated):

Driver Power Mirror
Memory Heated Seat/Mirror Module

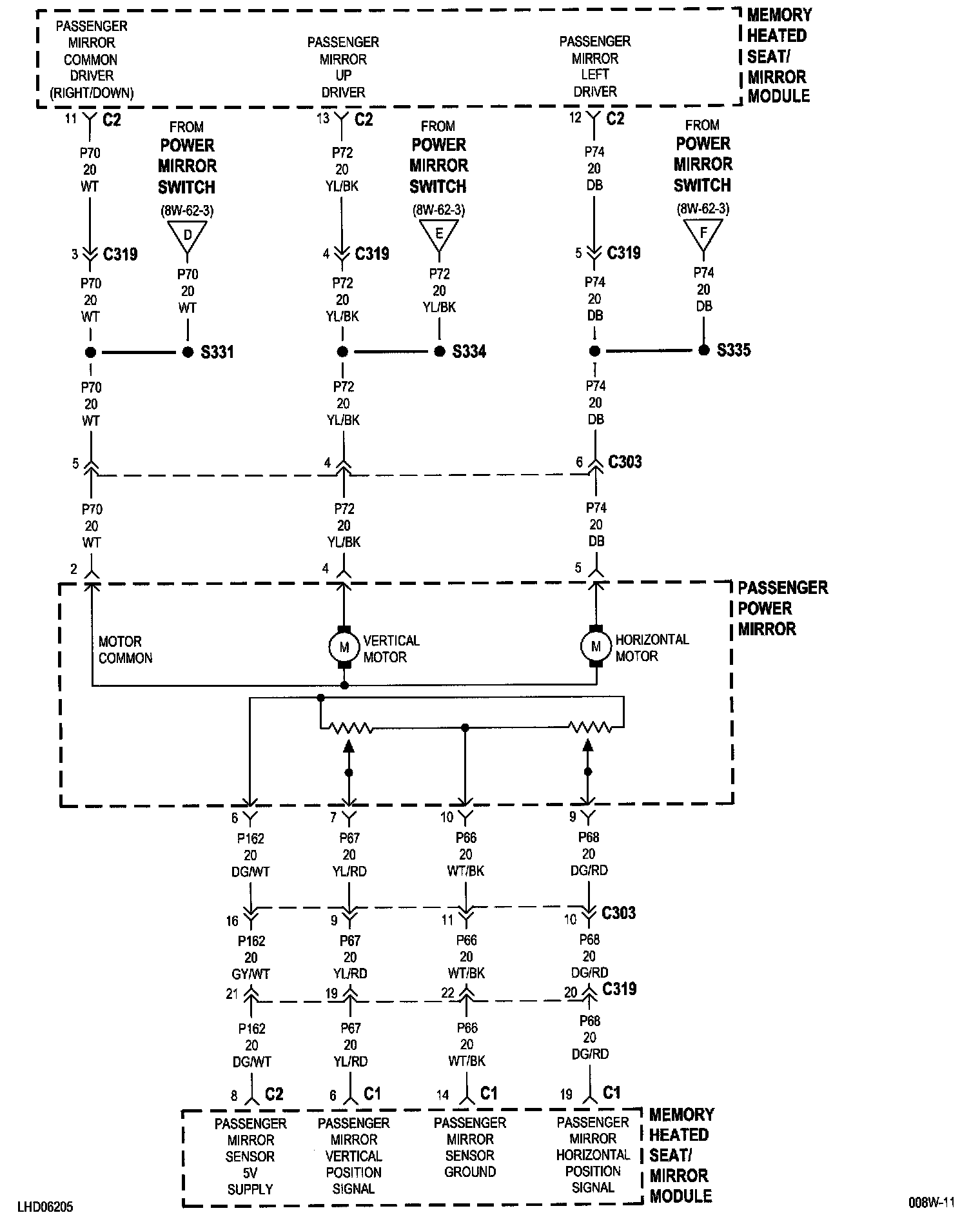

8W-62-5 (Memory/Heated):

Memory Heated Seat/Mirror Module
Passenger Power Mirror

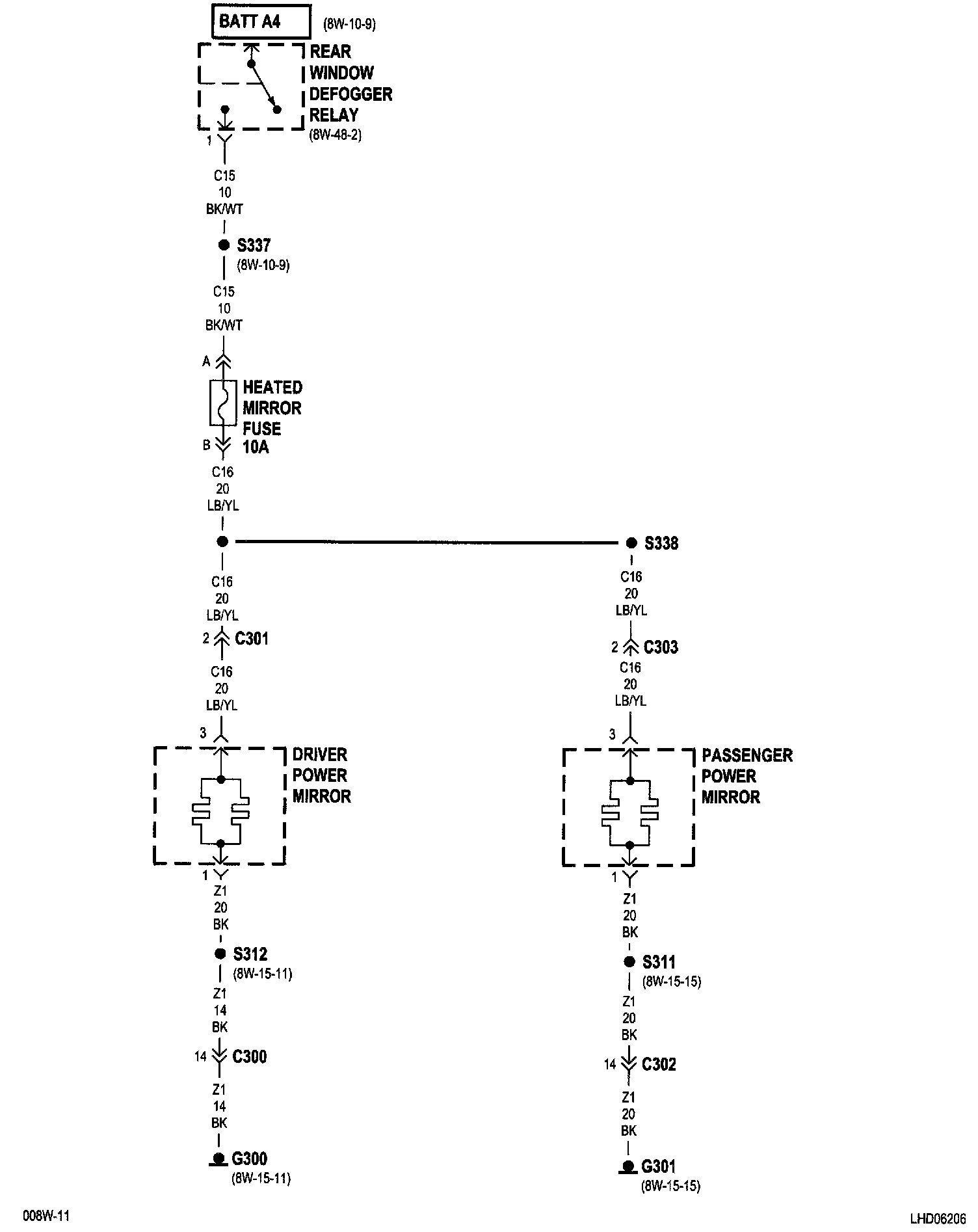

8W-62-6 (Memory/Heated):

Driver Power Mirror
G300
G301
Heated Mirror Fuse
Passenger Power Mirror
Rear Window Defogger Relay

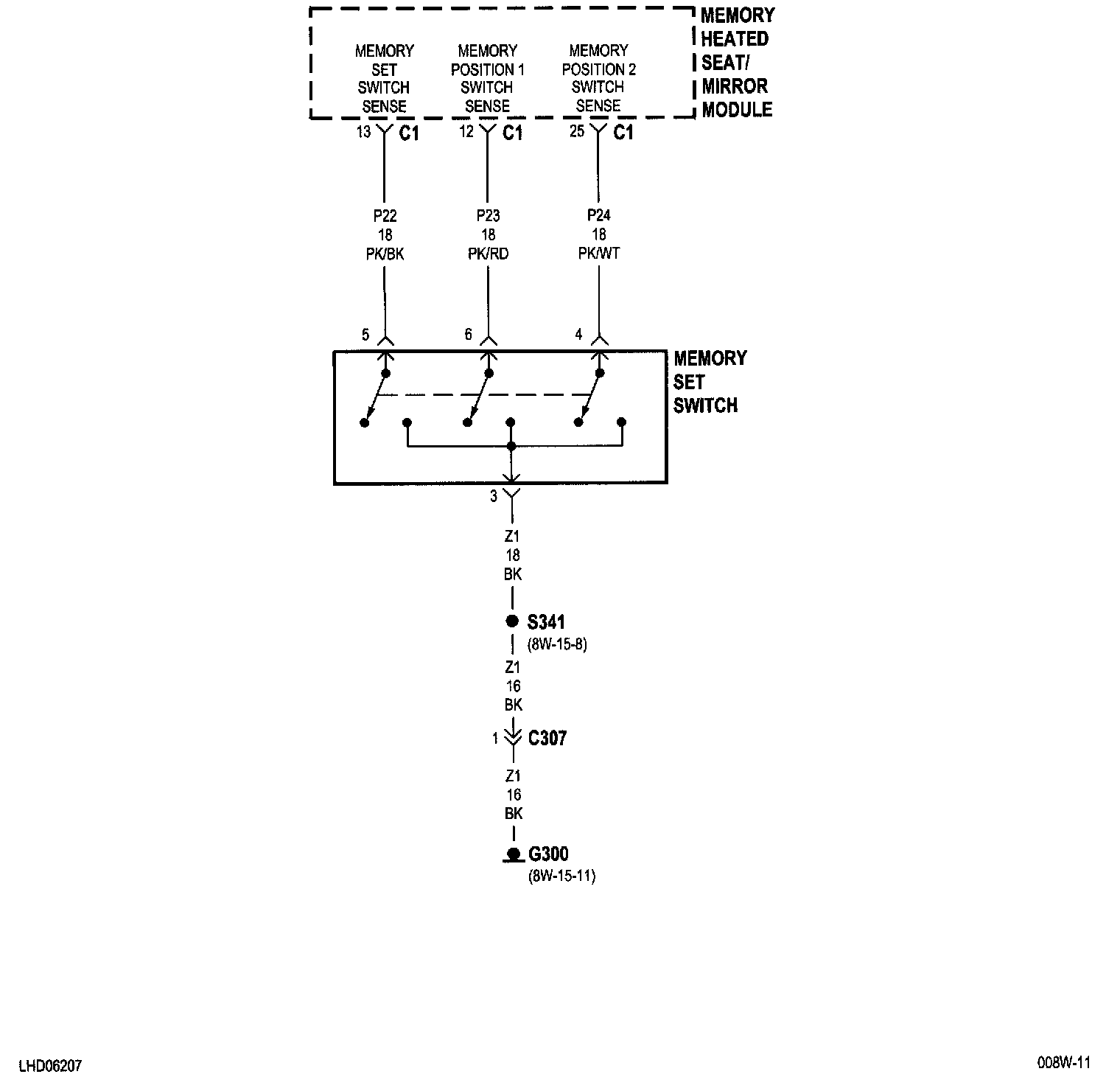

8W-62-7 (Memory/Heated):

G300
Memory Heated Seat/Mirror Module
Memory Set Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
