Electrical Diagrams

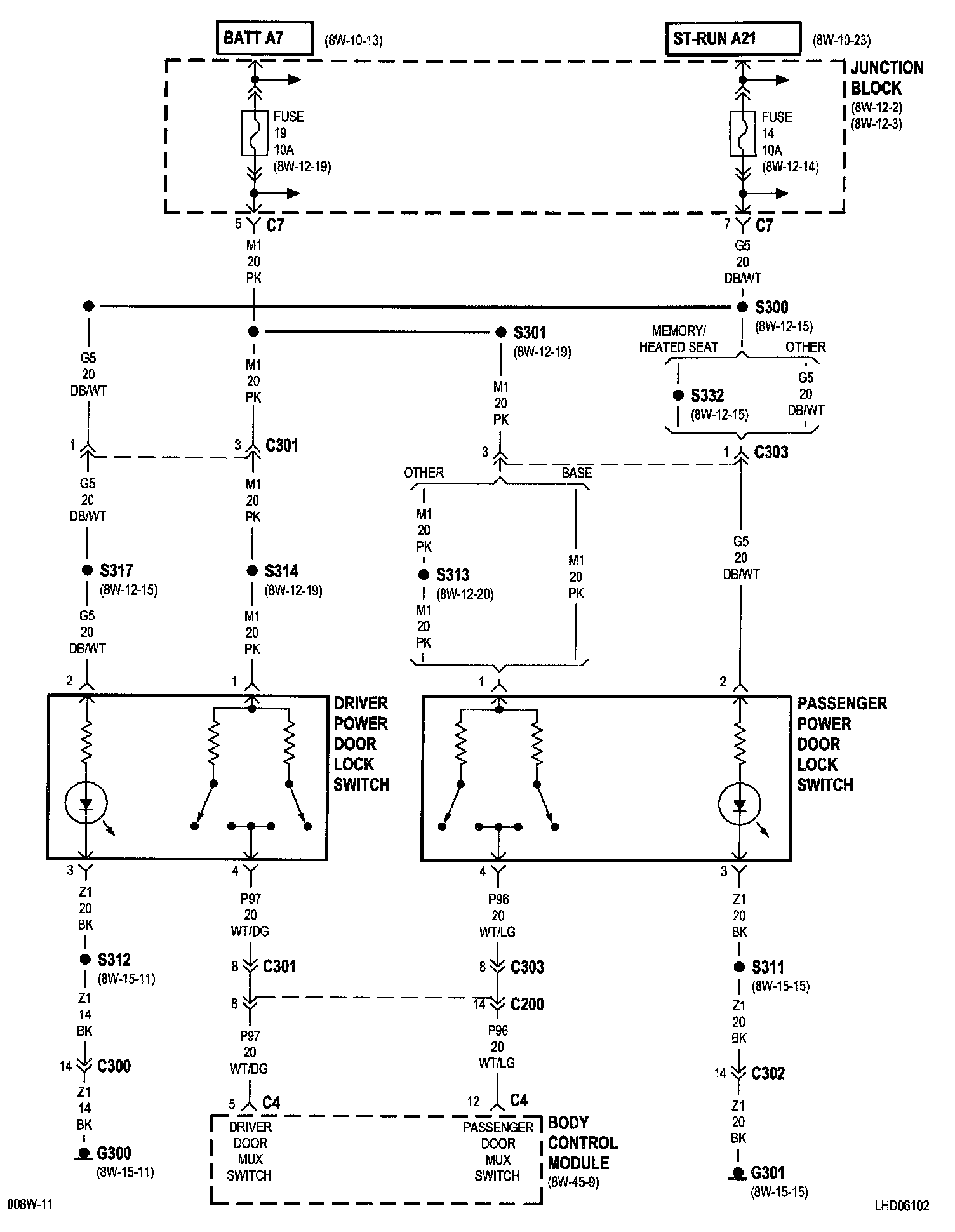

8W-61-2:

Power Door Locks/RKE:

Body Control Module
Driver Power Door Lock Switch
Fuse 14 (JB)
Fuse 19 (JB)
G300
G301
Junction Block
Passenger Power Door Lock Switch

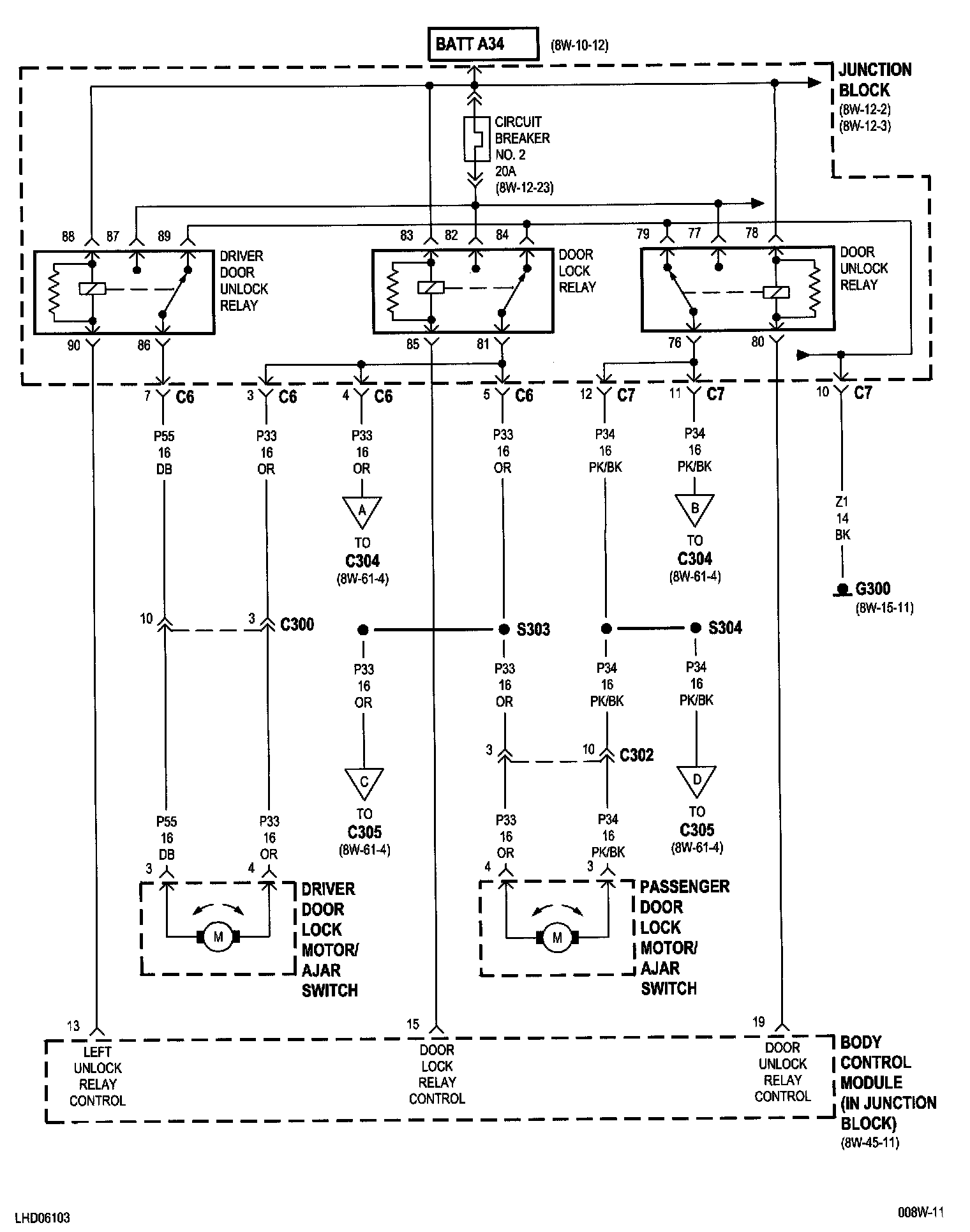

8W-61-3:

Body Control Module
Circuit Breaker No.2 (JB)
Door Lock Relay
Door Unlock Relay
Driver Door Lock Motor/Ajar Switch
Driver Door Unlock Relay
G300
Junction Block
Passenger Door Lock Motor/Ajar Switch

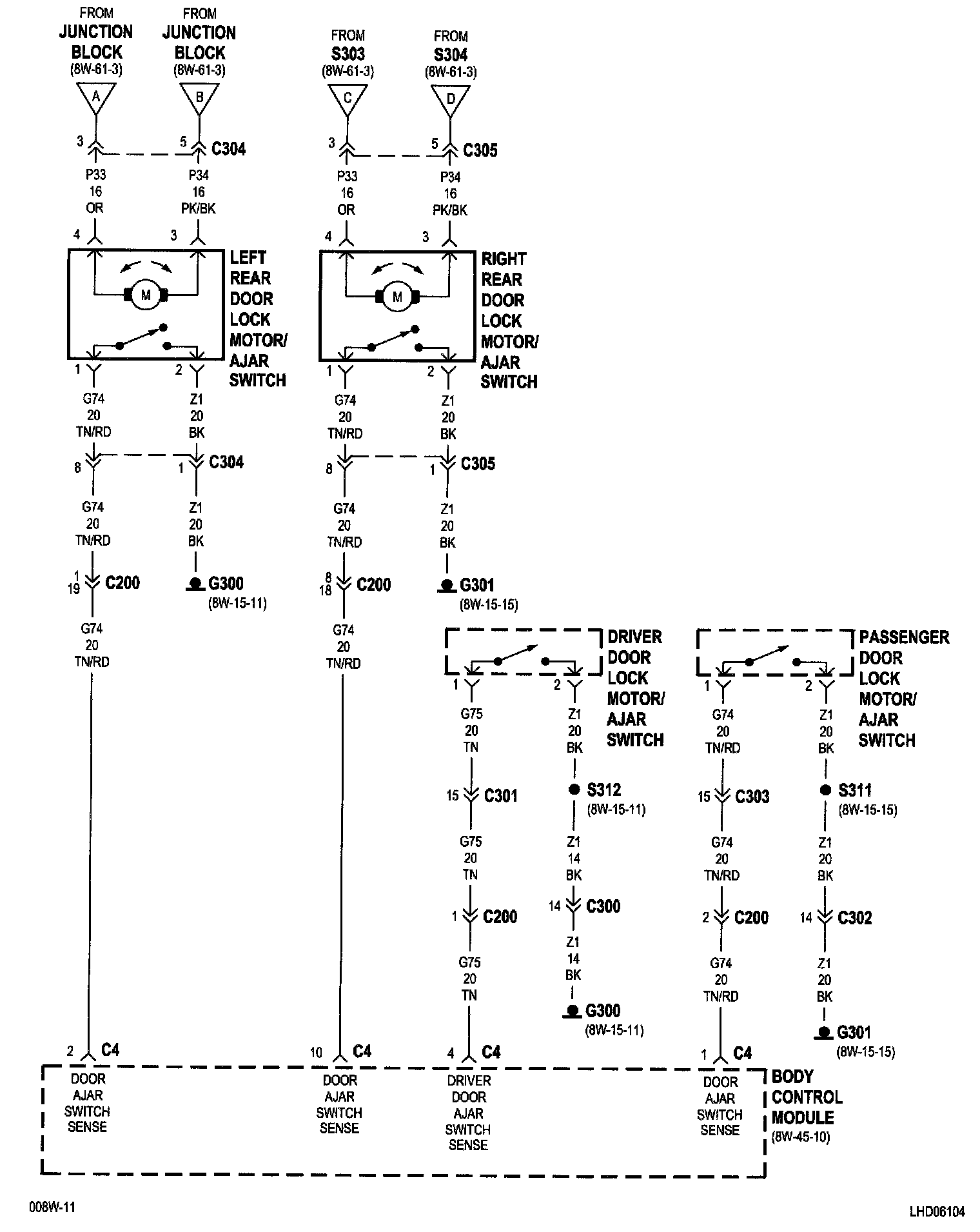

8W-61-4:

Body Control Module
Driver Door Lock Motor/Ajar Switch
G300
G301
Left Rear Door Lock Motor/Ajar Switch
Passenger Door Lock Motor/Ajar Switch
Right Rear Door Lock Motor/Ajar Switch

8W-61-5:

Body Control Module
Decklid Release Solenoid/Ajar Switch
Decklid Release Switch
Fuse 19 (JB)
G301
G301
Instrument Cluster
Junction Block

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
