Rear Shelf Trim Panel

REAR SHELF TRIM PANEL

REMOVAL

1. Remove seat cushion and back.
2. Remove quarter trim lower and upper trim panels.
3. Remove center seat belt anchor bolt.
4. Remove push pin fasteners.

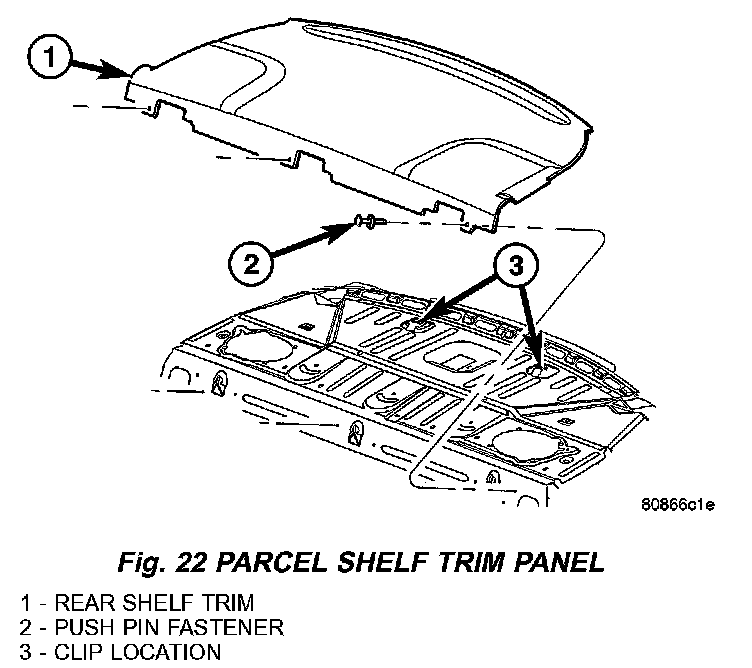

Fig. 22:

5. Pull rear shelf trim panel away from rear glass to disengage clips (Fig. 22).
6. Disengage CHMSL wire connector, if equipped.
7. Feed center seat belt and bezel through rear shelf trim panel.
8. Remove rear shelf trim panel from vehicle.

INSTALLATION

1. Place rear shelf trim panel in position in vehicle.
2. Feed center seat belt and bezel through rear trim panel.
3. Connect CHMSL wire connector.
4. Push parcel shelf trim rearward toward rear glass and engage clips.
5. Insert push pin fasteners into position.
6. Install quarter trim lower and upper panels.
7. Install center seat belt anchor bolt. Tighten to 40 N.m (29 ft.lbs.) torque.
8. Install seat back and cushion.
