Quarter Panel Trim

UPPER QUARTER TRIM

REMOVAL

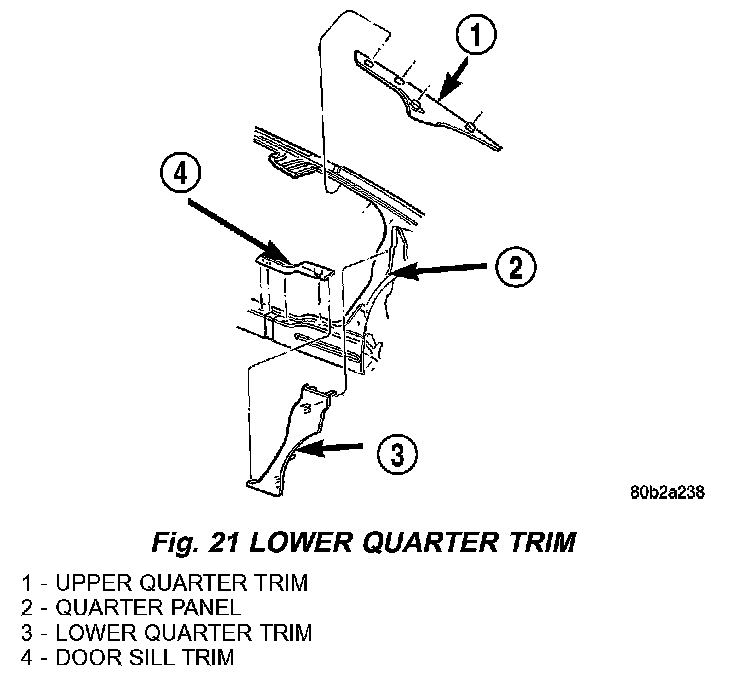

Fig. 21:

1. Disengage clips attaching upper quarter trim to inner quarter panel (Fig. 21).

NOTE: Start at top forward area of trim and pull inboard.

2. Remove seat cushion.
3. Remove lower seat belt anchor nut.
4. Slide seat belt through trim panel.
5. Remove upper quarter trim from vehicle.

INSTALLATION

1. Slide belt through trim panel.
2. Place upper quarter trim in position on vehicle.
3. Engage clips attaching upper quarter trim to inner quarter panel.

NOTE: Start at lower attachments first and work up.

4. Install seat belt anchor nut.
5. Install seat cushion.
