B-Pillar Upper Trim

B-PILLAR UPPER TRIM

REMOVAL

1. Disengage shoulder belt turning loop cover.
2. Remove adjuster knob.
3. Remove bolt attaching turning loop to shoulder belt height adjuster.
4. Remove turning loop from adjuster.

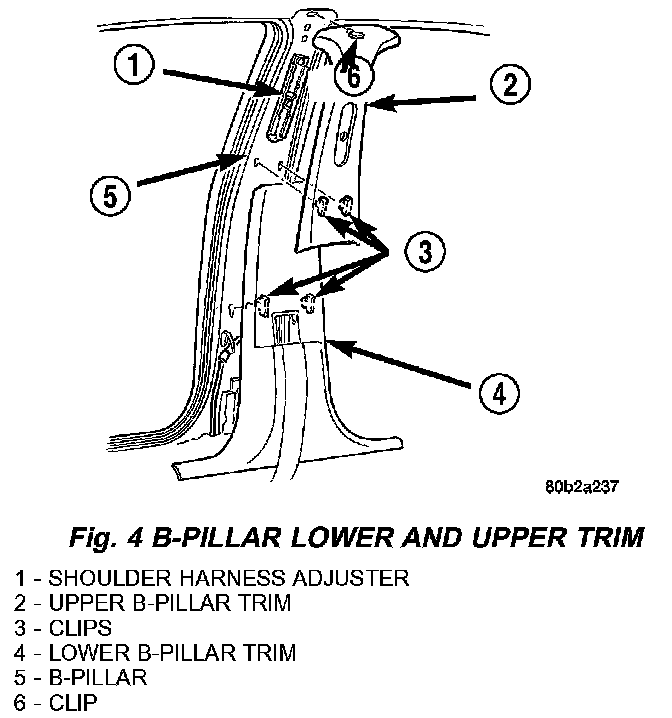

Fig. 4:

5. Disengage clips attaching upper trim to B-pillar (Fig. 4).
6. Remove B-pillar trim from vehicle.

INSTALLATION

1. Place B-pillar trim in position on vehicle.
2. Engage clips attaching upper trim to B-pillar.
3. Place shoulder belt turning loop in position on adjuster.
4. Install adjuster knob.
5. Install bolt attaching turning loop to shoulder belt height adjuster.
6. Install shoulder belt turning loop cover.
7. Refit weatherstrip.
