A-Pillar Trim

A-PILLAR TRIM

REMOVAL

1. Remove instrument panel end cap.

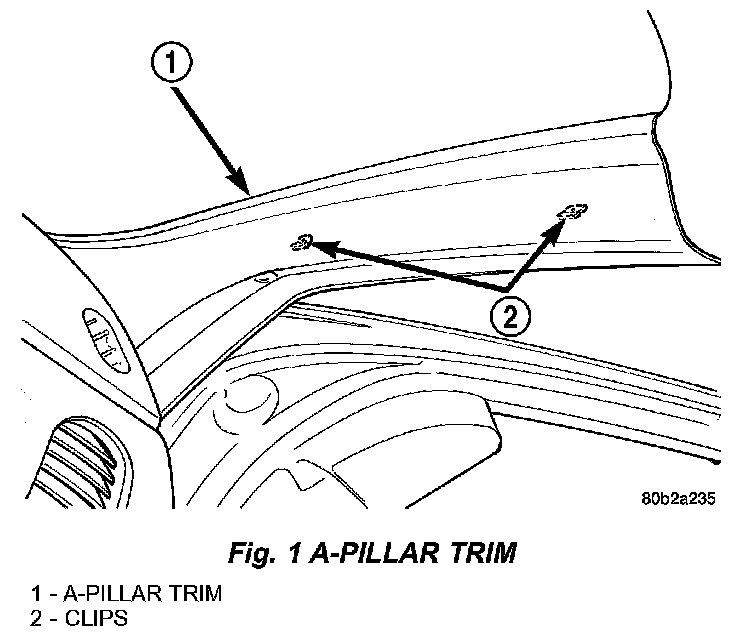

Fig. 1:

2. Disengage clips attaching trim to A-pillar by pulling on trim (Fig. 1).
3. Slide A-pillar trim rearward, to disengaging from instrument panel top cover.
4. Remove A-pillar trim from vehicle.

INSTALLATION

1. Slide A-pillar trim forward ensuring that the trim engages with the instrument panel top cover.
2. Engage clips to attach trim to A-pillar.
3. Install instrument panel end cap.
