Door Sill Trim Panel

DOOR SILL TRIM

REMOVAL

The door sills are attached with push pin fasteners.

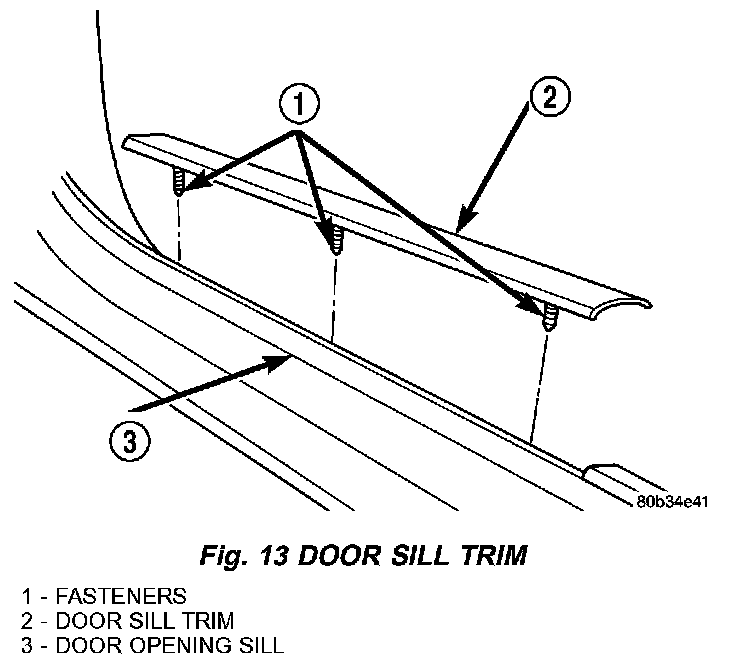

Fig. 13:

1. Disengage fasteners attaching door sill trim to sill panel (Fig. 13).
2. Remove sill trim from vehicle.

INSTALLATION

1. Place sill trim in position on vehicle.
2. Seat fasteners to attach door sill trim to sill panel.
