Sun Visor: Service and Repair

SUN VISOR

REMOVAL

All vehicles with driver and passenger side air bags must have a colored coded five Bullet point air-bag warning label applied to the sun visor, verify label availability and ensure the label is installed.

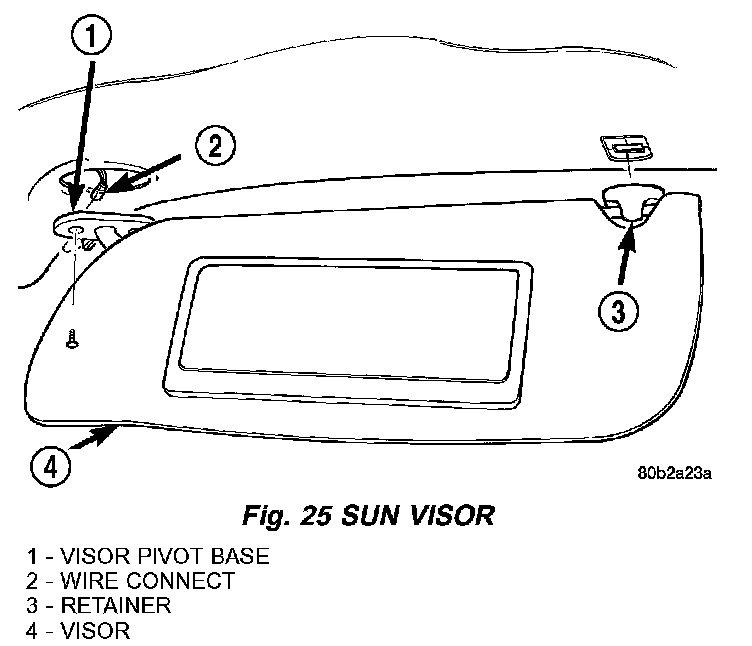

Fig. 25:

1. Remove screw attaching inboard visor retainer to over head. (Fig. 25).
2. Remove screws attaching outboard visor pivot base to roof.
3. Disconnect visor vanity lamp wire connector, if equipped.
4. Remove visor from vehicle.

INSTALLATION

All vehicles with driver and passenger side airbags must have a colored coded five bullet point airbag warning label applied to the sun visor, verify label availability and ensure the label is installed.

1. Engage visor vanity lamp wire connector, if equipped.
2. Place visor in position on header.
3. Install screws attaching outboard visor pivot base to over head.
4. Install screw attaching inboard visor retainer to over head.
